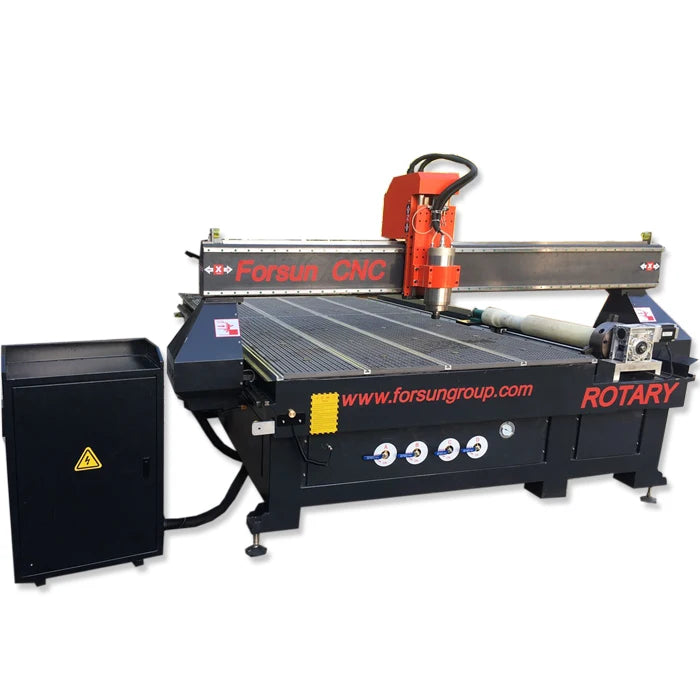

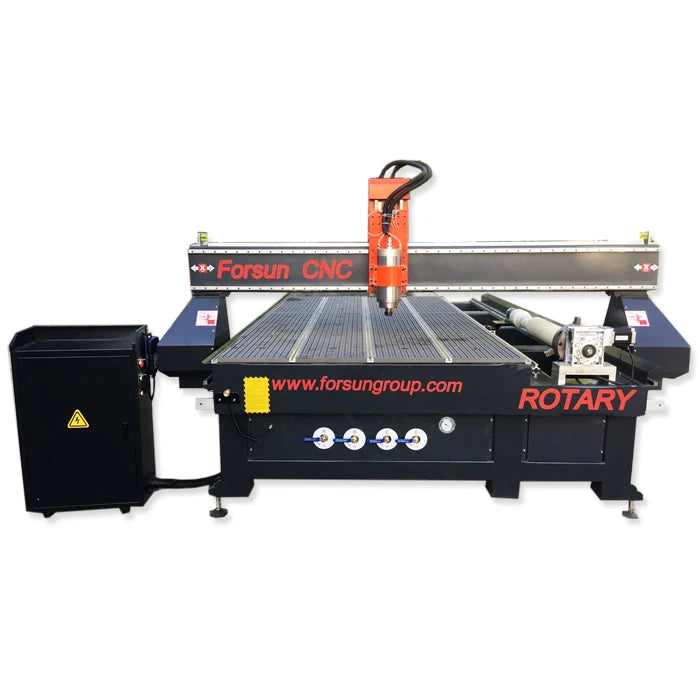

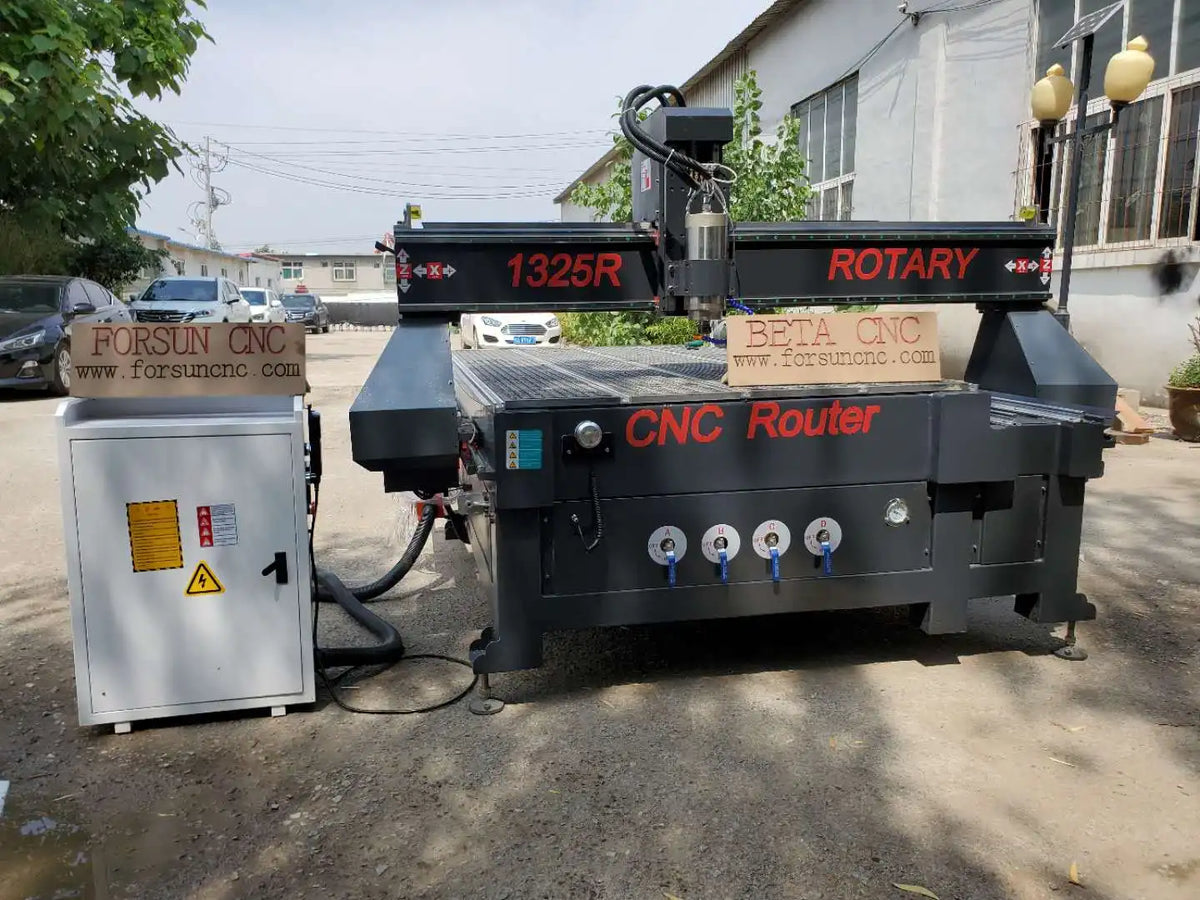

1325 High Speed 4 Axis Cnc Rotary Wood Router Made in China With T-slot Table
1325 High Speed 4 Axis Cnc Rotary Wood Router Made in China With T-slot Table
SPECIFICATIONS
After-sales Service Provided: Engineers available to service machinery overseas
BETA: cnc router wood carving cnc turning
Driving model: Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw
No. of Spindles: Single
Power (kW): 6
Spindle Motor Power (kw): 6
Weight: 1500kg
Working Table Size(mm): 1300×2500
Working area: 1300mm*2500mm*200mm
brand name: Beta
cnc engraving machine Motor: SIEMENS AC Servo motors from Germany
cnc engraving machine System: NC studio or DSP
cnc or not: CNC
cnc router Machine body: Solid steel frame construction thicken to 10mm
cnc router Table: T-Slot Vacuum table
cnc router machine Guide: HIWIN Linear Guide for maximum stiffness from Taiwan
core components: Bearing,Motor,Pump,Gear,PLC,Pressure Vessel,Engine,Gearbox
dimension(l*w*h): 3250*2150*1850MM
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
place of origin: Jinan
positioning accuracy (mm): 0.03 mm
range of spindle speed(r.p.m): 1 - 24000 rpm
repeatability (x/y/z) (mm): 0.03 mm
travel (x axis)(mm): 1300 mm
travel (y axis)(mm): 2500 mm
video outgoing-inspection: Provided
voltage: 380V, 50HZ, 3PH
warranty: 2 Years
weight (kg): 1800
1325 high speed 4 axis cnc rotary wood router made in China with T-slot table
What is the Feature of cnc router ?
♦ 1300x2500x200mm working size
♦ 3.0kw water cooling spindle
♦ T-slot vacuum working table
♦ HIWIN Linear guide
♦ PC controller online
♦ Stepper motor and driver
♦ Beta interver
♦ Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw
♦ Automatic Tool Calibration
♦ ArtCam software
Option:
♥ Vacuum System
♥ Dust Collector system
♥ AC Servo motors
♥ HSD Spindle

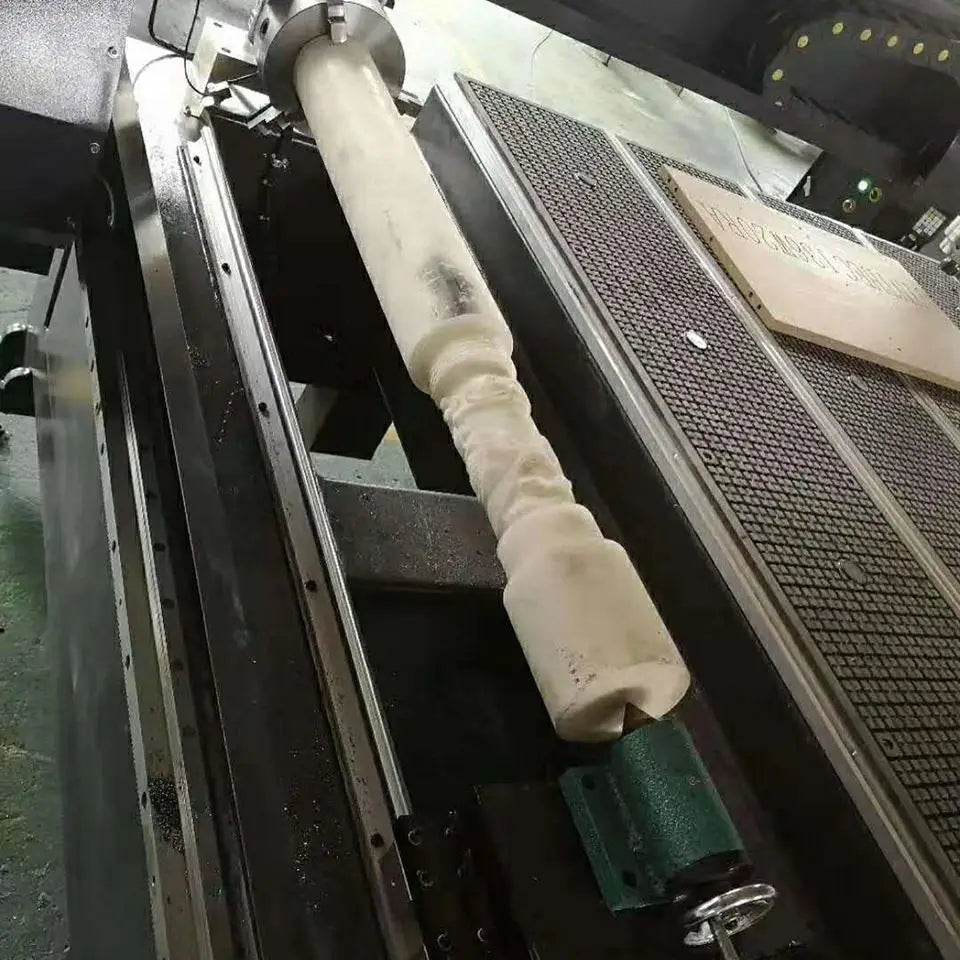

♥ Rotary Axis
Advantage of mdf carving machine
♦ Economy cnc router machine with heavy duty welded structure.
♦ 3.0kw water cooling spindle with 24000r/min.
♦ NC studio Controller ;computer operation ;convenient and intuitive.
♦ Vacuum table could adsorb different size materials closely.
♦ HIWIN linear rail from Taiwan for 3 aixs, more stable, it's lifetime is 10 times longer than common rail way.
Technical Parameters of cnc router kit
|
NO. |
Items |
Parameters |
Option |
||
|
1 |
Working Area |
XYZ |
1300*2500*200mm |
≤5000mm |
|
|
3 |
Table Type |
Vacuum table |
T-Slot Extrusion PVC |
||
|
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
||
|
Repositioning Accuracy |
±0.02/300mm |
||||
|
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
|||
|
7 |
Speed |
MAX Traveling Speed |
32000mm/min |
||
|
MAX Working Speed |
15000mm/min |
||||
|
8 |
Spindle |
Spindle Power |
3.0 KW water cooling spindle |
Italian HSD Spindle |
|
|
Spindle Speed |
0-24000r/min Stepper |
Servo |
|||
|
10 |
Drive and Motor |
||||
|
12 |
Working Voltage |
AC380V/50Hz |
AC220V/60Hz |
||
|
14 |
Operating System |
NC Stuidio |
DSP |
||
|
15 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
|||
|
16 |
Packing size |
3170*1920*1850mm
|
|||
Benefit of wood cutting machine
♥ Furniture industries: woodworking,cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
♥ Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and
sign making,3d art design.
♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Why choose us?
Packaging of 3 axis foam cnc router
Customer visit of our wood cnc machine for sale
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
To provide you detailed quotation, we need to confirm the following details:
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
Should you have any question ,contact me!
