Description:
Product Introduction:

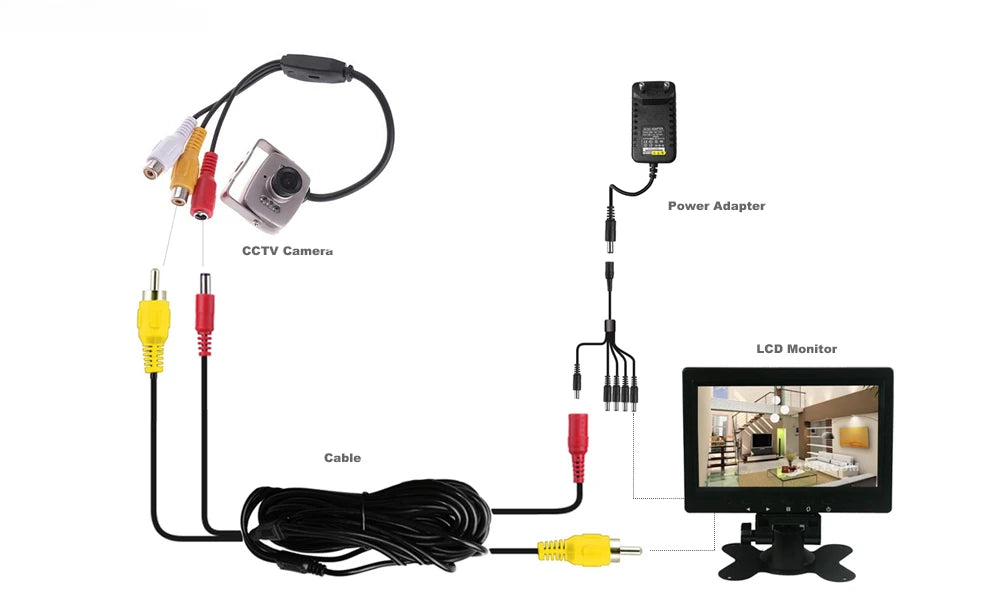

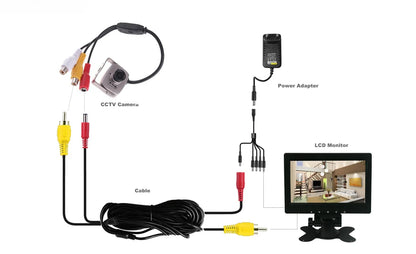

Convenient to use, connect a 12V power supply and video cable to a TV or dedicated monitor to view images. It can also be paired with a USB converter in our store and connected to a computer for monitoring and recording,

It can also be equipped with our company's wireless transceiver to achieve wireless monitoring, without the need for wiring. It can be connected to the power supply with sound and infrared night vision function,

Image sensor: 1/4 "CMOS

Horizontal clarity: 800TV lines

Effective pixels: PAL: 512 (H) × 582 (V) PAL: 752 (H) × 582 (V)

NTSC: 512 (H) × 494 (V) NTSC: 768 (H) × 494 (V)

Signal system: PAL/NTSC

Shutter speed: 1/50 (1/60) -1/100000sec

White Balance: White Balance Auto

Signal to noise ratio: S/N Ratio ≥ 48db (AGC OFF)

Minimum illumination: 0.5Lux At Night (LED ON)

Video output: 1.0Vp-p, 75 Ω

Lens specification fixed aperture: 3.6mm, 6mm (optional)

Backlight compensation: ON

Power supply: DC 12V ± 10% 12W

Working temperature: -10 ℃~+50 ℃
