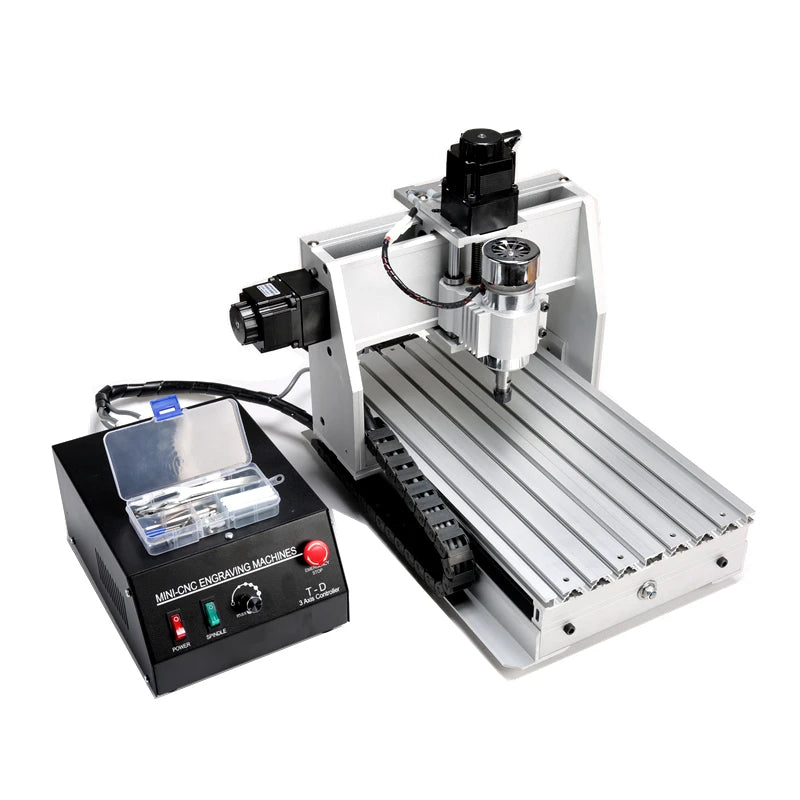

3 Axis LTP Port 230w Spindle Motor mach3 Control 3020 Mini CNC Router Engraving Milling Machine for PVB Wood

¥154,204 JPY

~~¥0 JPY~~ ¥154,204 JPY

Sale Sold out

Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

No. of Spindles: Single

Power (kW): 0.23

Spindle Motor Power (kw): 0.23

Working Table Size(mm): 300x200mm

cnc or not: CNC

core components: PLC,Pressure Vessel,Gearbox,Pump,Engine,Motor,Gear,Bearing

key selling points: Competitive Price

machine type: CNC Router

machinery test report: Provided

number of axes: 3

place of origin: Guangdong, China

positioning accuracy (mm): 0.01

repeatability (x/y/z) (mm): 0.01

travel (x axis)(mm): 300

travel (y axis)(mm): 200

video outgoing-inspection: Provided

voltage: 110 V,220V

warranty: 1 Year

weight (kg): 22

3020 Mini CNC Router Engraving Milling Machine 3 axis LTP port 230w Spindle Motor mach3 control for PVB wood

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL	3020 CNC machine
Attribute	T-DJ	Z-DQ
Axis	3axis	3axis
Interface	LPT port	LPT port
Limit switch	No	No
Tool auto-checking	No	Yes
Spindle Motor:	230W	230W

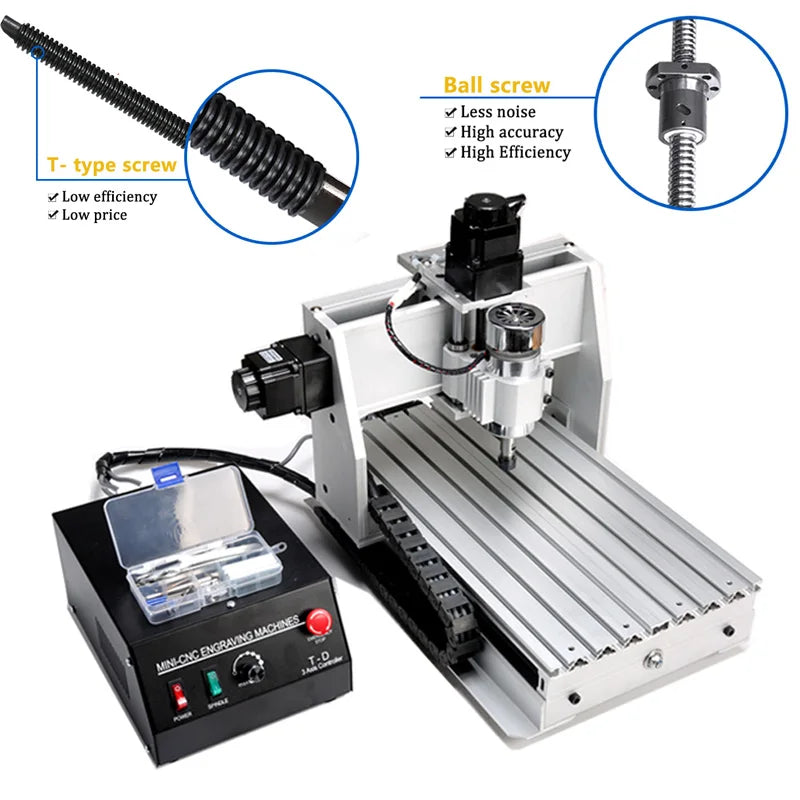

Type of screw	Trapezoidal Screw	Ball screw
Weigh	22KG	22KG
Machine Dimensions:	525X400X370mm
Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	300X200mm
Z-Axis Stroke:	45mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤60mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

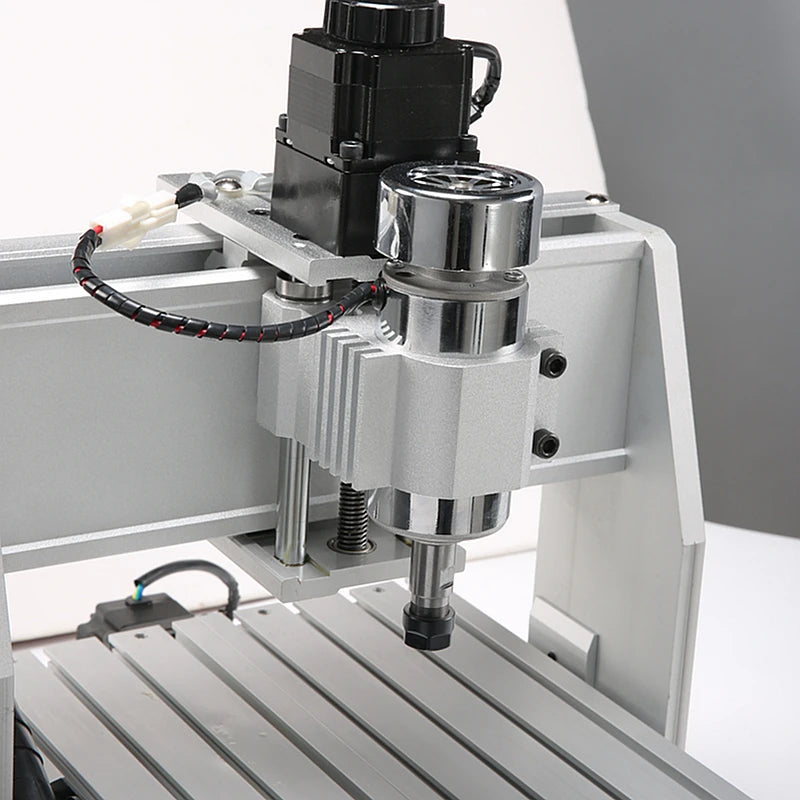

Spindle motor:	230W/11000r/min (Very small noise)
Collet type:	ER11,1/8"(3.175mm) Collet

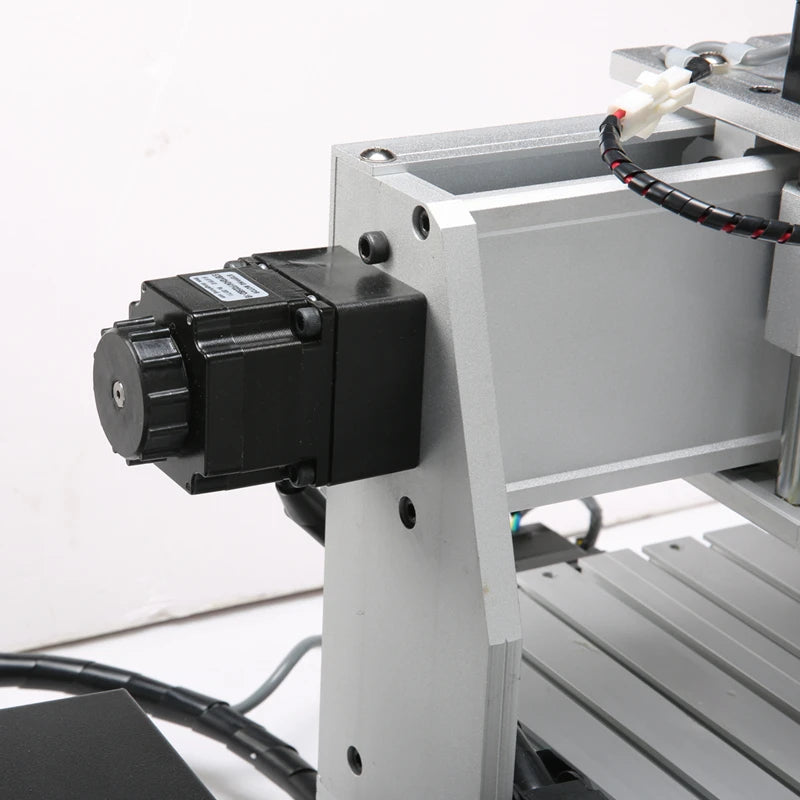

Stepper motor and drive:	two-phase hybrid stepping motor 1.8A/PHASE,40N.cm, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	≤0.04mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt

CNC 3020 Router (8)

CNC 3020 Router (9) CNC 3020 Router (10) CNC 3020 Router (11) CNC 3020 Router (12) CNC 3020 Router (13) CNC 3020 Router (14)

CNC 3020 Router (1) CNC 3020 Router (2) CNC 3020 Router (3) CNC 3020 Router (4) CNC 3020 Router (5) CNC 3020 Router (6) CNC 3020 Router (7)
