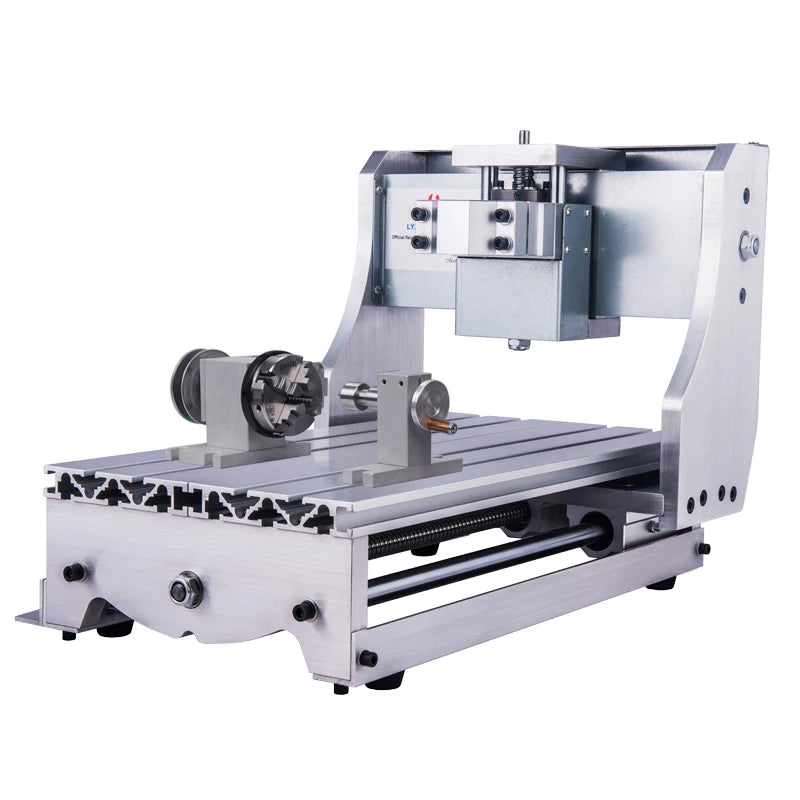

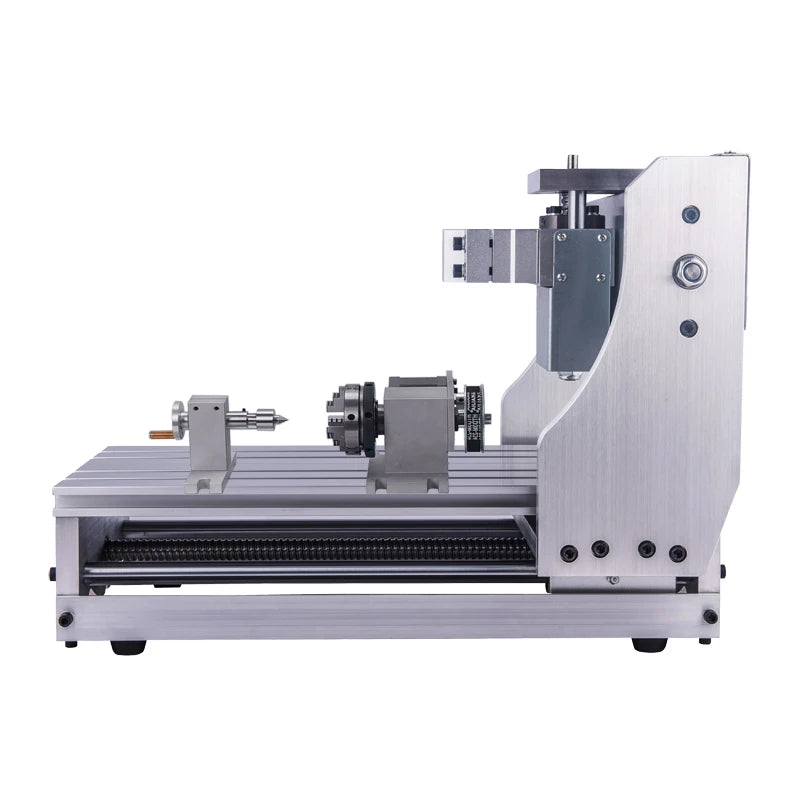

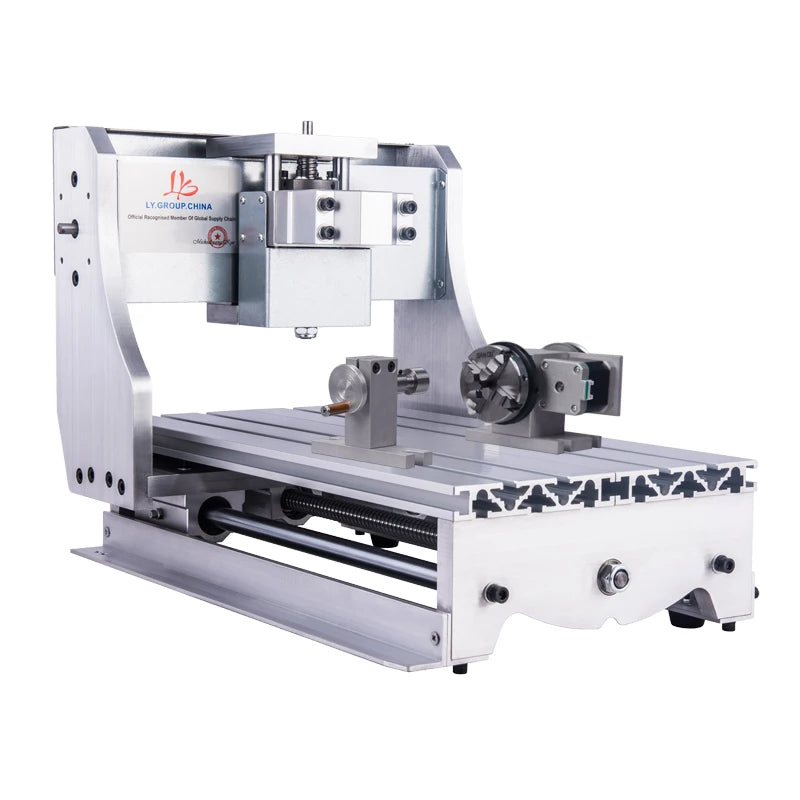

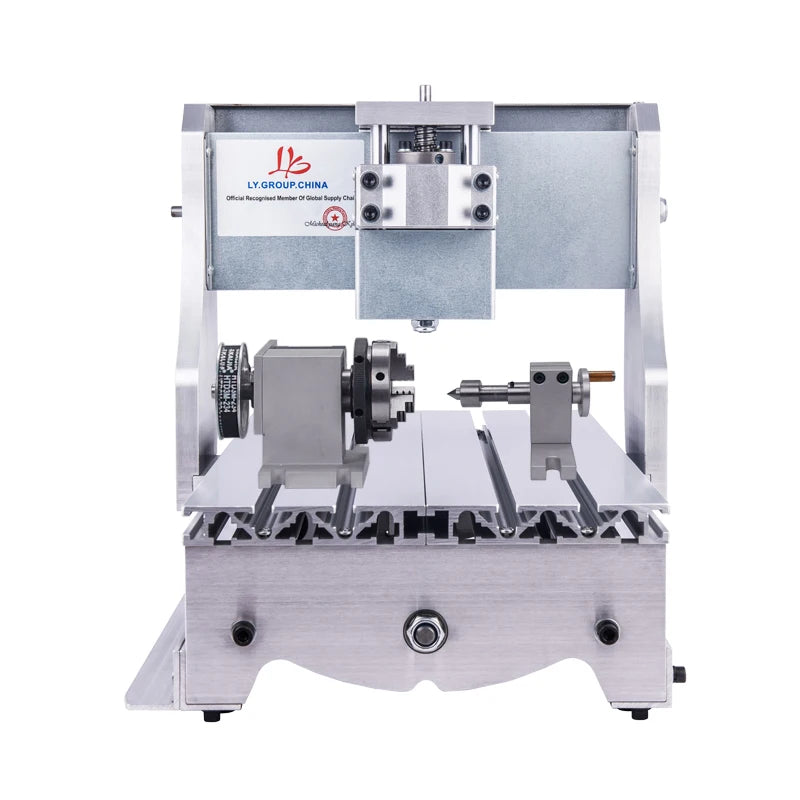

4axis 3020 CNC Router Aluminium Frame for Engraving Drilling and Milling Machine Wood Router Lathe With Rotary Axis
4axis 3020 CNC Router Aluminium Frame for Engraving Drilling and Milling Machine Wood Router Lathe With Rotary Axis
SPECIFICATIONS
Acceptable material thickness: ≤60mm
Attribute: Z+Motor
Axis: 4axis
Engraving area: 300X200mm
MODEL: CNC 3020 Frame 4axis
Machine Dimensions: 560X450X450mm
No. of Spindles: Single
Rack material: 6061 and 6063 Hard aluminum alloy
Stepper Motor: 57mm
Type of screw: 1404 Trapezoidal Screw
Working Table Size(mm): 300*200mm
Z-Axis Stroke: 60mm
brand name: LY
cnc or not: CNC
core components: Motor,Other
dimension(l*w*h): 560X450X450mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.02 mm
repeatability (x/y/z) (mm): 0.02 mm
travel (x axis)(mm): 300 mm
travel (y axis)(mm): 200 mm
video outgoing-inspection: Provided
voltage: --
warranty: 1 Year
weight (kg): 24
4axis 3020 CNC Router Aluminium Frame For Engraving Drilling And Milling Machine Wood Router Lathe With Rotary Axis
Introduction
Model and Technical Parameters
|
MODEL
|
CNC 3020 Frame 4axis
|
|||||
|
Attribute
|
T
|
T+Motor
|
Z
|
Z+Motor
|
||
|
Axis
|
4axis
|
4axis
|
4axis
|
4axis
|
||
|
Stepper motor base
|
Yes
|
Yes
|
Yes
|
yes
|
||
|
Coupling
|
No
|
Yes
|
No
|
Yes
|
||
|
Stepper Motor
|
No
|
Yes 57mm
|
No
|
Yes 57mm
|
||
|
Type of screw
|
1404
Trapezoidal Screw
|
1404
Trapezoidal Screw
|
1605
Ball screw
|
1605
Ball screw
|
||
|
Weigh
|
21
|
23
|
21
|
23
|
||
|
Machine Dimensions
|
560X450X450mm
|
|||||
|
Rack material
|
6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||||
|
Engraving area
|
300X200mm
|
|||||
|
Z-Axis Stroke
|
60mm, Engraving depth depends on the length of the tool edge
|
|||||
|
Acceptable material thickness
|
≤60mm
|
|||||
|
Rail type
|
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
|
|||||
|
Diameter of Spindle motor
|
52mm ( 65mm optional)
|
|||||
|
Stepper motor size
|
57mm
|
|||||
|
Repeat positioning Accuracy
|
≤0.03mm
|
|||||
Packing List:
CNC Frame Details:
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
LY CNC business group is located in Shenzhen, China.
CNC machines and CNC Laser like cnc 3020/4030/6040/9060/1309 …series products are hot sale in the world, especially in these countries from North and South American,European and Asian.
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
