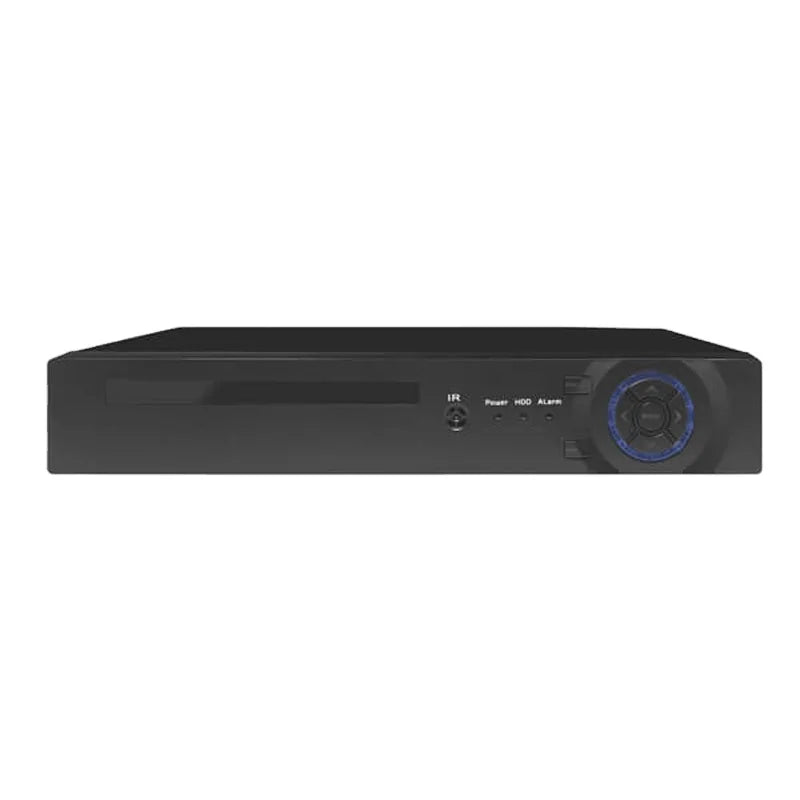

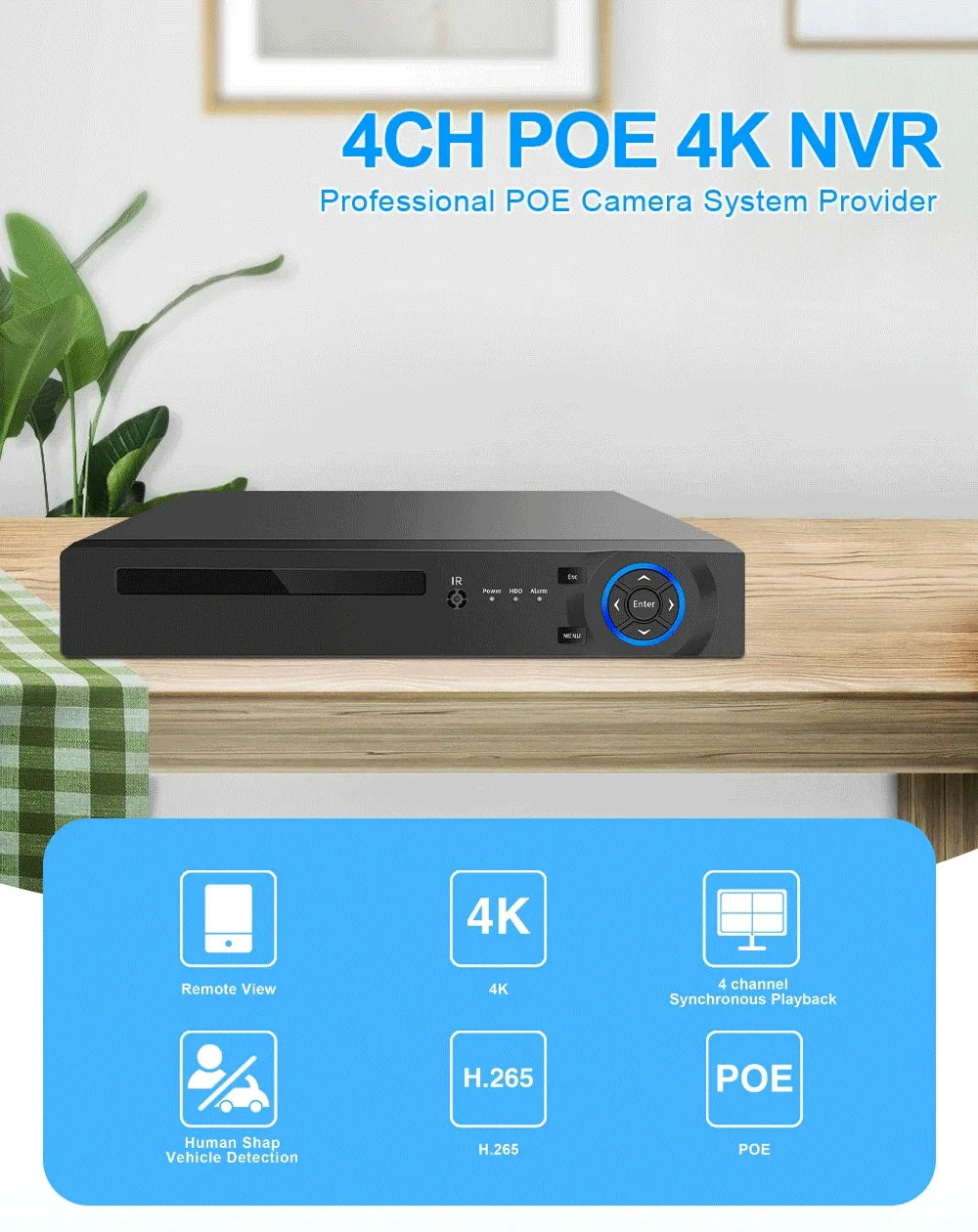

4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output
4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output
SPECIFICATIONS
Brand Name: ENSTER
Feature: Motion Detection
Model Number: NVR-7504P-4K
Place of Origin: Guangdong, China
Resolution: 4K 8MP(3840*2160)
compression format: H.265
video/audio output: HDMI,VGA
4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output
Features:
Support VGA, hd full HD output simultaneously;
Support ONVIF; access third party;
Support AHD, TVI ,CVI,CVBS,IPHD video input;

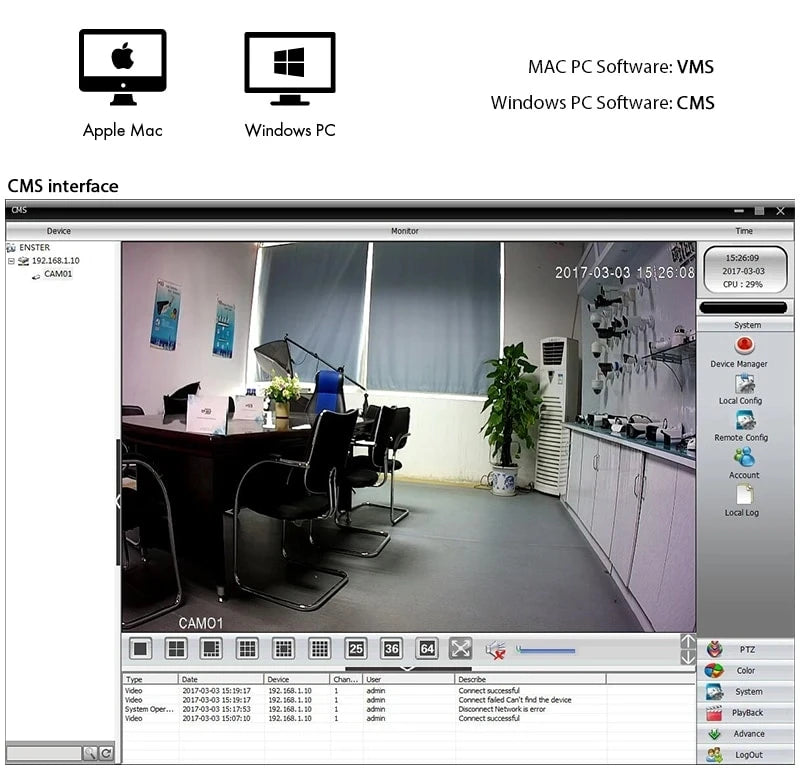

Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely.
Specifications:
| Model No. |
NST-NVR7504P-4K
|
|
|
System
|
Main processor |
Hi3798M |
| Operating system |
Embedded Linux |
|
| System resource |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
|
Interface
|
Operation interface |

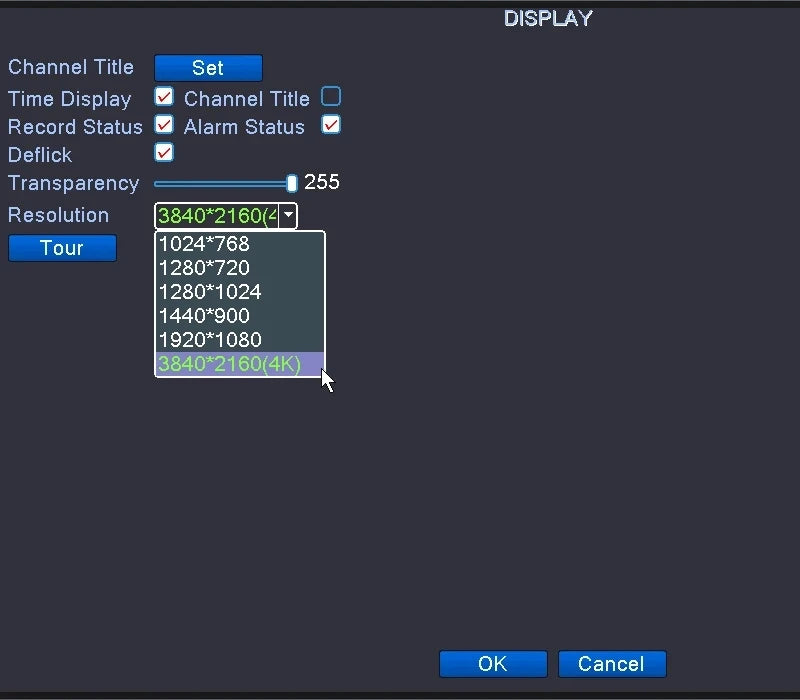

16-bit true color graphic menu operation interface, support mouse operation |
|
Preview |
1/4/8 |
|
|
Video
|
Video input (IP) |
4*4K/4*5M/4*4M /8*1080P |
|
Video standards |
PAL(625TVL,50f/s) ; NTSC(525TVL,60f/s) |
|
|
Forwarding bandwidth |
H.265/H.264 |
|
| Display quality |
Max:4K |
|
| Playback quality |
4K/5M/4M/1080P |
|
| Decode |
1*4K/2*5M/4*4M/4*1080P |
|
| Motion detection |
Depend on camera
|
|
|
Audio
|
Audio compression |
G.711A
|
| intercom |
Unsupport
|
|
|
Record and playback
|
Record mode |
Manual>Alarm>Video Detection>Continuous |
| Local playback |
1*4K/2*5M/4*4M/4*1080P |
|
| Search mode |
Search by Time/Calendar/Event/Channel |
|
|
Storage and back up
|
Record Storage |
HDD , network
|
| Backup mode |
Network backup, USB hard disk, USB burner, SATA burner
|
|
|
Interface
|

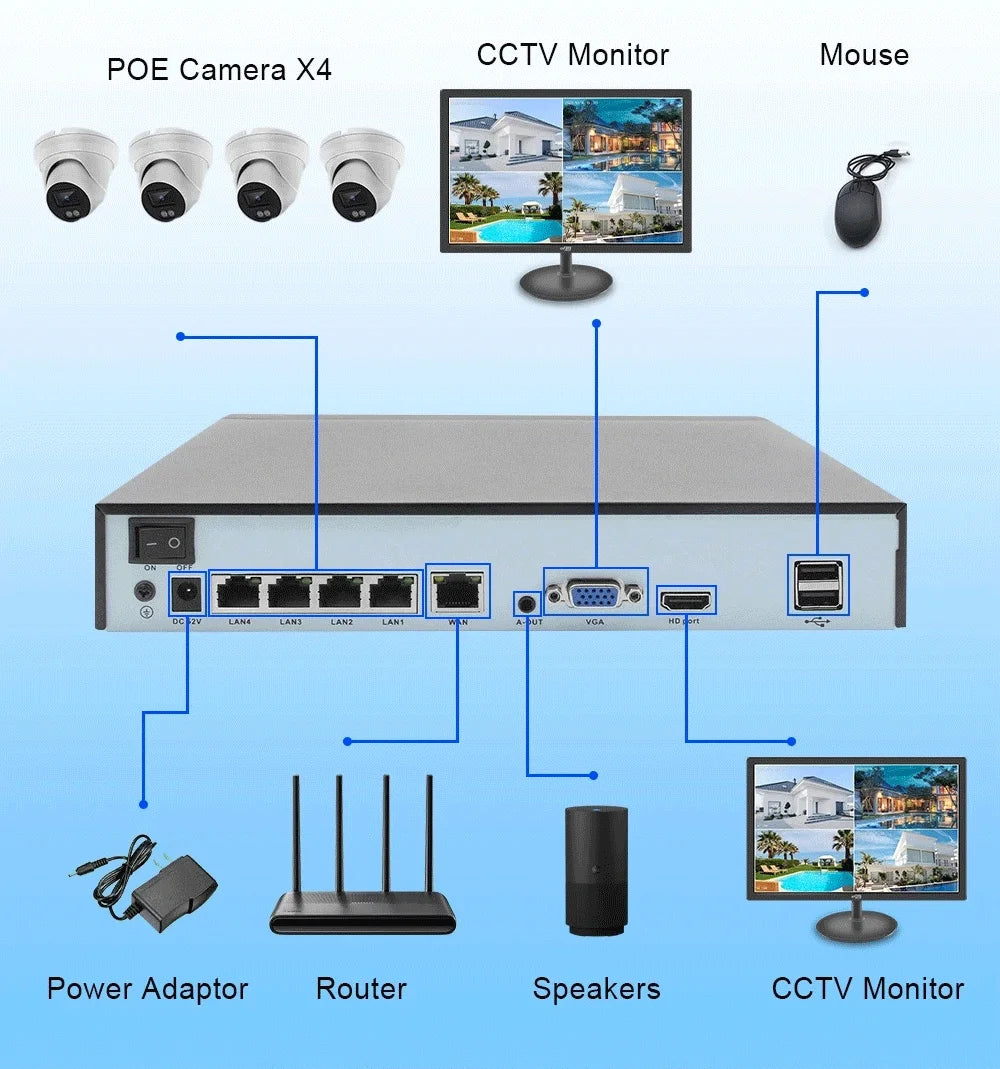

Video output |
1ch hd HD output(can be extended to support VGA) |
| Audio I/O |
0/0 |
|
| Alarm I/O |
0/0
|
|
| Network interface |
1* 10M/100M Adaptive Ethernet port,4 POE ports |
|
| USB interface |
2*USB2.0 ports |
|
| Hard disk |
1*SATA(extensible 2 SATA interface) (Up to 8TB for each disk) |
|
|
other
|
ONVIF |
Support |
|
PTZ control |
Control PTZ device by network |
|
| Power supply |
48V/1.5A |
|
| Power Consumption |
<10W(Without HDD) |
|
| Work environment |
Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp
|
|
| Dimension |
L350*W275*H80MM
|
|
| Weight |
1.6KG
|
|
1.Any inquiries will be replied within 24 hours
2.Professional manufacturer. Welcome to visit our website: www.enster.com
3.OEM/ODM available:
1).Silk print logo on the camera;
2). Customized camera housing;
3).Customized Color box
4).Any your idea on camera we can help you to design and put it into production
4.High quality, fashion designs ,reasonable & competitive price, fast lead time .
5.After-Sale Service:
1). All products will have been strictly Quality Checked in house before packing
2). All products will be well packed before shipping.
3).All our products have 2 year warranty,And we sure the product will be free from maintenance within warranty period.
6.Faster delivery:
Sample order in stock ,and 3--7days for bulk production
7.Payment:
You can pay for the order via :T/T,Western Union ,Paypal & MoneyGram .
8.Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS , China Air Post.
You also can choose your own shipping forwarder.
