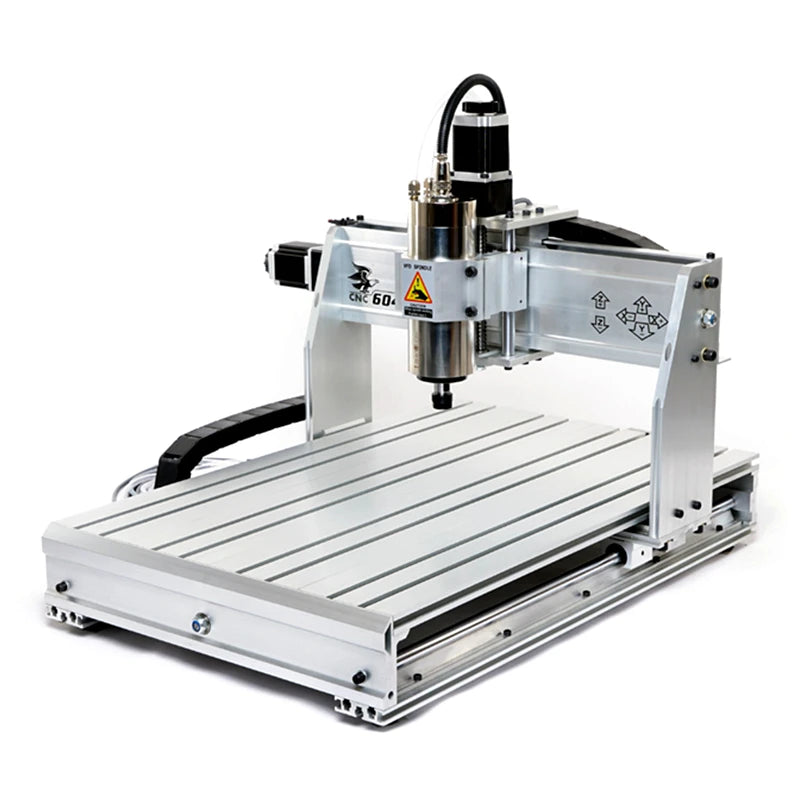

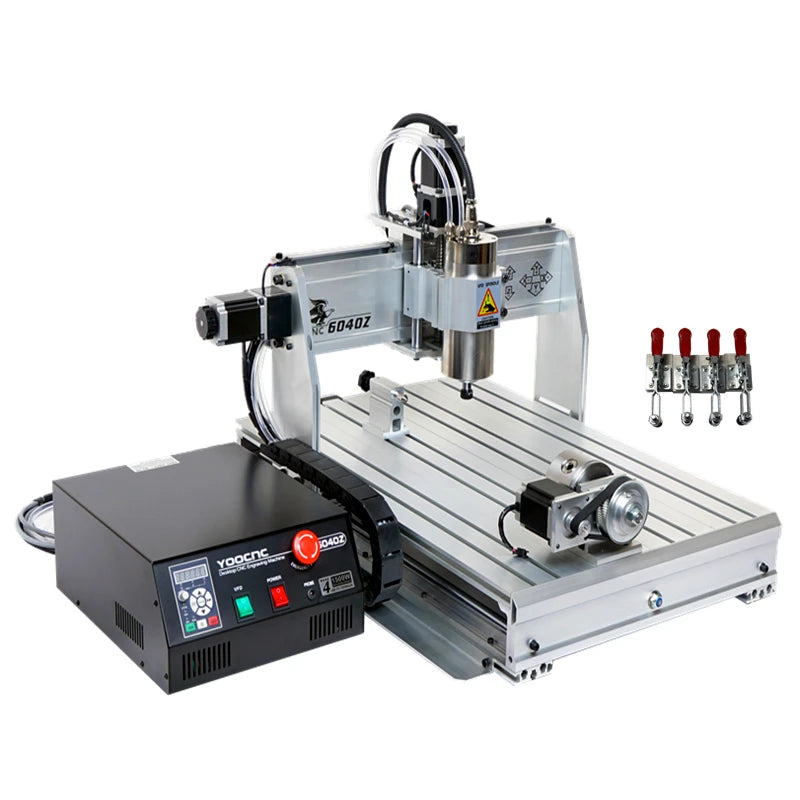

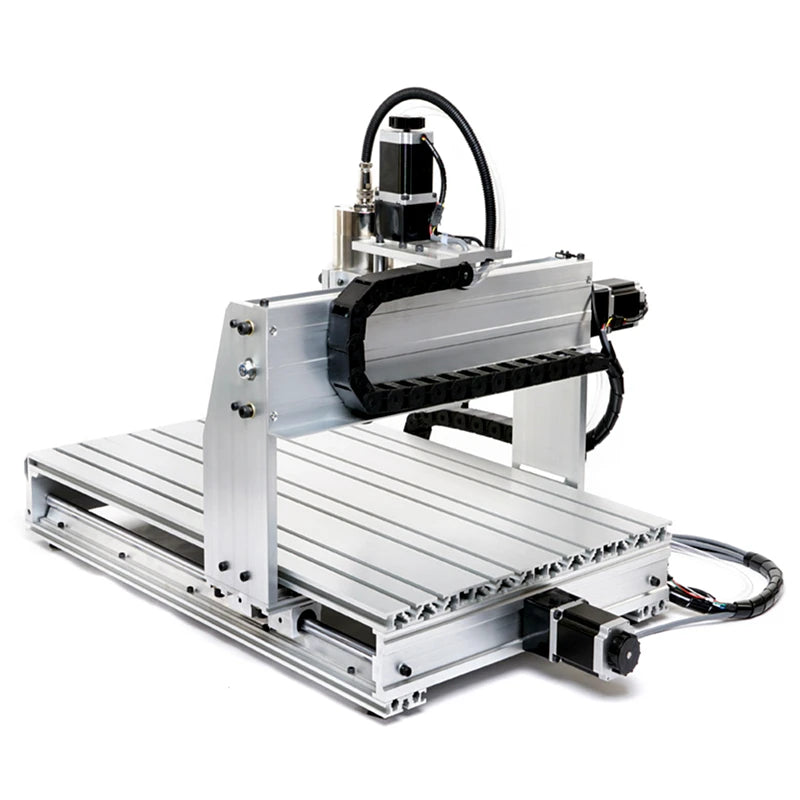

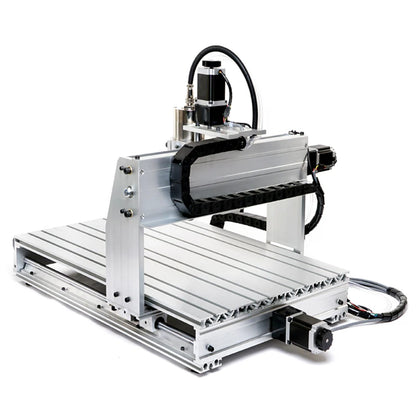

800w 1500w 2200w Spindle 6040Z CNC Wood PCB Engraver Craving Machine Mach3 Control CNC Router 6040 Metal Engraving Machine
800w 1500w 2200w Spindle 6040Z CNC Wood PCB Engraver Craving Machine Mach3 Control CNC Router 6040 Metal Engraving Machine
SPECIFICATIONS
No. of Spindles: Single
Power (kW): 2.2
Working Table Size(mm): 600X400
cnc or not: CNC
core components: PLC,Pressure Vessel,Gearbox,Pump,Engine,Motor,Gear,Bearing
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
travel (x axis)(mm): 600
travel (y axis)(mm): 400
video outgoing-inspection: Provided
voltage: 220V,110 V
warranty: 2 Years
weight (kg): 63
CNC Router 6040 Metal Engraving Machine 800w 1500w 2200w Spindle 6040Z CNC Wood PCB Engraver Craving Machine Mach3 Control
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
6040Z |
|||
|
Axis |
3axis |
4axis |
3axis |
4axis |
|
Interface |
USB port |
USB port |
USB port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
Yes |
Yes |
Yes |
|
Spindle Motor: |
800W/1500W2200W |
|||
|
Weigh |
57 |
62 |
59 |
64 |
|
Machine Dimensions: |
870X670X560mm |
|||
|
Rack material: |
6061-T5 extruded aluminum alloy |
|||
|
Engraving area: |
575X380mm |
|||
|
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of |
|||
|
Acceptable material thickness |
≤ 115mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface |
|||
|
Type of screw: |
Ball screw 16mm, Pitch 5mm |
|||
|
Spindle |
HFwater cooling spindle ,1500W &2200W,0-24000r/min |
|||
|
Collet type: |
ER11 or ER16,1/8"(3.175mm or 6mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH76-3A, 8 |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|

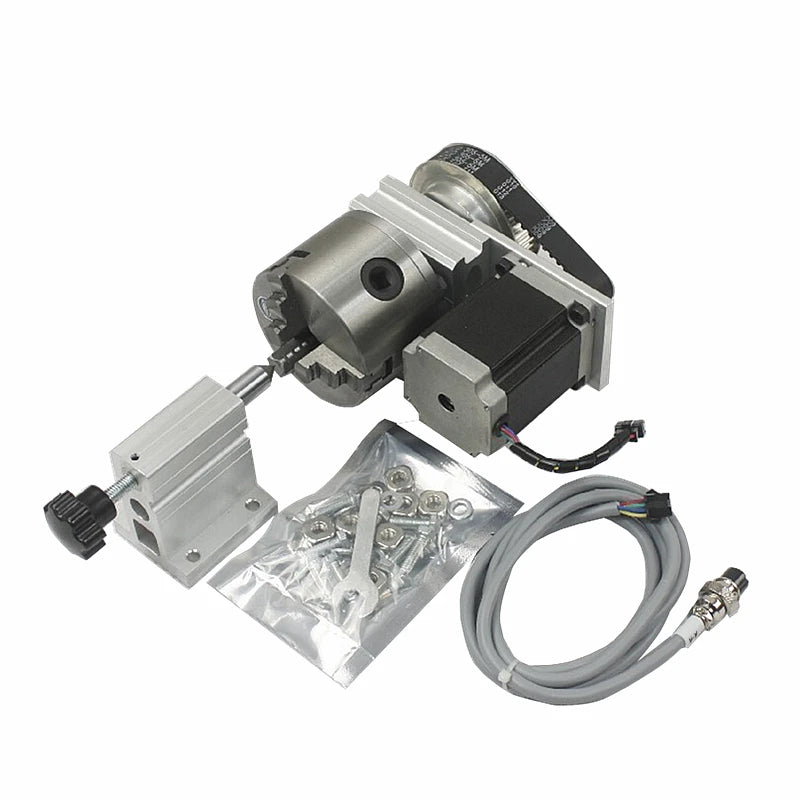

Rotation Description: |
Center Maximum Deceleration Stepper Weight: 5KG |
|||
