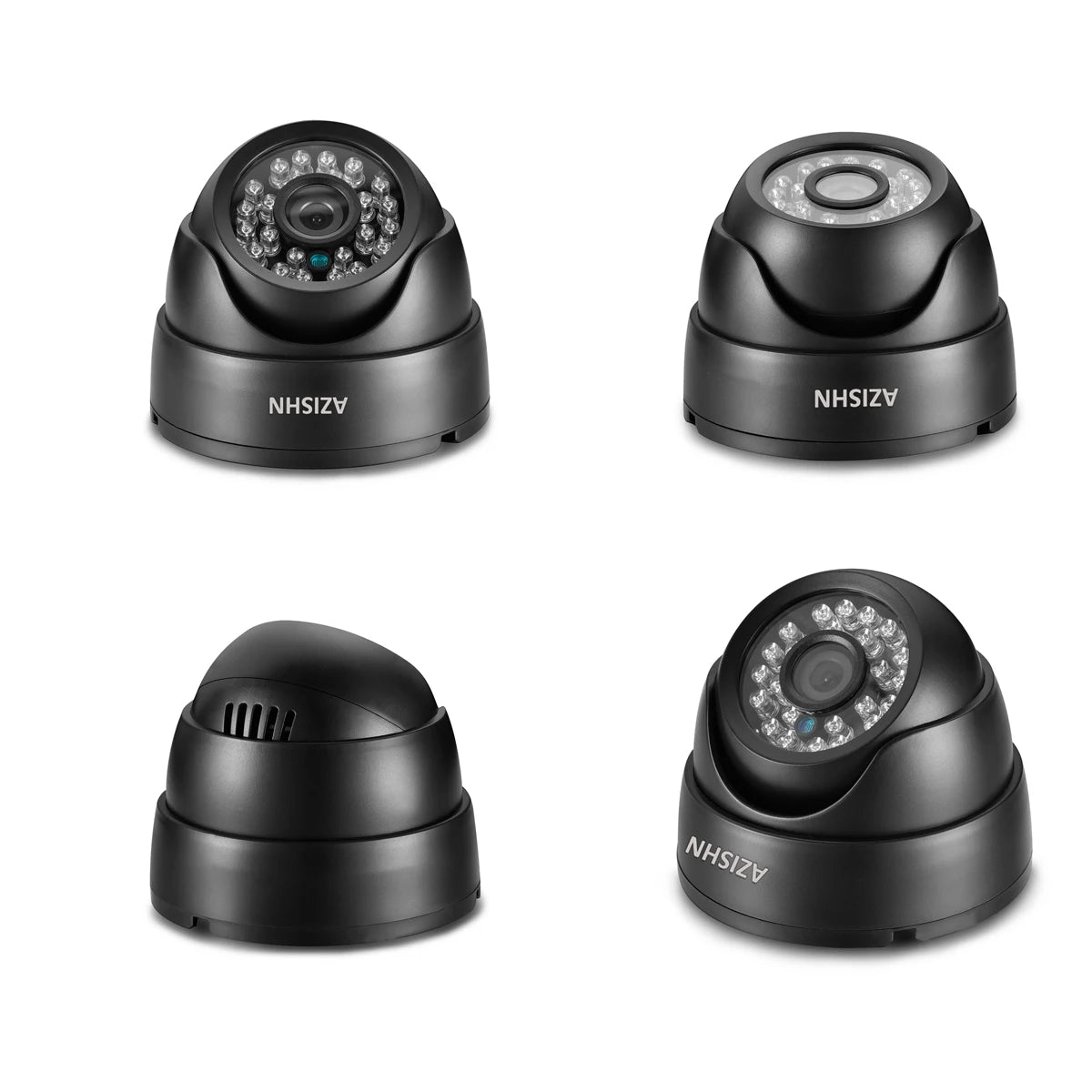

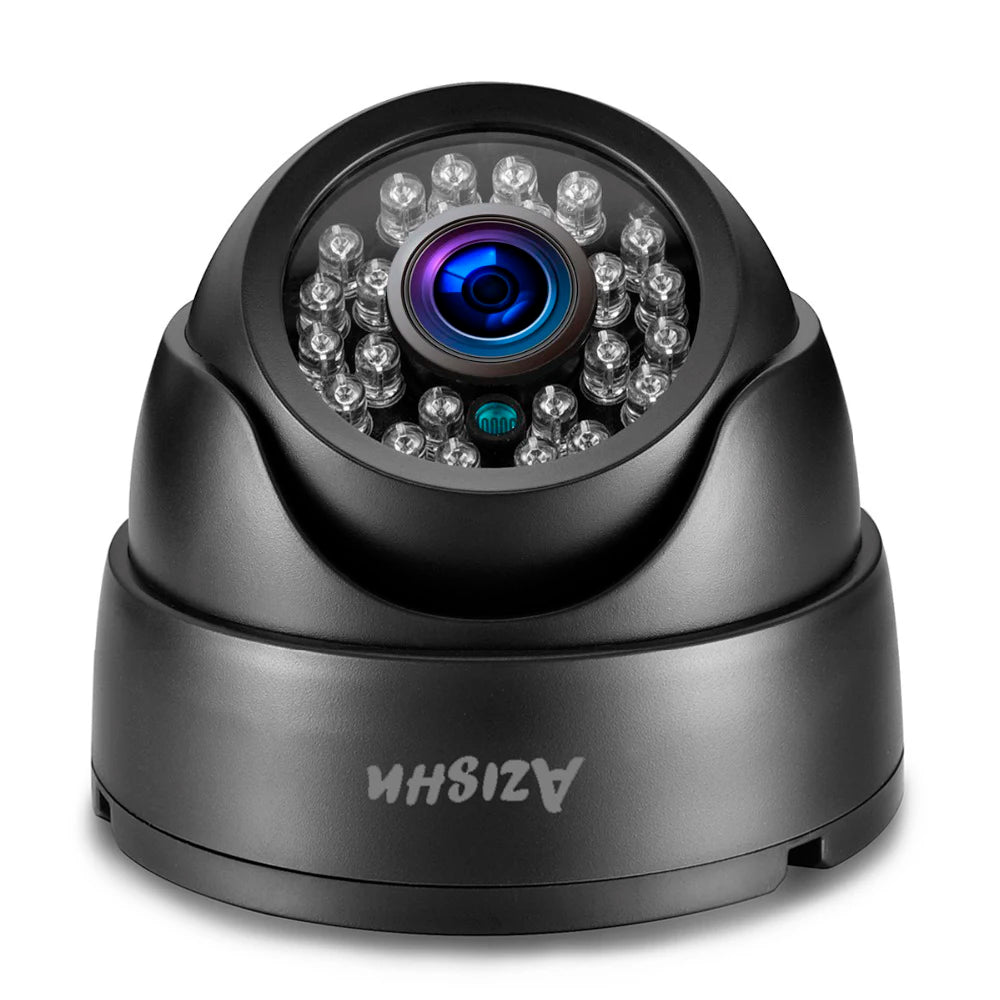

AZISHN HD 1080P AHD Video Surveillance Camera CCTV Camera 2.0MP DOME 24pcs IR Night Vision AHD Camera
AZISHN HD 1080P AHD Video Surveillance Camera CCTV Camera 2.0MP DOME 24pcs IR Night Vision AHD Camera
SPECIFICATIONS
Audio Output: NO
Brand Name: AZISHN
Certification: CE
Color: black
Connectivity: Closed System/CCTV Wired
Dimensions (L x W x D)(mm): 10*7CM
High Definition: 2.0 Megapixels
High-concerned chemical: none
IR Distance(m): 10~20M
Installation: Ceiling
Internal Storage: None
Lens (mm): 8mm,6mm,3.6mm,2.8mm
Lens Quantity: Single Lens
Megapixels: 2 MP
Minimum Illumination(Lux): 0.001Lux/F1.2(AGC ON), 0Lux IR on
Model Number: AZ00117
Origin: Mainland China
Power Consumption(W): 3W
Power Supply: Normal
Power Supply(V): 12V
Sensor: CMOS
Sensor Brand: SmartSens
Shell Material: Plastic
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Mobile Systems: Android
Supported Operating Systems: No
Video Compression Format: H.264
Viewing Angle : 85°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none
is_customized: Yes
start
end
1.AHD 1080P 2.0MP High Resolution : 1920*1080
2. Color 1/3" F37 sensor, 2Megapixel CMOS Sensor, 1080P, ICR
3. 2.8mm/3.6mm/6mm/8mm HD lens
4. 24PCS IR LEDS , 20M Max IR distance
Specifications:
Camera |
|
Image Sensor |
1/3 inch F37 sensor |
Effective Pixels |
AHD 1080P 2.0MP High Resolution : 1920*1080 |
Video Frame Rate |
PAL/NTSC: 25fps 1080P |
Electronic Shutter |
Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec |
Synchronization |
Internal |
Mini. Illumination |
0.001Lux/F1.2(AGC ON), 0Lux IR on |
Video Output |
1-channel BNC HDAHD high definition video output |
Camera Features |
|
Max. IR LEDs Length |
10-20m, Smart IR |
IR LEDs |
24PCS IR LEDS |
Day/Night |
Auto(ICR) / Color / B/W |
Noise Reduction |
2D |
Lens |
|
Focal Length |
2.8mm/3.6mm/6mm/8mm Optional |
Lens Type |
Board Lens |
General |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
Power Supply |
DC12V±10% |

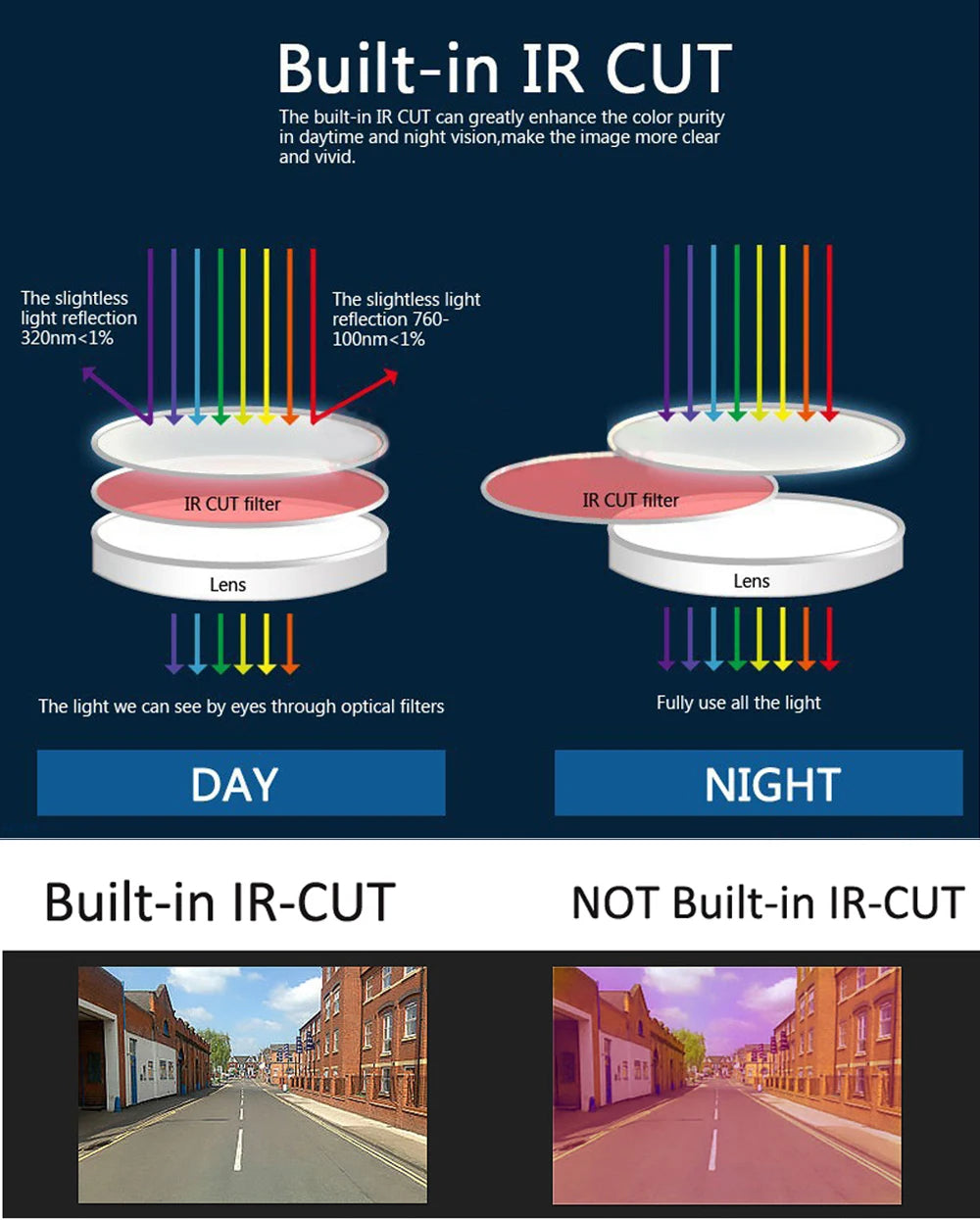

Day and Night Function |
with IR-CUT |
Power Consumption |
Max 4W |
Working Environment |
-20'C~+60'C / Less than 95%RH |
Dimensions(W×D×H) |
10CM*7CM |
shell |
Plastic Material |
Packaging included:
1x AHD Camera
NOTE:
1.package does not include power supply
2.Not include the OSD Menu

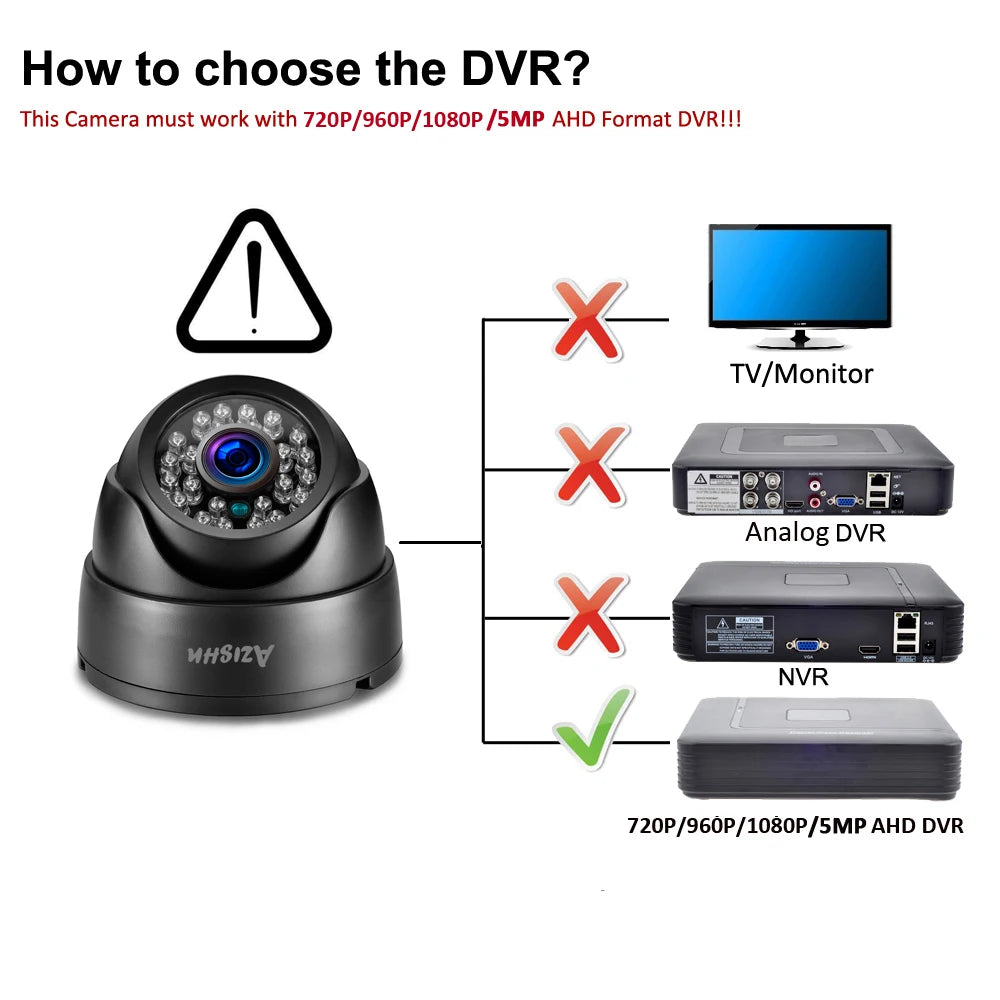

3.1080P AHD Camera must use 1080P/1080N AHD Format DVR!!!CLICK Below pictures to see the AHD DVR we are seilling :
