SPECIFICATIONS

After-sales Service Provided: Field installation, commissioning and training

Applicable Industries: hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company

Application: Complete complex wood working

Condition: New

Inverter: Hpmont invert

Local Service Location: Canada

Motor and driver: SYNTEC servo motor and driver

No. of Spindles: ATC

Reducer: Shimpoo reducer

Spindle: 9kw air cooling spindle

Spindle Motor Power (kw): 9kw

Tool magazine: Linear 12pcs tool magazines

Transmission: helical rack and ball screw

Warranty of core components: 1 Year

Working Table Size(mm): 1300*2500

Working area: 1300*2500*200mm

brand name: BLUE ELEPHANT

cnc or not: CNC

core components: Motor,Pump

dimension(l*w*h): 3200*2140*1850mm

key selling points: Automatic

machine type: CNC Router

machinery test report: Provided

number of axes: 1

place of origin: Shandong, China

positioning accuracy (mm): 0.02 mm

range of spindle speed(r.p.m): 1 - 18000 rpm

repeatability (x/y/z) (mm): 0.02 mm

travel (x axis)(mm): 1300 mm

travel (y axis)(mm): 2500 mm

video outgoing-inspection: Provided

voltage: AC380V/50HZ

warranty: 1 Year

weight (kg): 1500

Product Description

1. Heavy duty frame. The frame is longer and much stronger than normal CNC routers.

2.Taiwan 1000w SYNTEC servo motor with Japan SHIMPO reducer. It adopts full closed loop and has brake function on Z axis. It provides constant position feedback, bigger power and smooth contentious motion.

3. Linear type tool change magazine under gantry. It can change 12 different tools fast.

4. Y axis adopts #30 Taiwan square linear guide. While X and Z axis adopt #25 square linear guide. 2M helical rack is used to ensure the high-speed and stable operation of the machine, and also ensure a higher processing accuracy.

5. ATC air cooling spindle. Max. speed can be 24000RPM. With ISO30 tool holder, it can use 20mm bits at max.

Technical Parameters

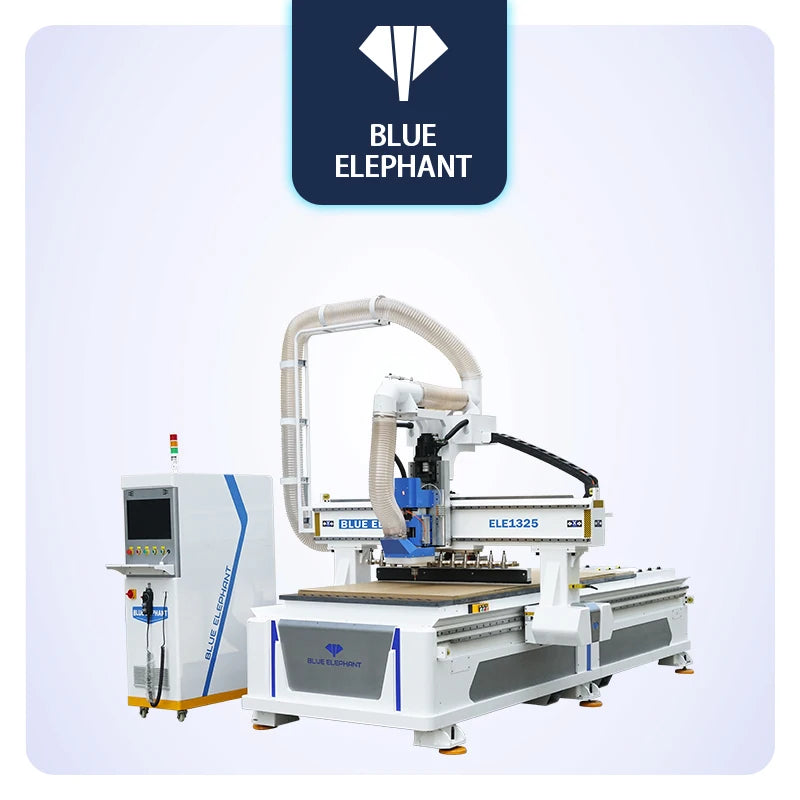

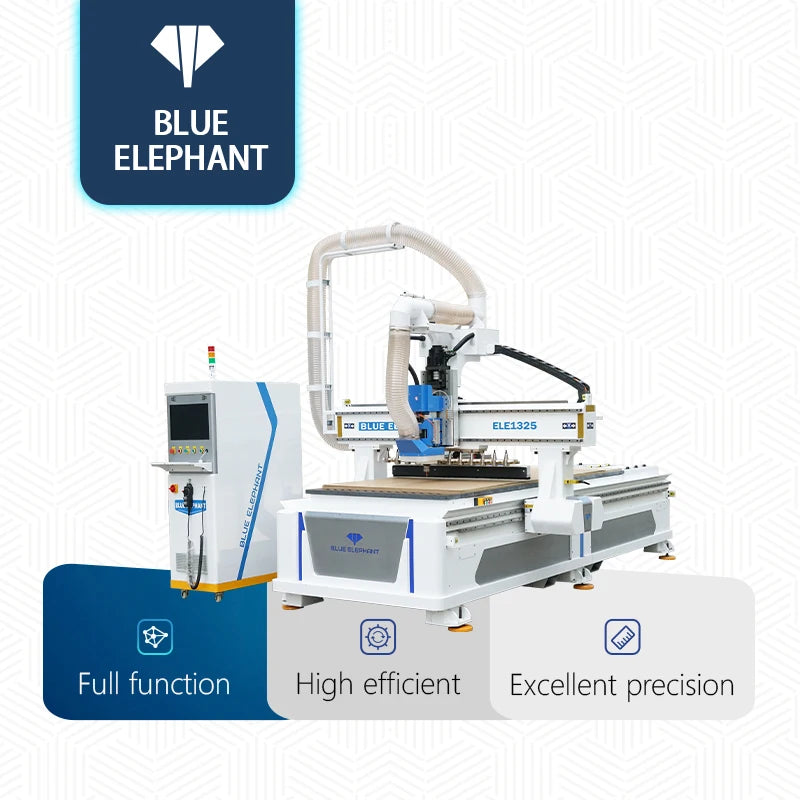

Model	ELECNC1325 ATC
X,Y axis travel	1220x2440mm option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel	200mm
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Tool magazine	lineartype auto tool changer Option: Carouseltype auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC/LNC controller
Driving system	1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Linear guide	TaiwanLinear guide
Transmission	X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Positioning cylinder	Option: 5 pieces(X2,Y3)
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
