SPECIFICATIONS

After Warranty Service: Video technical support

Application: MDF WOOD ACRYLIC ALUMINUM

Frame: New type thicker and bigger heavy duty welded frame and gantry

Inverter: 2.2KW Fuling Inverter

Marketing Type: New Product 2020

Motor and driver: 450A and Leadshine M540

No. of Spindles: Single

Showroom Location: Uzbekistan

Spindle: 2.2 KW changsheng water cooling spindle

Transmission: TBI ball screw, round guide rail

Working Table Size(mm): 1200×1200

Working area: 1200*1200*140mm

brand name: BLUE ELEPHANT

cnc or not: CNC

core components: Motor,Pump

dimension(l*w*h): according to your order

key selling points: Multifunctional

machine type: CNC Router

machinery test report: Provided

number of axes: 4

place of origin: Shandong, China

positioning accuracy (mm): 0.02 mm

range of spindle speed(r.p.m): 1 - 24000 rpm

repeatability (x/y/z) (mm): 0.02 mm

travel (x axis)(mm): 1200 mm

travel (y axis)(mm): 1200 mm

video outgoing-inspection: Provided

voltage: 220V (Option)

warranty: 12 months

weight (kg): 400

Products Description

Feature

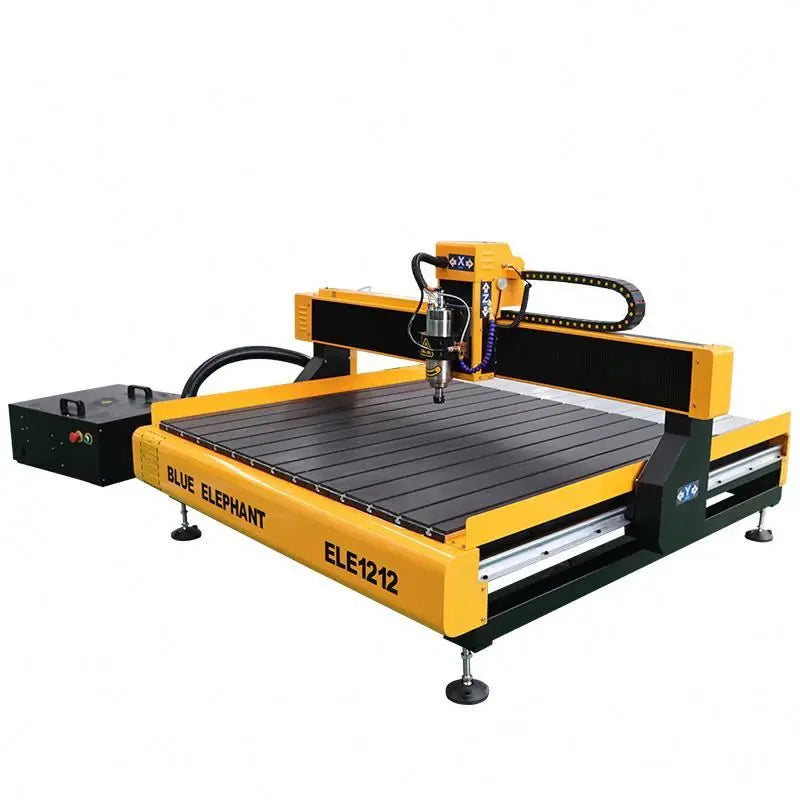

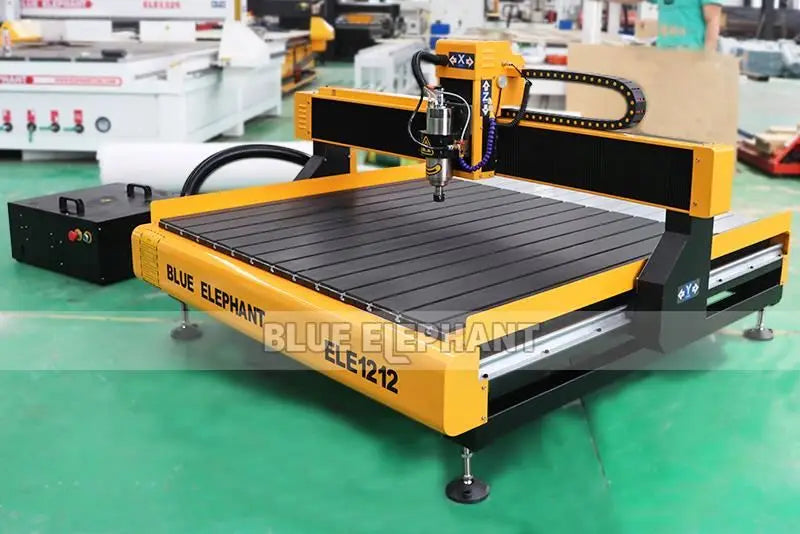

Best Cheap CNC Machine is a Desktop 1212 CNC Router for small shop or home hobby woodworkers. With the features of small working table and cost-effective kits, it is very popular in market. Especially for processing small workpieces such as wood craft, decorative products, signs.

Parameters

Model	ELECNC-1212
Working area	1200*1200mm
Whole machine size	1200*1200*140mm ( can be customized )

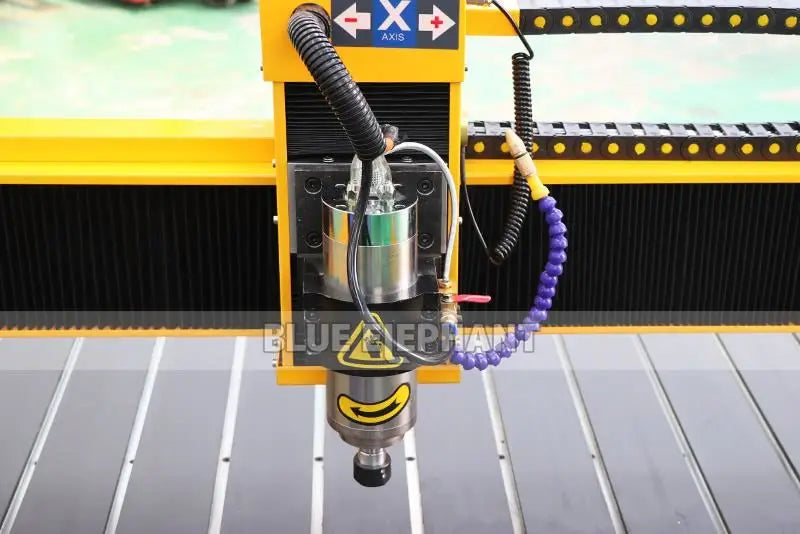

Spindle	Changsheng water cooling spindle
Spindle speed	0-24000RPM
Motor and drive	Stepper Motor 450 and LeadshineM 542 driver
Control system	Mach3
Cooling system	Water mist cooling sprayer
Tool sensor calibration	Manual tool sensor calibration
Software system	Artcam 2012 new version
Inverter	Fuling Inverter
Table structure	Aluminum T-slot table
Transmission	Taiwan TBI ball screw for X,Y,Z axis
Voltage	220V, 50HZ

Sample & Application

WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.

Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.
Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.
Relief Sculpture and 3D Engraving & Cylindrical object.

40% customer choice

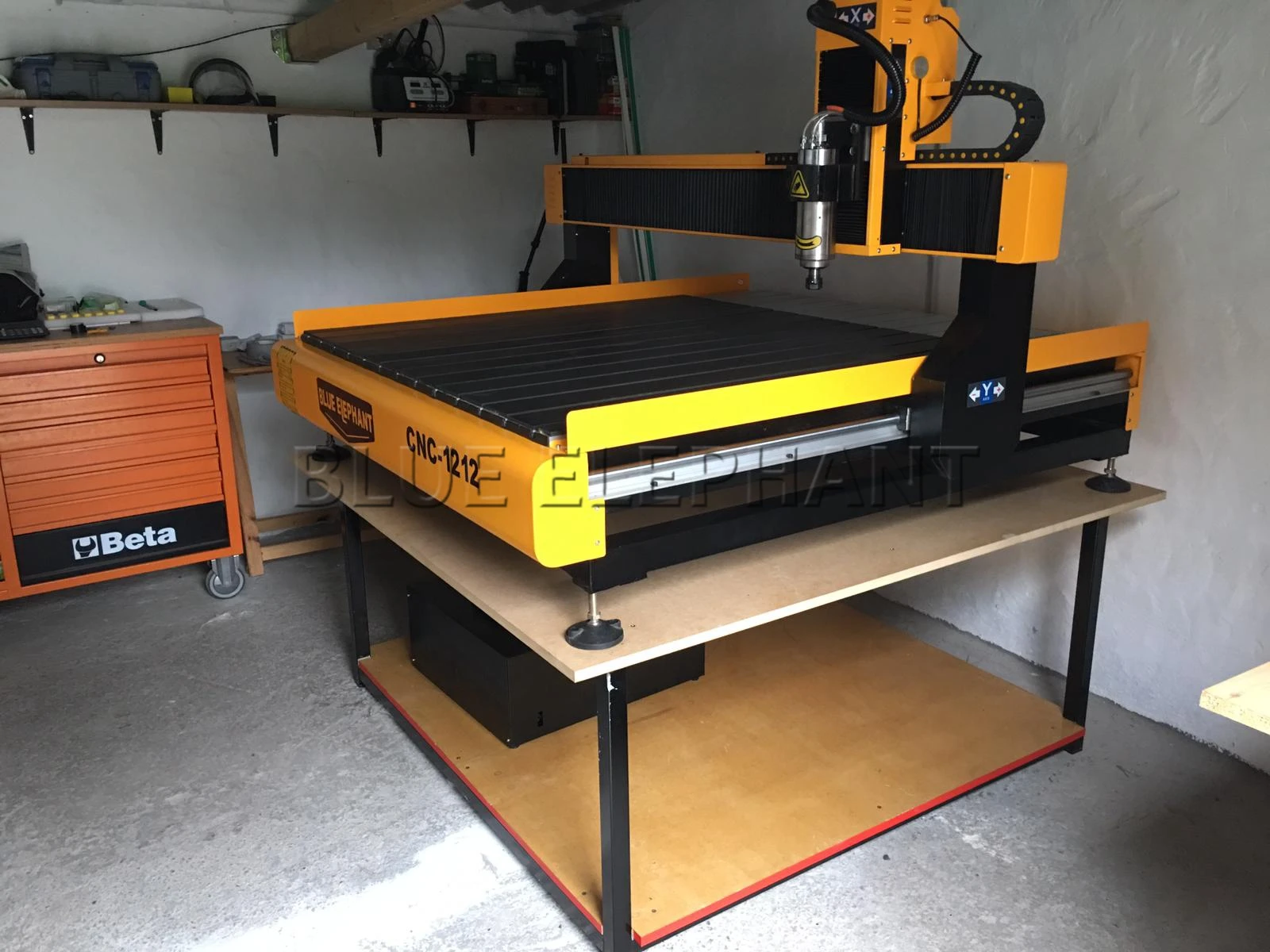

Customer feedback

Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Packing&Shipping

Packaging Details

1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

Company Introduction

BLUE ELEPHANT

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
