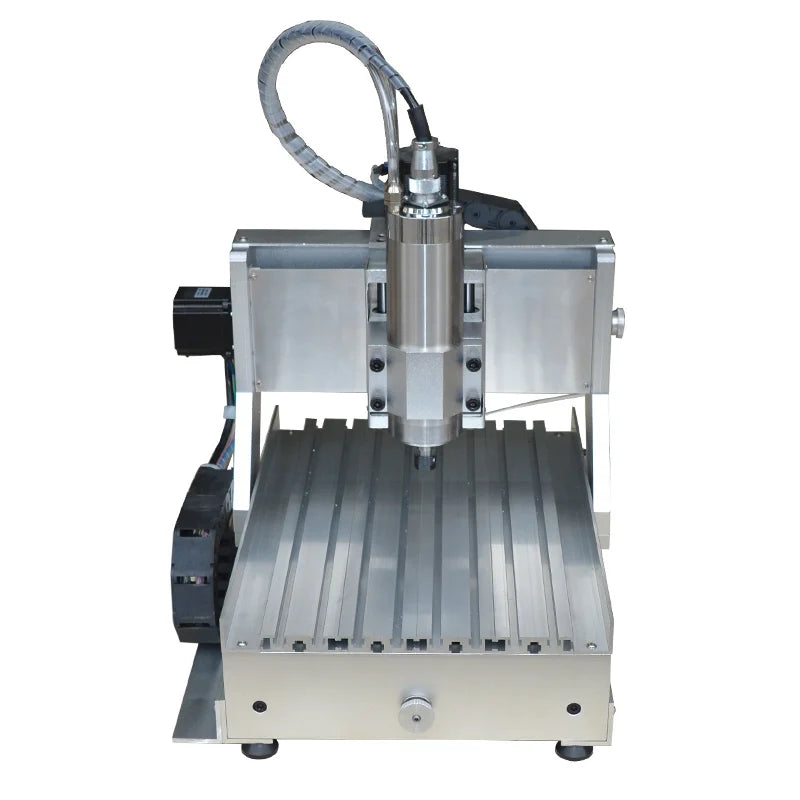

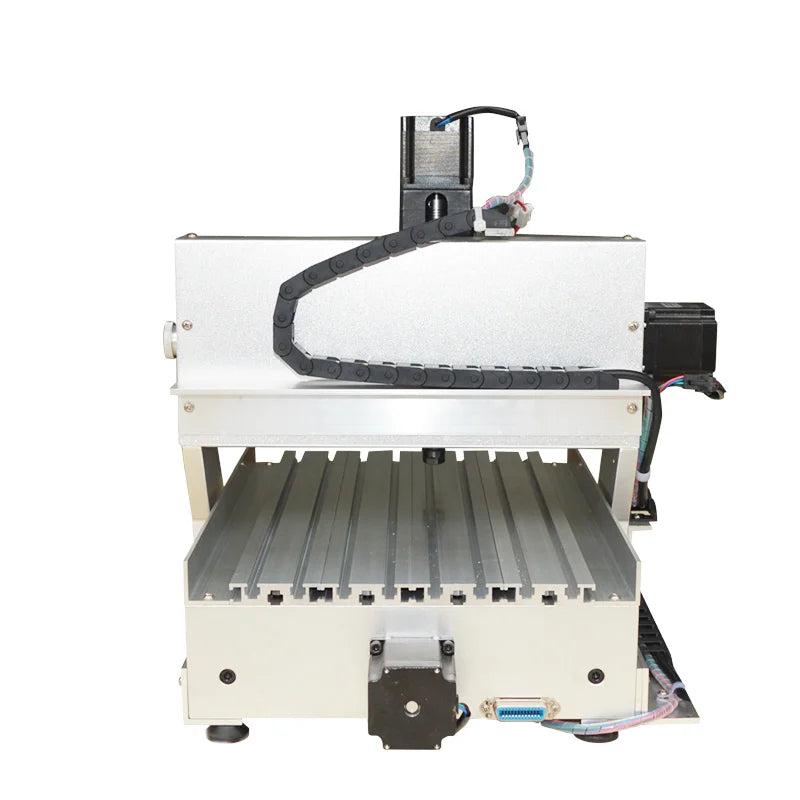

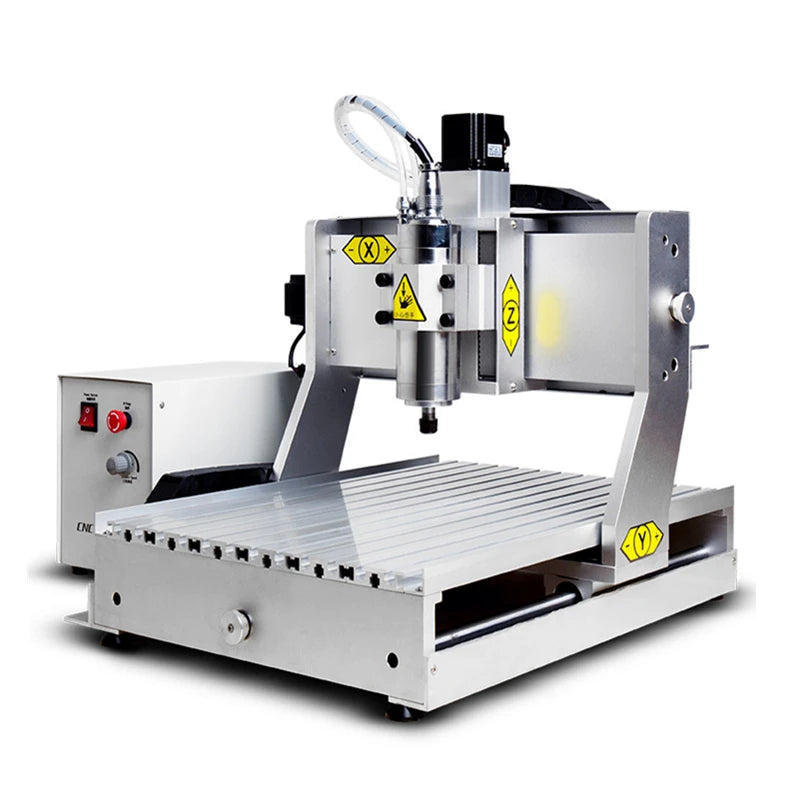

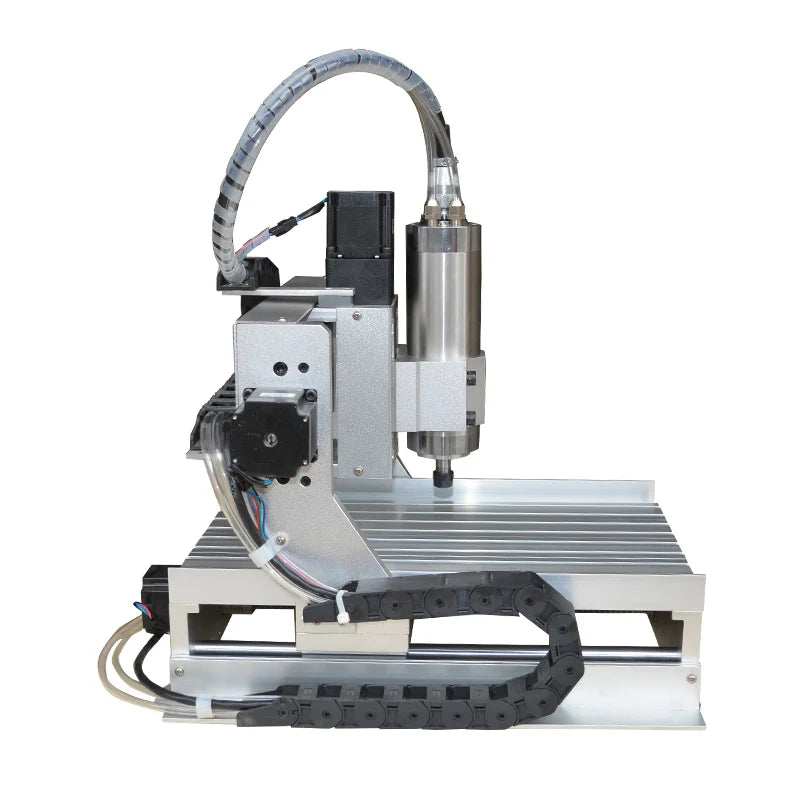

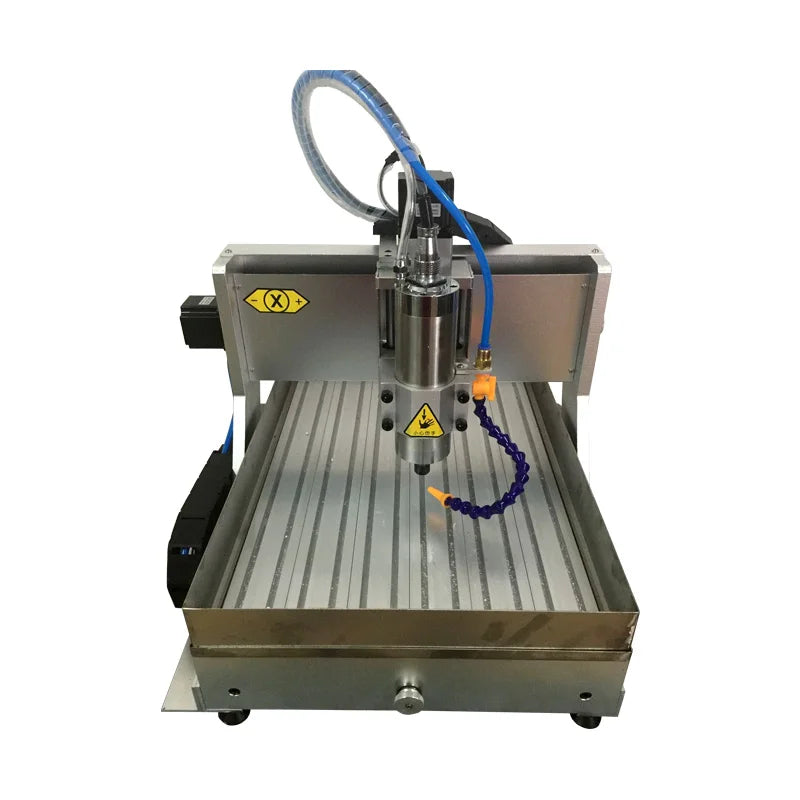

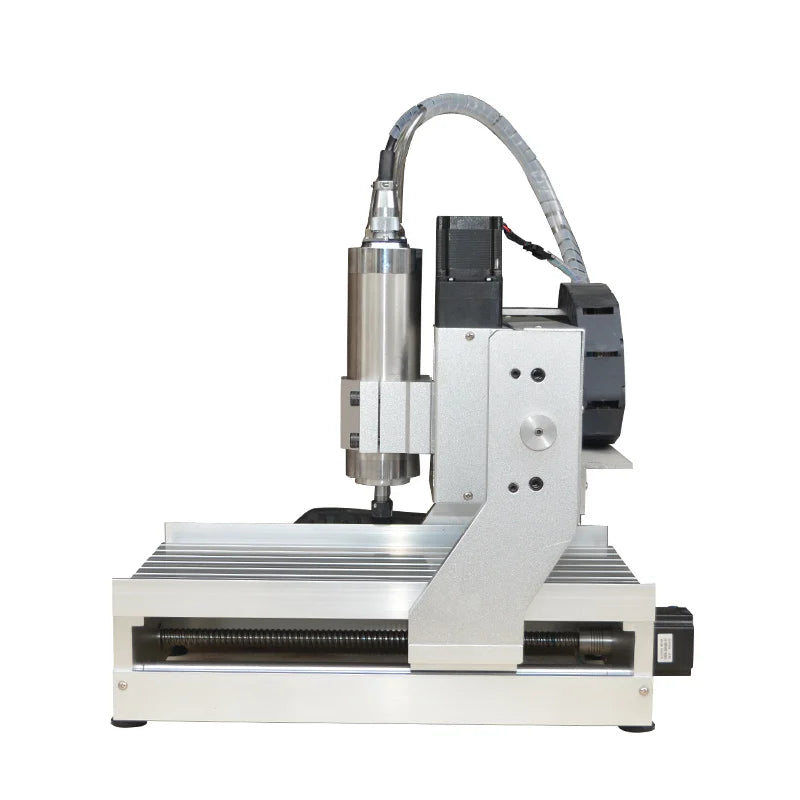

CNC 3020 1500w Wood Router 4 Axis Metal Engraving Carving Milling Machine with Limit Switch and Water tank for Aluminum Copper
CNC 3020 1500w Wood Router 4 Axis Metal Engraving Carving Milling Machine with Limit Switch and Water tank for Aluminum Copper
SPECIFICATIONS
Model Number: Mini CNC Router 3020Z 500W/800W/1500W
No. of Spindles: Single
Power (kW): 1.5
Working Table Size(mm): 300*200
brand name: LY
cnc or not: CNC
collet: ER11/er20
engraving accuracy: 0.01mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
software: Mach3
spindle power: 500W/800W/1500W water cooled spindle
travel (x axis)(mm): 300
travel (y axis)(mm): 200
video outgoing-inspection: Provided
voltage: 220V/110V
warranty: 1 Year
weight (kg): 44
with limit switch: yes
with water tank: yes
working material: PCB,WOOD,hard metal,glass so on
Mini CNC Router 3020Z 1.5kw with water tank Engraving Milling Machine
The machine is 220v EU plug or 110V US plug ,it is suitable for all country !
Package has CD , CD include detail english manual and software , it is very easy for operate the machine ,
Child can use our machine well !
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
3020Z-VFD1.5KW |
|||
|
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
|
Spindle Motor: |
1500W |
1500W |
1500W |
1500W |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
38 |
38 |
44 |
44 |
|
Machine Dimensions: |
490X420X425mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: |
300X200mm |
|||
|
Z-Axis Stroke: |
60mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤60mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
Ball screw 1605, Pitch 4mm |
|||
|
Spindle motor: |
1.5KW VFD water cooling spindle , 0-24000r/min |
|||
|
Collet type: |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|
Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||
Model and Technical Parameters
|
MODEL |
3020Z-VFD800W |
|||
|
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
|
Spindle Motor: |
800W |
800W |
800W |
800W |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
38 |
38 |
44 |
44 |
|
Machine Dimensions: |
490X420X425mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: |
300X200mm |
|||
|
Z-Axis Stroke: |
60mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤60mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
Ball screw 1605, Pitch 4mm |
|||
|
Spindle motor: |
800W VFD water cooling spindle , 0-24000r/min |
|||
|
Collet type: |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|
Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||
