CNC 6040L Router Wood Carving Machine 4Axis 1.5KW 2.2KW VFD Spindle Metal Wood Working Milling Lathe Aluminium Worktop
CNC 6040L Router Wood Carving Machine 4Axis 1.5KW 2.2KW VFD Spindle Metal Wood Working Milling Lathe Aluminium Worktop
SPECIFICATIONS
No. of Spindles: Multi
Spindle Motor Power (kw): 1.5/2.2KW
brand name: LY
cnc or not: CNC
core components: Motor,Gear,Bearing
dimension(l*w*h): 830 *620 * 600mm
key selling points: High-Accuracy
machine type: CNC Router
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.01
range of spindle speed(r.p.m): 0 - 24000
repeatability (x/y/z) (mm): 0.01
travel (x axis)(mm): 600
travel (y axis)(mm): 400
voltage: 110/220V
warranty: 1 Year
weight (kg): 138
CNC 6040L Router Wood Carving Machine 4Axis 1.5KW 2.2KW VFD Spindle Metal Wood Working Milling Lathe Aluminium Worktop
Introduction
The CNC 6040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Linear Guide Rail, More Precise on moving.
The engraving process is visible as controlled by computer
Simple operation and installation
Warranty
1 year full warranty directly from factory
Shipping
• By DHL & FEDEX with tracking number, need 5~10 days;
• By SEA , need 40~50 days;
• Please email us your phone number after you pay for the item only for delivery purpose.
Technical Parameters
|
MODEL |
6040L-2.2KW 1.5KW |
|
Machine Dimensions: |
830 *620 * 600mm |
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|
Table size |
460 * 720mm (20mm aluminum alloy T table) |
|
Engraving area: |
360 *570mm |
|
Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness: |
140mm |
|

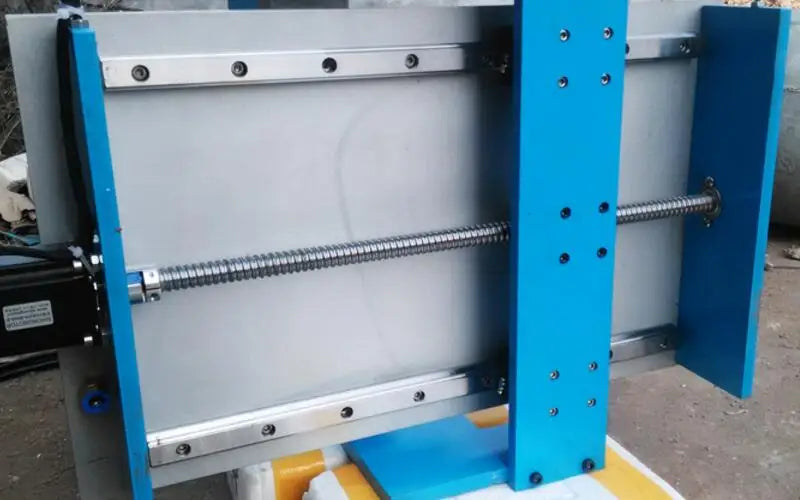

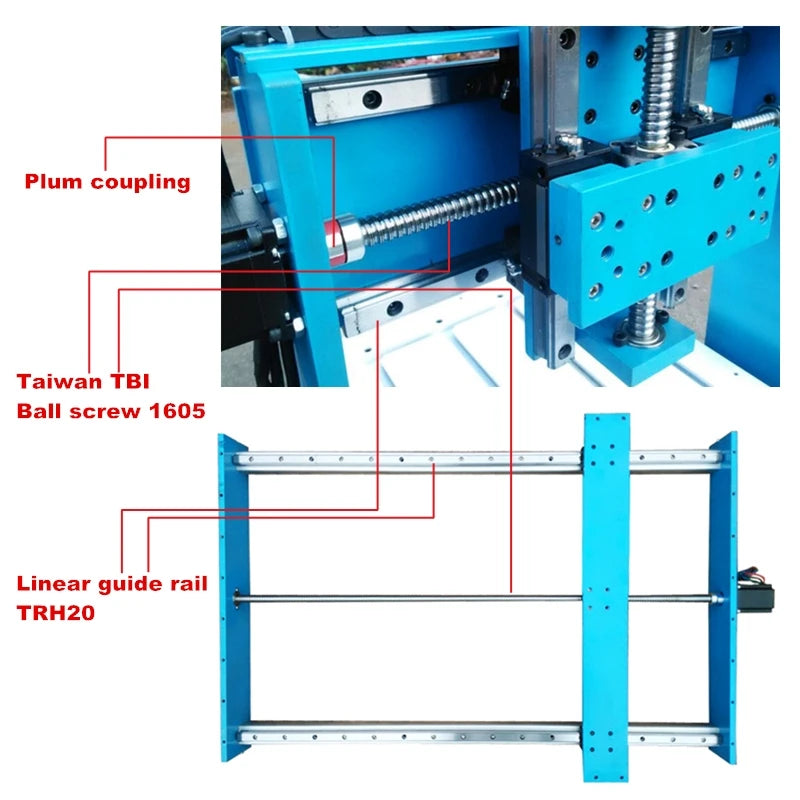

Rail type: |
Linear guide rail TRH20 (more precise moving) |
|
Type of screw: |
Taiwan TBI Ball screw 1605 |
|
Spindle motor: |
1.5KW / 2.2KW VFD water cooling spindle , 0-24000r/min |
|
Collet type: |
2.2KW with ER20,1/8"(3.175mm) and 6mm Collet ( 1.5KW with ER11) |
|
Stepper motor and drive: |
two-phase 57/3A |
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|
Repeat positioning Accuracy: |
0.03mm |
|
Communication interface: |
Parallel port or USB port |
|
Tool auto-checking |
yes |
|
Software Compatability: |
Mach3 (Type3,Wentai, ArtCAM, coppercam) |
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight: |
138kg |
|

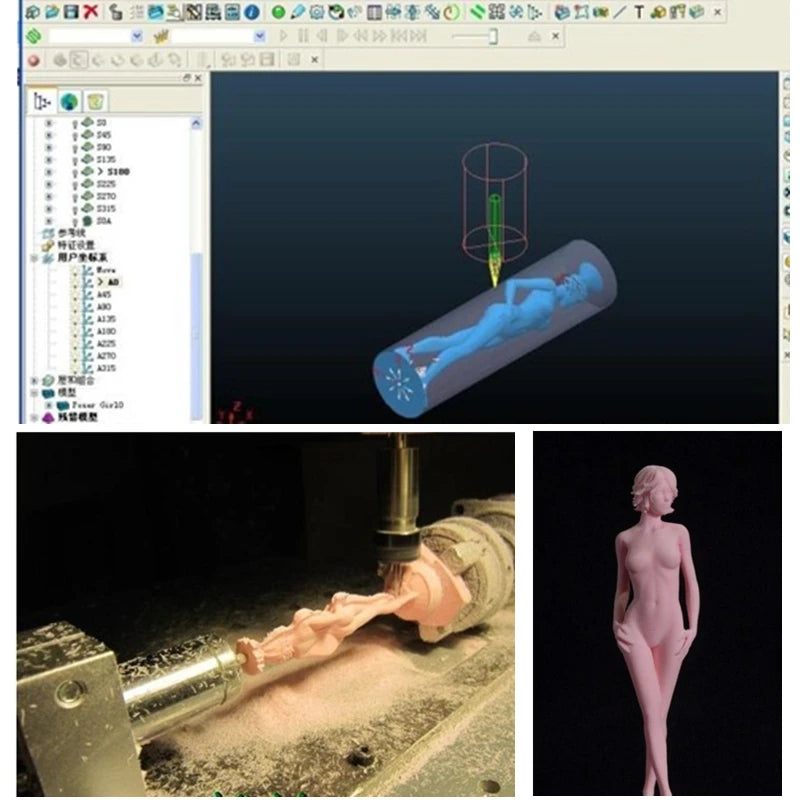

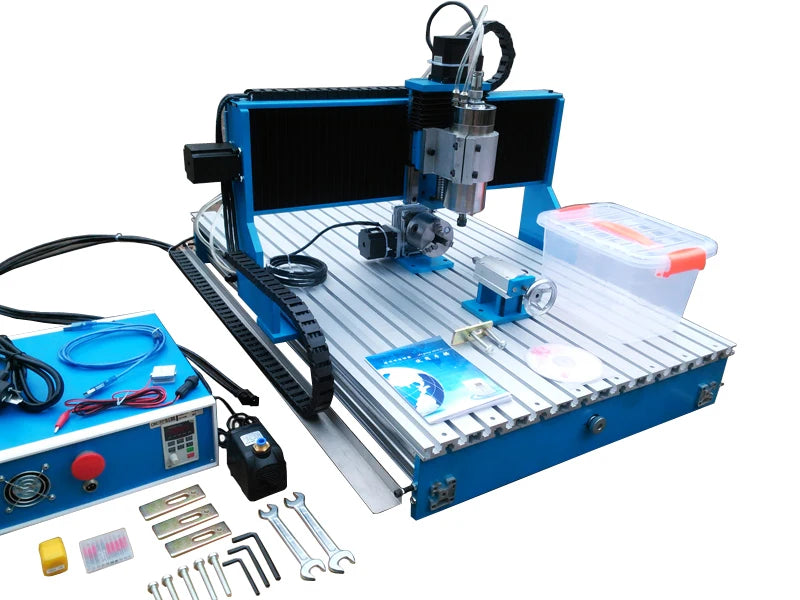

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 ° |
Note:
This machine have other spindle, For example 800W and 1.5KW;
But the price may be different;
If you need other spindle ,please message us or contact us, thank you very much;
|
Attribute |
3axis |
4axis |
||
|
Parallel port |
USB port |
Parallel port |
USB port |
|
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
Parallel port |
USB port |
Parallel port |
USB port |
|
Weigh |
135 |
135 |
140 |
140 |
|

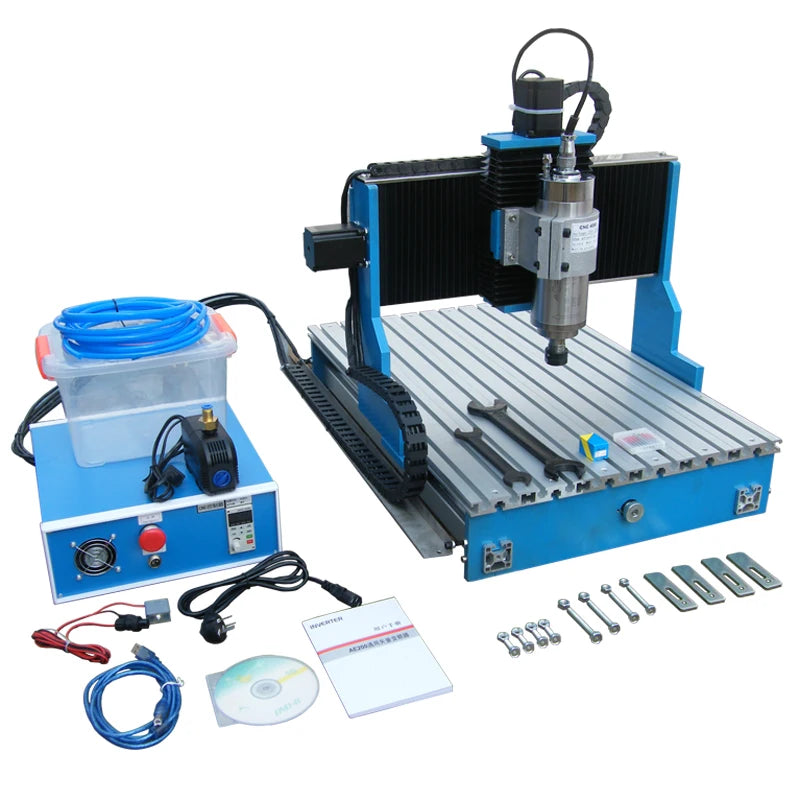

Packing list |
|
|
|
|
|
1× Engraving machine |
√ |
√ |
√ |
√ |
|
1× Control box |
√ |
√ |
√ |
√ |
|
1× Power cable |
√ |
√ |
√ |
√ |
|
1× Parallel port cable |
√ |
x |
√ |
x |
|
1× USB port cable |
x |
√ |
x |
√ |
|
1× Tool package |
√ |
√ |
√ |
√ |
|
1× Rotation axis |
x |
x |
√ |
√ |
|
1×tool auto-checking instrument |
√ |
√ |
√ |
√ |
|
1x water pump |
√ |
√ |
√ |
√ |
|
1× CD (if not get, may be lost in customs, please contact us) |
√ |
√ |
√ |
√ |
