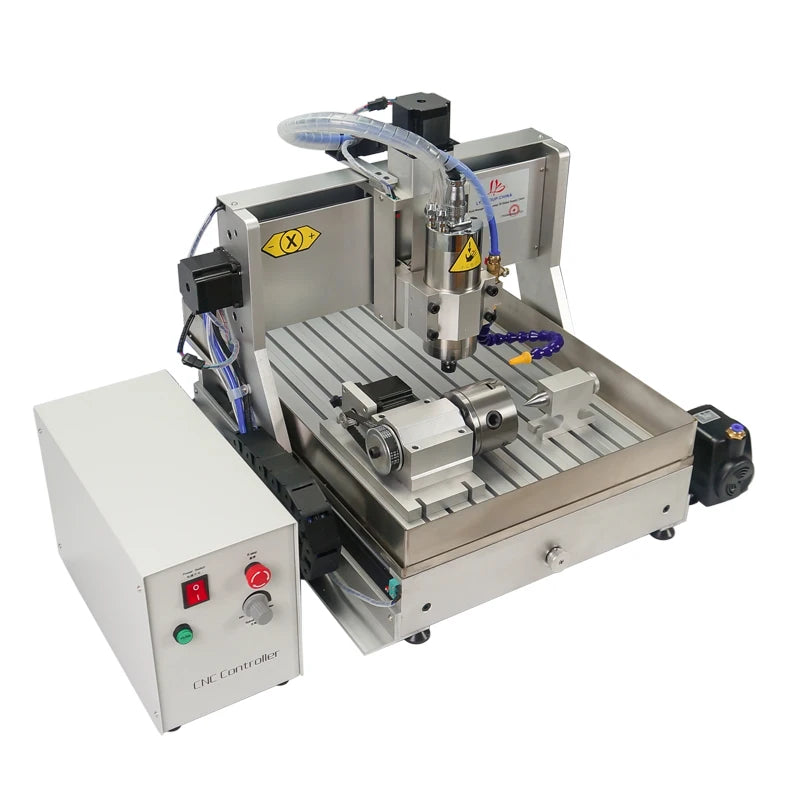

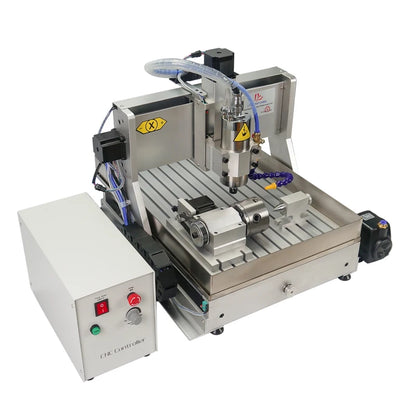

CNC Engraving Drilling and Milling Machine Frame Kit 4Axis 3040 Z-VFD Mini Wood CNC Router 1.5KW
CNC Engraving Drilling and Milling Machine Frame Kit 4Axis 3040 Z-VFD Mini Wood CNC Router 1.5KW
SPECIFICATIONS
Acceptable material thickness: ≤100mm
After-sales Service Provided: Overseas service center available
Command code: G code/.nc/.ncc/.tab/.txt
Engraving area: 300*400mm
Maximum operating speed: 4000mm/min
No. of Spindles: Single
Power (kW): 1.5
Power(W): -
Repeat positioning Accuracy: 0.03mm
Spindle Motor Power (kw): 1.5

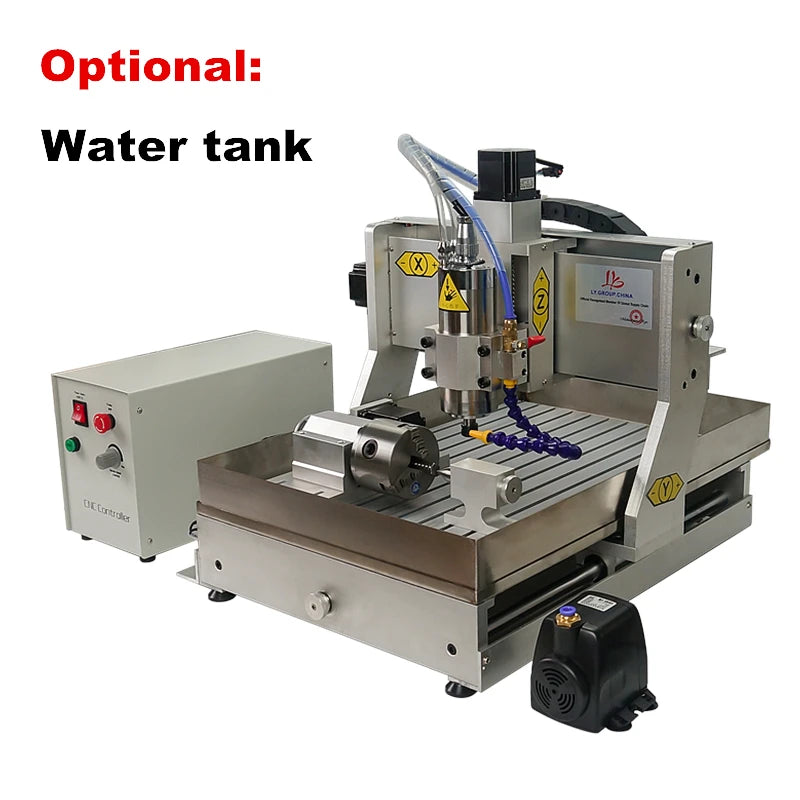

Spindle motor: 1500W VFD water cooling spindle
Type of screw: Ball screw 1605, Pitch 4mm
Weight: 52kg
Working Table Size(mm): 400X300mm
brand name: LY
cnc or not: CNC
core components: Bearing,Motor
dimension(l*w*h): 600*510*480mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.07
range of spindle speed(r.p.m): 0 - 24000 rpm
repeatability (x/y/z) (mm): 0.03
travel (x axis)(mm): 400
travel (y axis)(mm): 300
video outgoing-inspection: Provided
voltage: 110/220v
warranty: 1 Year
weight (kg): 52

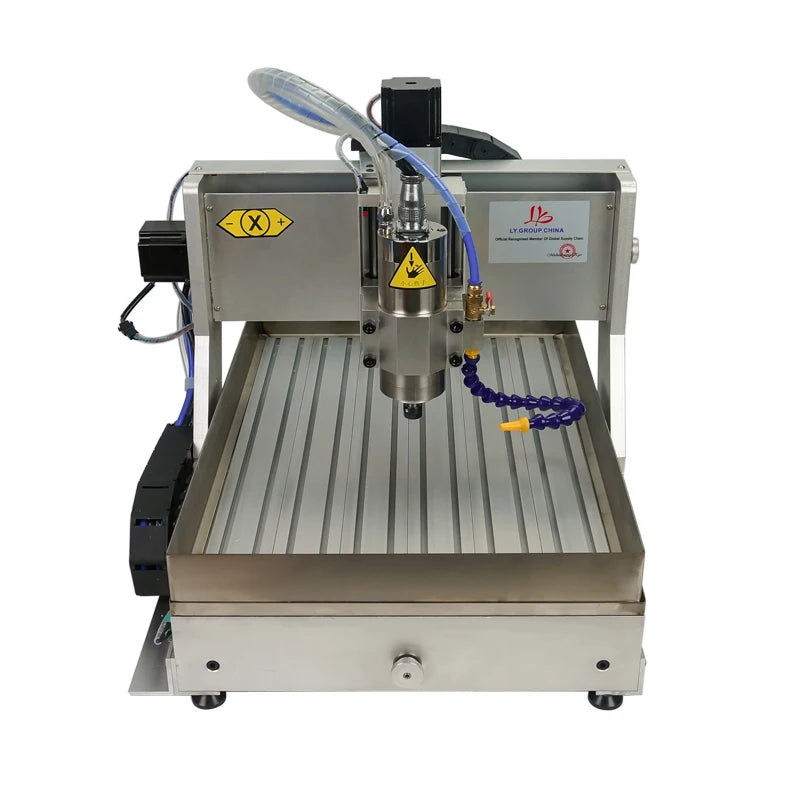

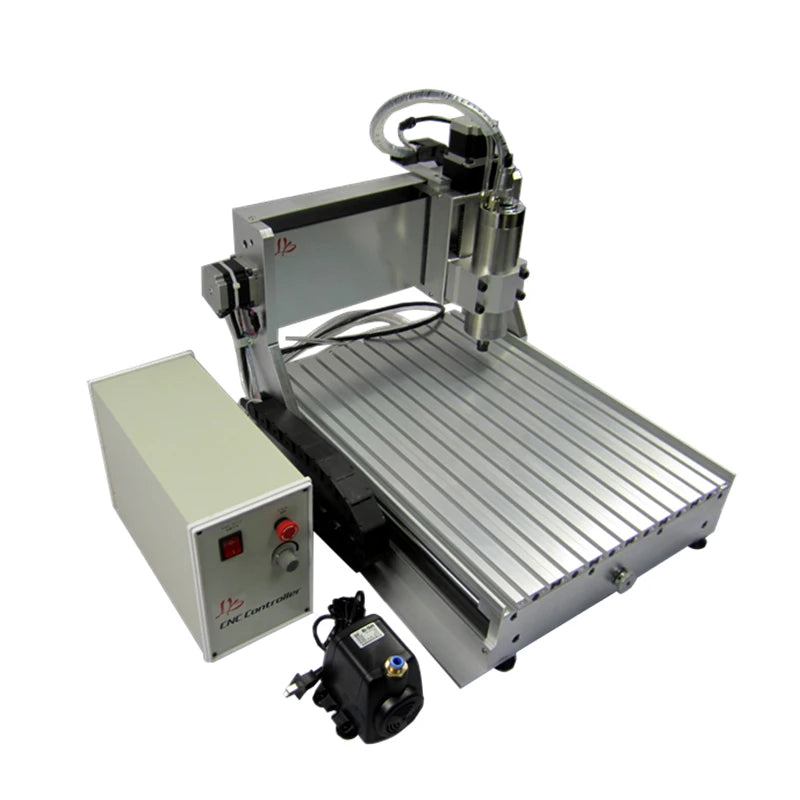

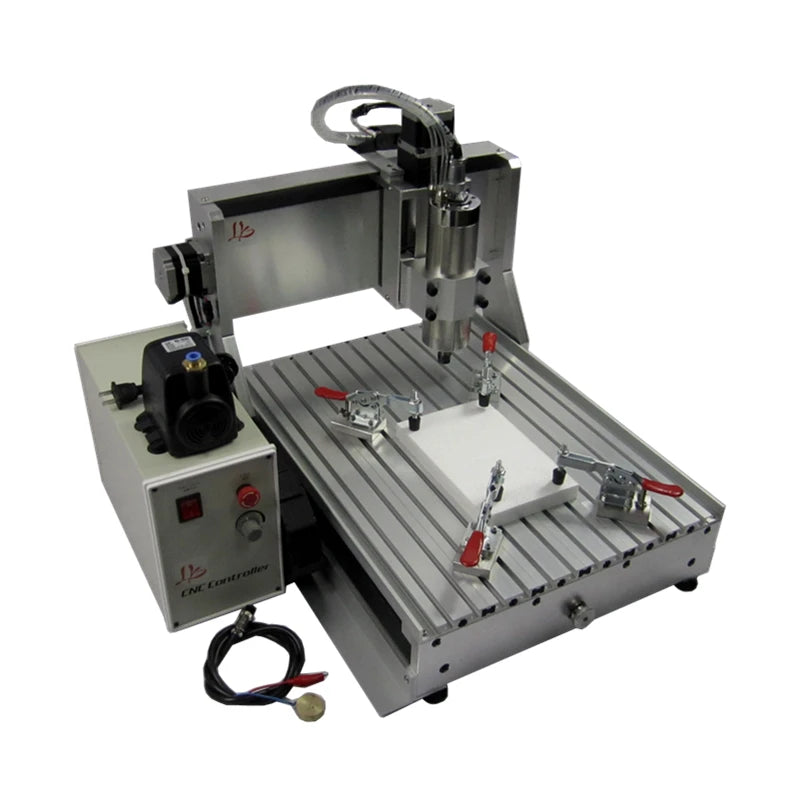

Mini CNC Router 3040Z 1.5KW Engraving Drilling and Milling Machine
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
3040Z-VFD1.5KW |
|||
|
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
|
Spindle Motor: |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
46 |
46 |
52 |
52 |
|
Machine Dimensions: |
600X510X480mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: |
400X300mm |
|||
|
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤100mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
Ball screw 1605, Pitch 4mm |
|||
|
Spindle motor: |
1.5KW VFD water cooling spindle , 0-24000r/min |
|||
|
Collet type: |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|

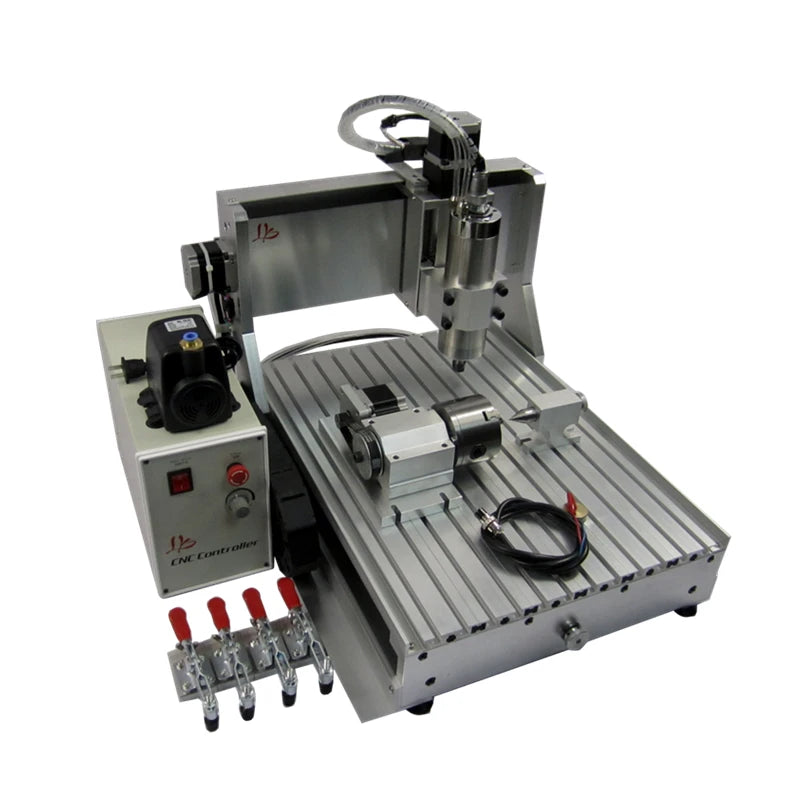

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
