Cnc Engraving Machine 6040 4 Axis 2200W Wood Router 6090 Linear Guide Rail Metal Carving PCB Milling DSP Offline Control
Cnc Engraving Machine 6040 4 Axis 2200W Wood Router 6090 Linear Guide Rail Metal Carving PCB Milling DSP Offline Control
SPECIFICATIONS
No. of Spindles: Multi
Spindle Motor Power (kw): 1.5
brand name: LY
cnc or not: CNC
core components: Motor,Gear,Bearing
dimension(l*w*h): 900 * 1200 * 600mm
key selling points: High-Accuracy
machine type: CNC Router
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.01
range of spindle speed(r.p.m): 0 - 24000
repeatability (x/y/z) (mm): 0.01
travel (x axis)(mm): 600
travel (y axis)(mm): 900
voltage: 110/220V
warranty: 2 Years
weight (kg): 150
Introduction
The CNC 6090 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Linear Guide Rail, More Precise on moving.
The engraving process is visible as controlled by computer
Simple operation and installation
Warranty
1 year full warranty directly from factory
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters
|
MODEL |
Offline DSP control system 6090L |
|
Machine Dimensions |
900*1200*600mm / 830*620*600mm (6040) |
|
Rack material |
6061 and 6063 Hard aluminum alloy |
|

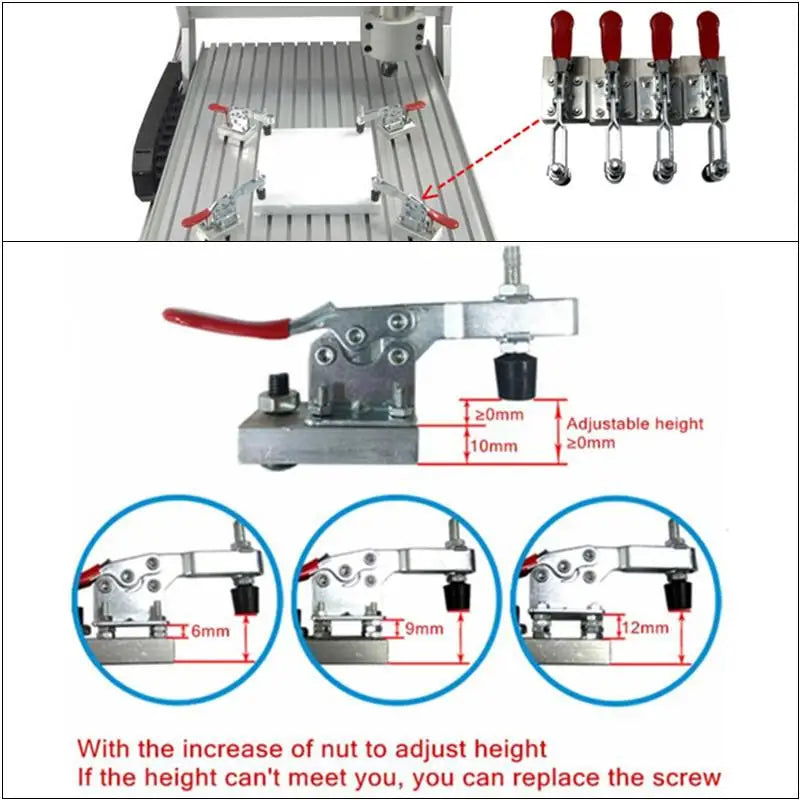

Table size |
640*1080mm (20mm aluminum alloy T table) |
|
Engraving area |
560*850mm / 360 *570mm (6040) |
|
Z-Axis Stroke |
120mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness |
140mm |
|
Rail type |

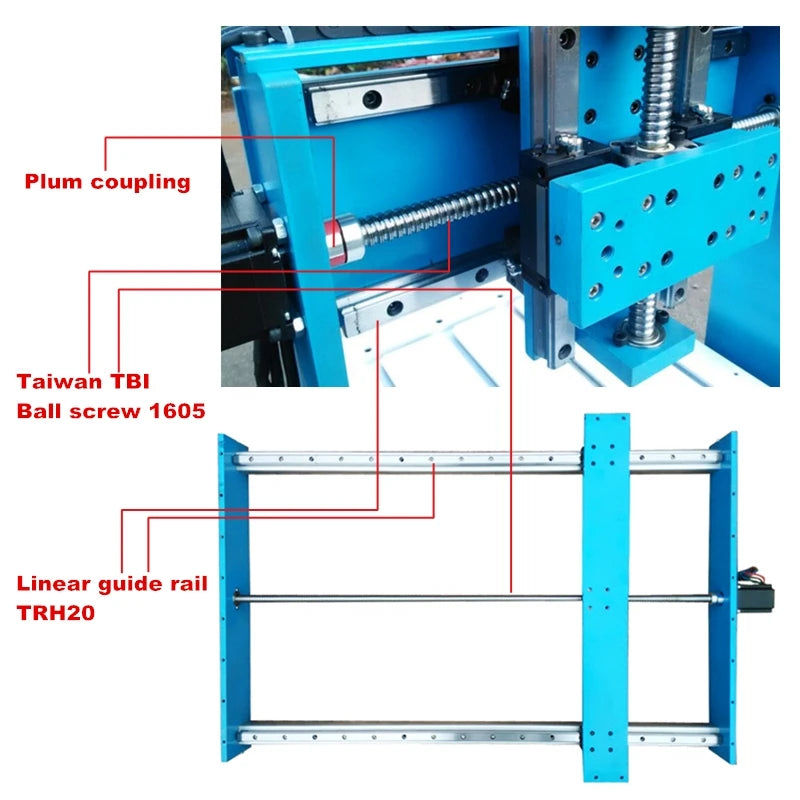

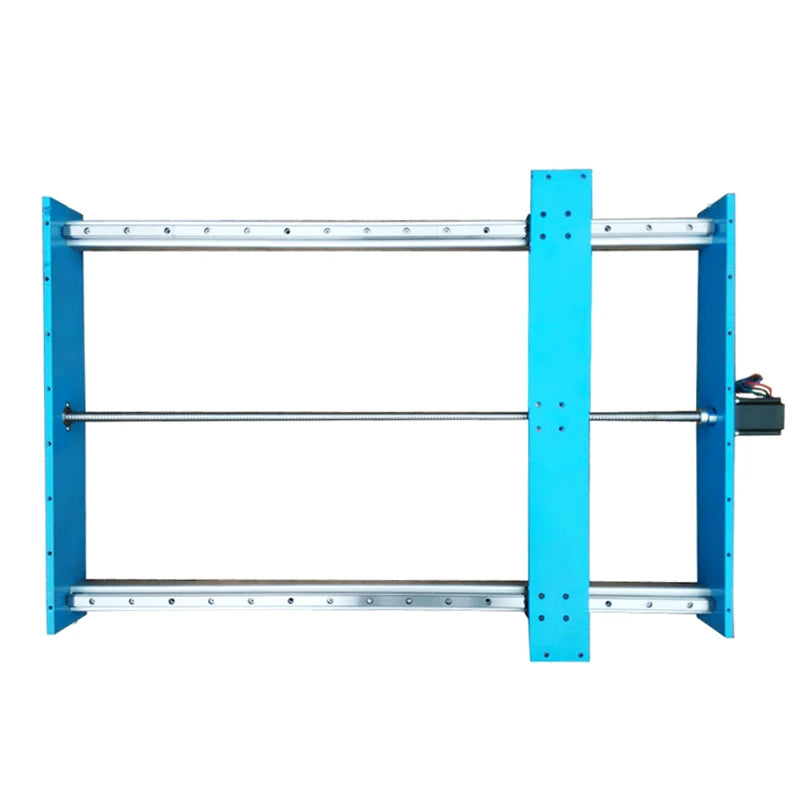

Linear guide rail TRH20 (more precise moving) |
|
Type of screw |
Taiwan TBI Ball screw 1605 |
|
Spindle motor |
1.5KW or 2.2KW VFD water cooling spindle , 0-24000r/min |
|
Collet type |
1.5KW ER11, 2.2KW ER20,1/8 (3.175mm) and 6mm Collet |
|
Stepper motor and drive |
two-phase 57/3A |
|
Maximum operating speed |
4000mm/min (Engraving speed: 300-3000mm/min) |
|
Repeat positioning Accuracy |
0.03mm |
|
Communication interface |
No need computer, U disk read G code |
|
Tool auto-checking |
yes |
|
Software Compatability |
Mach3 (Type3,Wentai, ArtCAM, coppercam) |
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight |
155kg |
|

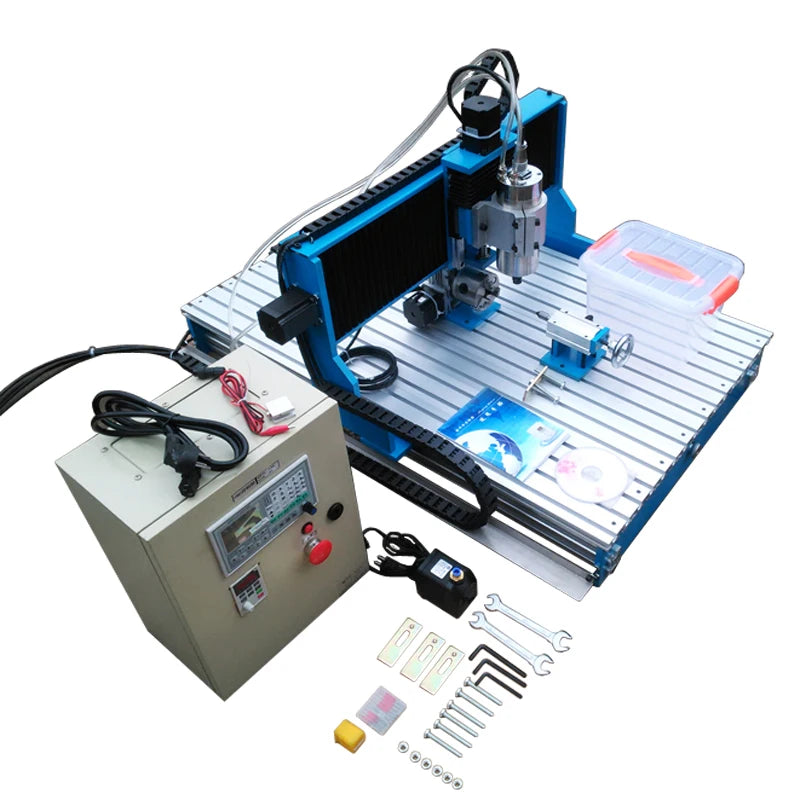

Rotation Axis (4th Axis) Description |
Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 degree |
The machine already assembled & tested well,
can directly use after take them out from package.
Packing list
|
Attribute |
3axis |
4axis |
||
|
1.5KW |
2.2KW |
1.5KW |
2.2KW |
|
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Weigh |
155KG |
155KG |
160KG |
160KG |
|

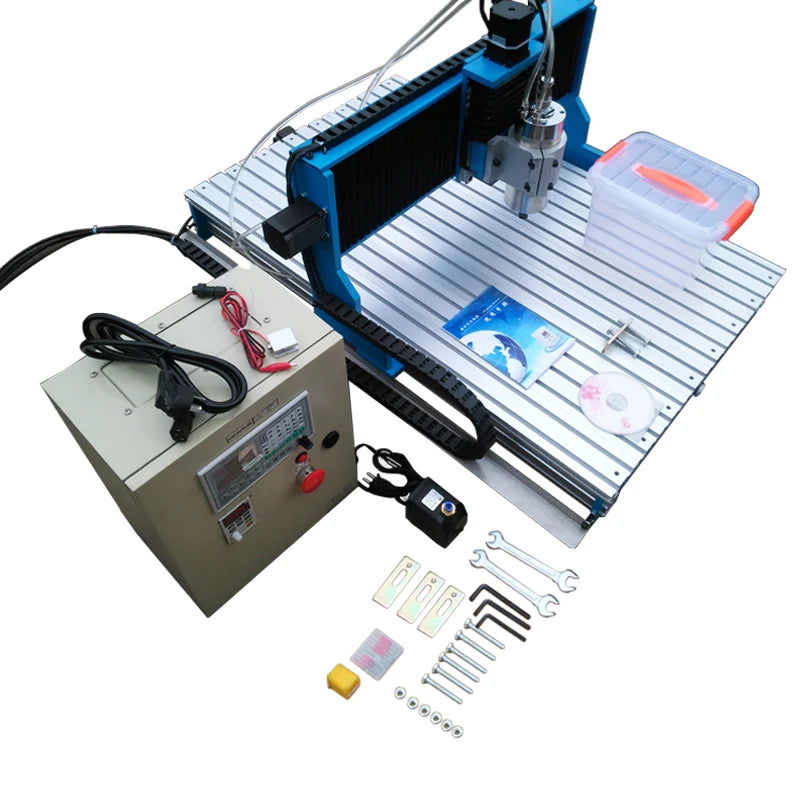

Packing list |
|
|
|
|
|
1× Engraving machine |
yes |
yes |
yes |
yes |
|

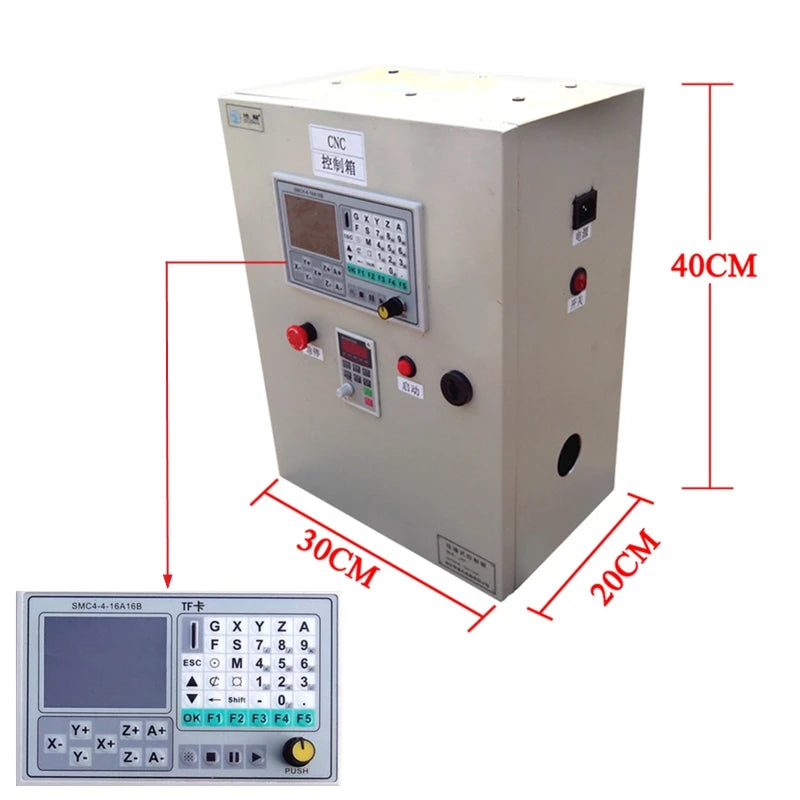

1×Offline DSP Control box |
yes |
yes |
yes |
yes |
|
1× Power cable |
yes |
yes |
yes |
yes |
|
1× Parallel port cable |
no |
no |
no |
no |
|
1× USB port cable |
no |
no |
no |
no |
|
1× Tool package |
yes |
yes |
yes |
yes |
|
1× Rotation axis |
no |
no |
yes |
yes |
|
1×tool auto-checking instrument |
yes |
yes |
yes |
yes |
|
1x water pump |
yes |
yes |
yes |
yes |
|
1× CD (if not get, may be lost in customs, please contact us) |
yes |
yes |
yes |
yes |
