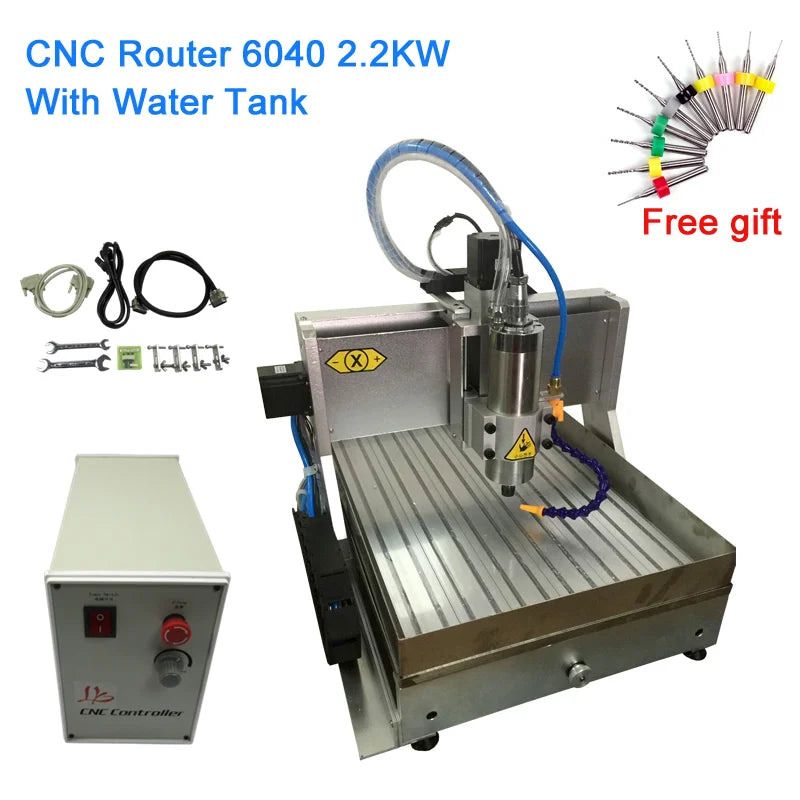

CNC Router 6040 2.2kW 3 Axis / 4 Axis USB Engraver with Water tank LY Engraving and Milling Machine 600*400mm
CNC Router 6040 2.2kW 3 Axis / 4 Axis USB Engraver with Water tank LY Engraving and Milling Machine 600*400mm
SPECIFICATIONS
After-sales Service Provided: Online support
Certification: CE
Marketing Type: Ordinary Product
No. of Spindles: Single
Power (kW): 2.2
Spindle Motor Power (kw): 2.2
Working Table Size(mm): 600*400
brand name: LY
cnc or not: CNC
core components: Motor
dimension(l*w*h): 810X640X480mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.01
repeatability (x/y/z) (mm): 0.01
travel (x axis)(mm): 600
travel (y axis)(mm): 400
video outgoing-inspection: Provided
voltage: 220V/110V
warranty: 1 Year
weight (kg): 72

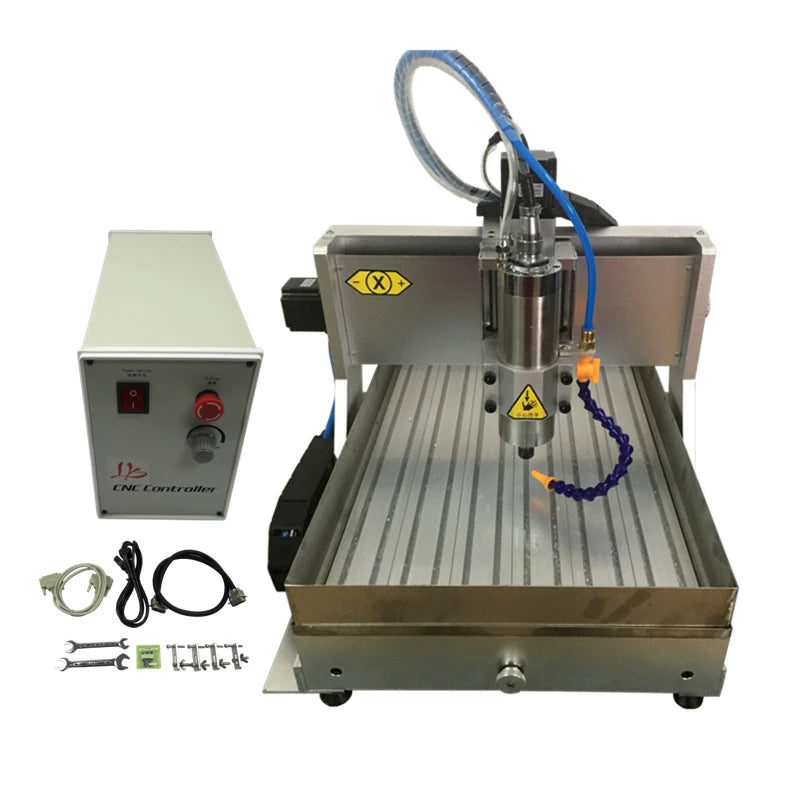

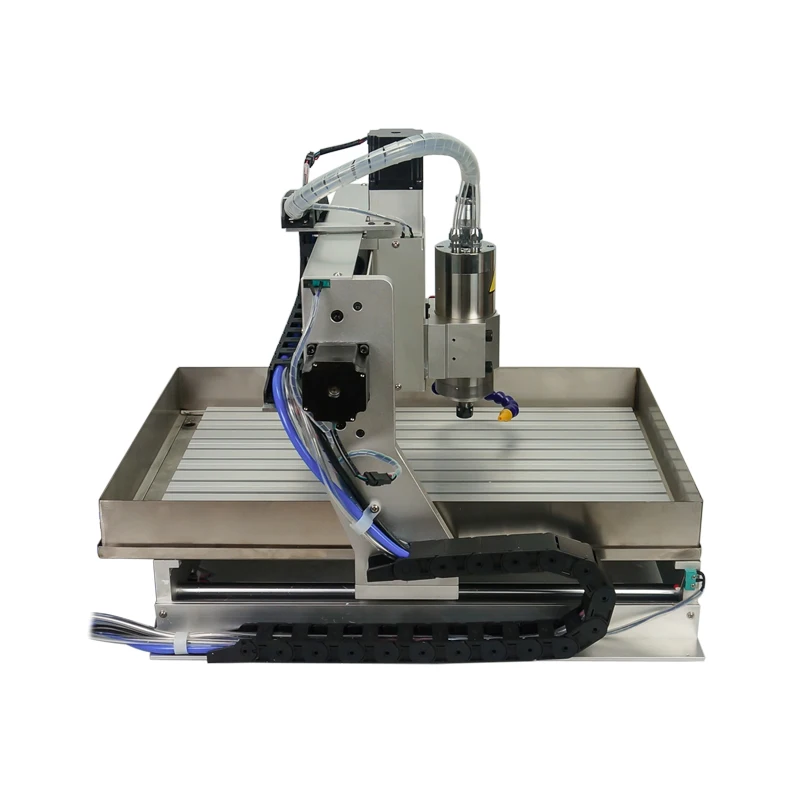

CNC Router 6040Z with water tank Engraving Milling Machine 800W 1.5KW 2.2KW VFD Spindle for working wood metal
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
6040Z with water tank |
|||||
|
Attribute1 |
0.8KW |
1.5KW |
2.2KW |
|||
|
Attribute2 |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
||
|
Axis |
3axis |
3axis |
4axis |
4axis |
||
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
||
|
Limit switch |
Yes |
yes |
Yes |
Yes |
||
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
||
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
||
|
Weigh |
65 |
65 |
72 |
72 |
||
|
Machine Dimensions: |
810X640X480mm |
|||||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||||
|
Engraving area: |
600X400mm |
|||||
|

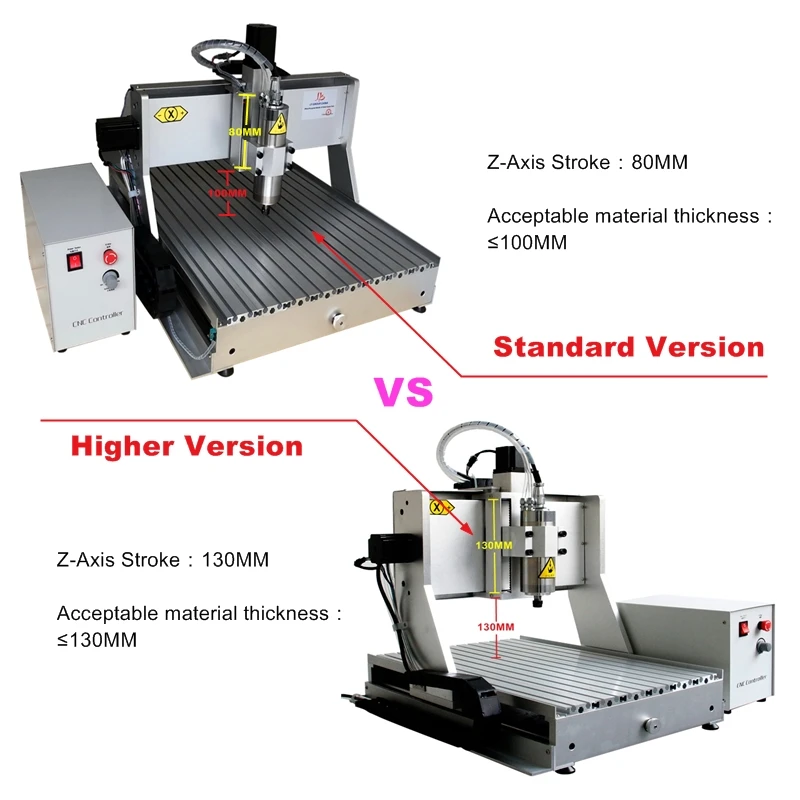

Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
|||||
|
Acceptable material thickness: |
≤100mm |
|||||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||||
|
Type of screw: |
Ball screw 1605, Pitch 5mm |
|||||
|

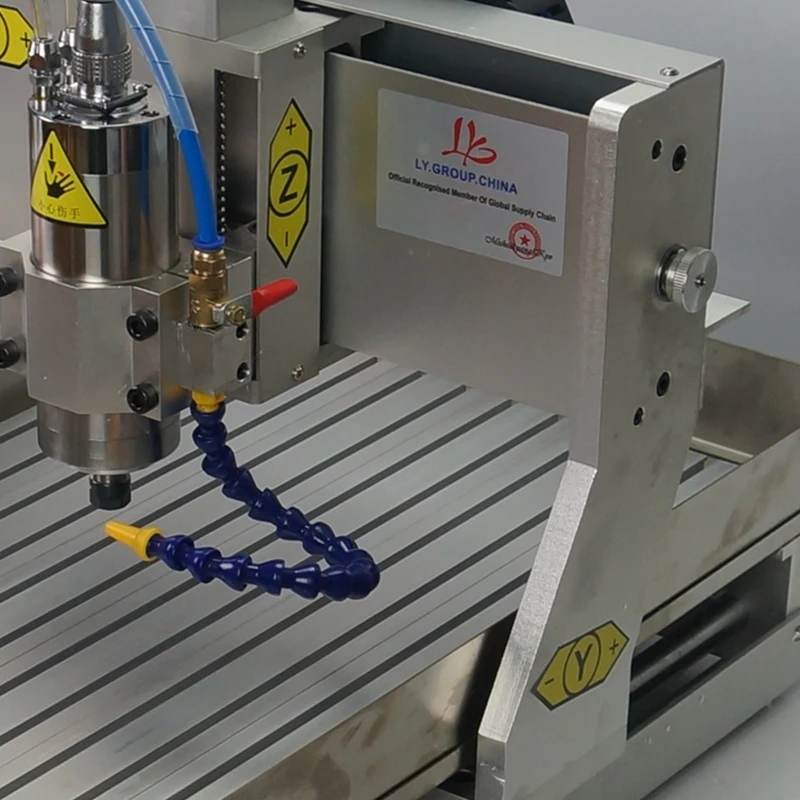

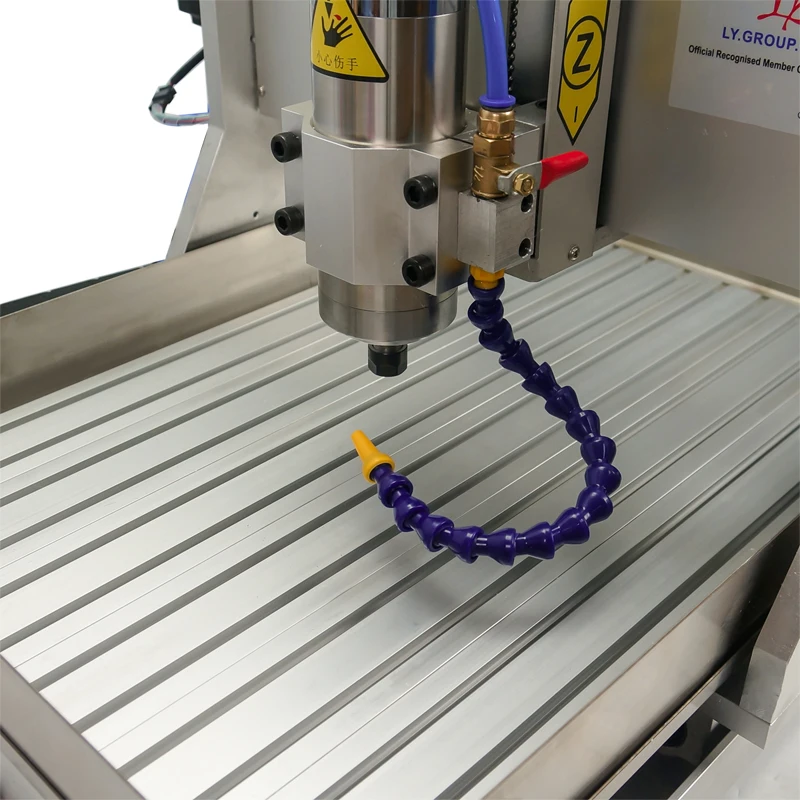

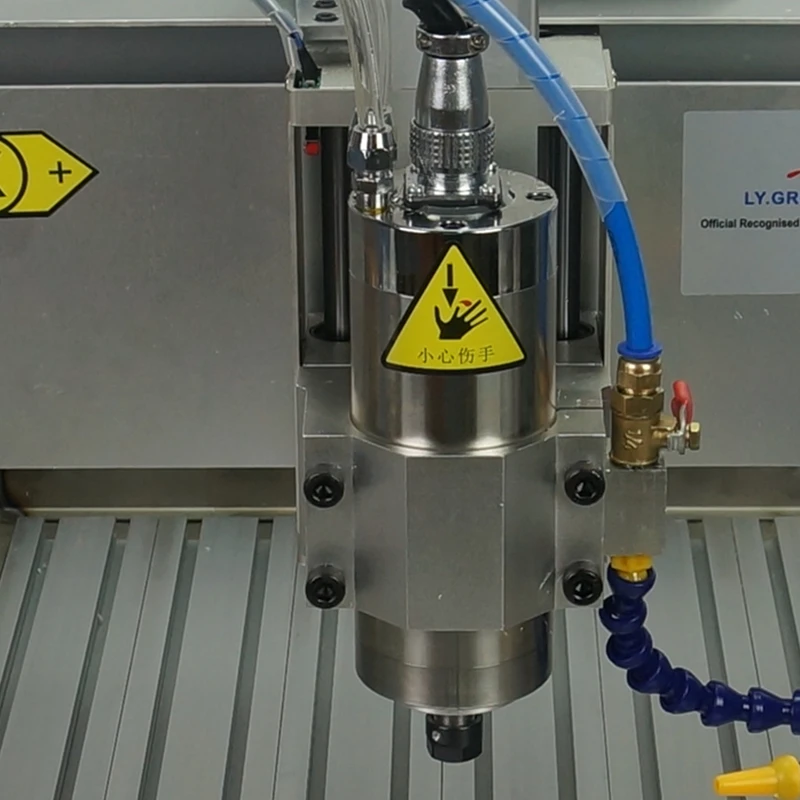

Spindle motor: |
VFD water cooling spindle , 0-24000r/min |
|||||
|
Collet type: |
ER11(0.8KW 1.5KW) 3.175mm Collet & ER20(2.2KW), 6mm Collet |
|||||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||||
|
Repeat positioning Accuracy: |
0.03mm |
|||||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||||
|

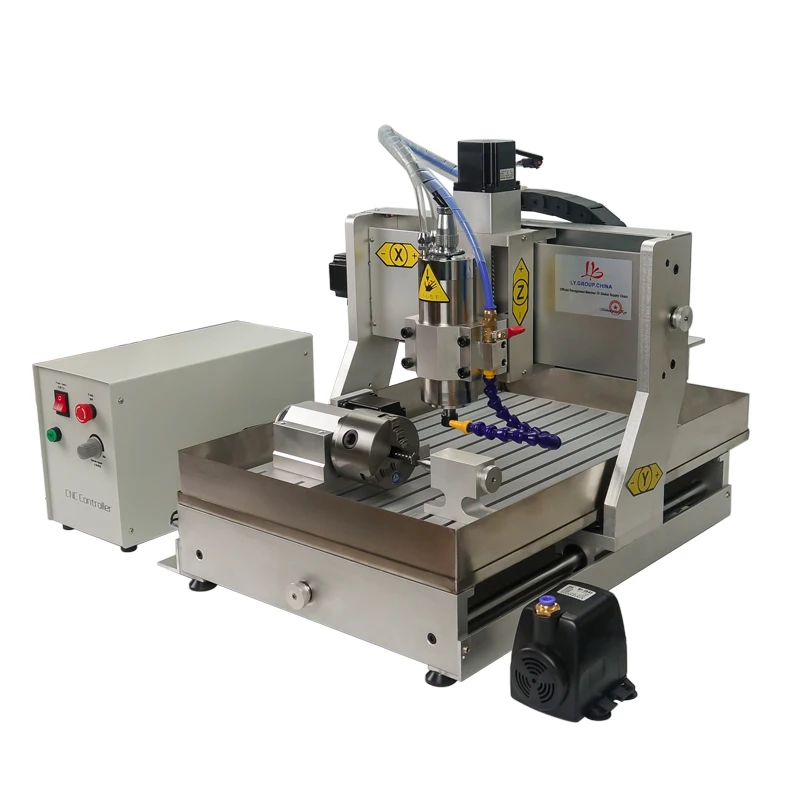

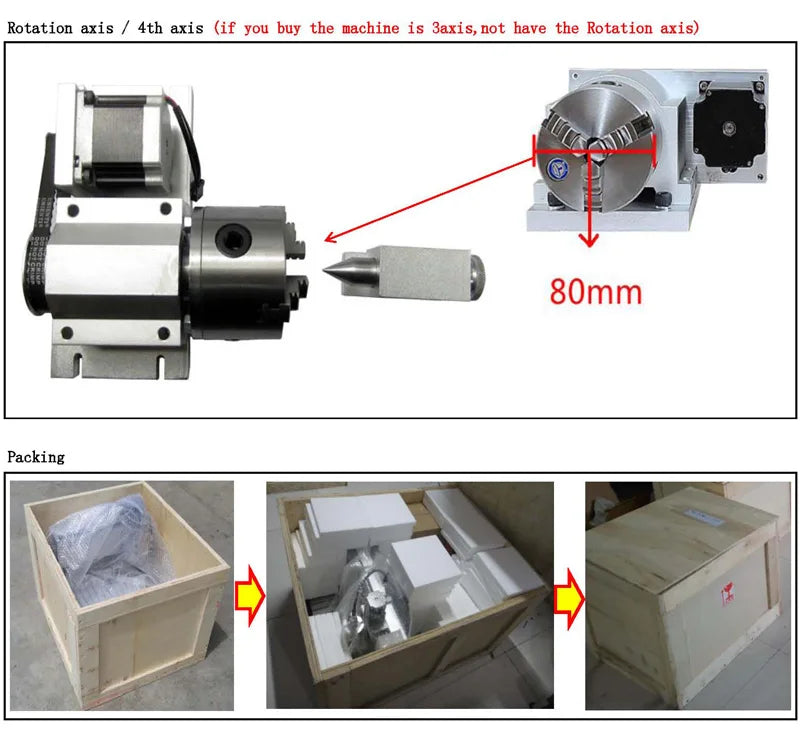

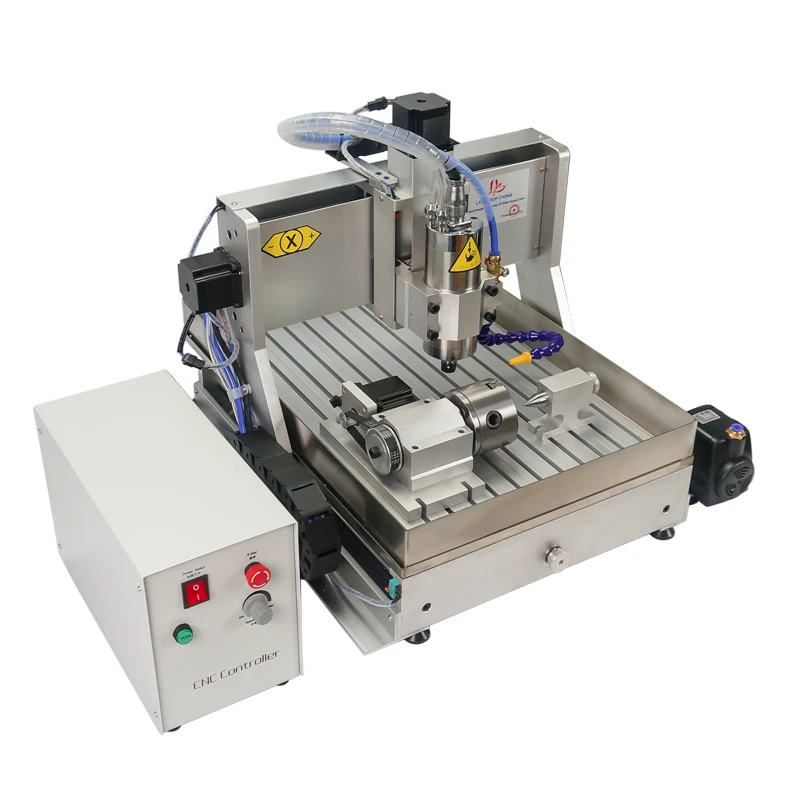

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||||

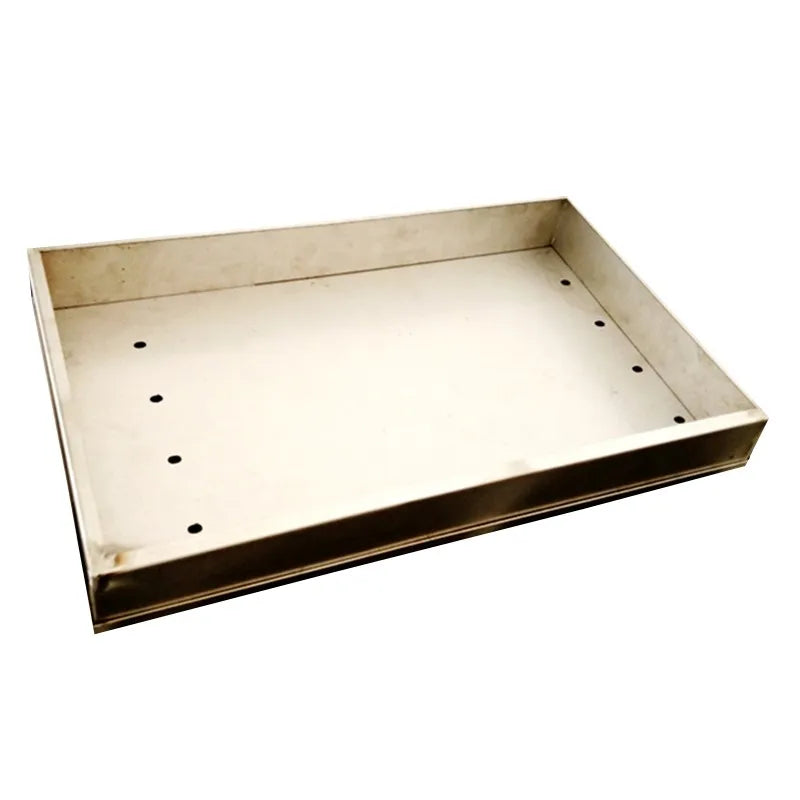

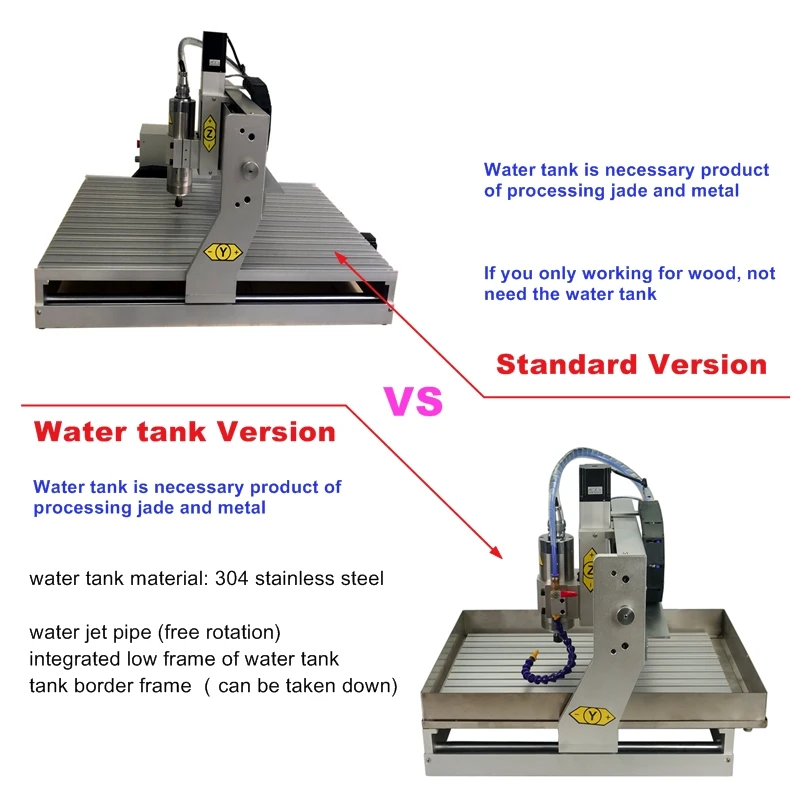

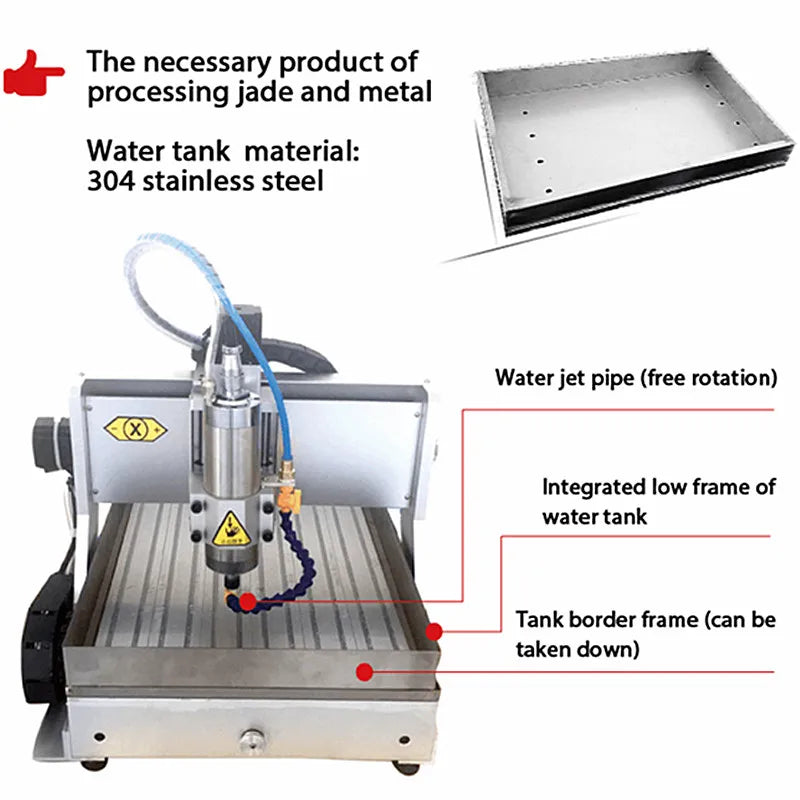

Water tank is the requisite for engraving jade and metal on engraver;

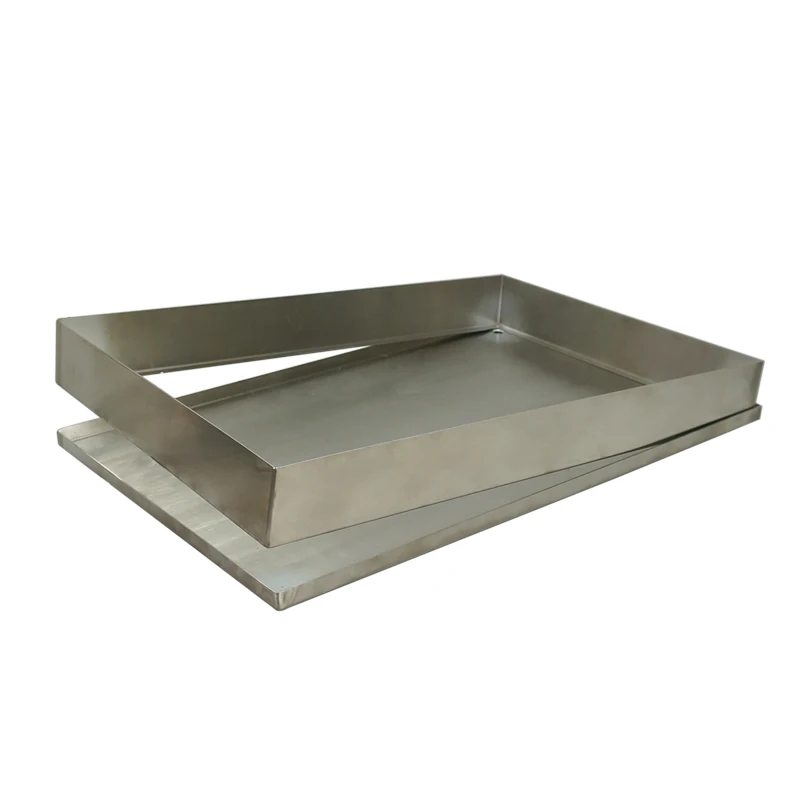

The tank is made of 304 stainless steel, stable and beautiful;
Features:
a. The water tank has integrated low frame which can be removed
b. The size and weight of the tank are as follows. The hole is mainly applicable to the LY brand engraving machine,if you want to use other brands of engraving machines, you need to deal with it yourself;
c. The machine with installation of water tank , before shipment, has done a good deal of water leak-proof treatment. If you just buy a water tank, you need install it yourself and do the water leak-proof treatment;

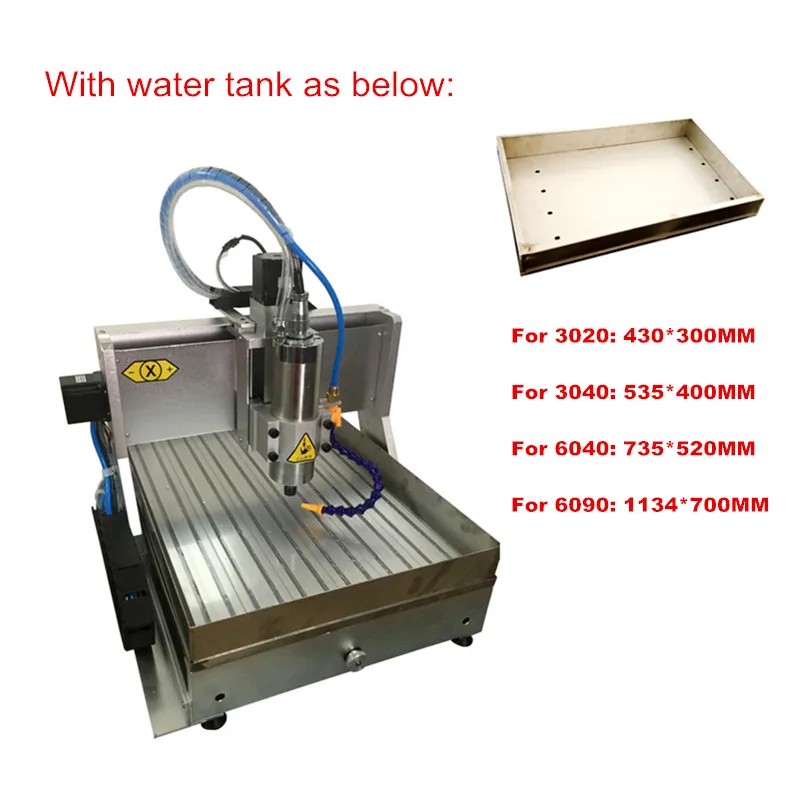

Technical Parameters
|
name |
water tank |
|||
|
Attribute |
For 3020 |
For 3040 |
For 6040 |
For 6090 |
|
Size |
430*300mm |
535*400mm |

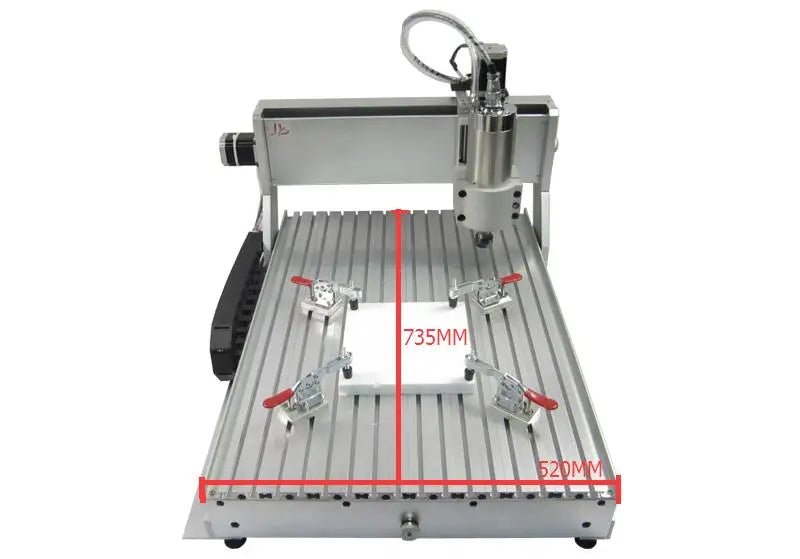

735*520mm |
1134*700mm |
|
Weigh |
2.5 |
3.5 |
4.3 |
8.6 |
