SPECIFICATIONS

Drive Motors: FL118 stepper motor and YAKO2811 drive

Dust collector: option

Inverter: 5.5 kw Taiwan Delta Inverter

Limit switch: Japan OMRON limit switch for X, Y, Z axis

No. of Spindles: Single

Operating System: DSP A11 handle controller (Options: Ncstudio /Mach3 )

Showroom Location: Mexico

Software Compatibility: ARTCAM 2012 software, (Option: Artcam Type3 Software)

Spindle Motor Power (kw): 4.5KW

Spindle Power: 4.5KW Italy air cooling spindle

Table Surface: Vacuum & T-slot Table

Wood Router Frame: Industrial class square tube strong structure

Working Table Size(mm): 1300×2500

brand name: BLUE ELEPHANT

cnc or not: CNC

core components: Motor,Pump

dimension(l*w*h): 3200x2140x1850MM

key selling points: Long Service Life

machine type: CNC Router

machinery test report: Provided

number of axes: 3

place of origin: Shandong, China

positioning accuracy (mm): 0.02 mm

range of spindle speed(r.p.m): 1 - 24000 rpm

repeatability (x/y/z) (mm): 0.02 mm

travel (x axis)(mm): 1300 mm

travel (y axis)(mm): 2500 mm

video outgoing-inspection: Provided

voltage: AC380V (Option: 220V)

warranty: 1 Year

weight (kg): 1400

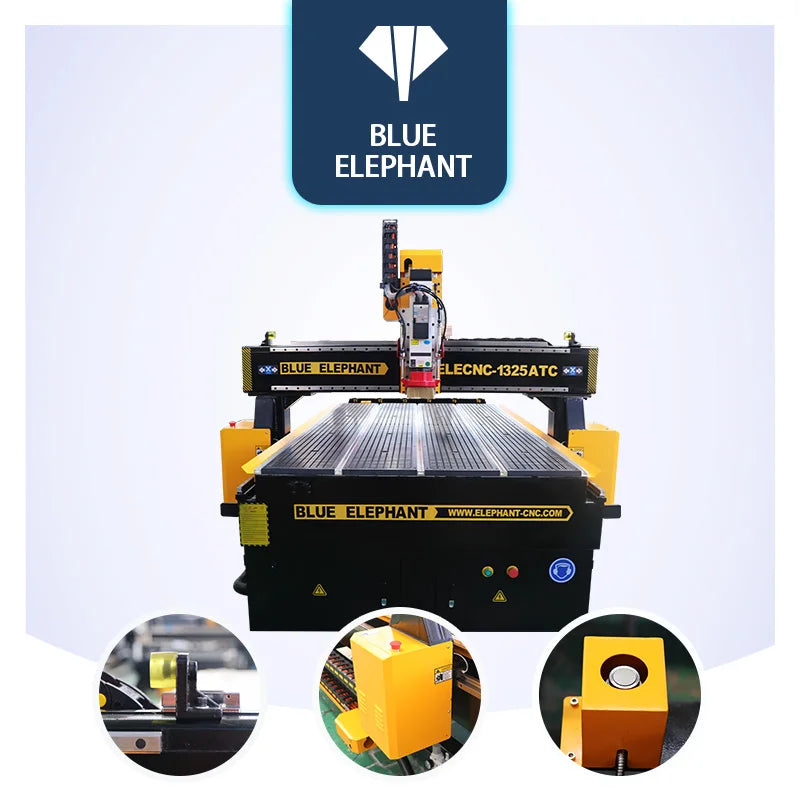

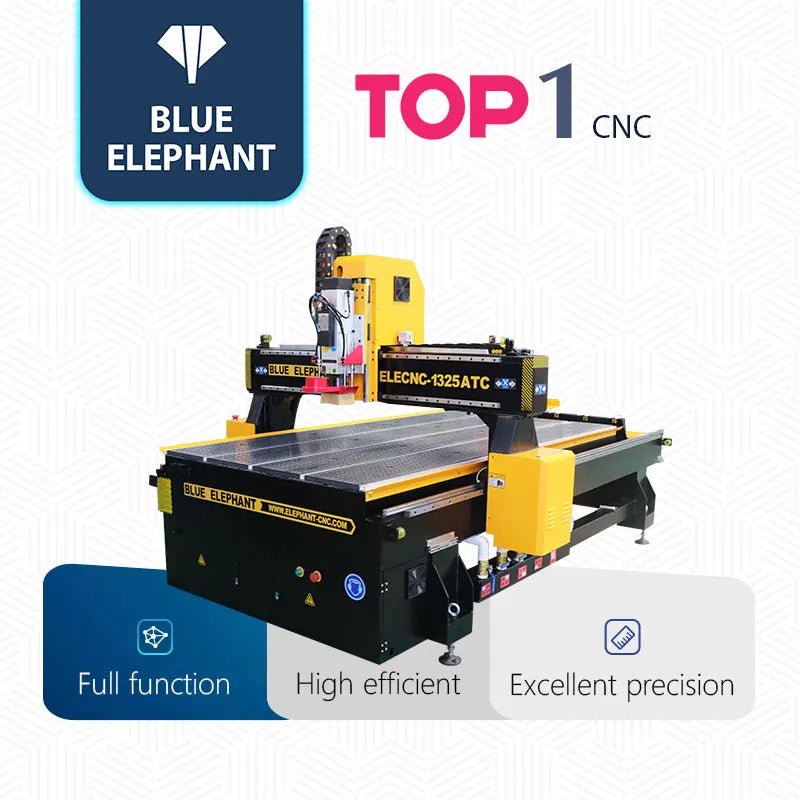

Product Description

Features:
* With a new type of square tube machine frame, it make the machine run more stably.
* Adopting pure servo motor and driver, the process precision is high, and the running speed is fast.
* Equipped with NK105 handle, it can quickly read information. With the simple and convinent operation, it is suitable for beginners to use.
* Adopting the original Taiwan PMI guide rail, it has rhe advantages of high precision and long service life.

Technical Parameters

X,Y,Z Working Area	1300x2500x200mm
Spindle	9kw HQD ATC air cooling spindle
Inverter	11KW Fuling inverter
Tool magazine	6pcs linear tool storage
Control system	NK105 G3 handle controller with E-stop button
Motor and driver	850W servo system, 4 sets
Switch	France Schneider Power switch
limit switch	Japan OMRON limit switch
Lubrication system	Automatic Oil Lubrication System
X,Y,Z Transmission	Taiwan PMI #25linear square guide way for X,Y,Z axis
Cable	Shanghai Cardiff cable
Tool sensor	Automatic tool calibration
Voltage	220V,3phase, 60HZ(optional)
Reminder: Blue elephant cnc router machine can be strictly customized according to customer requirement.

Sample & Application

Related Product

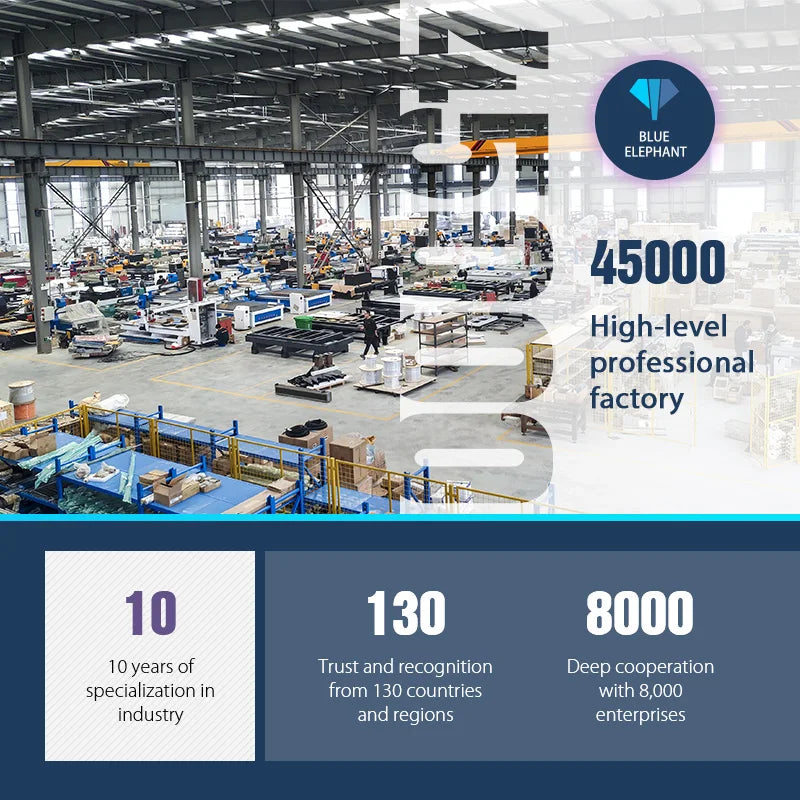

Company Information
