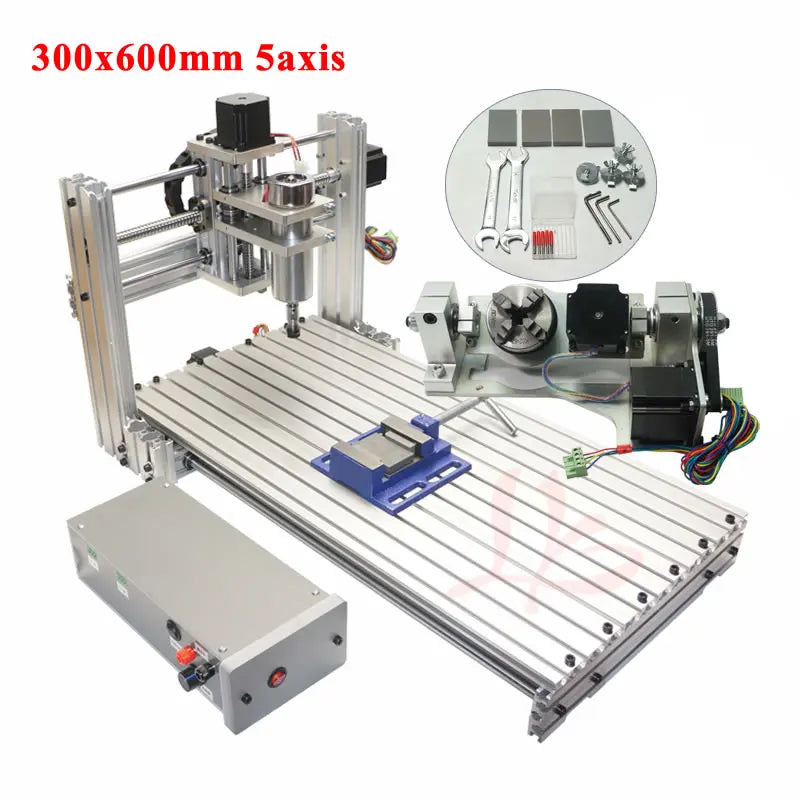

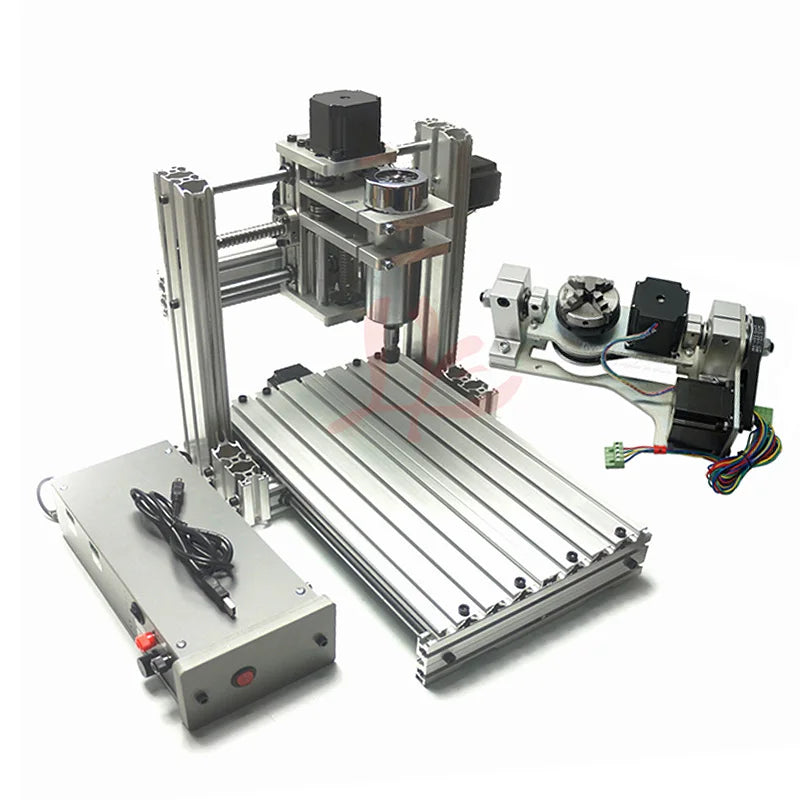

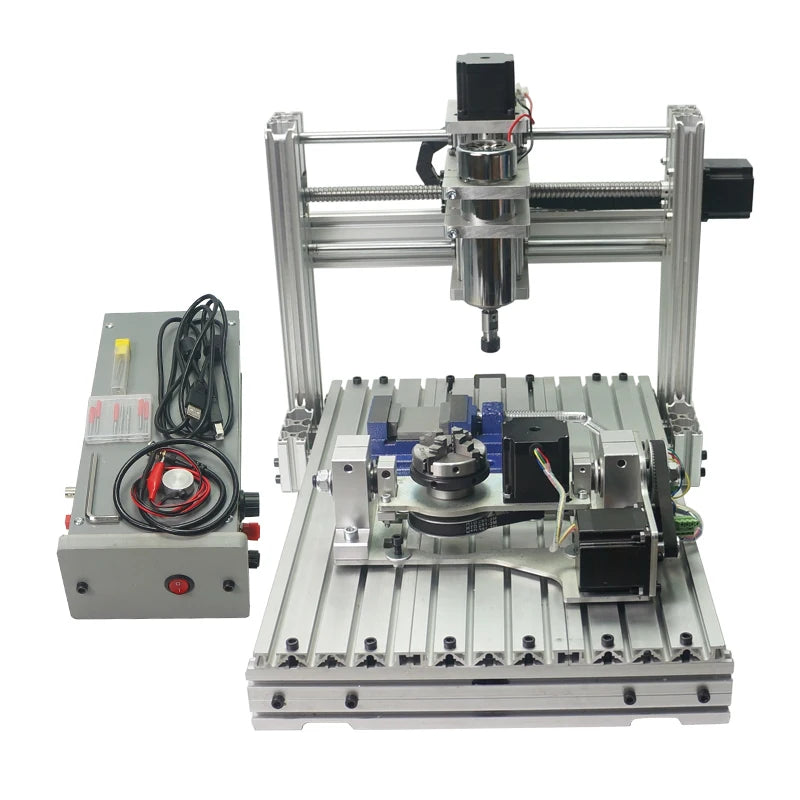

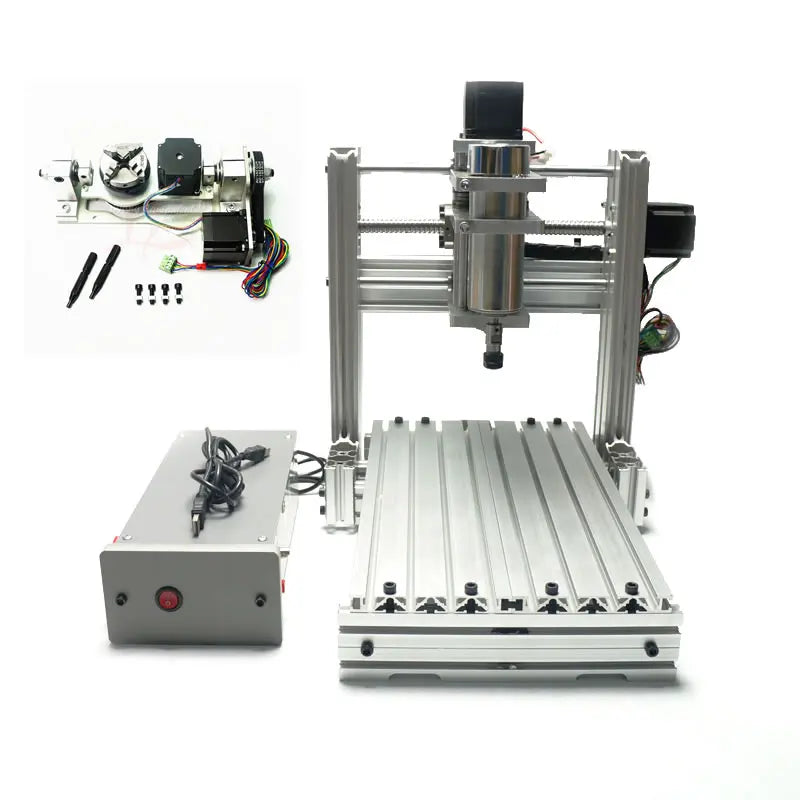

DIY Cnc 3060 3040 3020 4020 6020 5axis 4axis 3axis Wood Engraving Machine 400w Usb Milling Lathe Metal Router Aluminum Frame Kit
DIY Cnc 3060 3040 3020 4020 6020 5axis 4axis 3axis Wood Engraving Machine 400w Usb Milling Lathe Metal Router Aluminum Frame Kit
SPECIFICATIONS
After-sales Service Provided: Online support
Marketing Type: Hot Product 2019
No. of Spindles: Single
Working Table Size(mm): 300x600mm
brand name: LY
cnc or not: CNC
core components: Motor
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
number of axes: 5
place of origin: Guangdong, China
positioning accuracy (mm): 0.01 mm
range of spindle speed(r.p.m): 0 - 24000 rpm
repeatability (x/y/z) (mm): 0.01 mm
travel (x axis)(mm): 300 mm
travel (y axis)(mm): 600 mm
video outgoing-inspection: Provided
voltage: 220V/110V
warranty: 1 Year
weight (kg): 33
DIY cnc 3060 3040 3020 4020 6020 5axis 4axis 3axis wood engraving machine 400w usb milling lathe metal router aluminum frame kit
Specifications:
|
MODEL |
3020/4020/3040/6020/3060 metal |
||||
|
Attribute |
3axis |
4axis |
5axis |
Only frame |
|
|
Axis |
3axis |
4axis |
5axis |
3axis |
|
|
Interface |
USB Port |
USB Port |
USB Port |
No |
|
|
Spindle Motor: |
400W |
400W |
400W |
No |
|
|
Weigh |
27 |
31 |
33 |
22 |
|
|
Max. working stroke |
3020 XYZ=180*270*95mm
3040 XYZ=290*390*95mm
4020 XYZ=180*390*95mm
6020 XYZ=180*570*95mm
3060 XYZ=290*570*95mm
|
|
|||
|
Acceptable material thickness |
≤120mm |
||||
|
Rail type |
X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis |
||||
|
Spindle motor |
400WDC spindle ,0-9000r/min |
||||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
||||
|
Stepper motor and drive |
57HS56 |
||||
|
Repeat positioning Accuracy |
0.02mm |
||||
|
Communication interface |
USB Port |
||||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
||||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
||||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
||||
|

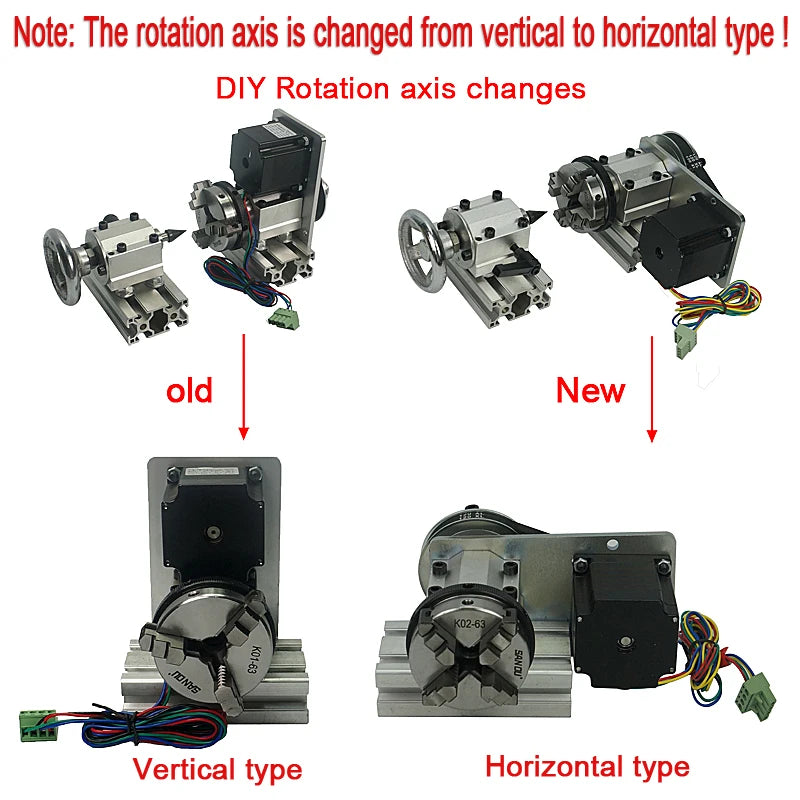

4th Axis Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
||||
|

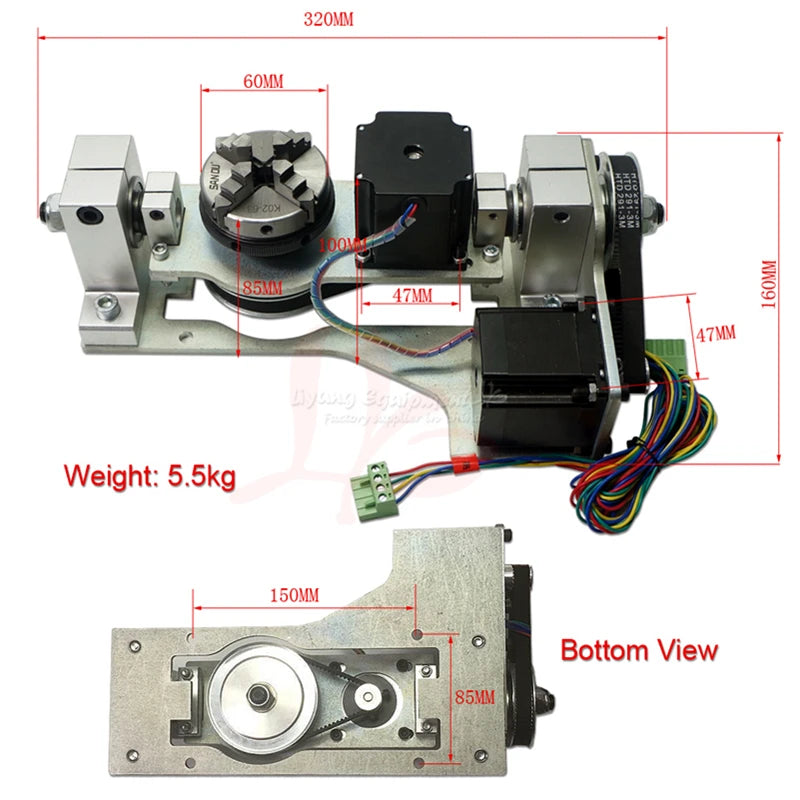

5th Axis Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
||||
