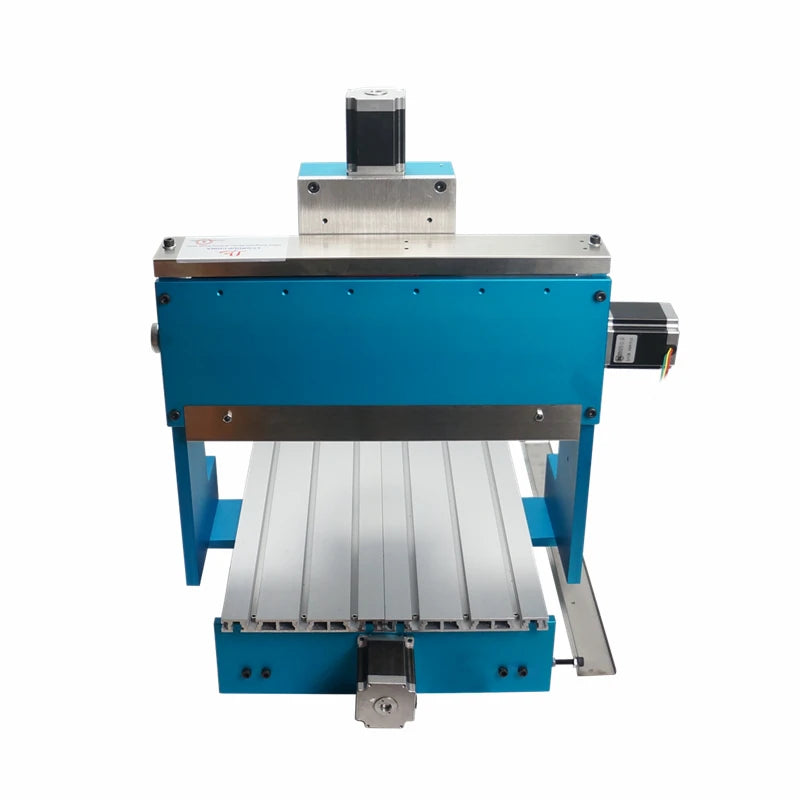

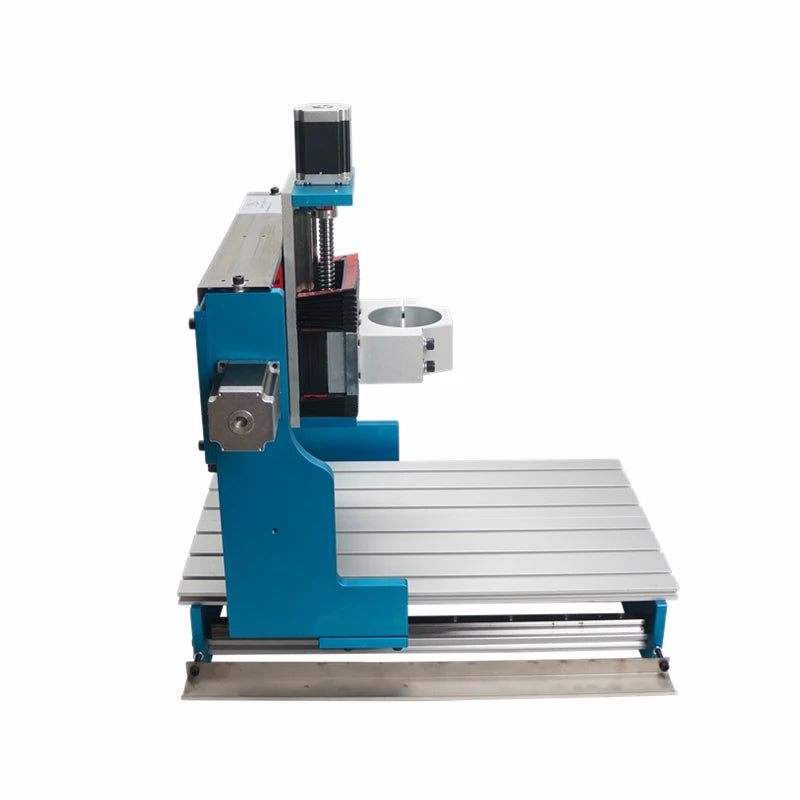

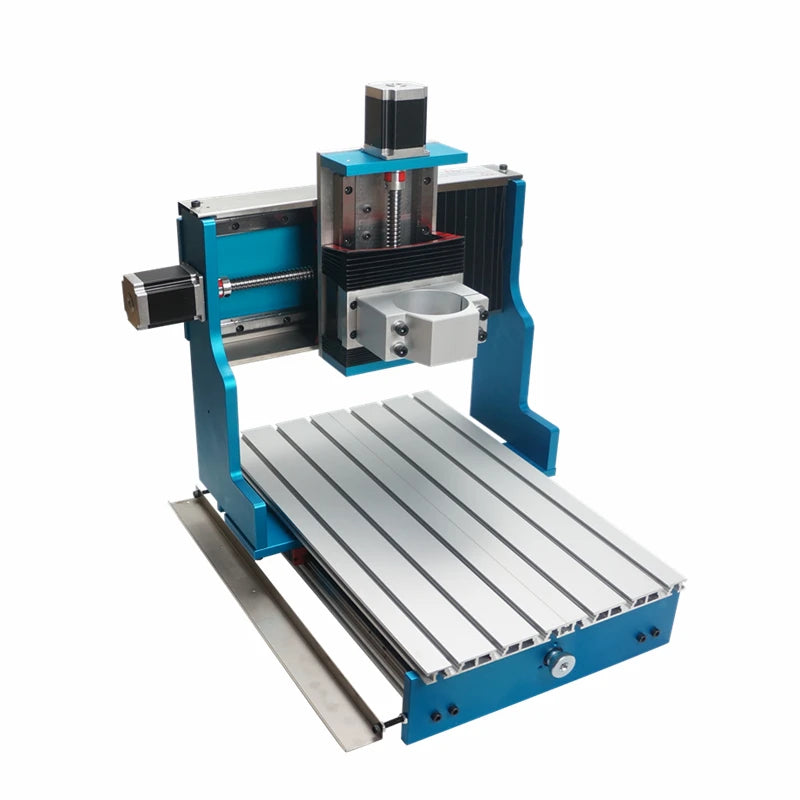

DIY CNC Frame 3040L Linear Guideway for DIY CNC Engraving Drilling Milling Machine With Motors Nema 23 3axis 4axis CNC Router
DIY CNC Frame 3040L Linear Guideway for DIY CNC Engraving Drilling Milling Machine With Motors Nema 23 3axis 4axis CNC Router
SPECIFICATIONS
Acceptable material thickness: ≤ 135mm
Attribute: 4 axis With Motor
Axis: 3/4axis
Engraving area: 260*380*110mm
MODEL: CNC Frame 3040L
No. of Spindles: Other
Power (kW): 1.5
Rack material: 6061 and 6063 Hard aluminum alloy
Rail type: Square line rail track
Spindle Motor Power (kw): 1.5
Table material: 320 * 520mm
Type of screw: Ball screw 1605
Working Table Size(mm): 300x400mm
Z-Axis Stroke: 110mm
brand name: LY
cnc or not: CNC
core components: Motor,Other
dimension(l*w*h): --
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 3/4
place of origin: Guangdong, China
positioning accuracy (mm): 0.02 mm
repeatability (x/y/z) (mm): 0.02 mm
travel (x axis)(mm): 300 mm
travel (y axis)(mm): 400 mm
video outgoing-inspection: Provided
voltage: --
warranty: 1 Year
weight (kg): 38

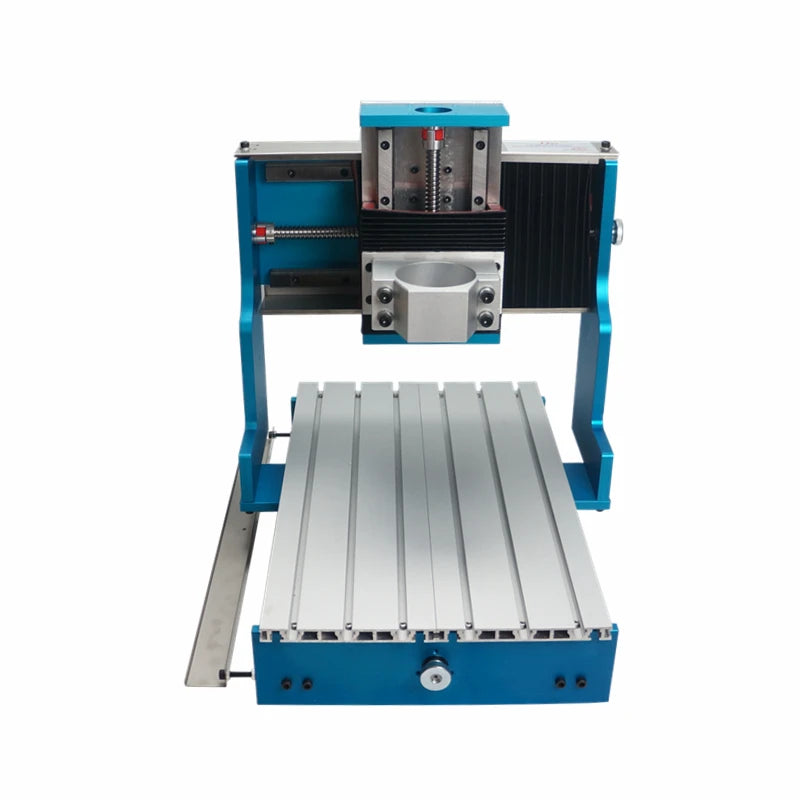

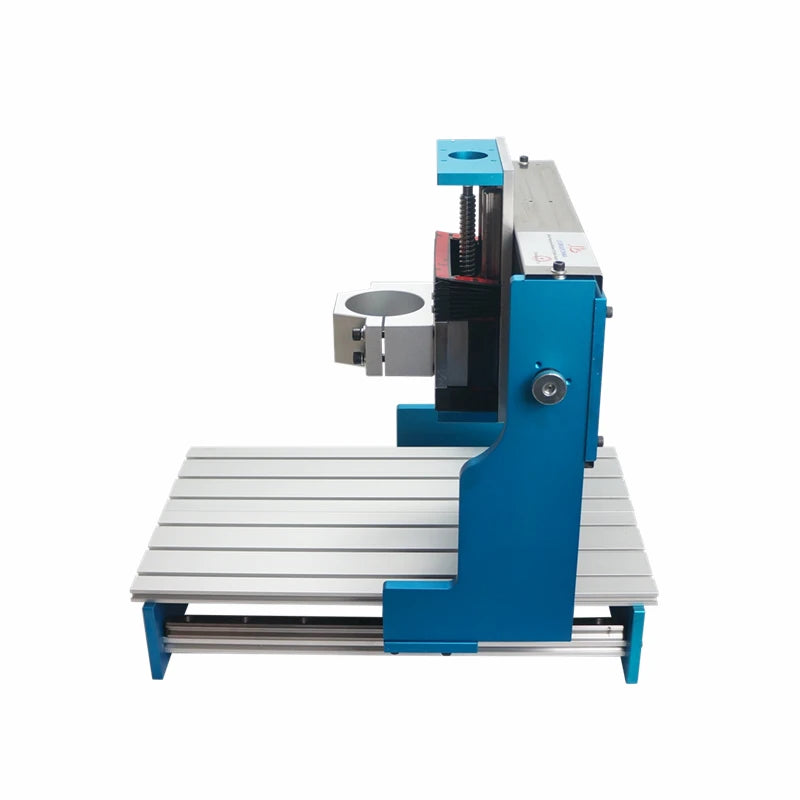

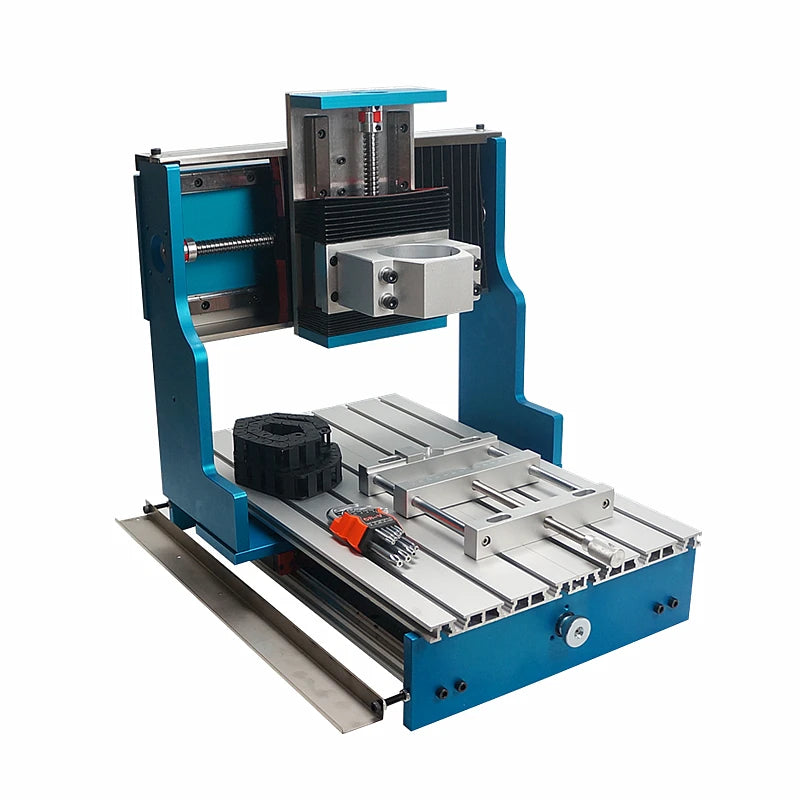

DIY CNC Frame 3040L Linear Guideway For DIY CNC Engraving Drilling Milling Machine With Motors Nema 23 3axis 4axis CNC Router
|
MODEL |
CNC Frame 3040L |
|||
|
Attribute |
3 axis Without Motor |
3 axis With Motor |
4 axis Without Motor |
4 axis With Motor |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Have motor? |
No |
Yes |
No |
Yes |
|
Have 4th axis? |
No |
No |
Yes |
Yes |
|
Weigh |
30 |
34 |
33 |
37 |
|
6061 and 6063 Hard aluminum alloy |
||||
|
Table material: |
320 * 520mm (20mm aluminum alloy T table) |
|||
|
Engraving area: |
260*380*110mm |
|||
|
Z-Axis Stroke: |
110mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤ 135mm |
|||
|
Rail type: |
Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||
|
Type of screw: |
Ball screw 1605 |
|||
|
Diameter of Spindle motor: |
80mm |
|||
|
Motor |
Nema 23 (57*76mm) |
|||
|
Rotation Axis (4th Axis) Description: |
Chuck: 65MM 4-jaw chuck Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
6. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
7. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
LYCNC factory is located in Shenzhen, China.
We has 10 years experiences in manufacturing and exporting CNC & laser milling machine.
CNC machines like cnc 3020/4030/6040/9060 …series products ,are hot sale in the world, especially in these countries from North and South American,European and Asian.
