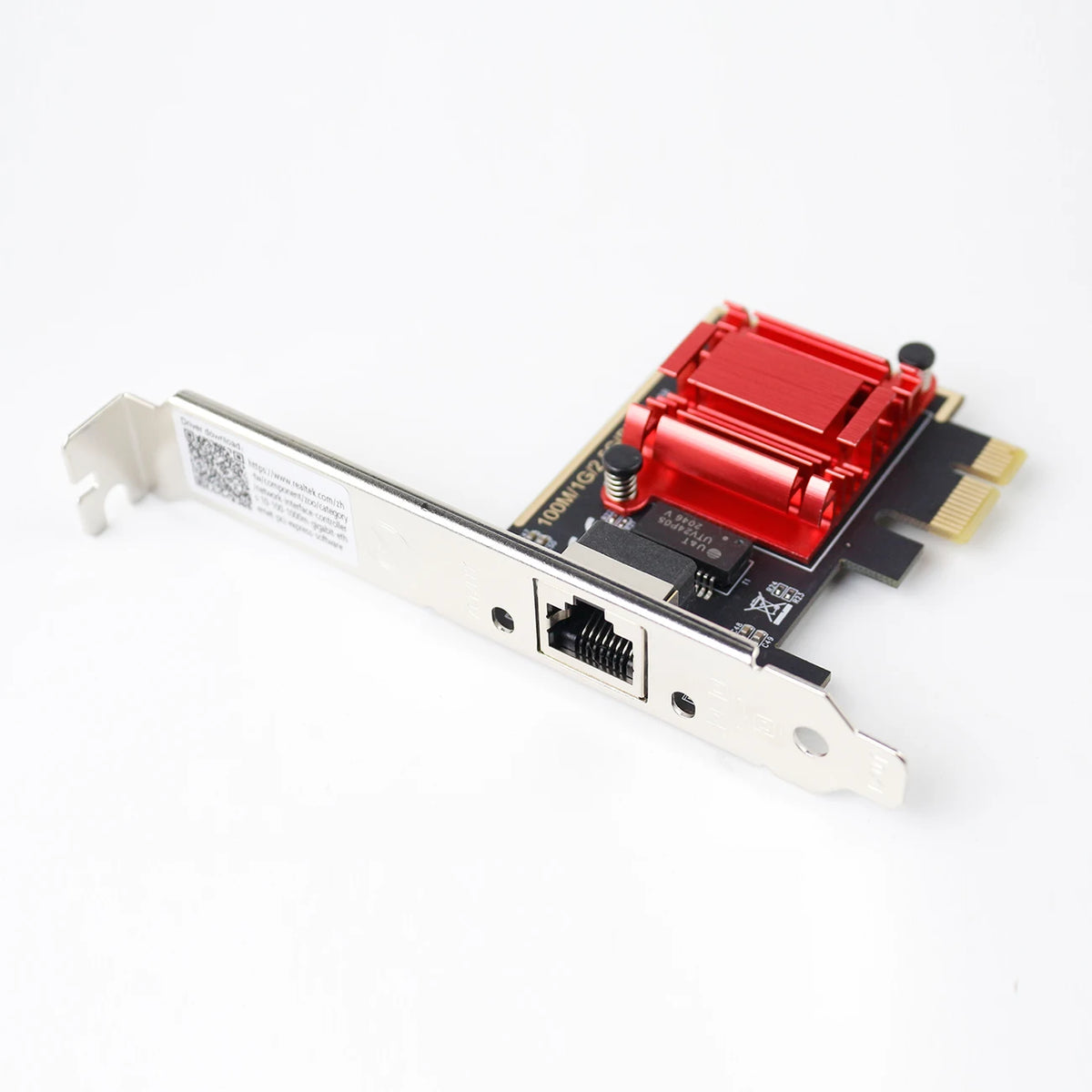

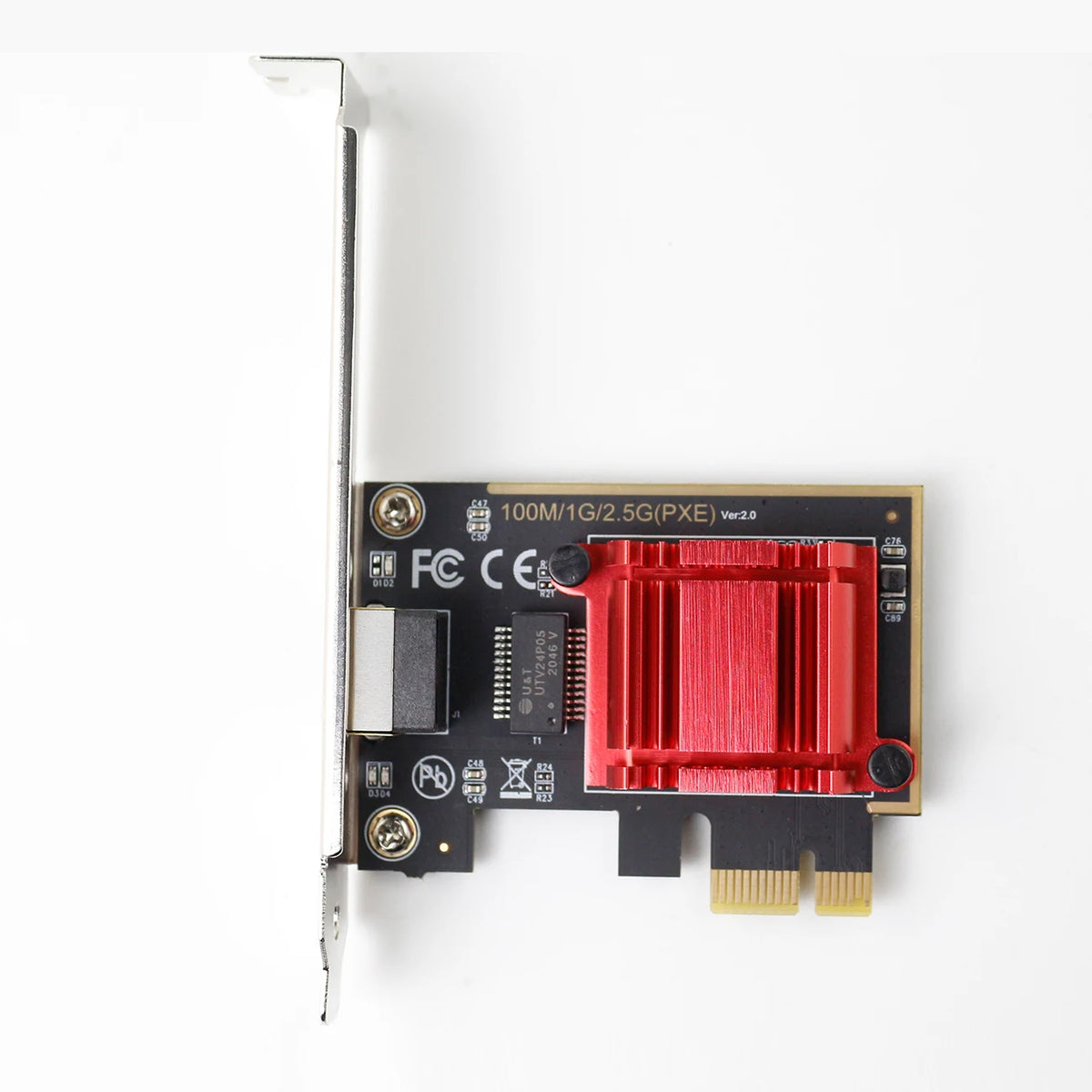

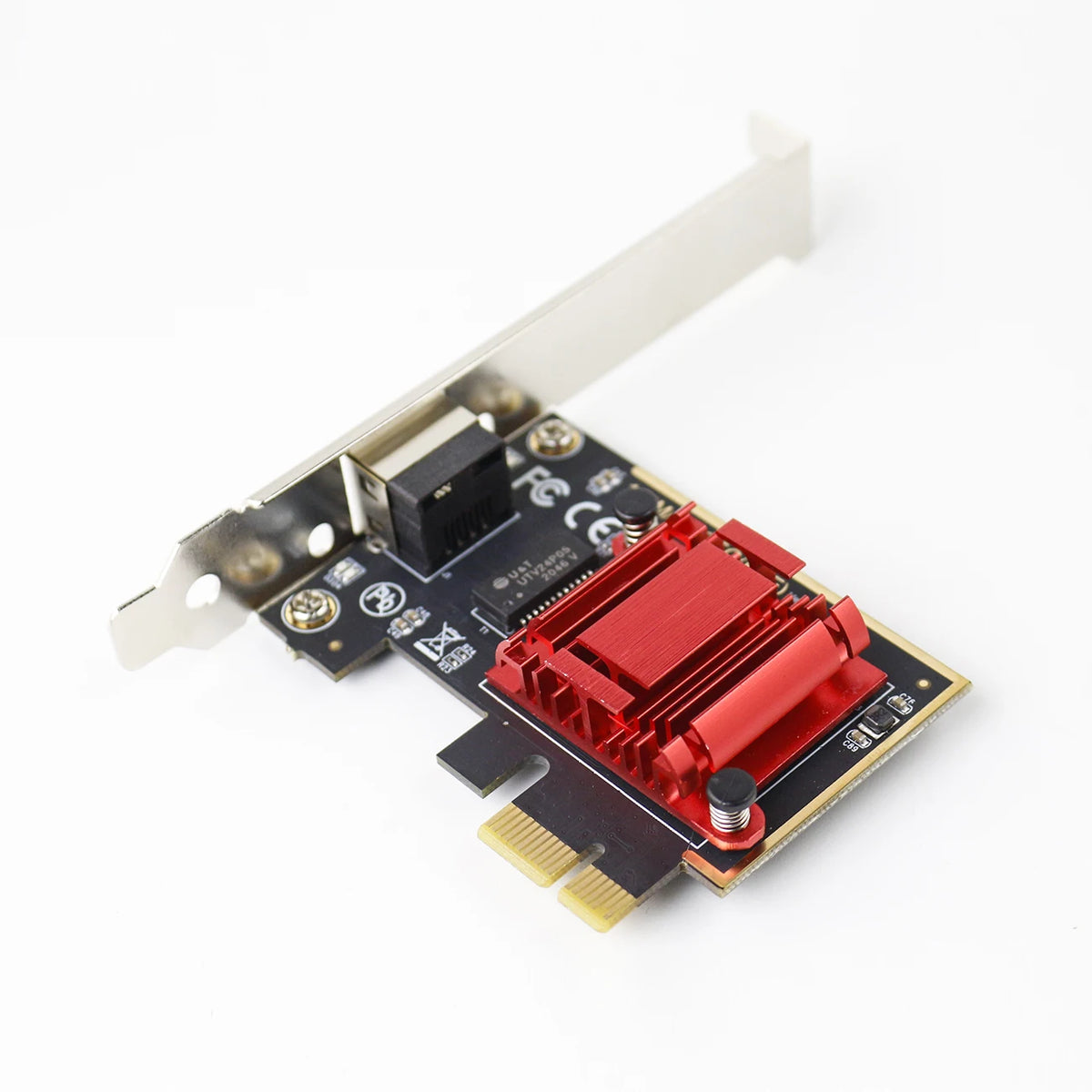

EDUP 100/1000M/2.5G RJ45 Network Adapter RJ45 RTL8125B Chipset Wired PCIe PCI Express 2.5G Network Lan Card
EDUP 100/1000M/2.5G RJ45 Network Adapter RJ45 RTL8125B Chipset Wired PCIe PCI Express 2.5G Network Lan Card
SPECIFICATIONS
1st name: 802.11ax PCI-E adapter
2nd name: 2.5Gbps PCI-E adapter
3rd name: Aquantia AQC107 chipset PCI-E adapter
Bus Width: x 4 Lane PCI Express,operable in x 4, x 8 and x 16 slots
Chipset: Realtek RTL8125B Chipset
LED: Link/Act
Media Access Control: CSMA/CA with ACK
PCI Bus: PCI EXPRESS X4/X8/X16
Standard: 802.11n/b/g/a/ac/ax
Type: PCI-Express3.0
application: Desktop
brand name: EDUP
interface type: PCI EXPRESS
kind: Internal
model number: EP-9635B
place of origin: Guangdong, China
private mold: Yes
products status: Stock
transmission rate: 2.5Gbps
type: Wired
EDUP 100/1000M/2.5G RJ45 Network adapter RJ45 RTL8125B Chipset PCIe PCI Express 2.5G network Lan Card
|
Features |
l Integrated 10/100/1000M/2.5G transceiver.
l Supports 2.5G and 1G Lite mode.
l Auto-Negotiation with Extended Next Page capability(XNP).
l Supports PCI Express 2.1.
l Supports pair swap/polarity/skew correction
l Configurable MDI port ordering(MDI swap) for easy PCB layout.
l Crossover Detection&Auto-Correction.
l Supports 1-Lane 2.5/5Gbps PCI Express Bus.
l Embedded OTP memory can replace external EEPROM
l LAN disable with GPIO pin.
l Customized LEDs.
l Controllable LED Blinking Frequency and Duty Cycle.
l Self-Loopback diagnostic capability.
l Thermal management.
l 88-pin QFN “Green”package.
l Serial EEPROM.
l Supports 32Mbytes External Serial Peripheral Interface(SPI) Flash.
l Supports ECMA-393 ProxZzzy Standard for sleeping hosts.
l Supports LTR(Latency Tolerance Reporting)
l Wake-On-LAN and “RealWoW!”Technology(remote wake-up) support.
|
Specifications |
|
Chipset |
RTL8125B |
|
Port number |
1* RJ45 |
|
Standard |
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz |
|
Network media |
10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP |
|
Data rate |
10/100/1G/2.5Gbps |
|
Interface |
PCI Express 1x slot |
|
Auto MDIX |
YES |
|
Full Duplex Support |
YES |
|
MTBF |
376,212 Hours |
|
LED Indicator |
Link/Act, Speed |
|
Dimension |
71.5*50*1.6mm |
|
Support OS |
Windows®10(32/64), Win7 (32/64), Win8,8.1 (32/64) Windows Server® 2012, 2008 LINUX up to 4.15 |
|
Environment |
Operating Temperature: 0 ℃-60 ℃ |
|
Relative Humidity: 10%-90%(non-condensing) |
|
|
Storage Temperature: -10℃-70℃ |
|
|
Relative Humidity: 5%-90%(non-condensing) |
in-tel WiFi6 AX200 Chipset AX3000Mbps PCI-E wifi card with AX200
What is the packaging for option?
1.Blister package or color gift package
2.Standard Carton:K=K
What is the shipping way?
UPS/DHL/TNT/EMS/FedEx and any other shipping way as you prefered.
Pls contact us directly and we will use your preferred ways.
What are the payment terms ?
We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.
Over 1000pcs,we can do OEM and accept 30% deposit in advance .
What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.
