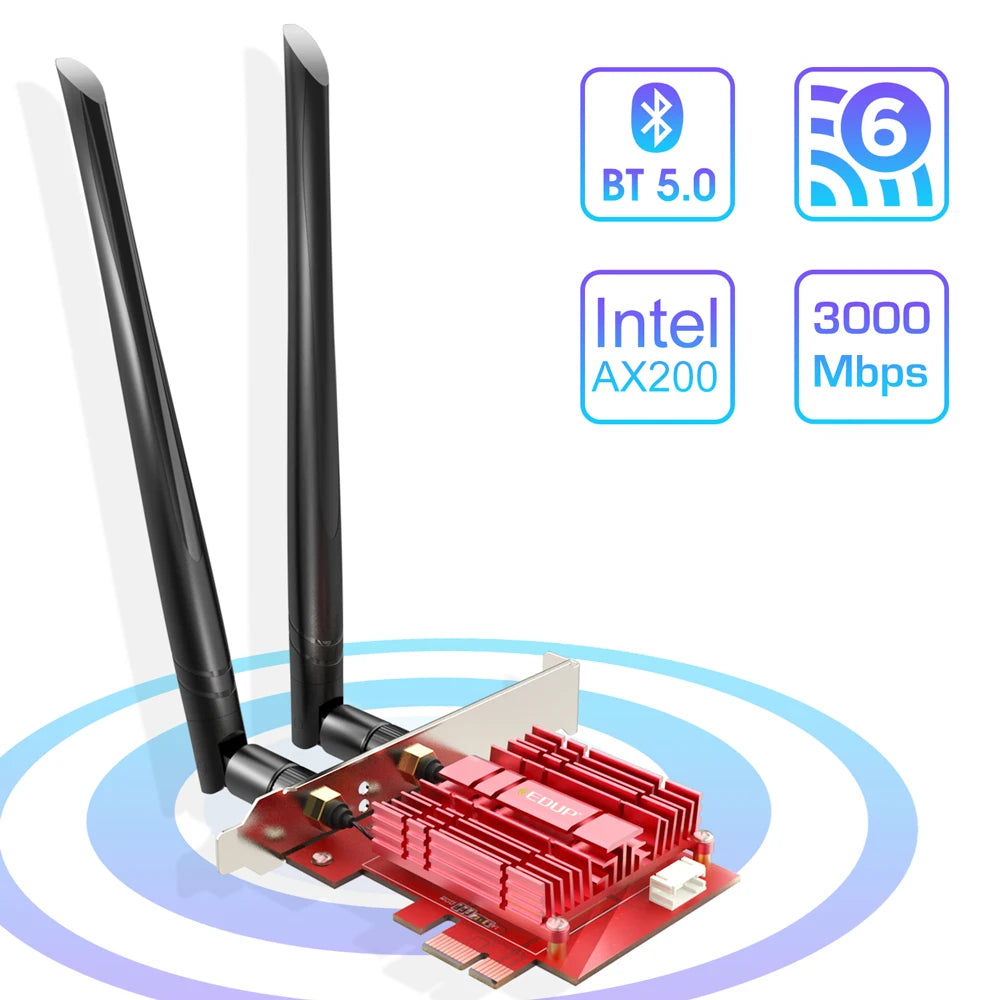

EDUP AX200NGW 802.11ax 3000Mbps Wifi 6 PCI-E Express Network Card AX200 WiFi Adapter
EDUP AX200NGW 802.11ax 3000Mbps Wifi 6 PCI-E Express Network Card AX200 WiFi Adapter
SPECIFICATIONS
1st name: 802.11ax PCI-E adapter
2nd name: 3000Mbps PCI-E adapter
3rd name: In-tel WiFi6 AX200 chipset PCI-E adapter
Chipset: In-tel WiFi6 AX200
Frequency Band: 2.4G and 5G
Interface: 32-bit PCI-E Rev.2.3 interface
LED: Link/Act
Media Access Control: CSMA/CA with ACK
PCI Bus: PCI EXPRESS X1/X4/X8/X16
Standard: 802.11n/b/g/a/ac/ax
application: Desktop
brand name: EDUP
interface type: PCI EXPRESS
kind: External
model number: EP-9636GS
place of origin: Guangdong, China
products status: Stock
transmission rate: 3000Mbps
type: Wireless
EDUP AX200NGW 802.11ax 3000Mbps wifi 6 PCI-E Express Network Card AX200 WiFi Adapter

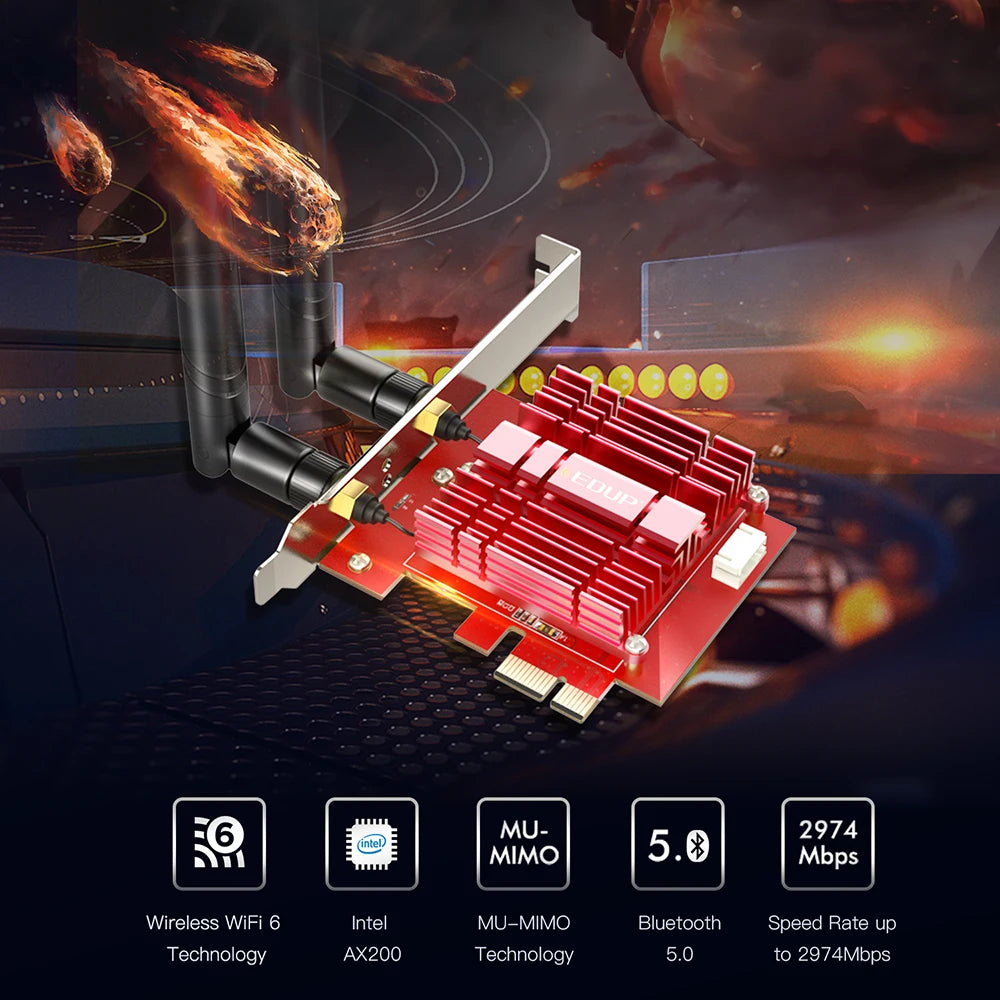

The EP-9636GS is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE802.11ax and IEEE802.11a/b/g/n/ac standards. Wireless transmission rates can reach up to 3000Mbps. Using the EP-9636GS Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode. This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi . the in-tel Wi-Fi 6 AX200 module can provide Gigabit wireless speed2 and dramatically improve your connected experience at home, work, or on the go.
|
Description |
Features

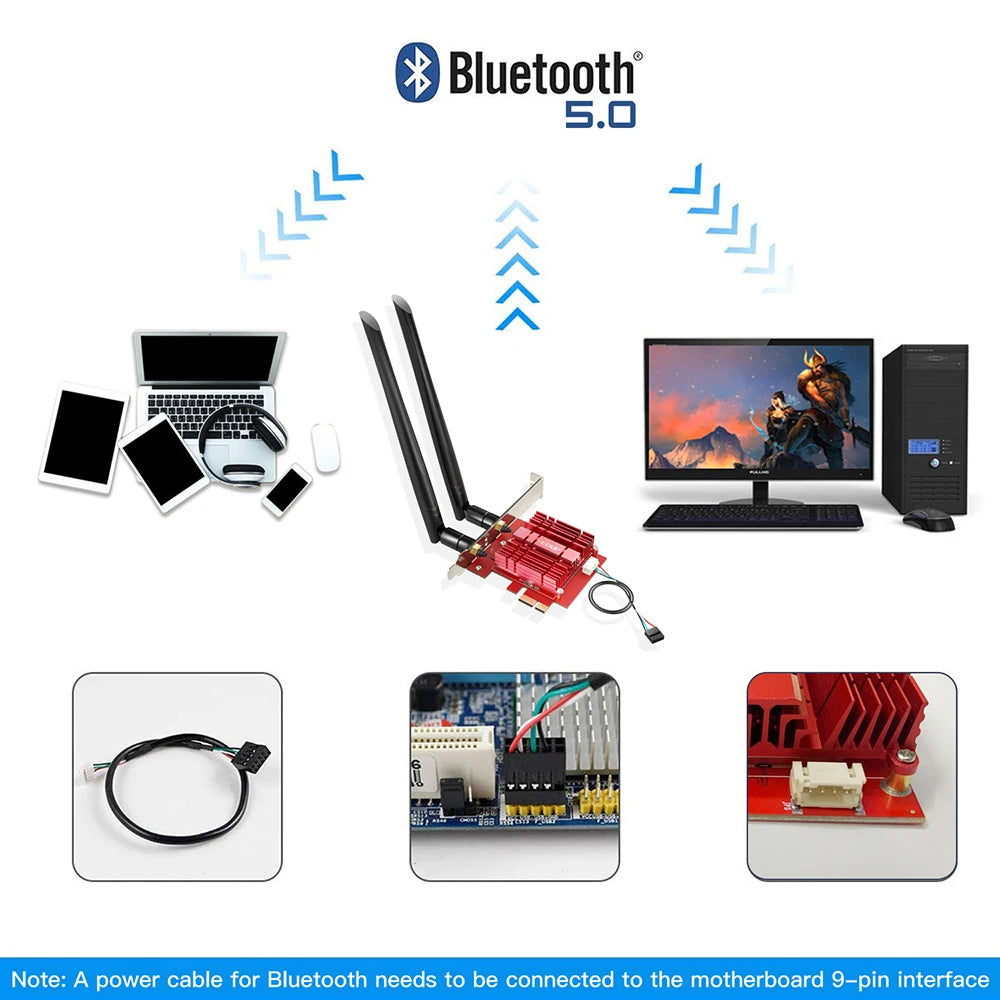

Ø Complies with IEEE 802.11a/b/g/n/ac/ax WiFi and BT 5.1 HS (WiFi: PCI-E, BT: USB)

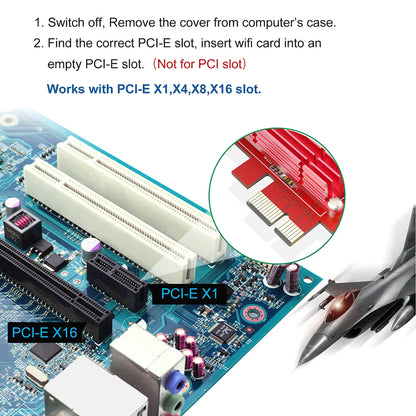

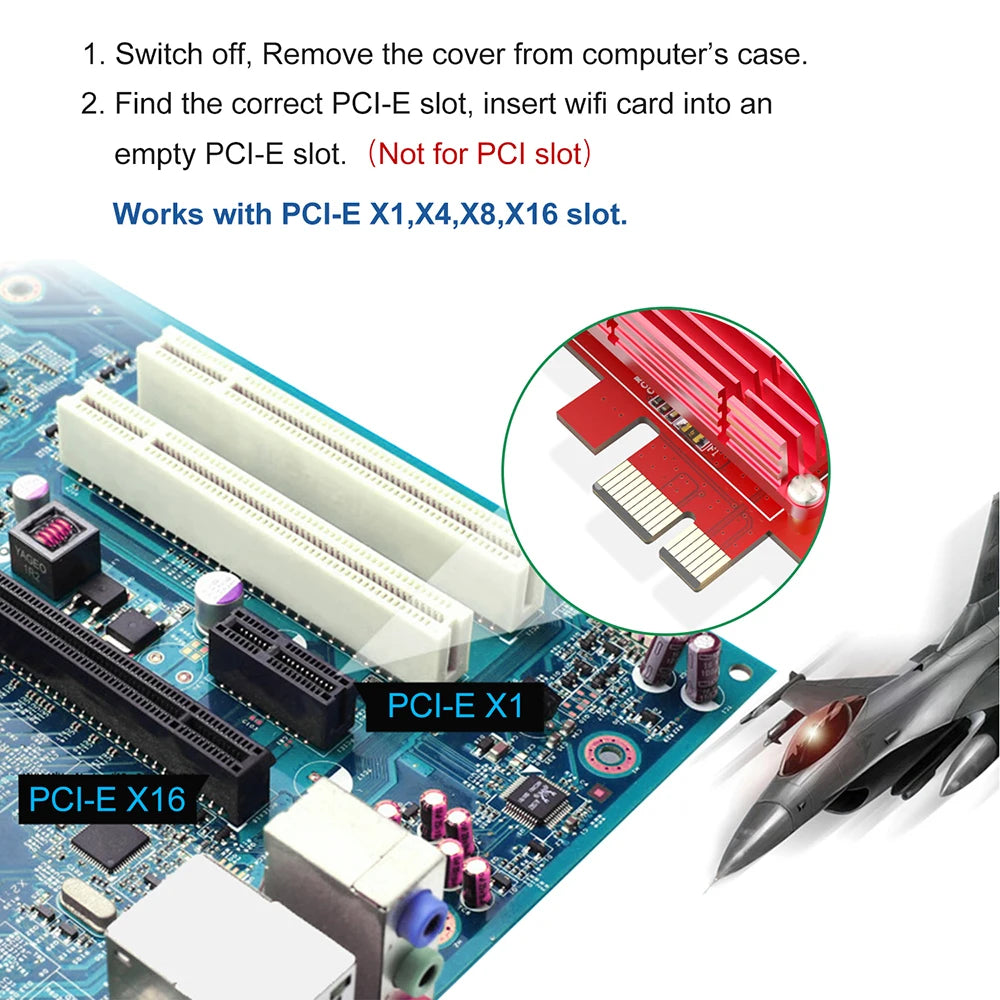

Ø Supports PCI-E-X1/X4/X8/X16
Ø 2.4G/5G dual frequency optional, 5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps
Ø Supports Cisco CCX
Ø Supports multiple BSSID

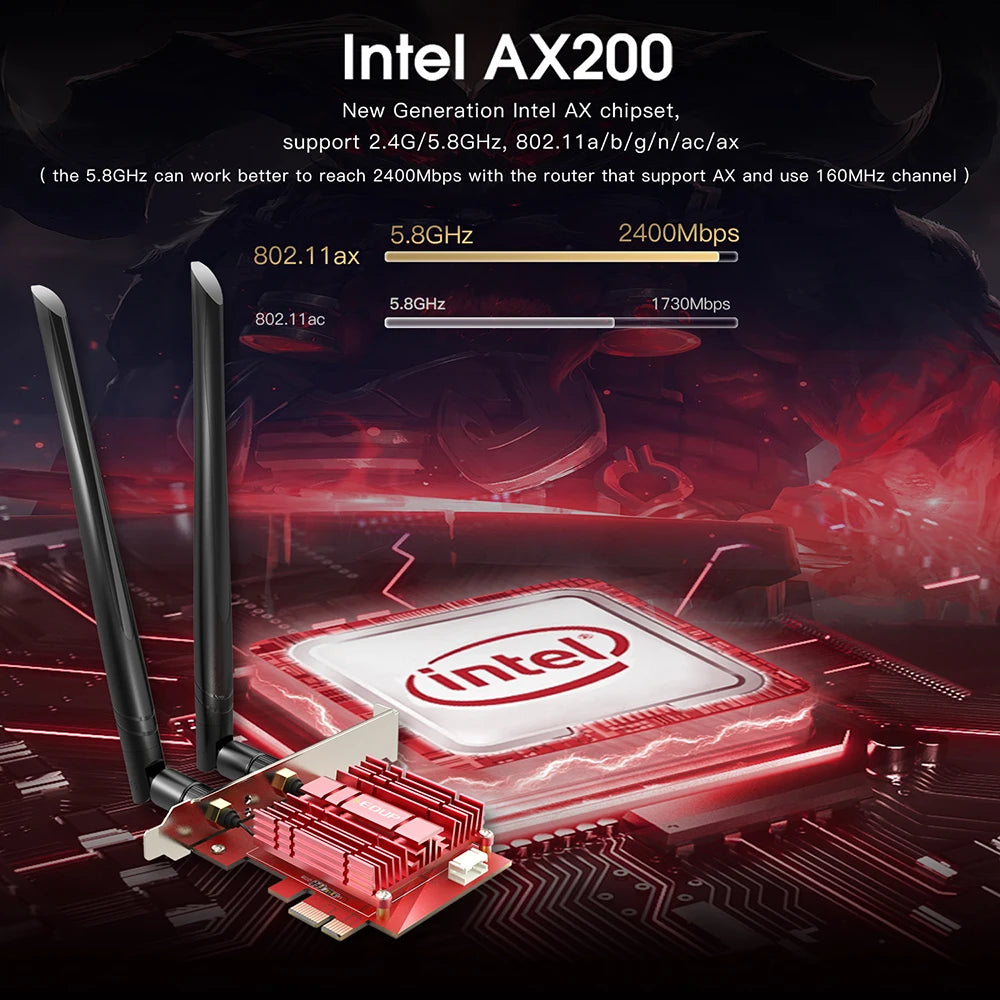

Ø The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps
Specifications
|
Model |
EP-9636GS |
|
Chipset |
in-tel AX200 |
|
Standards |
IEEE 802.11a/b/g/n/ac WiFi and BT5.1 +HS (WiFi: PCI-E, BT: USB) |
|
PCI Bus |
PCI-E-X1/X4/X8/X16 |
|
Frequency Range |
WiFi: 2.4GHz, 5.8GHz BT: 2402MHz~2483MHz |
|
Antenna |
2*5 dBi |
|
Transmission Rate |
2.4G up to 574Mbps, 5.8G up to 2400Mbps |
|
Operating System |

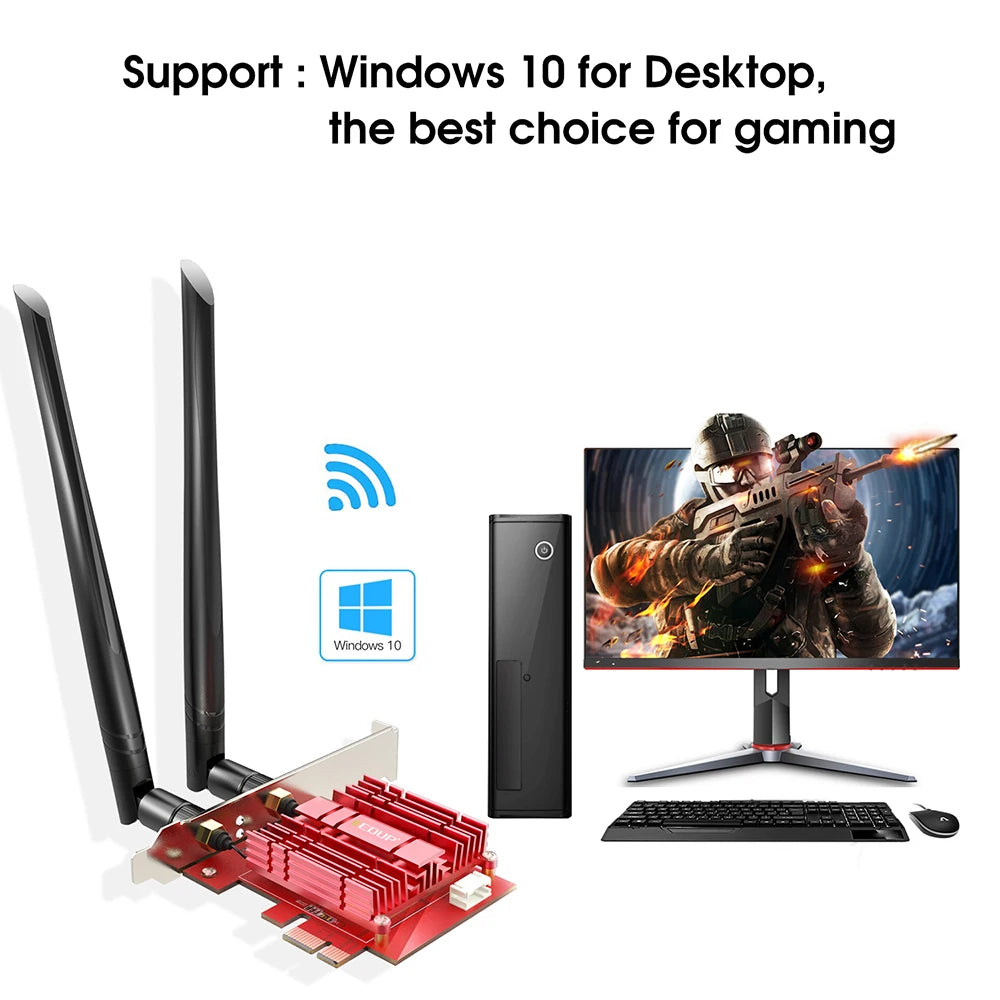

Microsoft Windows* 10, Linux*, Chrome OS* |
|
Dimensions (H x W x D) |
M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)] M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
|
|
Weight |
M.2 2230: 2.83 +/– 0.3 g |
|
Radio ON/OFF Control |
Supported |
|
Connector Interface |
M.2: PCIe, USB |
|
Operating Temperature (Adapter Shield) |
0°C to +80°C |
|
Humidity Non-Operating |
50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) |
|
Wi-Fi Alliance8 |
Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast* , Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi- Fi TimeSync* |
|
IEEE WLAN Standard |
IEEE 802.11-2016 and select amendments (selected feature coverage) |
|
BT |
BT 5.0 |
|
Security Methods |
WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support) |
in-tel WiFi6 AX200 Chipset AX3000Mbps PCI-E wifi card with AX200
What is the packaging for option?
1.Blister package or color gift package
2.Standard Carton:K=K
What is the shipping way?
UPS/DHL/TNT/EMS/FedEx and any other shipping way as you prefered.
Pls contact us directly and we will use your preferred ways.
What are the payment terms ?
We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.
Over 1000pcs,we can do OEM and accept 30% deposit in advance .
What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.
