SPECIFICATIONS

Brand Name: JOAREON

Data Storage Options: HDD

Feature: Motion Detection

Model Number: N6708HE-POE

Place of Origin: Guangdong, China

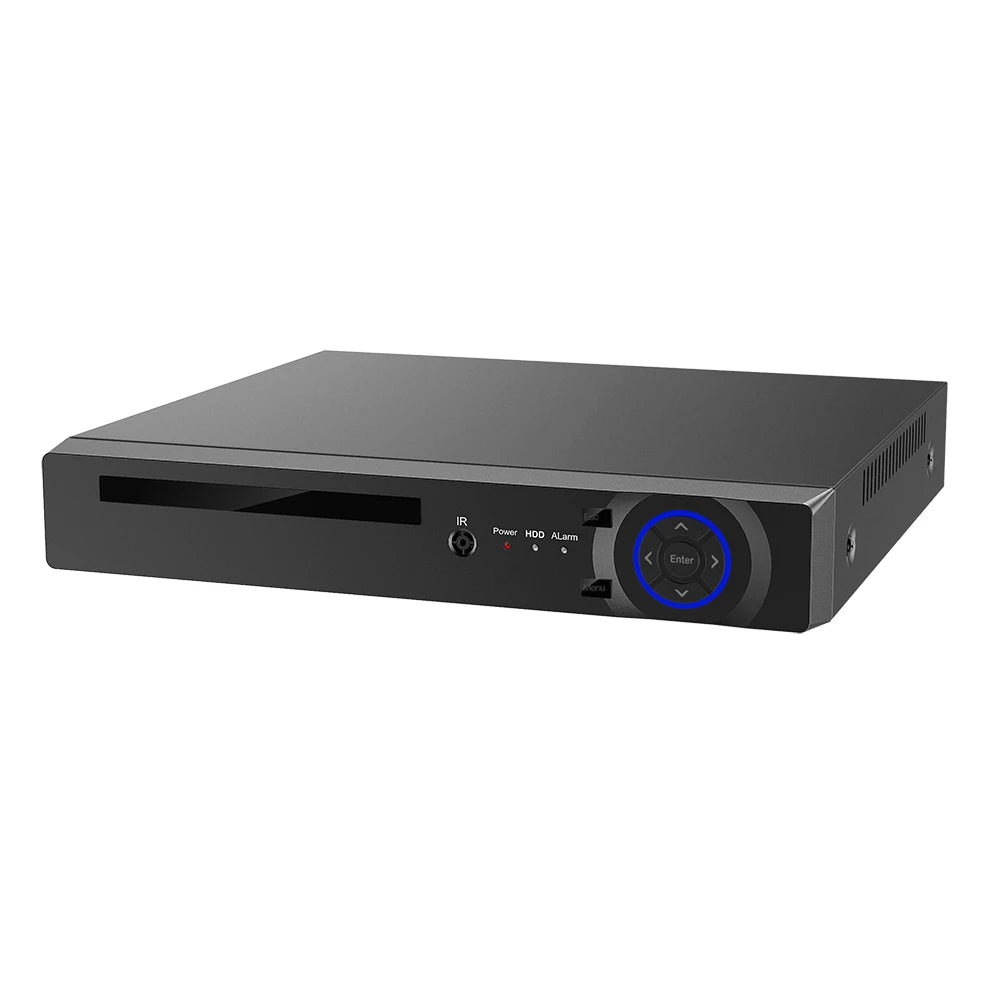

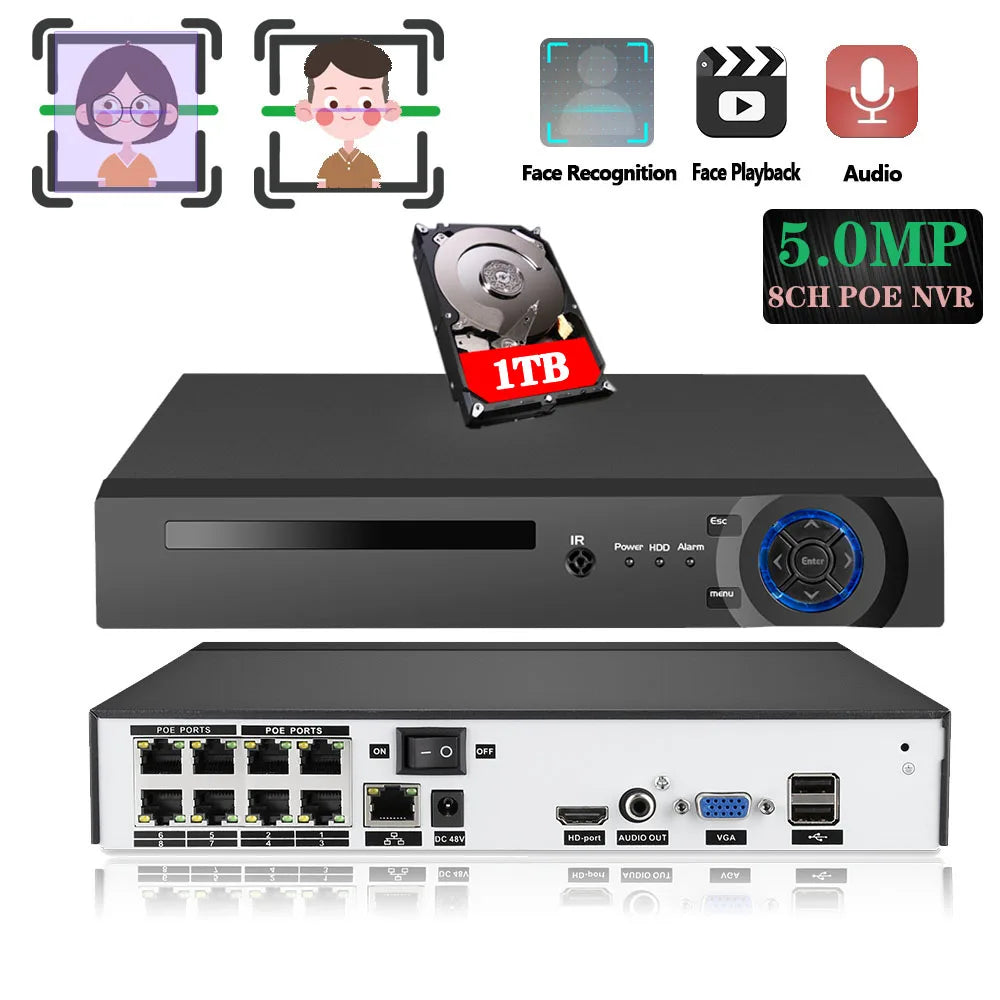

Product name: POE NVR

Resolution: 5M-N,5MP

Storage: 1 SATA,up to support 8TB

Type: Network Digital NVR

Video Compression: H.265+/H.265/H.264+/H.264

Video Compression Format: H.265

Video Output: 1ch VGA+1ch HDTV

Video input: 8 Channels

compression format: H.265

video/audio output: HDMI

Product Description

Specification

Main processor	Hi3536D
Operating System	Embedded Linux
System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Preview	1/4/8/16
Video input (IP)	8*5M/4*5M
Access bandwidth	64Mbps
Forwarding bandwidth	36Mbps
Video compression	H.265AI/H.265+ (Compatible with H.265/H.264)
Display quality	Max: 2560*1440
Playback quality	5M
Decode	1*5M
VR	Unsupport

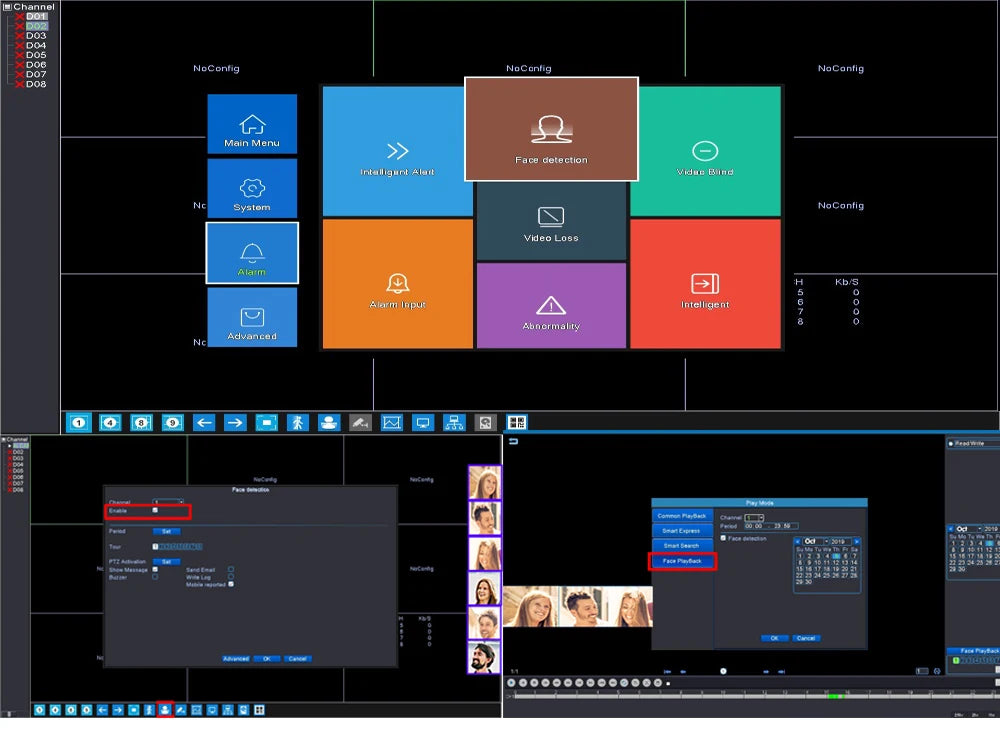

human shape / Face	Support(depend on camera)
Audio compression	G.711A
Intercom	unsupport
Recording mode	Manual>Alarm>Dynamic Detection>Timing
Local payback	1*5M
Search mode	Search by Time/Calendar/Event/Channel
Record storage	HDD、Network
Backup mode	Network backup, USB hard disk, USB burner, SATA burner
Video output	1ch VGA，1ch HDTV HD output
Audio I/O	0/1（3.5MM audio output）
Alarm I/O	0/0
Network interface	The expansion board provides a network connection
USB interface	2*USB2.0 ports
HDD	1* SATA(Up to 8TB for each disk)
ESATA	No
Serial interface	No
ONVIF	Support
Power supply	Expansion board 12V power supply
Power Consumption	<10W(Without HDD)
Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Company Profile

Our Services

1.Quick Response
2.Professional Manufacture
3.OEM/ODM available
Customized camera housing / material.
Customized color box / Blister pack.
Any of your own idea we can help you to design and put it into protection
4.Fashion design, high tech chip, reasonable & competitive price , fast lead time.
5.After-sale service
All products had been strictly QC in factory before packing.
All products will be safely packed before shipping.
All our products have 1 years warranty , or 101% quantity ship.
6.Fast Delivery Sample order in stock , and 3~7 days for bulk production.

Why Choose Us

Our company has worked on CCTV business since 2006,We are Professional in producing and developing high-definition cameras.Our products and are exported to overseas countries and are favored by customers.

FAQ

Q: 1. How to provide you a good market suggestion?
A: We provide you an accurate and comprehensive marketing suggestion in accordance with alibaba periodical big data, google big
data, our company data, in combination with our experience.

Q: 2. How to order?
A: Please contact us online or send us email, we will send you PI, once receiving your payment, we will send out goods soon and
tell you the tracking number. Or we could communicate to start an order on line by trade assurance.

Q: 3. How to proceed LOGO print order?
A: 1) send us the logo files, once receiving your payment(large order 30%), we will arrange to design the logo;
2) after received your confirmation of the logo, we will do sample and send it to you check;
3) if you confirm the sample is ok, we will produce the mass;
4) once ready, please pay the rest payment and we will send out goods and tell you the tracking number;

Q: 4. Can I do my original design products?
A: Yes, our engineer team will always be ready for your any needs.

Q: 5. What is the guarantee of our products and how about the returns?
A: 1) 12 months warranty, low-value consumption goods is not within the scope of the warranty;
2) Warranty service will be honored if the damage is not caused by human;
3) Please send back the defective goods within the warranty period, we will repair them or send you new free;
4) If there are only several pieces accessory(the fee is less or around shipping fee) are damaged, please send us some pictur es
and videos about the detail problem.
Once confirmed the problem, we will send you free new goods together with your next order.

Packing & Delivery
