SPECIFICATIONS

Chuck type: T type screw, diameter 12mm, thread pitch 2mm

Feed rate: 1500mm/min

Frame material: ER11 (3.175mm,6mm)

Machinable material thickness: ≤70MM

Max. stroke: XYZ=290*380*60MM

No. of Spindles: Single

Operation: 5℃-40℃

Power (kW): 0.3

Product name: DIY 3040 Desktop CNC Router

Screw type: 1500mm/min

Spindle Motor Power (kw): 0.3

System requirement: WIN-Xp or WIN-7

Voltage: Input 85V-240VAC (400HZ)

Working Table Size(mm): 300×400

brand name: UTECH

cnc or not: CNC

core components: Bearing,Motor,Pump,Gear,Pressure Vessel,Engine

dimension(l*w*h): 615*485*385mm

key selling points: High-Accuracy

machine type: CNC Router

machinery test report: Provided

number of axes: 3

place of origin: JINAN

positioning accuracy (mm): 0.05 mm

range of spindle speed(r.p.m): 1 - 11000 rpm

repeatability (x/y/z) (mm): 0.05 mm

travel (x axis)(mm): 290 mm

travel (y axis)(mm): 380 mm

video outgoing-inspection: Provided

voltage: 85V-240VAC(400HZ)

warranty: 1 Year

weight (kg): 25.5

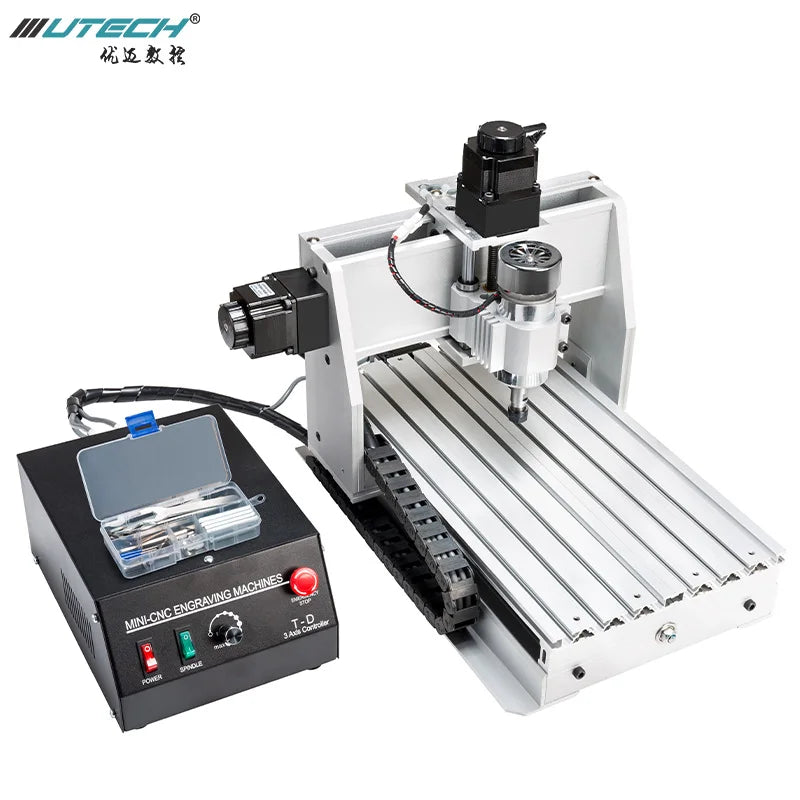

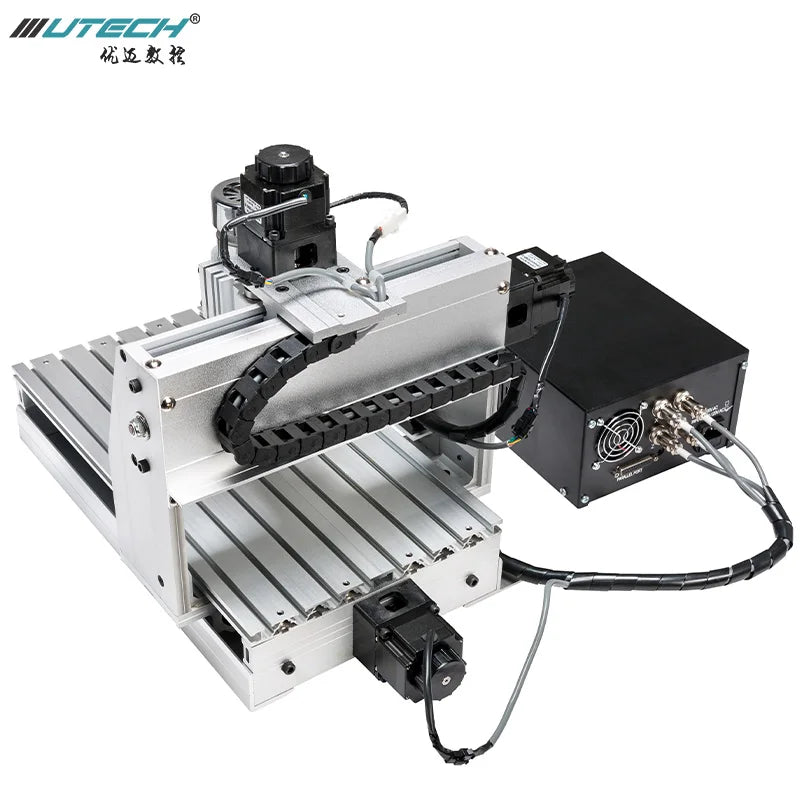

High performance CNC Wood Router Utech 300w Spindle Motor For Plastic 3040 Engraving Machines



1. Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves .

2. UTECH 3040 3axis 800W - is a professional mini- size machine with working area 300 x 400 mm (30 x 40 cm). Has the most powerful ruler in the spindle: XYZ. The spindle has a water cooling - it provides reliability and long service life.

3. Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.

4. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of

cutting (letters and labels , signs , models ) , drilling.

Type	3040

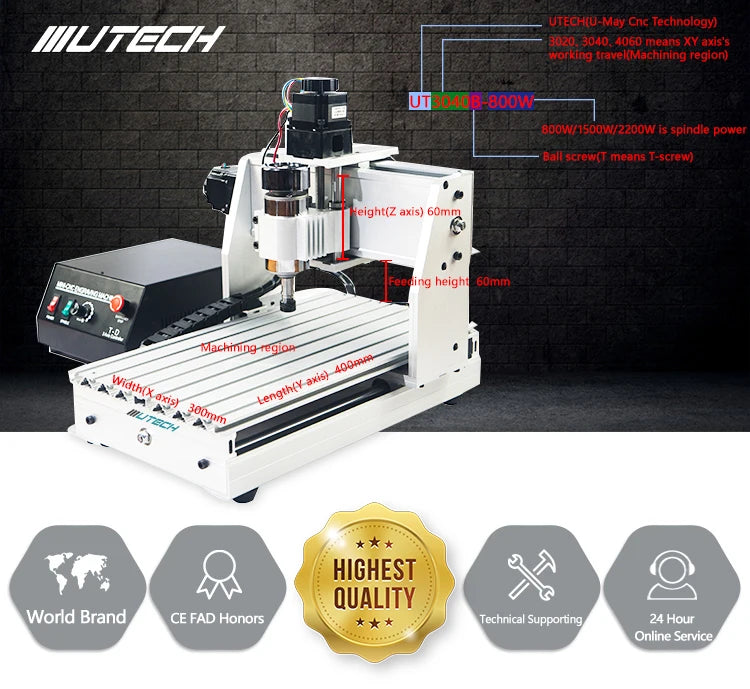

Max working travel	XYZ=290*380*60mm
Machinable material thickness	≤70mm
Dimensions	525*400*290mm
Frame material	6061-T5 aluminium alloy
Track type	Chrome-plated + linear bearing

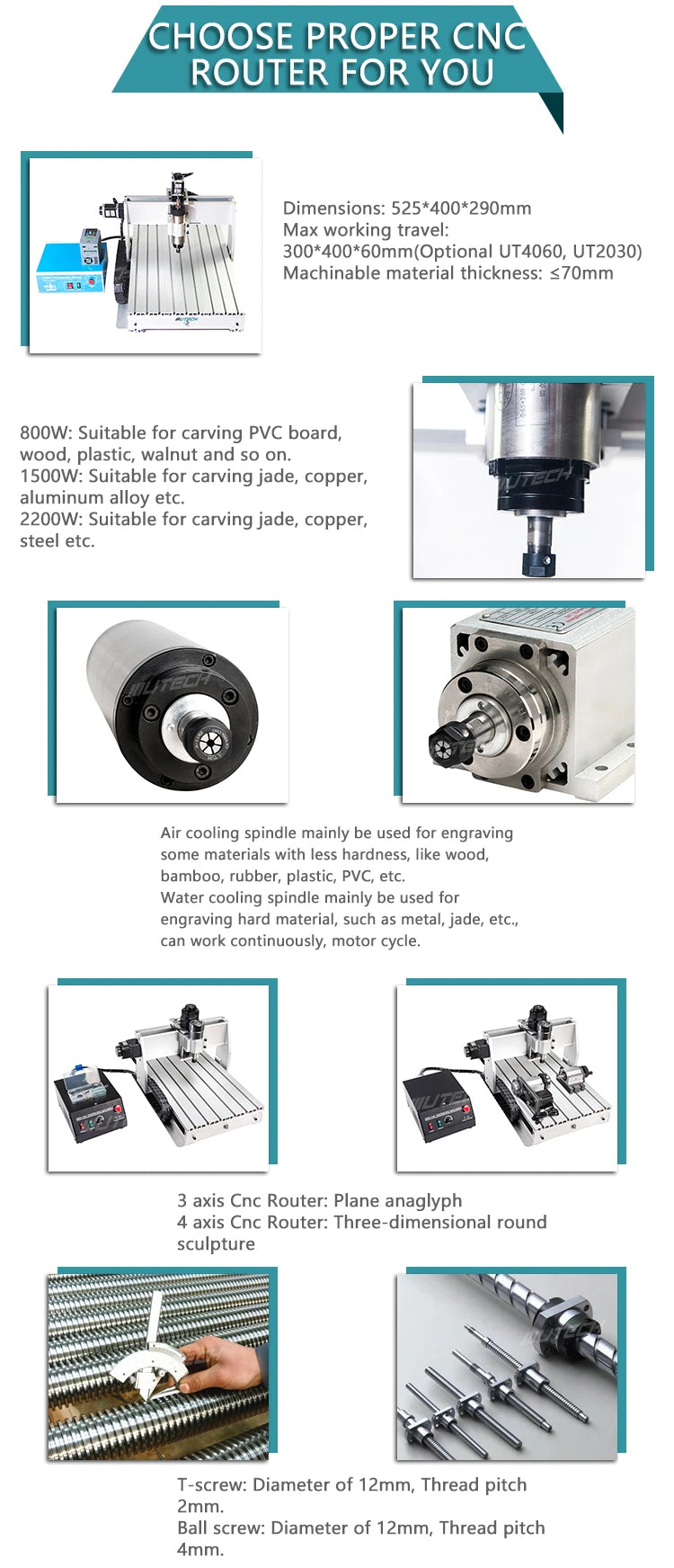

Spiral type	T-screw, diameter of 12mm, Thread pitch 2mm
	Ball screw, diameter of 12mm, Thread pitch 4mm
Mechanical resolution	XYZ axis:0.0025mm/step
PositionaI accuracy	0.05mm

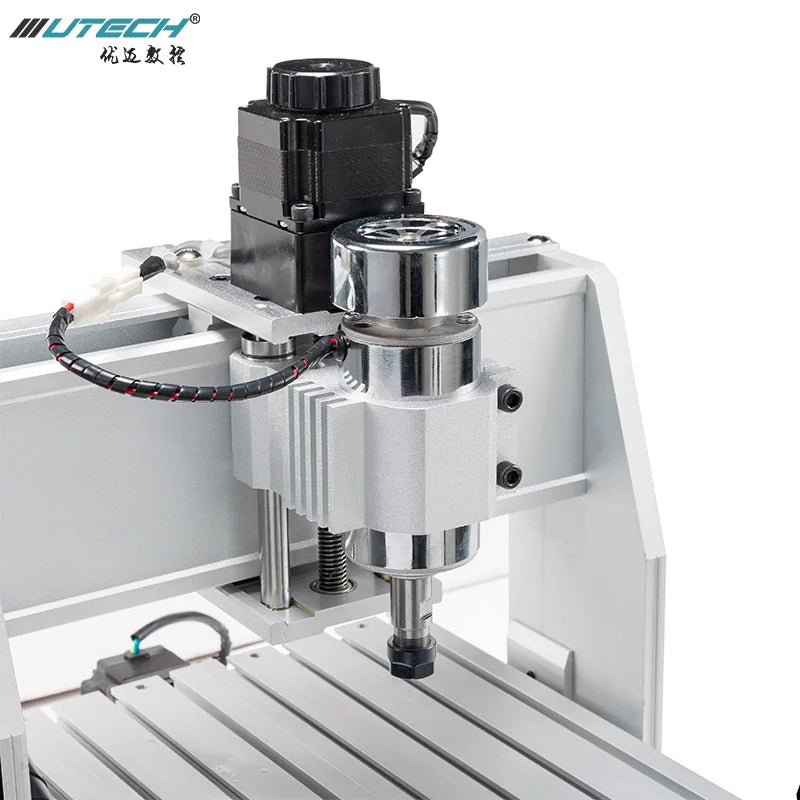

Spindle motor	2-300W DC spindle
Revolving speed	11000rpm/min
Holder	ER11(3.175mm,6mm)

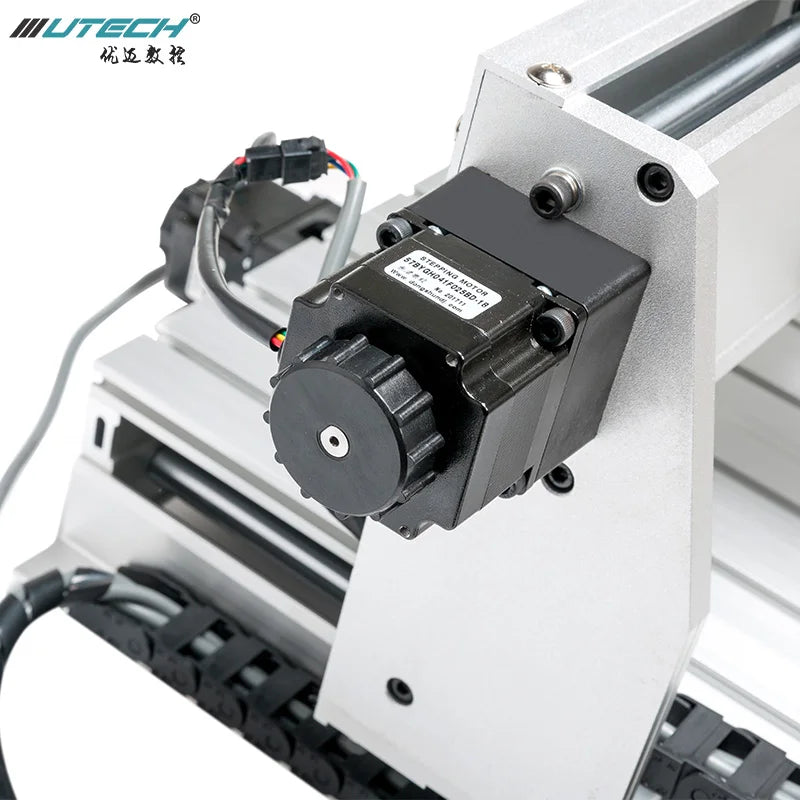

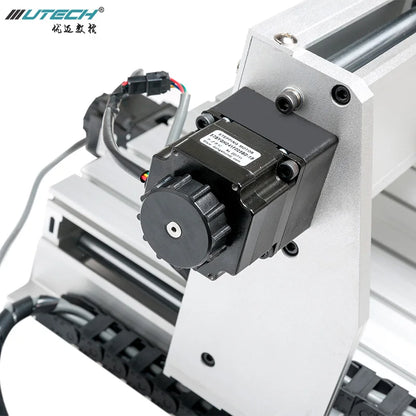

XYZ motor	Stepper motor JK57HS41-2004XB-01AF
Stepper driver	High performance, independent of each axis
Packaging size	25.5kg(61.5*48.5*38.5 mm)

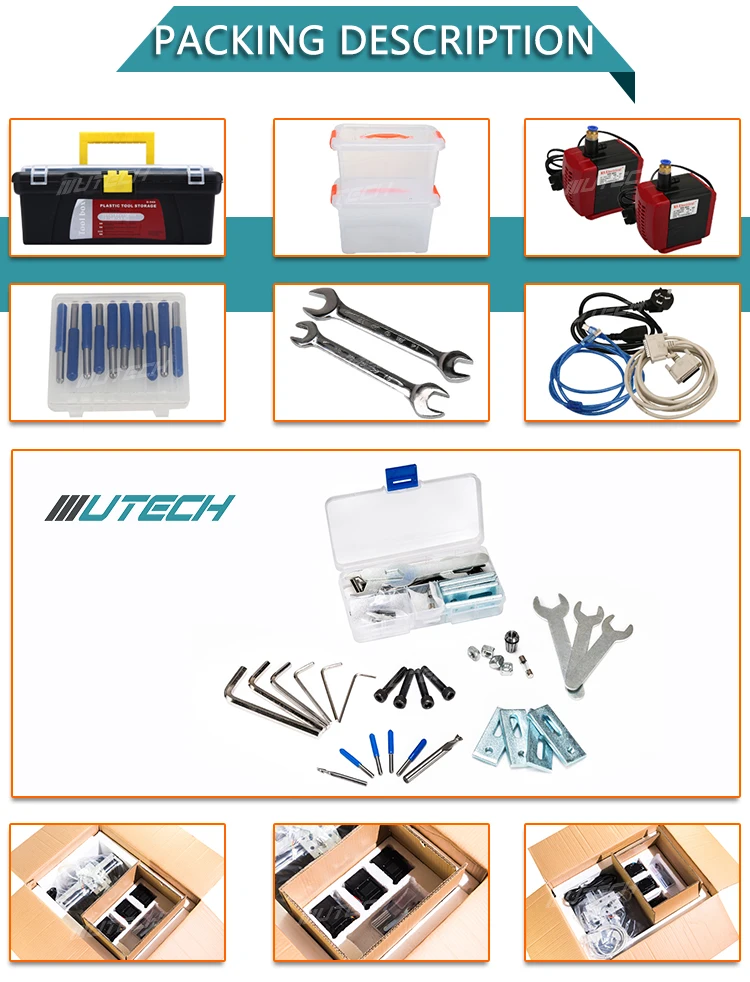

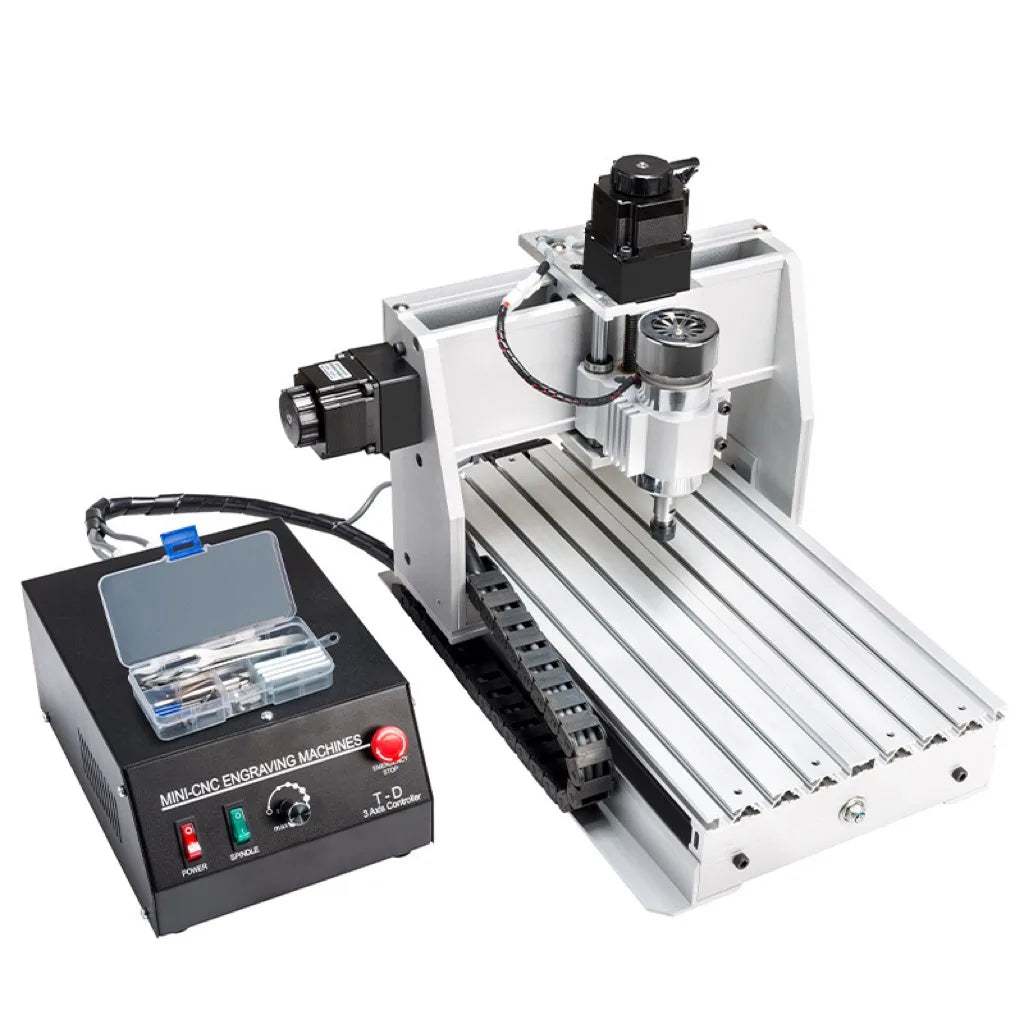

Packing list:

1× CNC 3020 Engravine machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors

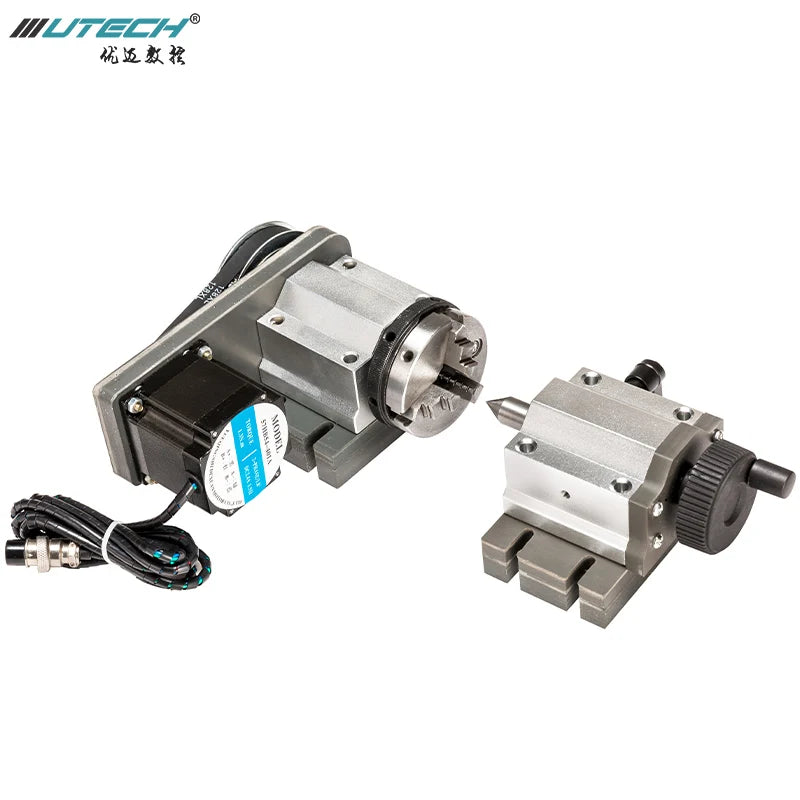

1× Rotation axis(optional)





1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail/ skype/ phone/ trademanager online service.

2) If machine have any problem after I receive it, how can I do?

Free parts send to you in machine warranty period.

3) MOQ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? (Very easy and flexible! )

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price, shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F. Send your order by air or by sea.
