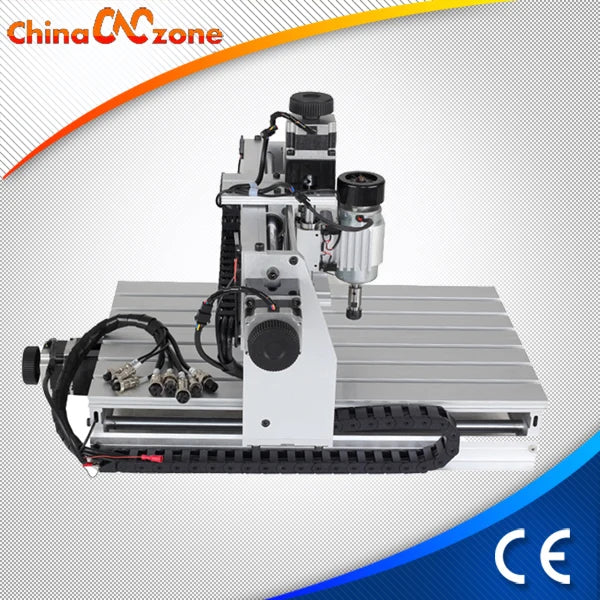

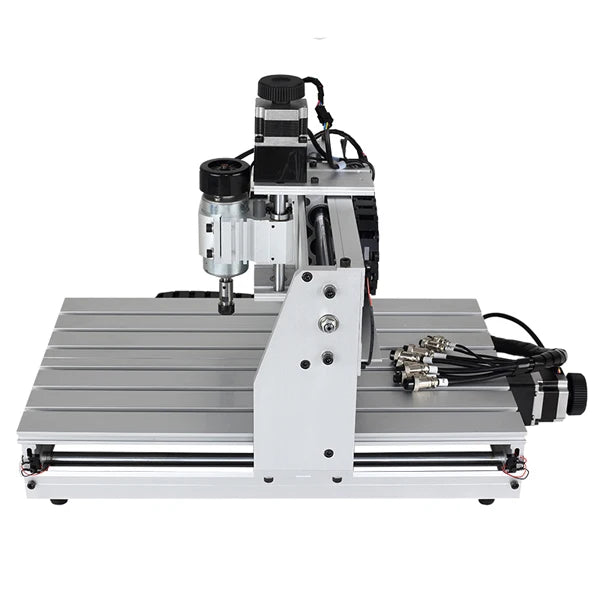

Hot Style CNC 3040Z-DQ 3 Axis 500W CNC Milling Center and Drilling Router Machine
Hot Style CNC 3040Z-DQ 3 Axis 500W CNC Milling Center and Drilling Router Machine
SPECIFICATIONS
Acceptable material thickness: ≤75mm
Engraving area: 280*370*55mm
Maximum operating speed: 4000mm/min (Engraving speed :300-3000mm/min)
No. of Spindles: Single
Power (kW): 0.5
Rack material: 6061 and 6063 Hard aluminum alloy
Rail type: Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC)
Spindle Collet type: ER11,1/8"(3.175mm) Collet
Spindle Motor Power (kw): 0.5
Spindle motor: 500W/11000r/min((Very small noise))
Stepper motor and drive: two-phase hybrid stepping motor , 1.8A/PHASE,40N.cm, 8 segments drive.
Type of screw: Ball screw,Pitch 4mm
Working Table Size(mm): 300×400
Z-Axis Stroke: 55mm, Engraving depth depends on the length of the tool edge
brand name: cnc milling and drilling machine
cnc or not: CNC
core components: Bearing,Motor,Other
dimension(l*w*h): 625*510*410mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.03 mm
range of spindle speed(r.p.m): 1 - 11000 rpm
repeatability (x/y/z) (mm): 0.03 mm
travel (x axis)(mm): 280 mm
travel (y axis)(mm): 375 mm
video outgoing-inspection: Provided
voltage: 220V/110V
warranty: 1 Year
weight (kg): 30
Hot Style CNC 3040Z-DQ 3 Axis 500W CNC Milling Center And Driling Router Machine
Outstanding features for this CNC 3040Z-DQ 3 Axis 230W CNC Milling Center And Driling Router Machine
In hardware capabilities aspect:
1. Limited switch added.
2. Auto checking function added
3. Ballscrew made it a higher precision.
4. Control box can be 3 axis and 4 axis universal.
5. USB or parllerl port.
6. Air cooling spindle, less noise
7. Easy operate.
8. 500W spindle.
In soft service aspect:
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. High performance low cost
7. From reliable & trustable profesional China mini CNC router machine manufacturer.
This CNC 3040Z-DQ 3 Axis 500W CNC Milling Center And Driling Router Machine can be widely used as below
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic,
Technical detailes for this CNC 3040Z-DQ 3 Axis 500W CNC Milling Center And Driling Router Machine
| Effective working travel | 280(X)mm*375(Y)mm*55(Z)mm |
| Shape dimension | 625*510*410mm |
| Table size | 520*320 |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 500w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Carving Instructions | G code, or any MACH3 support format file |
| Software environment | Windows xp/ Windows 7/8/10 |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Computer connection | On board parallel port and USB port |
| Acceptable software | Mach3, USB CNC, EMC2 |
| Protection | Emergency stop button |
| Operating Voltage | AC220V |

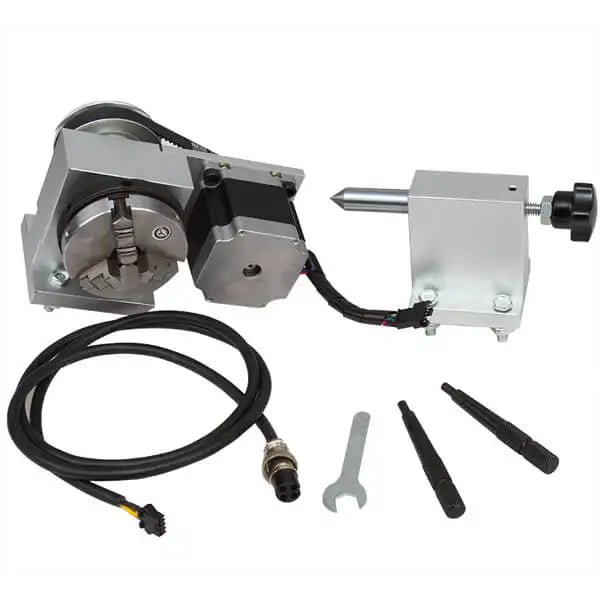

| The 4th axis | |
| Size | 54*59*73mm |
| Top diameter | 15mm |
| Centre-height | 50mm |
| Clamping diameter | 40mm finger tight fitting |
| Reduction tatio | 1:03 |
| Error Range | 0.1 |

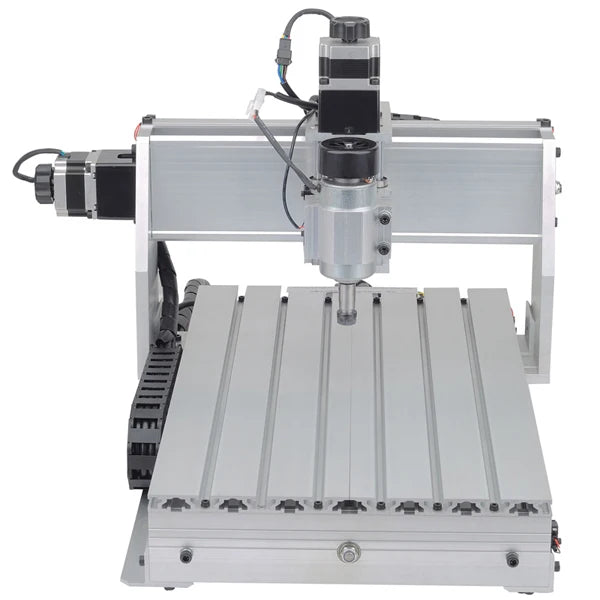

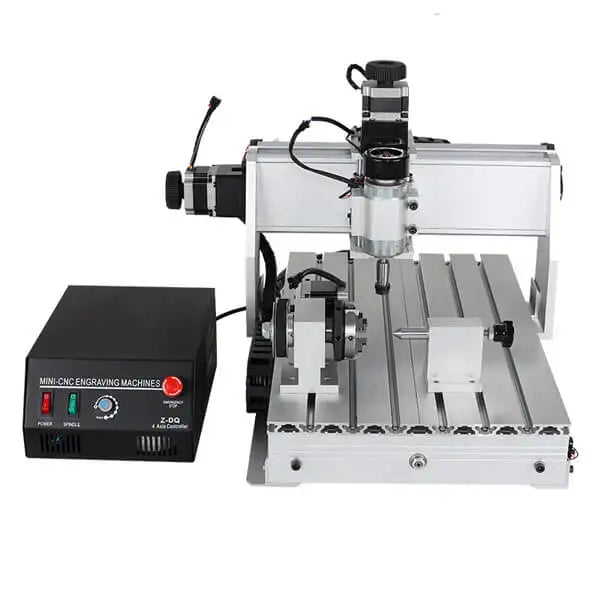

More pictures for this CNC 3040Z-DQ 3 Axis 500W CNC Milling Center And Driling Router Machine
Limit Switches and Tool Auto Checking Instrument
Packing list for this CNC 3040Z-DQ 3 Axis 500W CNC Milling Center And Driling Router Machine
1 Engraving machine

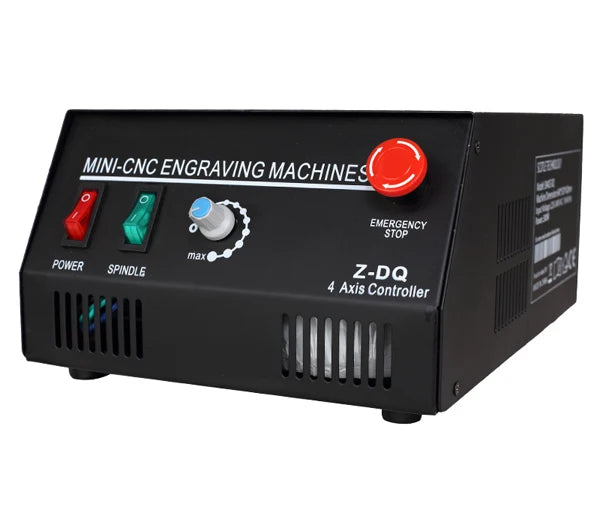

1 Controller box with inverter installed in it
1 500w air cooling spindle
1 USB cable or Parallel cable for selection
1 Power cable
4 Engraving bit
4 Limited switch
1 Auto-checking tool
1 set of clamp tool
Packing : Standard 7-layer corrugated carton box with protective foam
MOQ : 1 Sample welcomed, it will be a nice try.
Shipping : By express DHL, UPS, EMS, Fedex and Sea.
Software: If use parallel port, use Mach3 software
If use USB port, use USB CNC software.
User Manual : English user manual will send with the machine
Vedio : Vedio Supported in Pre-sales and After-sales service
