Indoor Self Service for Small Business Wireless Network
Indoor Self Service for Small Business Wireless Network
SPECIFICATIONS
2.4g wi-fi transmission rate: 600Mbps
Benefits: Get extra revenue,quick and cheap Internet access,etc.
Brand: SOL
Encryption Type: NONE
Housing Color: Orange
Housing Material: ABS plastic
Internet Access Method: 1x RJ45 WAN Port
Power Supply: AC90~265V, 50/60Hz
Supported Device for Tapping: Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc.
WAN Ports: 1
Warranty: 12 Months
Weight: 0.3 kg
WiFi Operation Range: Radius up to 150 meters (outdoor)
WiFi Standard: Wireless b/g/n, 2.4GHz
WiFi Transmission Standard: 802.11ac
application: Public places
function: FireWall,QoS
lan ports: 4
max. lan data rate: 1000Mbps
place of origin: China
products status: New
standards and protocols: Wi-Fi 802.11ac,Wi-Fi 802.11g,Wi-Fi 802.11n
type: Wireless
wifi supported frequency: 2.4G & 5G
wired transfer rate: 100Mbps
with modem function: No
Indoor Self Service for Small Business Wireless Network
OVERVIEW
Money-Making WiFi Router. New Idea. New Business

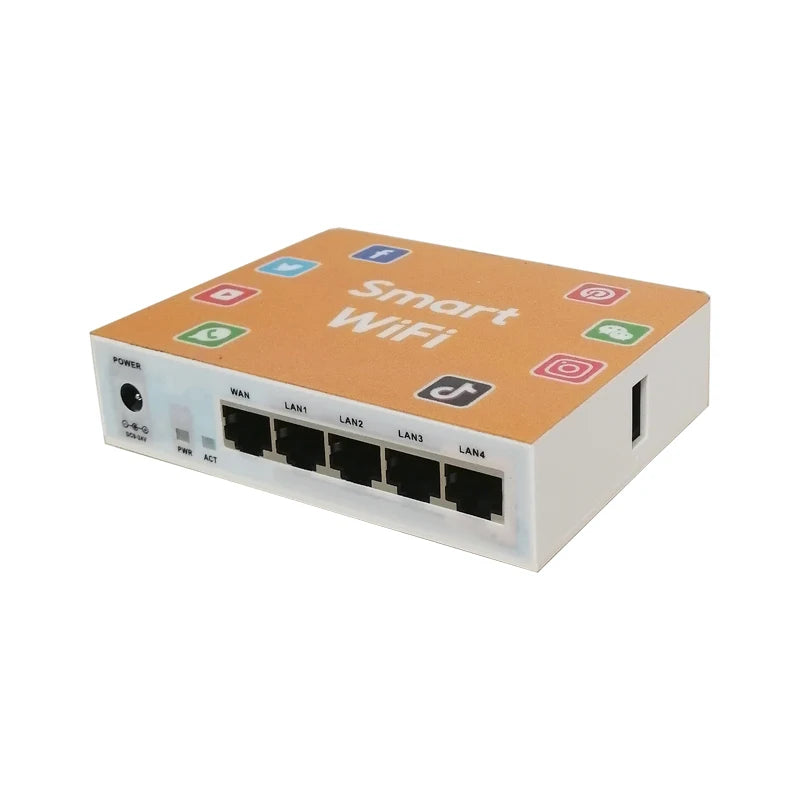

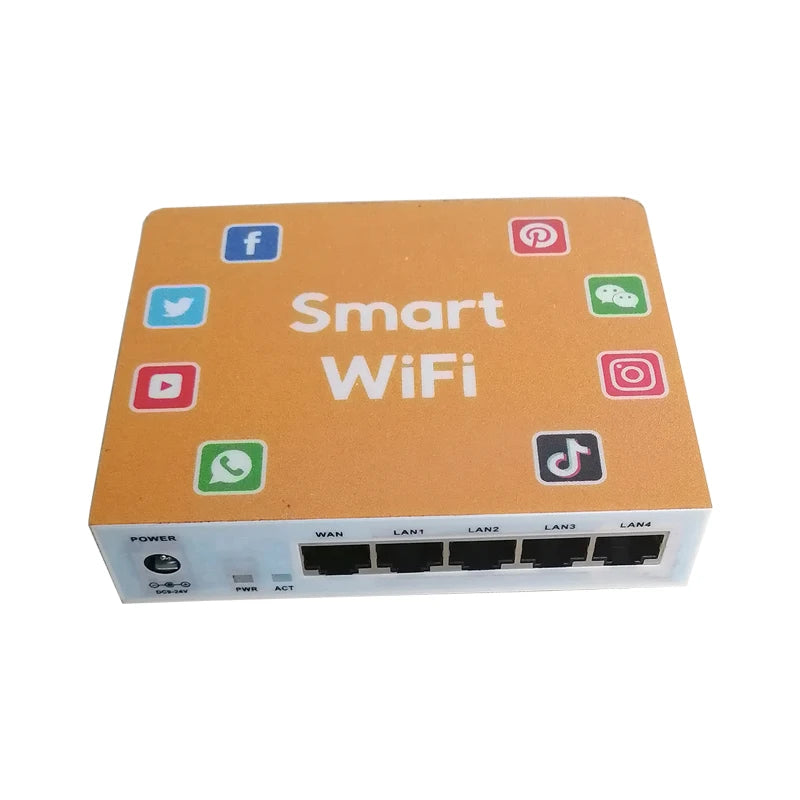

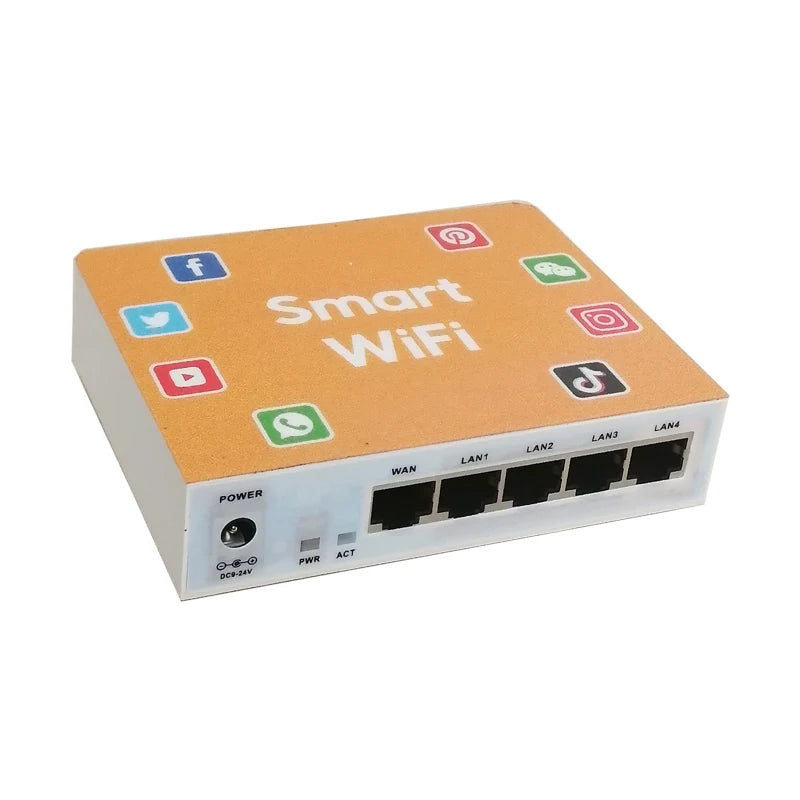

Smart WiFi is a money-making WiFi router. It provides visitors an immediate WiFi Internet service in public places. And the owner can get revenue by selling WiFi service (based on time or traffic data) through this device via voucher codes.
Everyone has a smartphone, but not everywhere have WiFi. Smart WiFi can fill this huge gap between WiFi needs and WiFi Coverage. The device is plug-&-play and easy to install. And the best part is all investment can be returned in 1 months.
COMPARISON
FUNCTIONS
- Support login with voucher codes.
- Provide WiFi signal coverage (around 100 meters for outdoor / 30 meters for indoor).
- Support around 50 concurrent users (depending on the bandwidth of Internet access) and optional high-end version can support up to 500 concurrent users.
- Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.
- Offer cloud-based NMS (Network Management System) to monitor all online device remotely.
- Support account roaming between different Smart WiFi to help end users enjoy your WiFi service in multiple sites.
FEATURES
BENEFITS
- Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
- Venue owners can display advertisements for their products on the login page for better promotion or show ads for other shops to get income;
- Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
- Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.
APPLICATIONS
Suited for indoor or storefront public environment, such as:
- Long-stay place: dormitories, apartments, hotels, hospitals;
- Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
- Sports area and recreation centers: gyms, bowling, billiards;
- Tourism place: international airports, beaches, parks, swimming pools, exhibition and convention sites.
90% of visitors has contacted us to get valuable information, like:
- How to run a successful WiFi business?
- How to make the WiFi signal cover a dormitory with limited budget?
- How to run WiFi business with video service via Internet connection of low bandwidth?
OPTIONAL ADD-ONS
|
Access Point (WiFi Extender) |
|
|
- Can extend the wifi signal range to attract more users - Work in dual-band: 2.4 & 5.8 GHz - Support PoE in - Provided with waterproof casing - Shall connect to machine via Ethernet cable - Approximate extended range: around 120 meters (outdoor) / 50 meters (indoor) - Dimensions: 358mm (H) x 85 mm (W) x 45mm (D) - Weight: 0.2 kg |
|
|
|
Thermal Voucher Printer |
|
|
- Shall work with our Android App - Mechanical Lifespan: Paper length of 50 km - Print Speed: 90 mm/s - Resolution: 203 dpi - Supported Paper: width - 57.5±0.5 mm / roll diameter – Ø65mm - Power supply: external power adapter AC110/220V 50~60Hz to DC12V/3A - Dimensions: 222mm X 140mm X 120mm - Weight: 0.92kg |
TECHNICAL SPECIFICATIONS
| Environmental Conditions |
- Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage) - Humidity: 10% ~ 85% non-condensing |
| Power Requirement |
- External power adaptor (input: 100~240 VAC, 50/60 Hz / output: 12~24VDC, 0.8A) - Power consumption: 4 watts |
| WiFi Operation Range |
Radius up to 100 meters (outdoor) / 30 meters (indoor) |
| WiFi Frequency Range |
BAND 2.412 to 2.484 GHz and 5.150 to 5.875 GHz |
| Networking |
- IEEE 802.11 b/g/n and 802.11 a/n/ac Wireless LAN - Zero end-user configurations |
|
Authentication |
Built-in user authentication and accounting |
|
Remote Management via NMS (optional) |
- Setting of WiFi name and data speed limit - Revenue records of WiFi Internet service - Offer voucher codes for wifi access - Supervision on running status of each device |
| Structural |

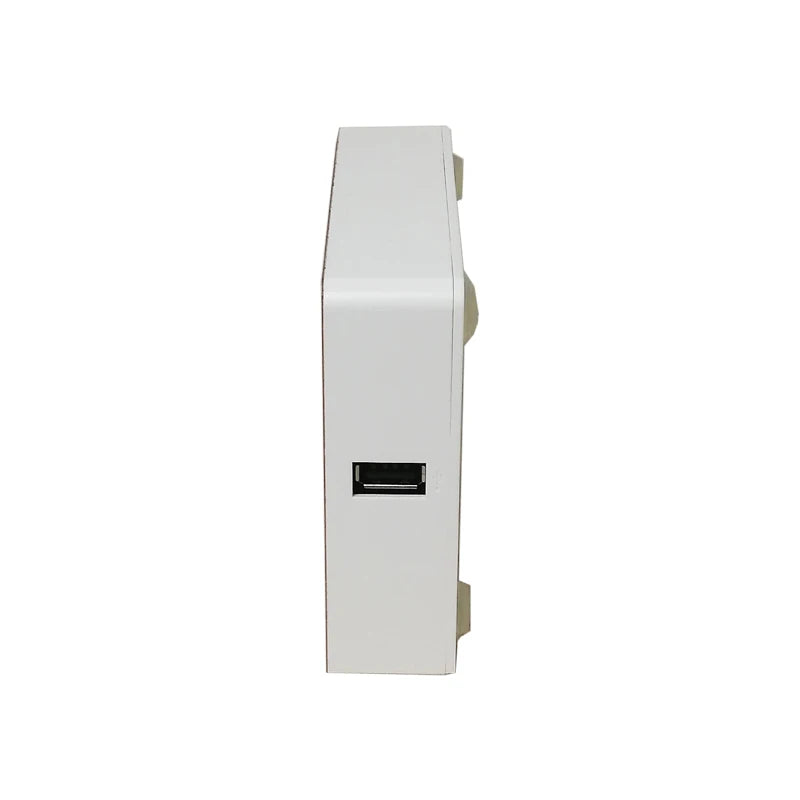

- Housing Material: ABS plastic - WAN Interface: 1x 10/100Mbps RJ45 port - LAN Interface: 4x 10/100Mbps RJ45 ports - Antennas: 1x WiFi (built-in) - USB Interface: for thermal voucher printer - Dimensions: 113mm X 89mm X 28mm - Weight: 0.2 kg - Packing Dimensions: 155mm X 155mm x 52mm - Packing Weight: 0.3 kg |
Frequently Bought Together
FAQ
Q: How does the Smart WiFi get Internet?
A: You need to connect the Smart WiFi to a DSL/Cable/Fiber Optic modem or a router via an Ethernet cable.
Q: Can I extend the WiFi signal coverage range?
A: Yes, we recommend you to connect the Smart WiFi with our Access Points (AP) to extend the coverage. We will provide professional suggestion if you can provide the plan diagram of the area.
Q: Can I add my company name and logo on the Smart WiFi?
A: Yes, we can provide OEM service based on batch orders.
Q: Can the Smart WiFi support more than 50 concurrent users?
A: Yes, we have high-end version of router to work with Smart WiFi to support 200, 300 or 500 concurrent users with different price.
Q: Can I set the price for WiFi service? Is it based on time duration or bytes usage?
A: Yes, you can set the price in the cloud-based NMS (Network Management System). Either time-based or data-based is supported.
Q: How long can I get my investment back if I want to do this business?
A: Usually it will take 3~6 months. It depends on the setting of WiFi service price and the number of WiFi service users at the installation site.
Q: How can I make sure that I can run this business successfully?
A: To make this business successful, there are 3 major factors:
- Ability to find and acquire the appropriate installation place (especially the place where many people stay for a long time) and to pay for acquisition reasonably.
- Facility and low cost of broadband Internet access.
- Coverage and quality of WiFi signal.
PACKAGING & SHIPPING
Our product will be packed in a carton after careful testing and inspection. Each package will include an AC/DC power adapter.
FAST DELIVERY
- We have strong cooperation with DHL, UPS, FedEX, EMS and TNT.
- You can also choose your own forwarder.
- Sample order will be delivered within 3 work days.
- Batch order up to 1000 units will be delivered within 30 work days.
OUR SERVICE
- Any inquiry of our products will be replied within 1 work day.
- OEM is available for batch orders:
- Silkscreen printing on casing
- Brand Label on casing
- Package carton printing
- Product feature
- Warranty and after-sales service:
- Have a 1-year warranty and during the warranty we will provide free-of-cost technical support
- We will provide online support service via email, instant messenger, instruction document and video
