Linear Guide Rail 2.2KW CNC 3040 Milling Machine USB Parallel Port 4 Axis Wood Router Lathe Woodworking Tool with Water Tank
Linear Guide Rail 2.2KW CNC 3040 Milling Machine USB Parallel Port 4 Axis Wood Router Lathe Woodworking Tool with Water Tank
SPECIFICATIONS
No. of Spindles: Single
Power (kW): 2.2
Spindle Motor Power (kw): 2.2
Working Table Size(mm): 330 * 540mm
brand name: LY
cnc or not: CNC
core components: Motor,Gear,Bearing
dimension(l*w*h): 550 *660 * 600mm
key selling points: High-Accuracy
machine type: CNC Router
machinery test report: Not Available
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.01
repeatability (x/y/z) (mm): 0.01
travel (x axis)(mm): 300
travel (y axis)(mm): 400
video outgoing-inspection: Provided
voltage: 110/220V
warranty: 1 Year
weight (kg): 95
Linear Guide Rail 2.2KW CNC 3040 Milling Machine USB / Parallel port 4 Axis CNC Router Lathe Woodworking Machine
Free Gift:
Introduction
The CNC 3040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Linear Guide Rail, More Precise on moving.
The engraving process is visible as controlled by computer
Simple operation and installation
Warranty
1 year full warranty directly from factory
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters
|
MODEL |
With water tank 3040L-2.2KW 4axis |
|
Machine Dimensions: |
550 *660 * 600mm |
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|

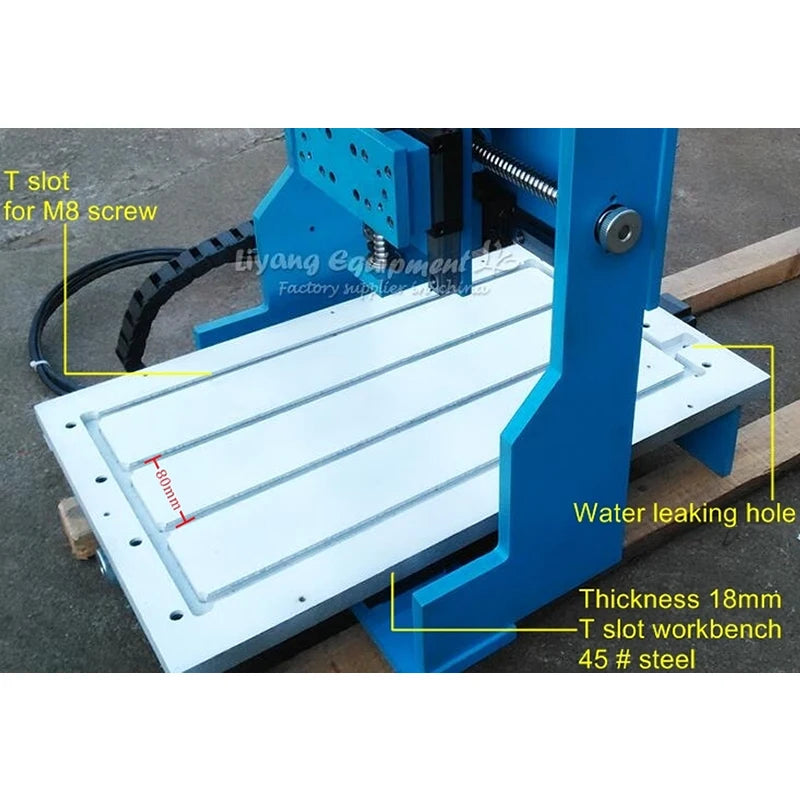

Table size |
330 * 540mm (20mm aluminum alloy T table) |
|
Engraving area: |
260 *380mm |
|
Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness: |
140mm |
|

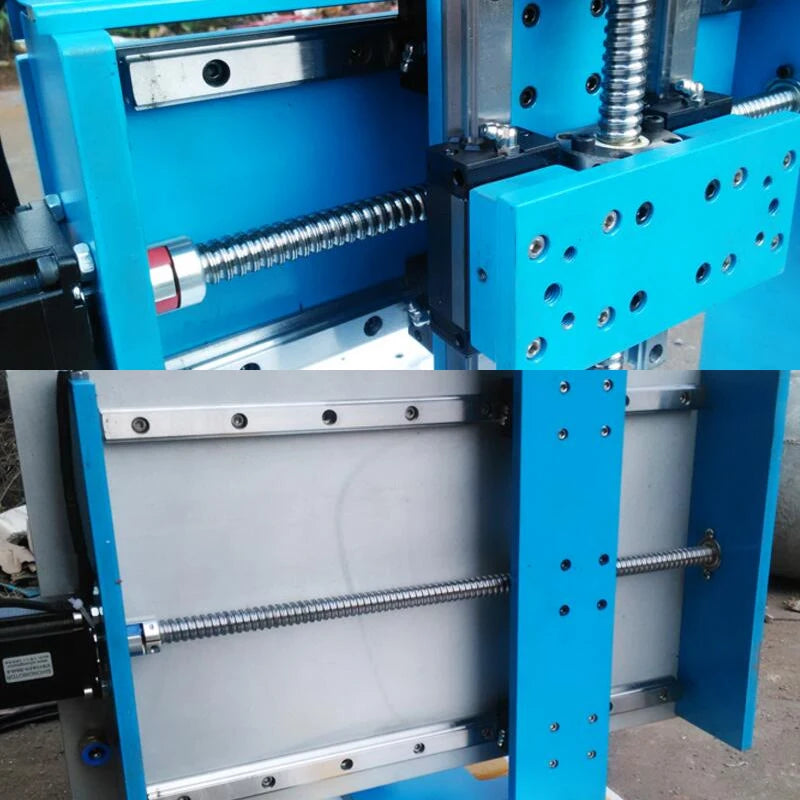

Rail type: |

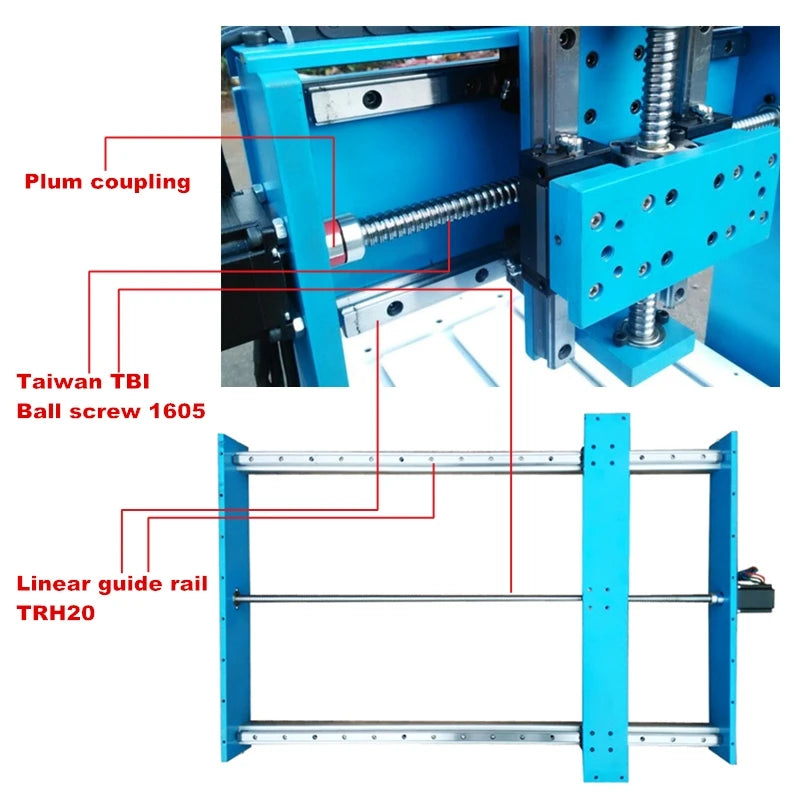

Linear guide rail TRH20 (more precise moving) |
|
Type of screw: |
Taiwan TBI Ball screw 1605 |
|
Spindle motor: |
2.2KW VFD water cooling spindle , 0-24000r/min |
|
Collet type: |
ER20,1/8"(3.175mm) and 6mm Collet |
|
Stepper motor and drive: |
two-phase 57/3A |
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|
Repeat positioning Accuracy: |
0.03mm |
|

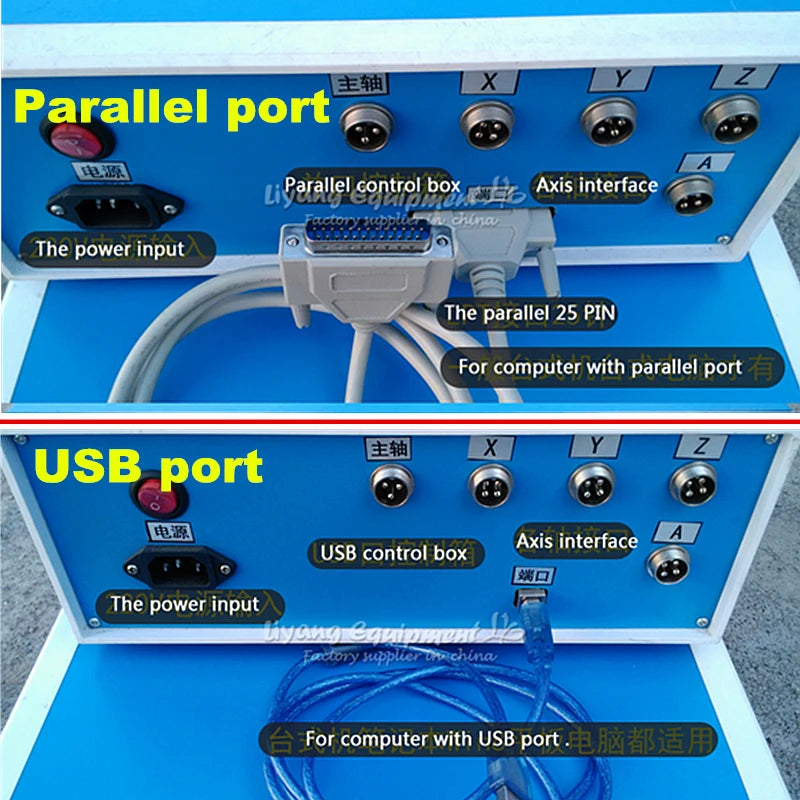

Communication interface: |
Parallel port or USB port |
|
Tool auto-checking |
yes |
|
Software Compatability: |
Mach3 (Type3,Wentai, ArtCAM, coppercam) |
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight: |
110kg |
|

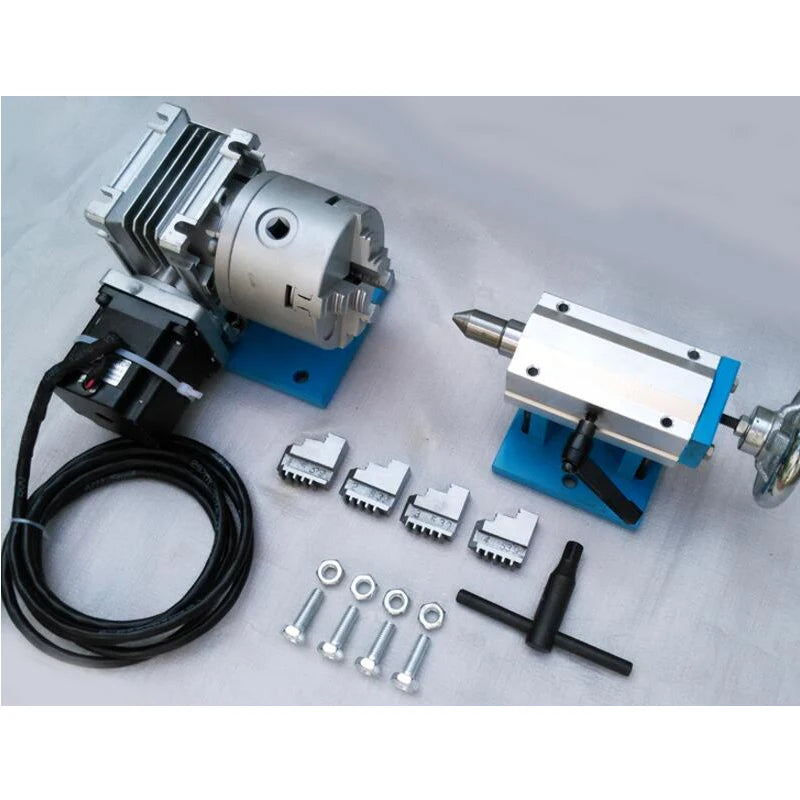

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 ° |
The machine already assembled & tested well,
can directly use after take them out from package
Packing list
|
Attribute |
|
4axis |
||
|
|
|
Parallel port |
USB port |
|
|
Axis |
|
|
4axis |
4axis |
|
Interface |
|
|
Parallel port |
USB port |
|
Weigh |
|
|
110kg |
110kg |
|

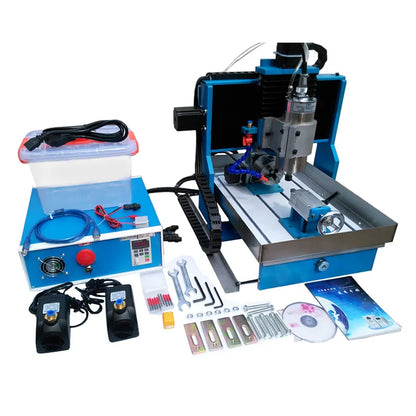

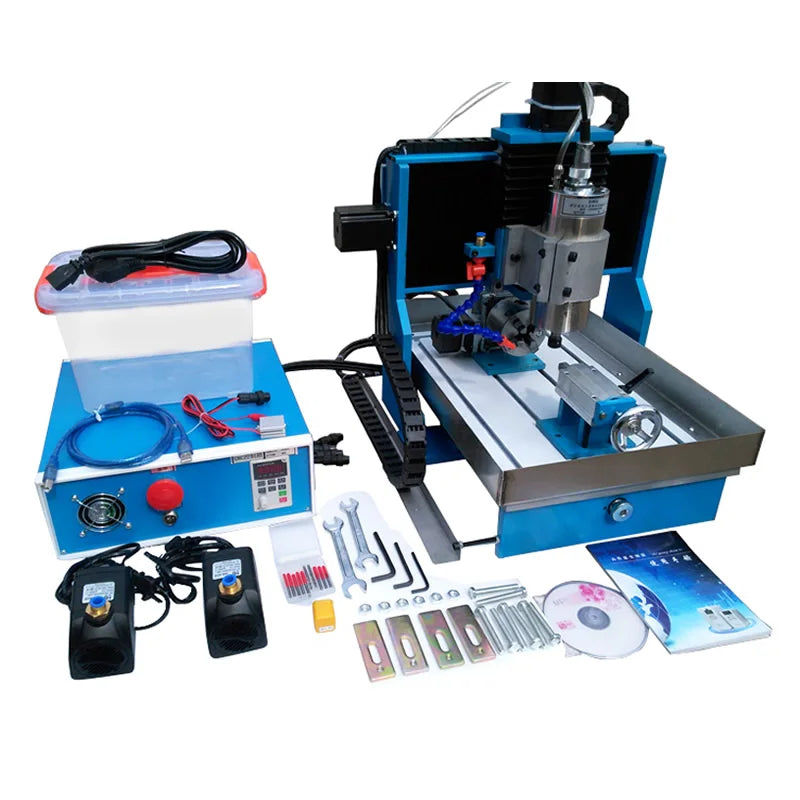

Packing list |
|
|
|
|
|
1× Engraving machine |
|
|
√ |
√ |
|
1× Control box |
|
|
√ |
√ |
|
1× Power cable |
|
|
√ |
√ |
|
1× Parallel port cable |
|
|
√ |
X |
|
1× USB port cable |
|
|
X |
√ |
|
1× Tool package |
|
|
√ |
√ |
|
1× Rotation axis |
|
|
√ |
√ |
|
1×tool auto-checking instrument |
|
|
√ |
√ |
|
1x water pump |
|
|
√ |
√ |
|
1× CD (if not get, may be lost in customs, please contact us) |
|
|
√ |
√ |
