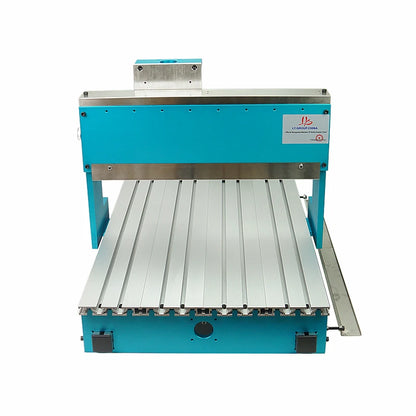

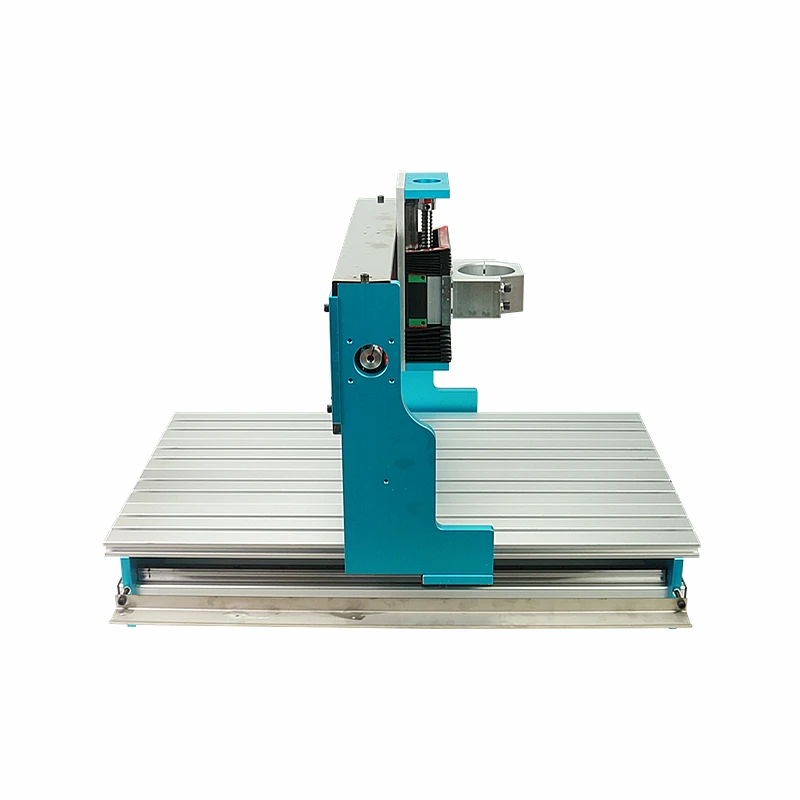

LY New 3040 6040 Linear Guideway Square Rail CNC Router Frame Kit DIY Engraving Milling Machine Lathe Part Tools
LY New 3040 6040 Linear Guideway Square Rail CNC Router Frame Kit DIY Engraving Milling Machine Lathe Part Tools
SPECIFICATIONS
After Warranty Service: Online support
After-sales Service Provided: Online support
Certification: CE ISO
Local Service Location: Russia
Marketing Type: New Product 2020
No. of Spindles: Single
Power (kW): 1
Showroom Location: Russia
Spindle Motor Power (kw): 1KW
Working Table Size(mm): 600×600
brand name: LYCNC
cnc or not: CNC
core components: Bearing,Motor
dimension(l*w*h): 60x40x50
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Not Available
number of axes: 3
place of origin: Guangdong, China
positioning accuracy (mm): 0.01 mm
range of spindle speed(r.p.m): 1 - 20000 rpm
repeatability (x/y/z) (mm): 0.03 mm
travel (x axis)(mm): 400 mm
travel (y axis)(mm): 600 mm
video outgoing-inspection: Not Available
voltage: 220V 110V
warranty: 1 Year
weight (kg): 30
Linear Guideway Square Rail CNC Frame Kit DIY 3040 6040 Engraving Milling Machine Lathe Part Tools
|

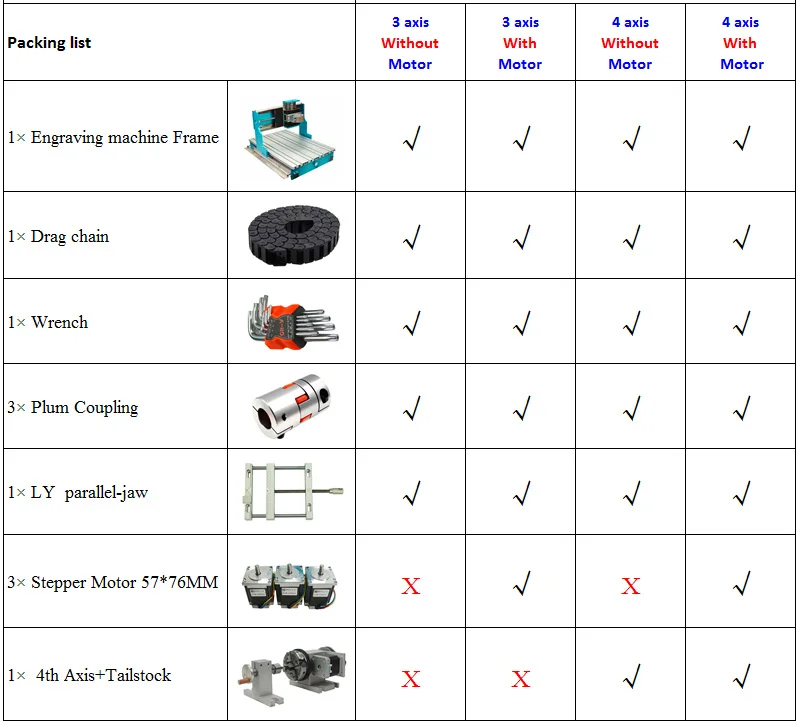

MODEL |

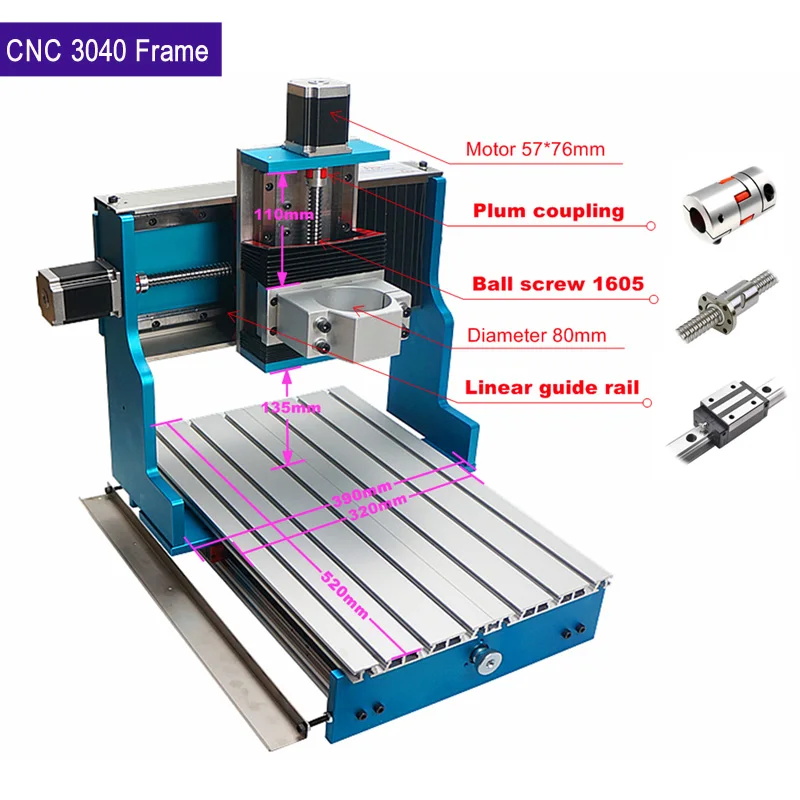

CNC Frame 3040L |

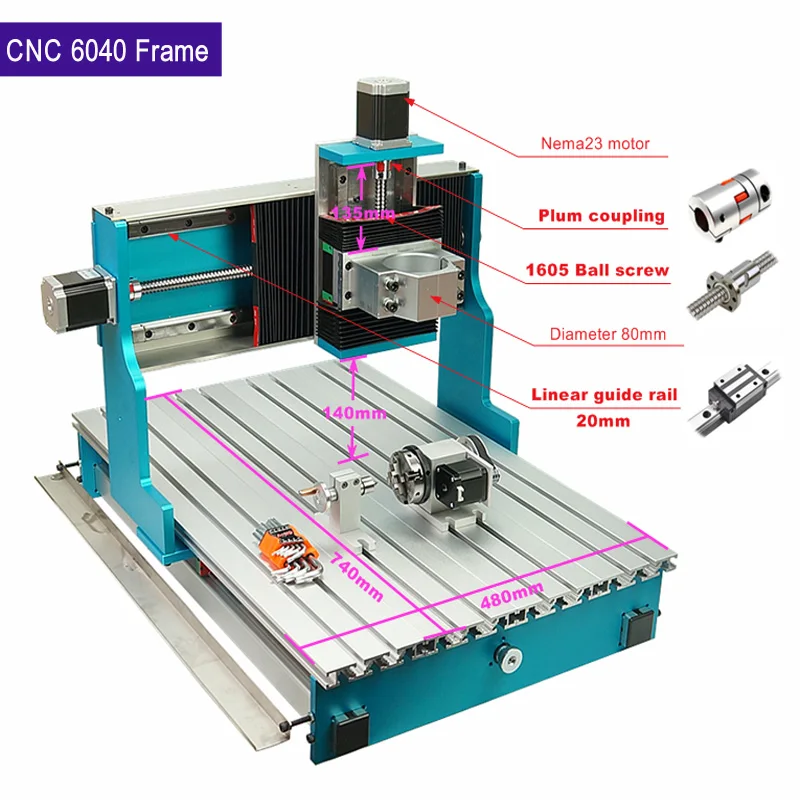

CNC Frame 6040L |
||||||
|
Attribute |
3 axis Without |
3 axis With Motor |
4 axis Without Motor |
4 axis With Motor |
3 axis Without |
3 axis With Motor |
4 axis Without Motor |
4 axis With Motor |
|
Motor |
Motor |
|||||||
|
Axis |
3axis |
3axis |
4axis |
4axis |
3axis |
3axis |
4axis |
4axis |
|
Have motor? |
No |
Yes |
No |
Yes |
No |
Yes |
No |
Yes |
|
Have 4th axis? |
No |
No |
Yes |
Yes |
No |
No |
Yes |
Yes |
|
Weigh |
30 |
34 |
33 |
37 |
45 |
48 |
48 |
51 |
|
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
||||||||
|

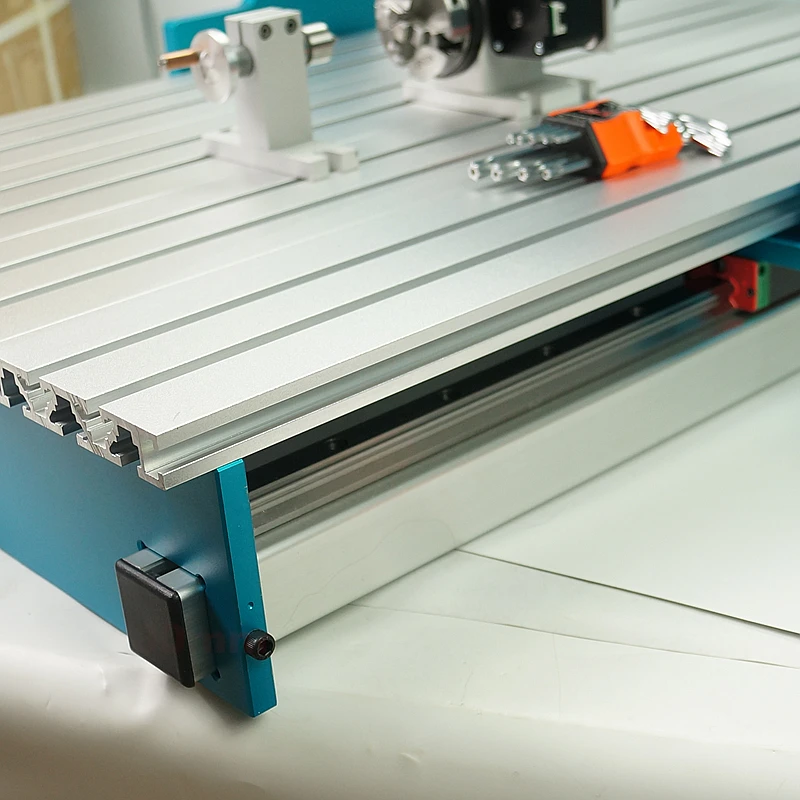

Table material: |
320 * 520mm (20mm aluminum alloy T table) |
740 * 480mm (20mm aluminum alloy T table) |
||||||
|
Engraving area: |
260*380*110mm |
360*570*120mm |
||||||
|
Z-Axis Stroke: |
110mm, Engraving depth depends on the length of the tool edge |
120mm, Engraving depth depends on the length of the tool edge |
||||||
|
Acceptable material thickness: |
≤ 135mm |
≤ 140mm |
||||||
|
Rail type: |

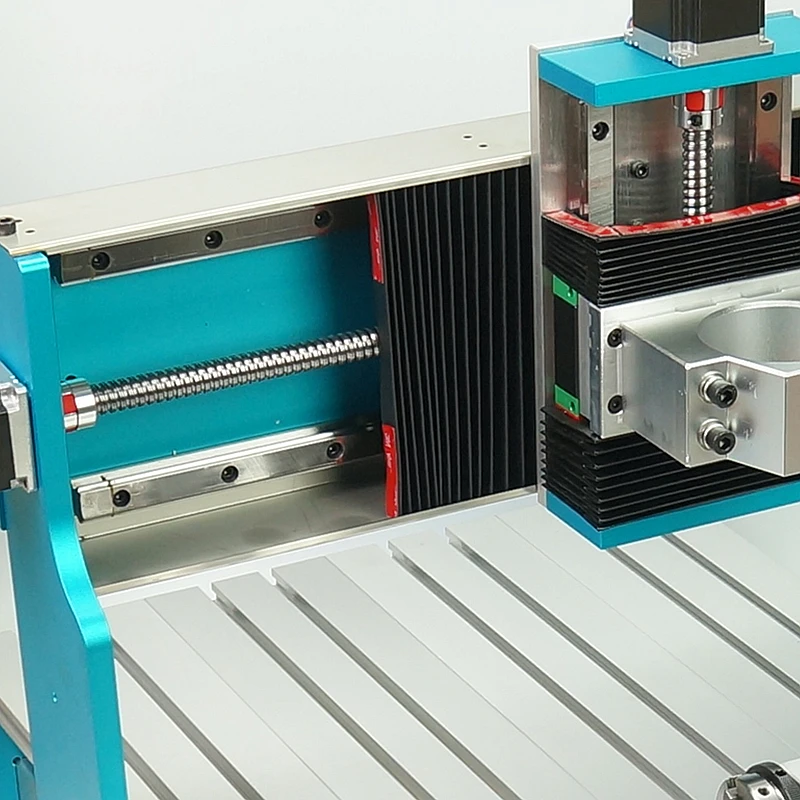

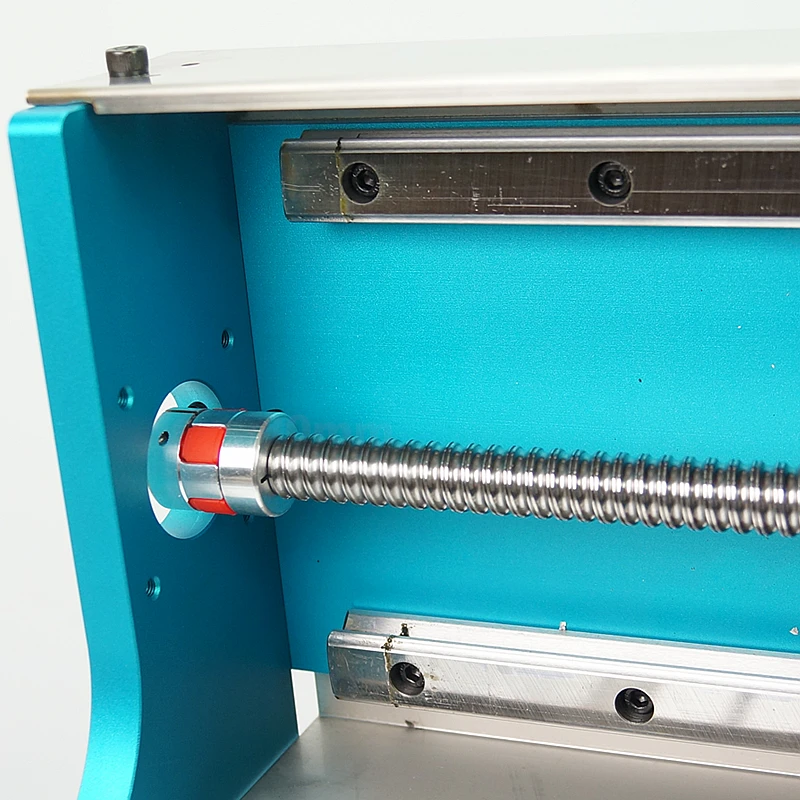

Square line rail track TRH20, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||||||
|
Type of screw: |
Ball screw 1605 |
|||||||
|

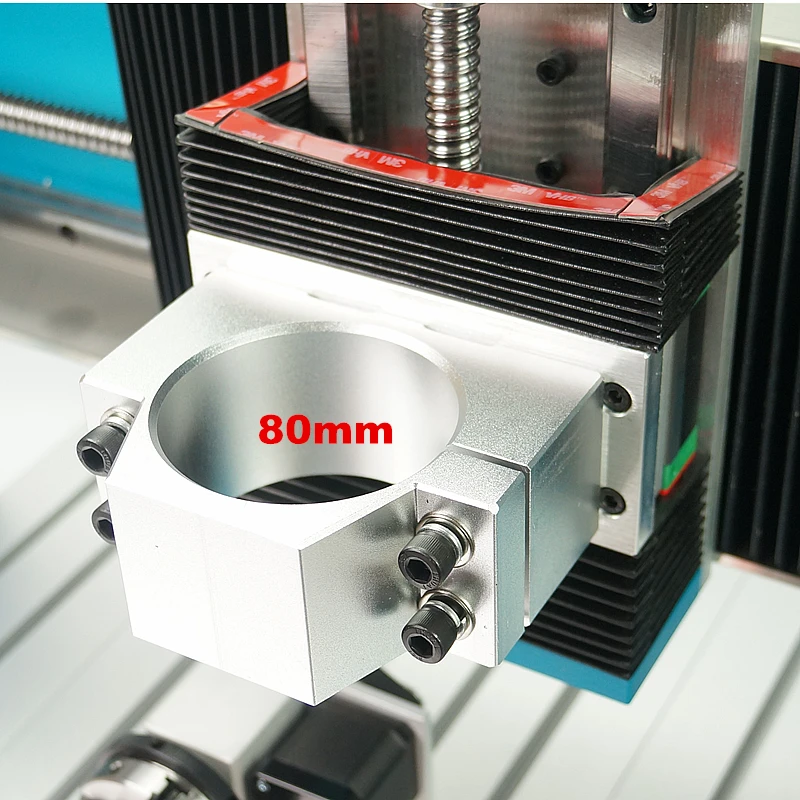

Diameter of Spindle motor: |
80mm
|
|||||||
|

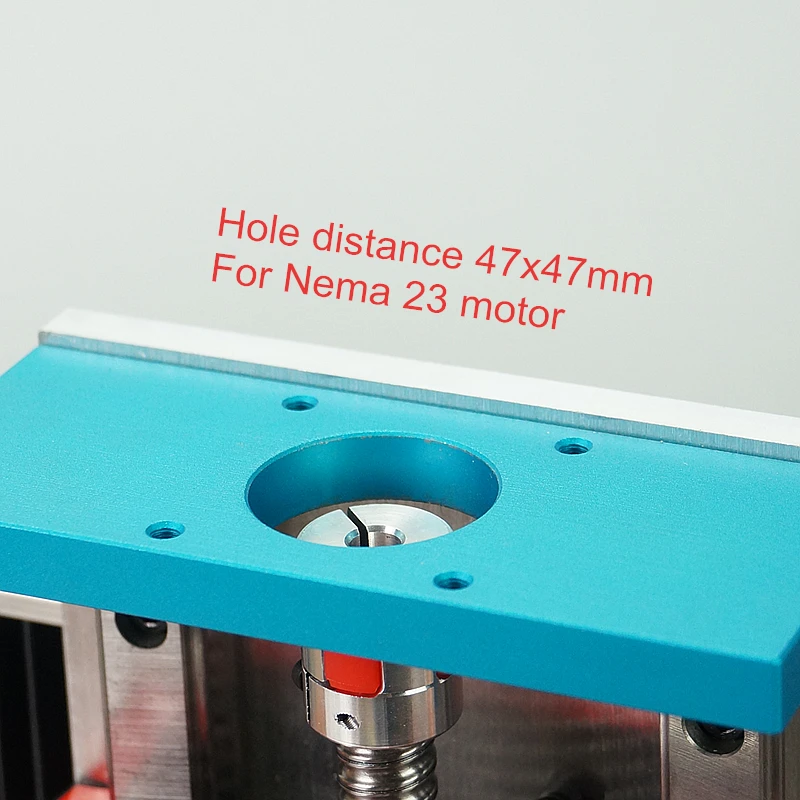

Motor |

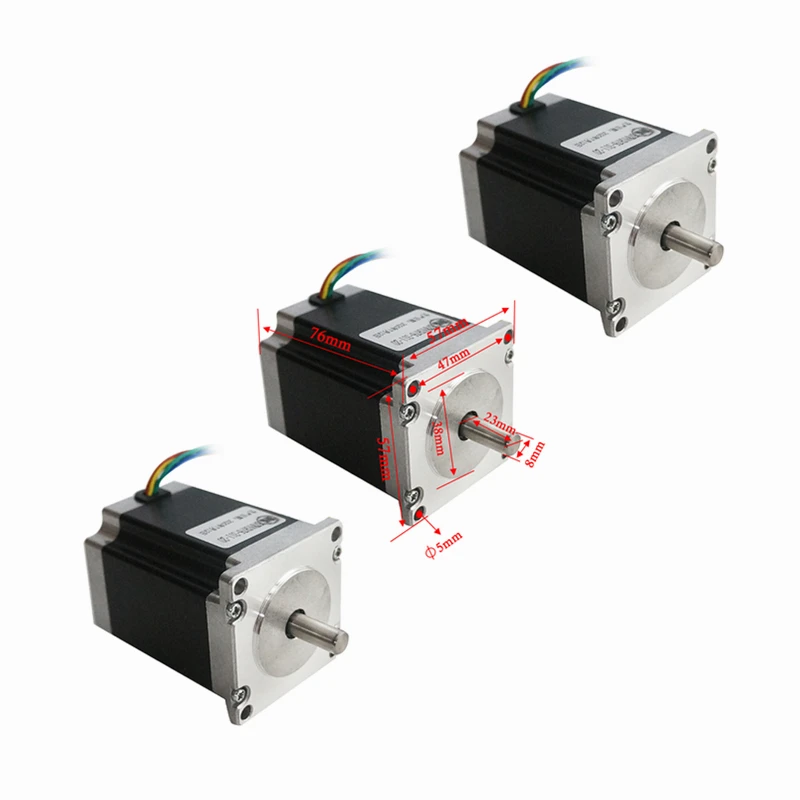

Nema 23 (57*76mm) |
|||||||
|

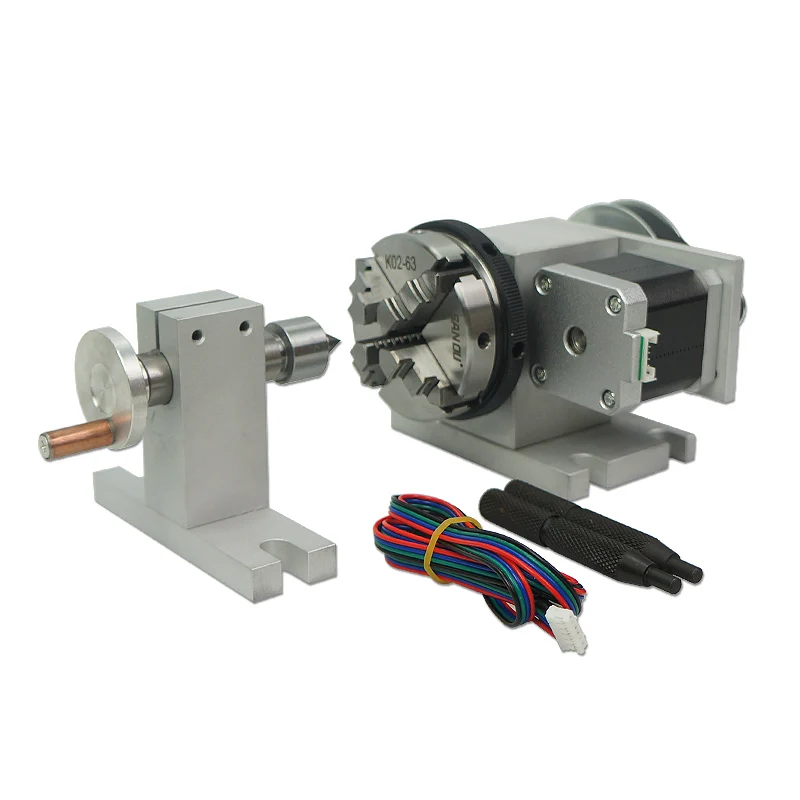

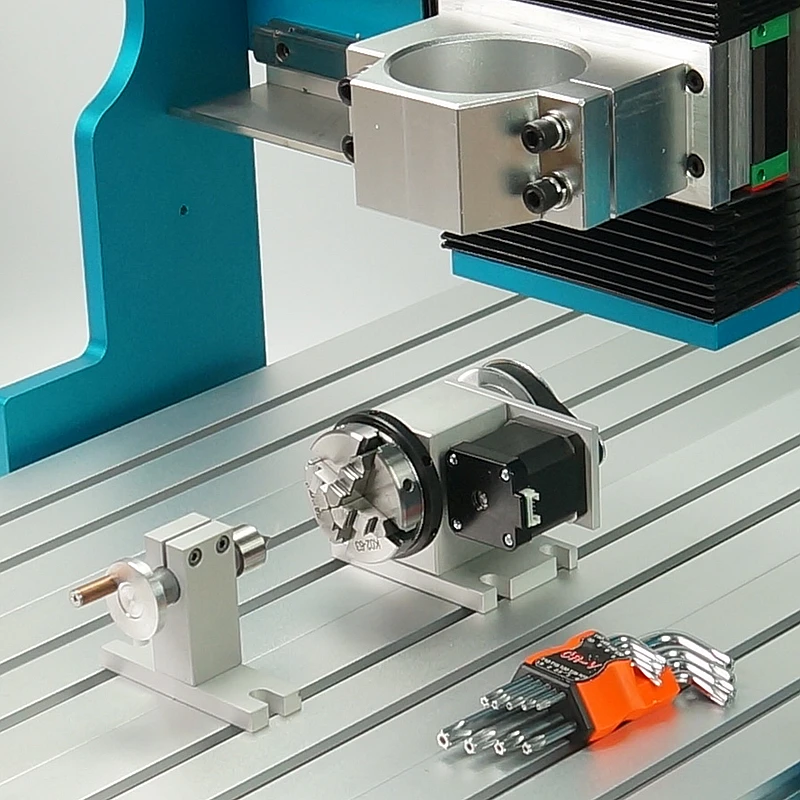

Rotation Axis Description: |

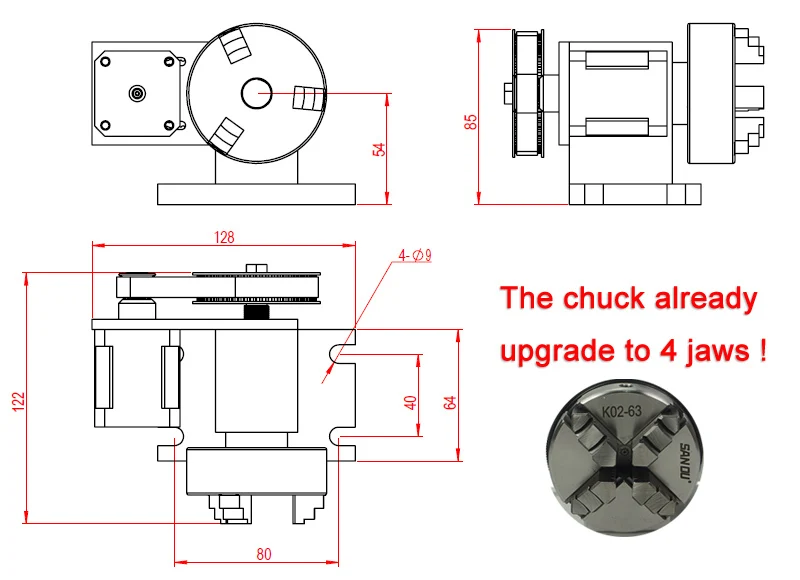

Chuck: 65MM 4-jaw chuck Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
|||||||
Packaging:

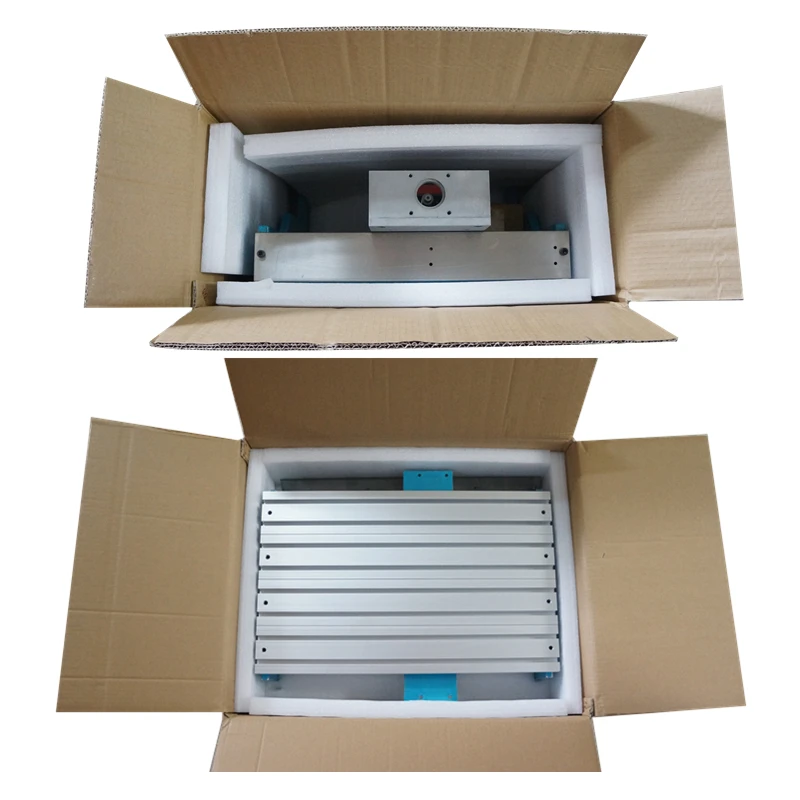

Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from Poland Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to EU or Russia. No need to pay for customs duties and VAT.
D. We can arrange shipment by SEA. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5.OEM/ODM accept . MOQ of OEM/ODM is 10-100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
All products are ready for shipping and can be purchased directly.
Shenzhen Liyang Engraving Equipment Co., Ltd. is a manufacturer of CNC Machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
