SPECIFICATIONS

AI Functions: Smart Tracking

APP: Videolink

Alarm Action: FTP Photo,Local Alarm

Alarm Type: telefon Alarm,Local Alarm,FTP Photo

App name: Other

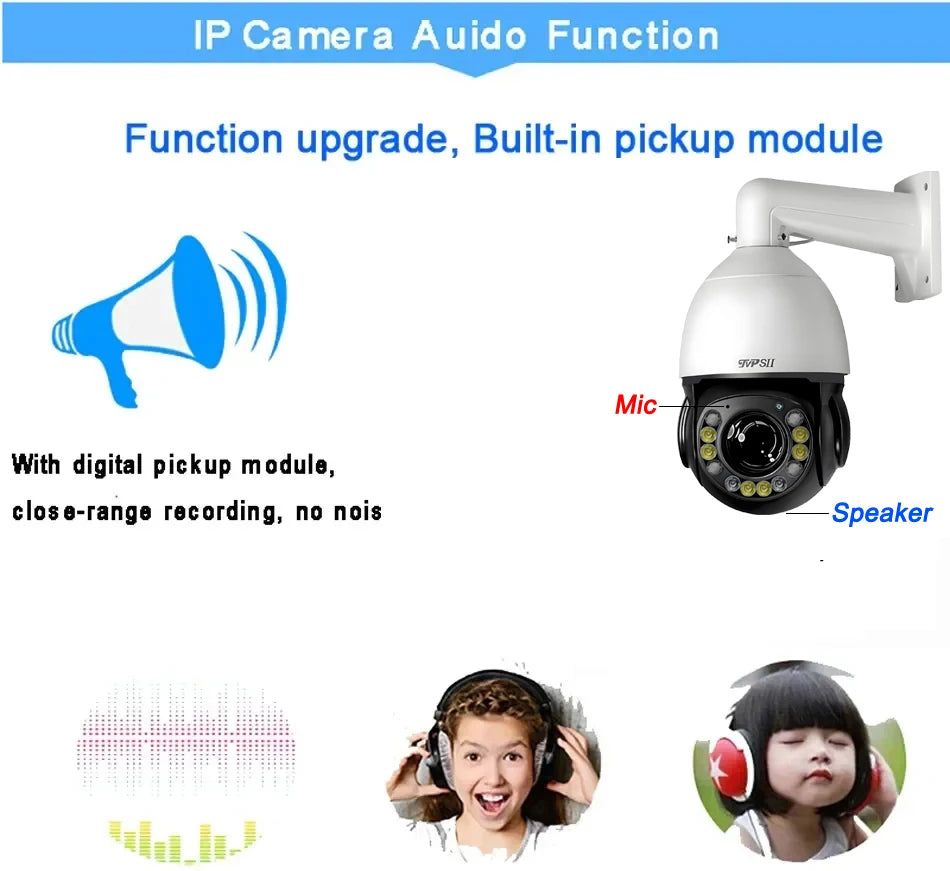

Audio Output: Two Way Audio

Auto Tracking/Cruise: Support

Brand Name: TVPSii

Certification: CE,FCC,RoHS

Choice: yes

Color Night Vision: Yes

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

High-concerned chemical: none

IP Rating: IP66

IR Distance(m): 150m-200m/300m-400m

Installation: Wall Mounted

Internal Storage: 512GB

Lens (mm): 4.7-147mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.01LUX-0.0001LUX

Model Number: TP-PTZ08W-90XS/54XS

Movement Range(Pan): Other

Movement Range(Tilt): Other

Night Vision: Full Color+Black White

Operating Temperature: -50°- +60°

Optical Zoom: Other

Origin: Mainland China

PC software: LMS

Power Consumption(W): 0-30W

Power Mode: Mains Electricity

Power Source: With Poe

Power Supply: With POE

Power Supply(V): 12V

Protocol: Hikvision,Onvif,Dahua

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Rotation: Horizontal: 360 degrees, Vertical: 90 degrees

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof,Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 360°

Warranty: 3 years

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 50x

Zoom type: Optical zoom

is_customized: Yes

semi_Choice: yes

Friendly reminder:

• All Camera is Double Light Mode,Support Infrared with Warm Led,can set full color and black white night vision.

• Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.

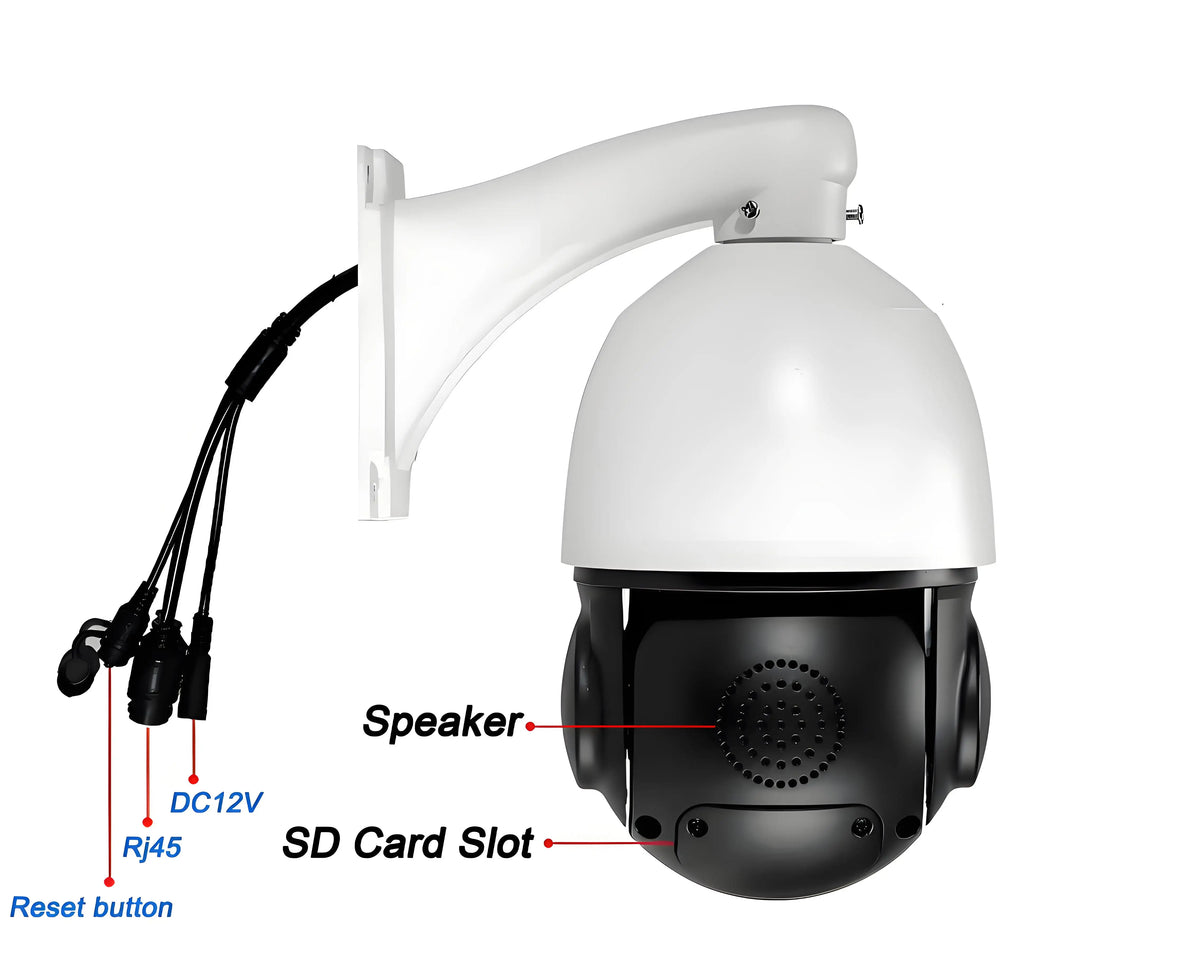

• This Camera is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.

• Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 128GB, 256GB SD Card).

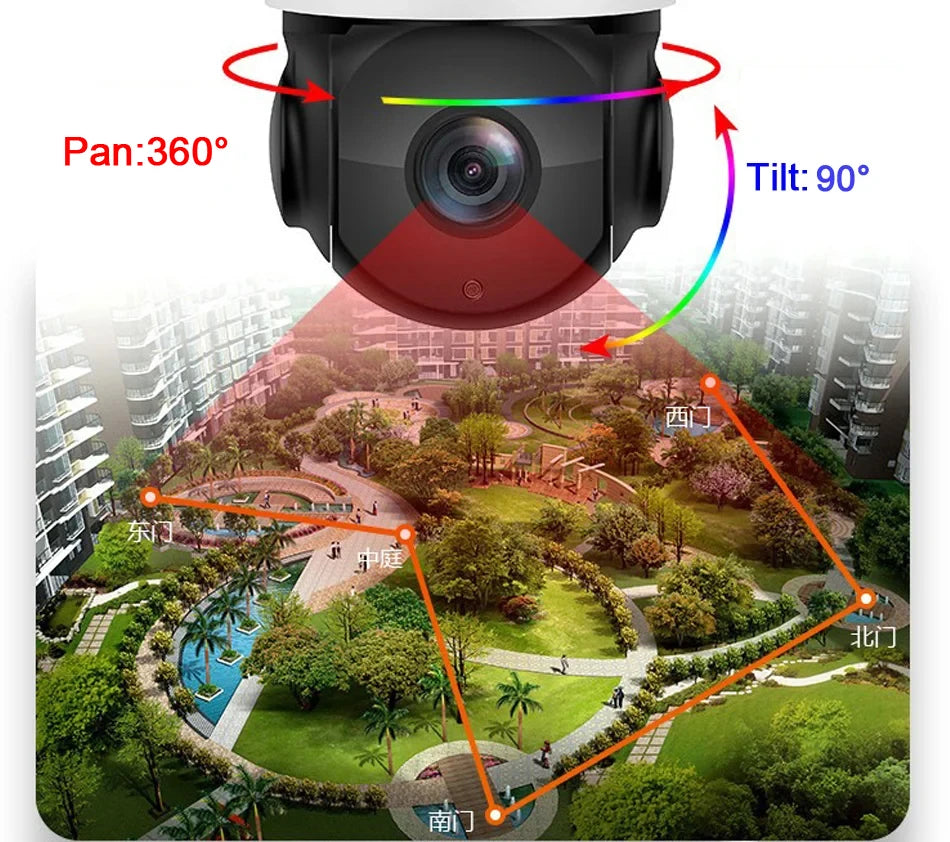

• Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise

• Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!

• GK7605 V100+1/2.8" Sony IMX335:6MP,3072px*2048px,25fps (support SD Card ,Auto Tracking)

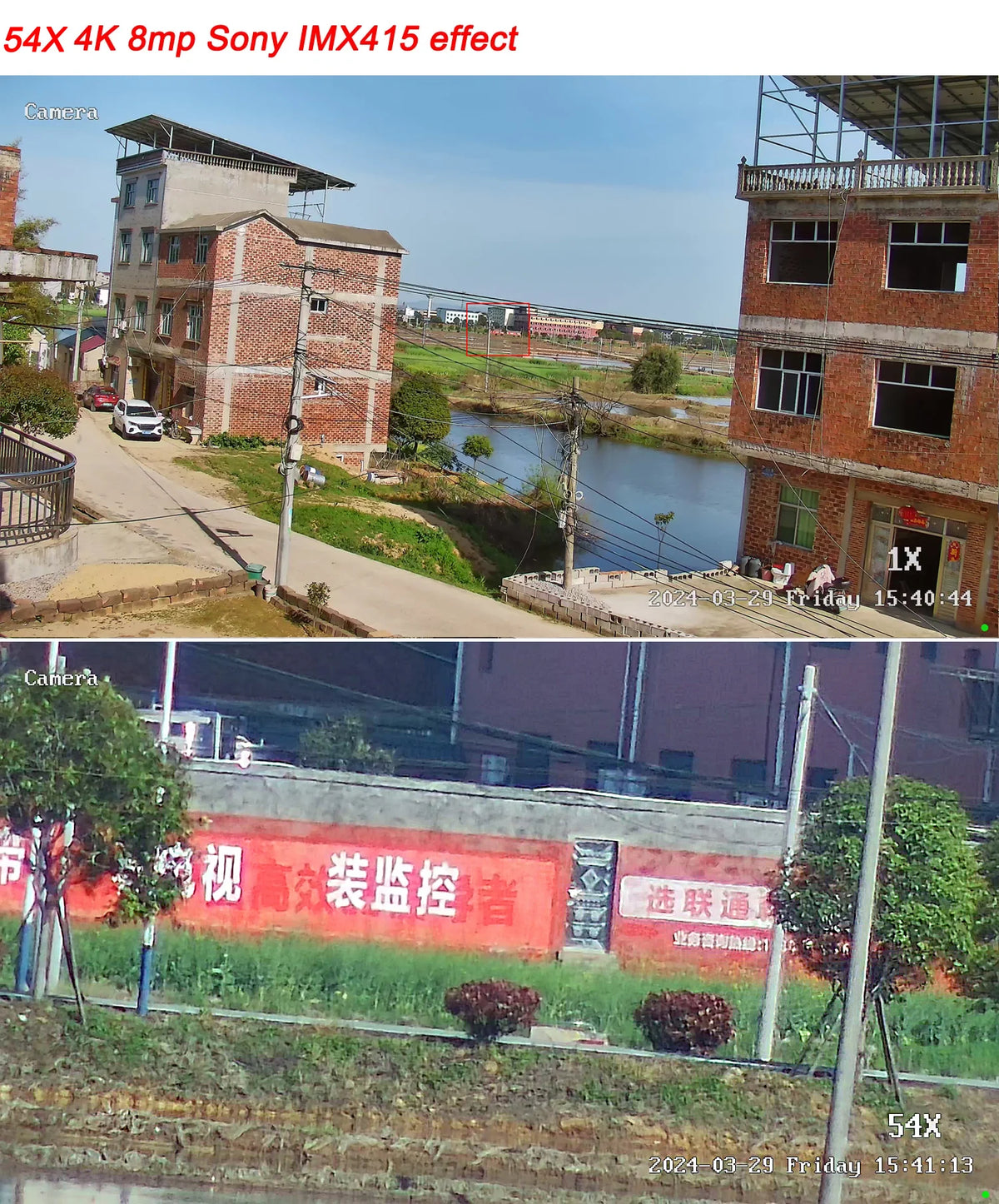

• Mstar338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking)

• Mstar339Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,30fps (support SD Card,Auto Tracking)

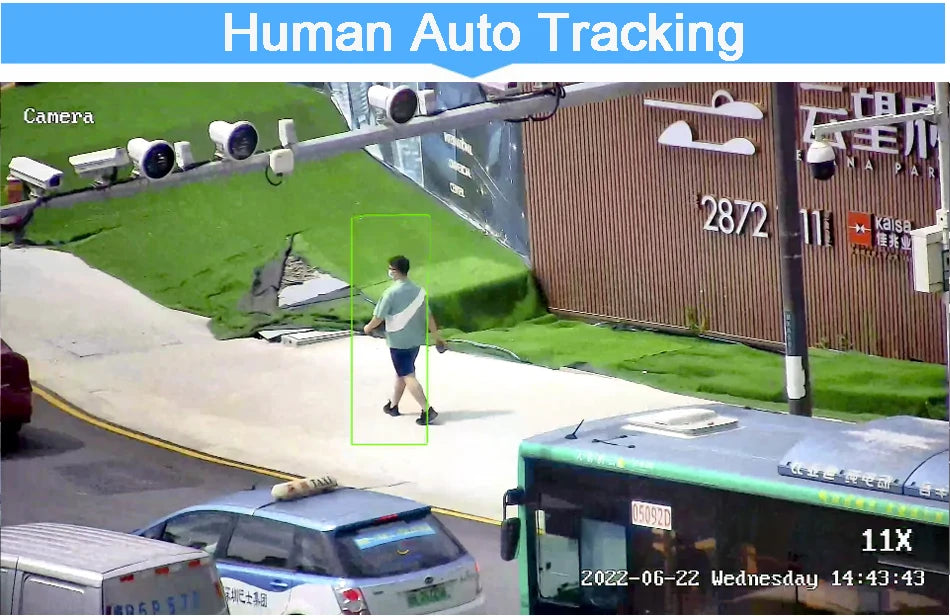

• Support Auto Zoom,Auto Tracking human

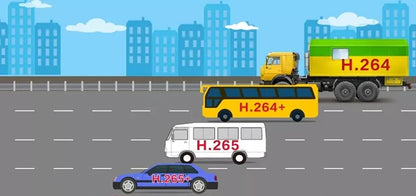

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:There are many ommand statement in PTZ Menu.

A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......

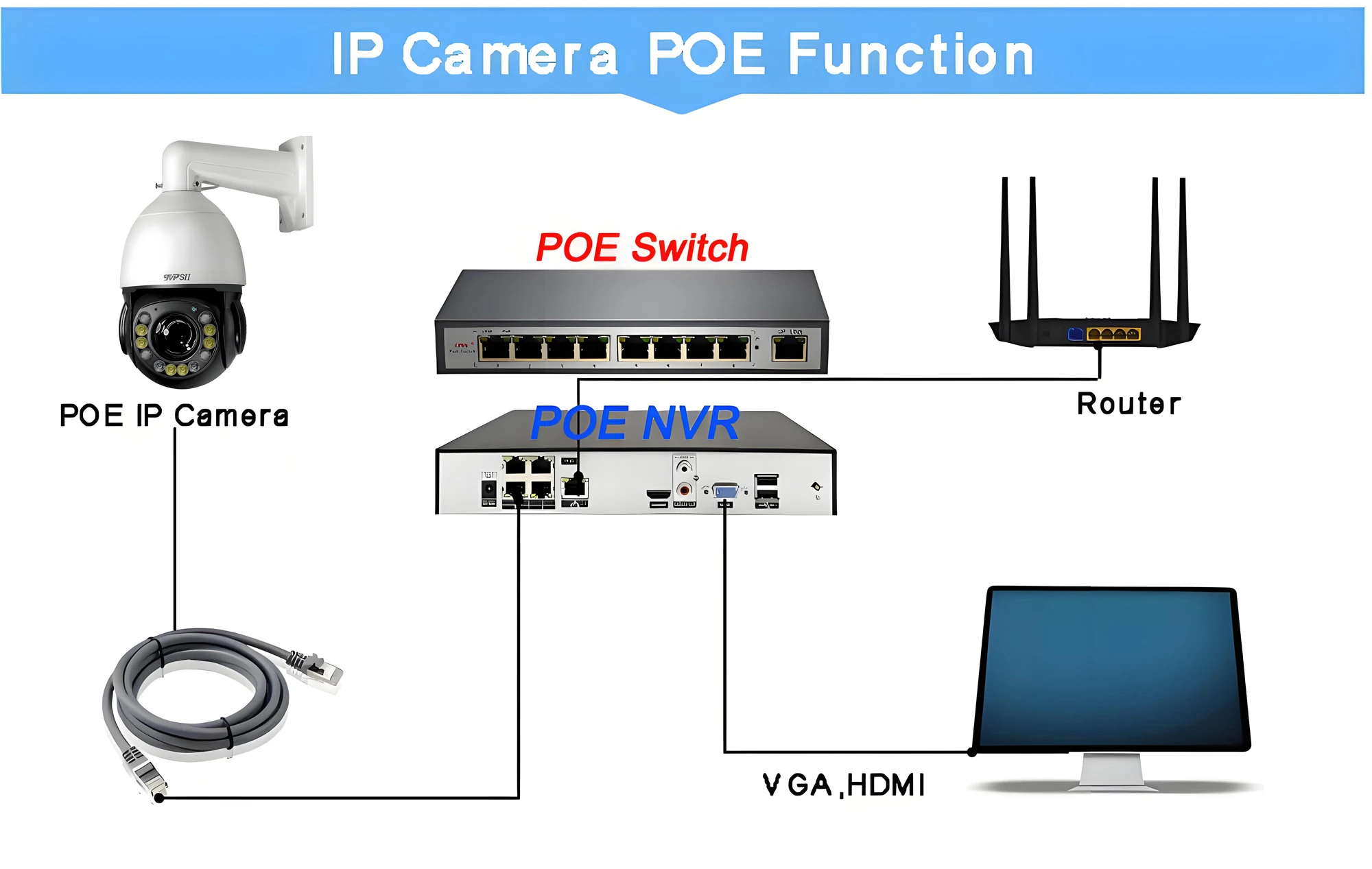

Q:What is POE function for IP Camera?

A:Only use Net cabletransmission signal and power supply,so not need use power adpater

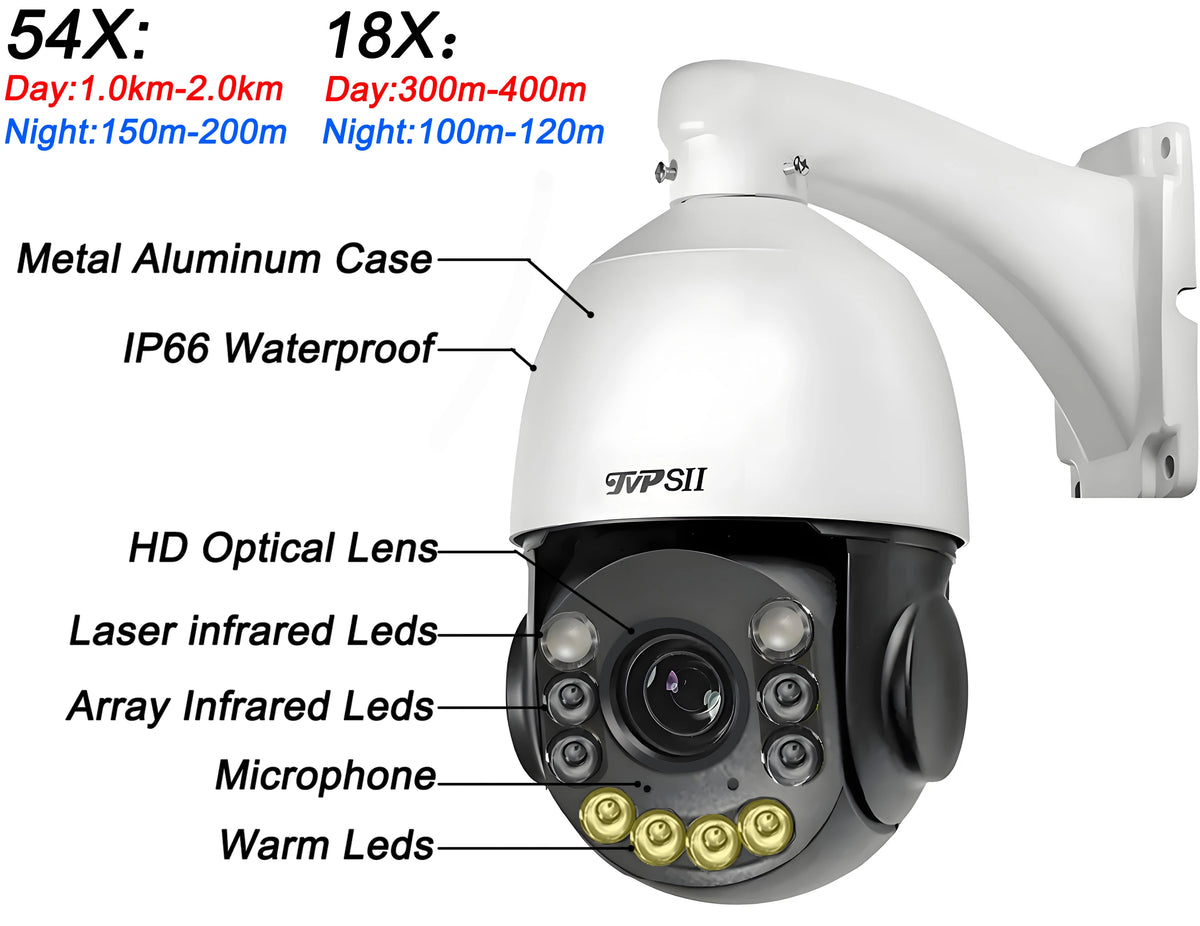

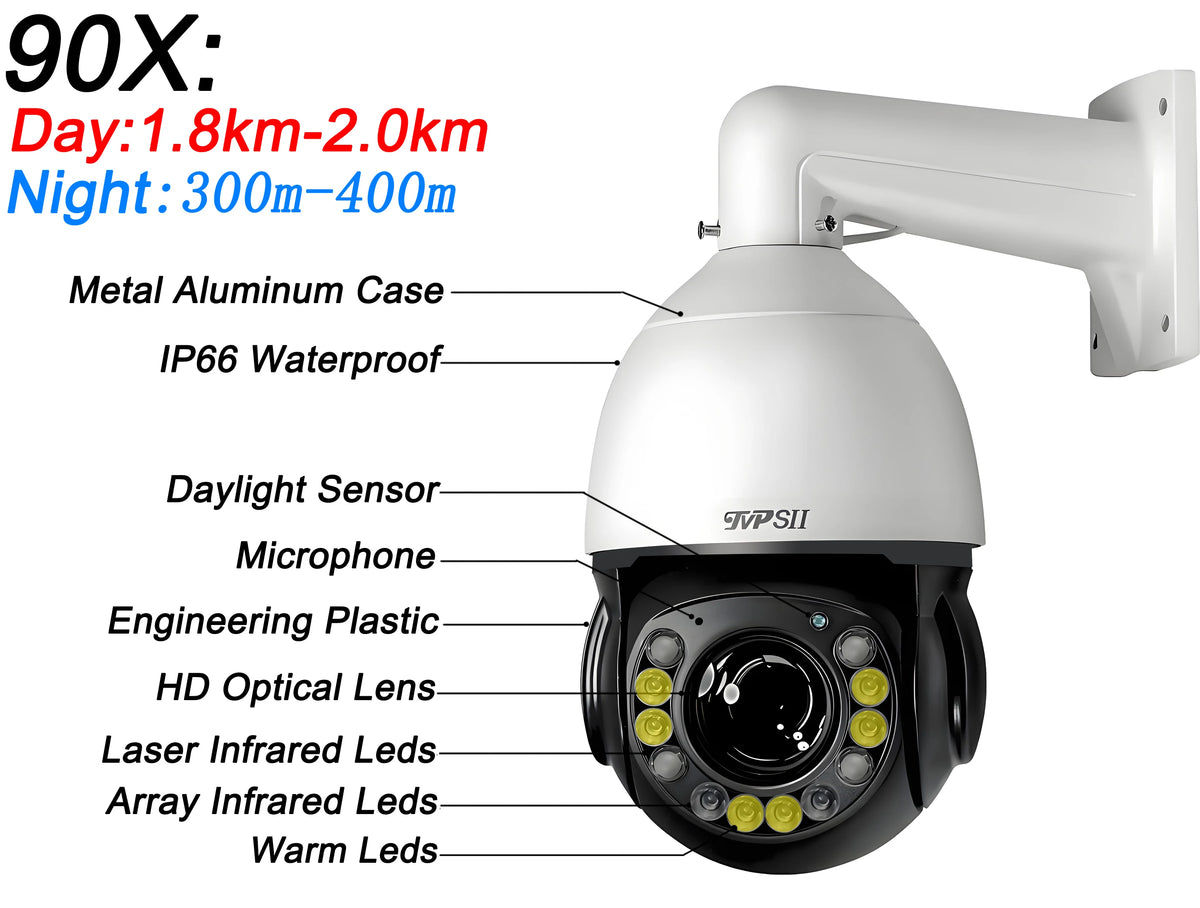

• 90X:Infrared distance(300m-400m)
• 54X:Infrared distance(150m-200m)
• 18X:Infared  distance(100m-120m)

Resolution	8MP 4K		6mp
system structure	Mstar339Q		GK7605 V100
CMOS Sensor	4K 8MP 1/2.8" Sony IMX415		1/2.8" Sony IMX335
Min illumination	Low illumination 0.001Lux		Black light 0.0001Lux
Video processing	H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format
Image output	8MP 3840*2160@30fps		6MP 3072*2048@25fps
Shutter	1/50 (1/60) seconds to 1/10000 seconds
Infrared Led Light	54X:4pcs infrared Led+2pcs laser led+4pcs Warm Led 90X:6pcs Warm Led+4pcs laser Led+2pcs Infared Led
IR Distance	90X(300m-400m)/150m-200m(54X)/100m-120m(18)
Conversion mode	Day and night conversion mode
Noise reduction	Support 2D/3D noise reduction
Wide dynamic	digital wide dynamics
Network Interface	1*RJ45 network interface, 10/100M adaptive
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable
Cruise settings	Support(Fixed-point cruise, cruise between two points,360° cruise,......)
automatic tracking	Support
SD Card	Support(Max:512G)
POE Function	Support
Network protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,RTMP
Presets	255
Optical focus	90X/54X/18X
ONVIF	support
Rotation	90 degrees vertical,360 degrees horizontal

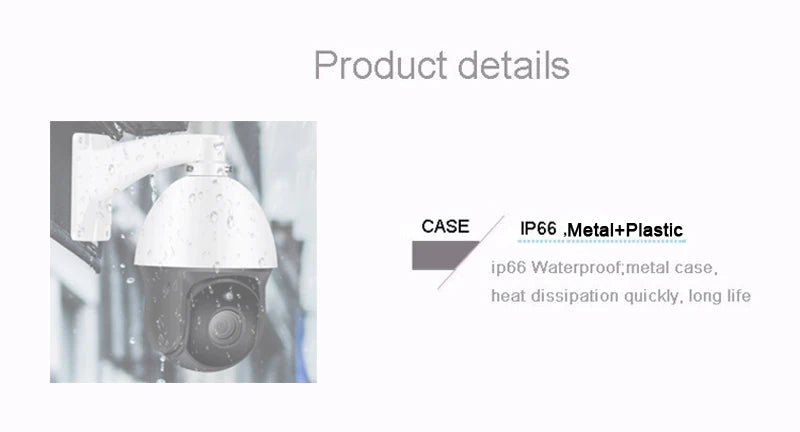

Water resistance	IP66
Work Temperature	-50°C ~ +60°C

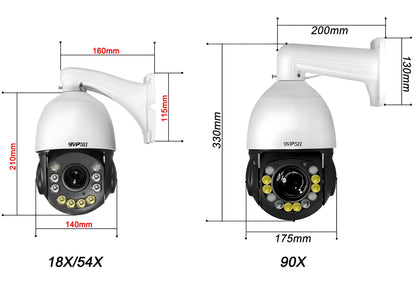

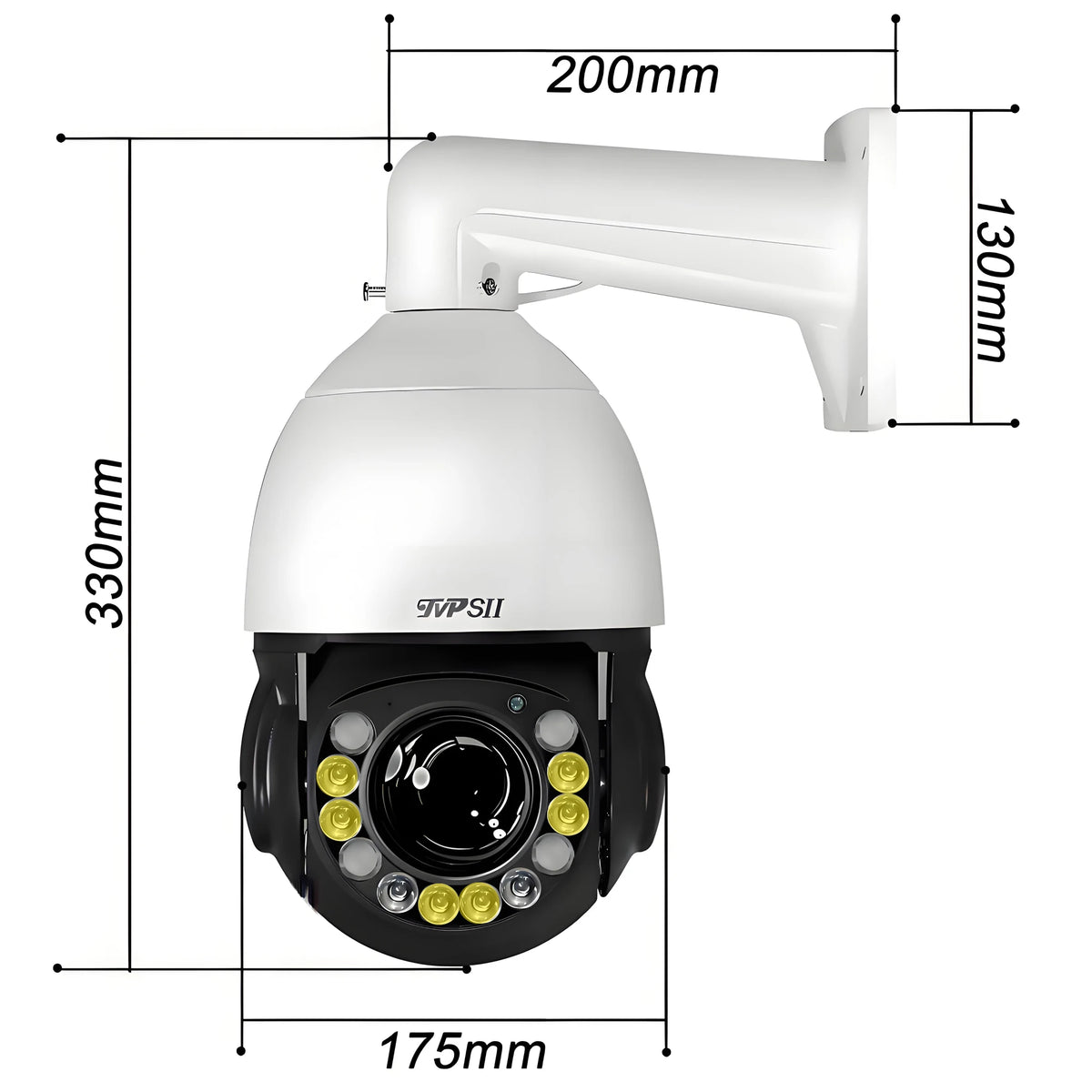

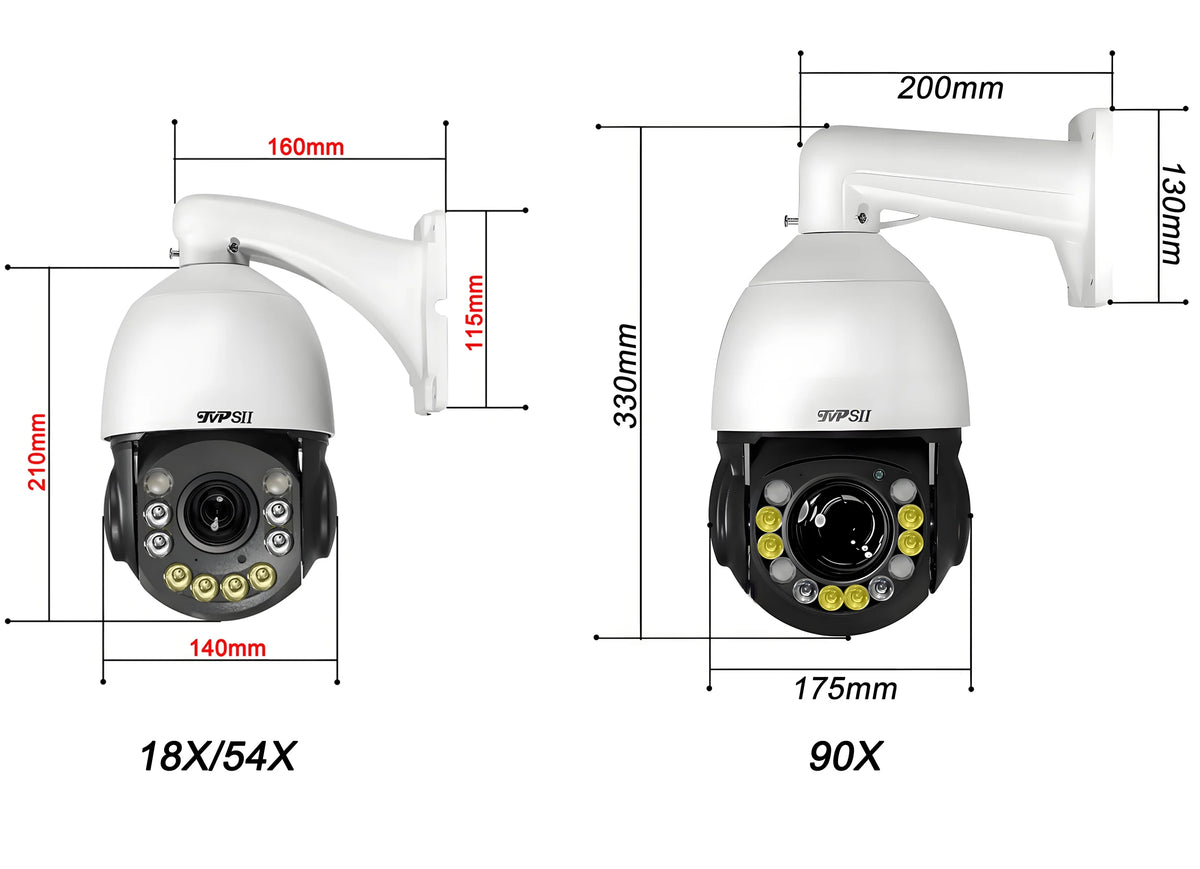

Weight	1.95kg(18X/54X)/3.5kg(90X)
Phone monitoring	Videolink
Power Supply	Power by POE



Friendly Reminder:

• the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.

• if choose buy poe ip camera, this camera support 12V DC and 48V POE
