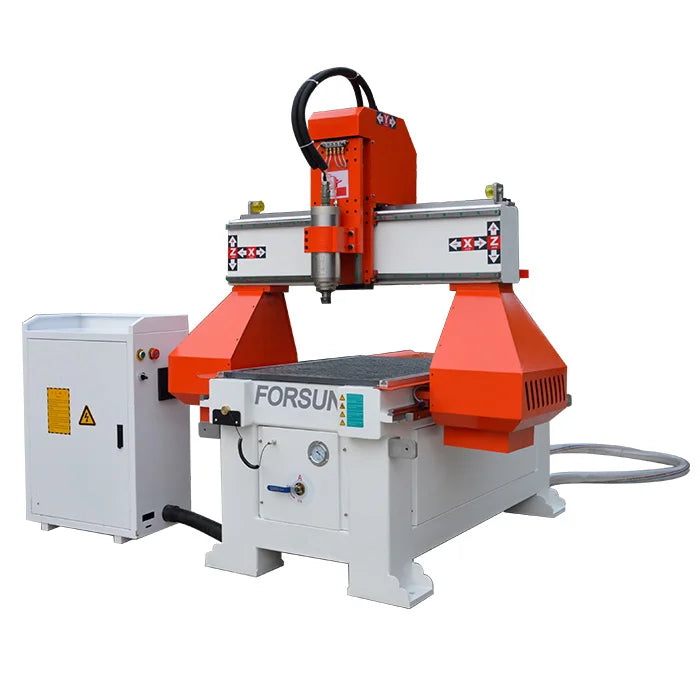

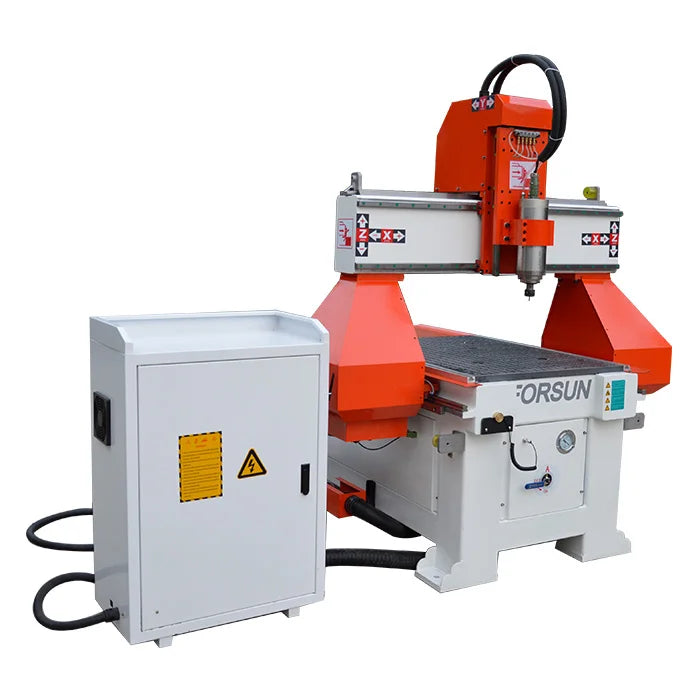

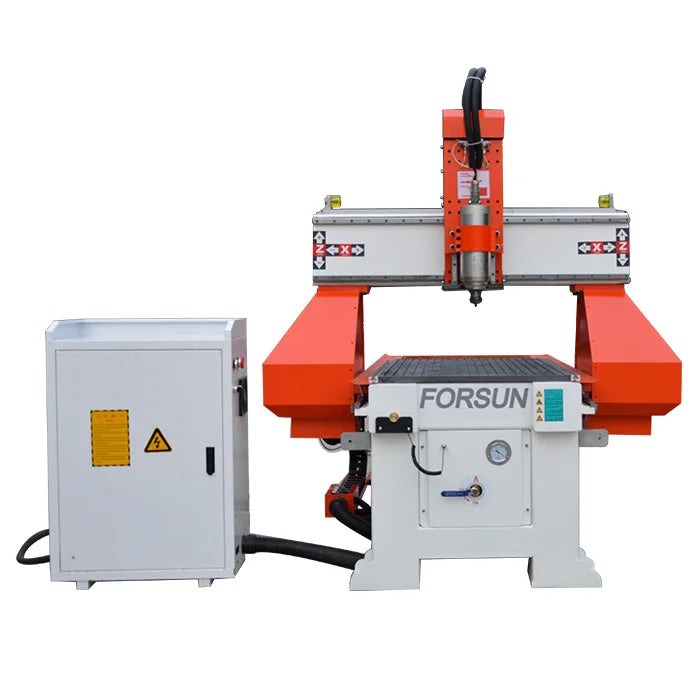

Mini Desktop Rotary 3D CNC Router 600x900mm Water Cooling Spindle DSP Artcam with Gear Motor Pump 2.2-6.0KW
Mini Desktop Rotary 3D CNC Router 600x900mm Water Cooling Spindle DSP Artcam with Gear Motor Pump 2.2-6.0KW
SPECIFICATIONS
Application: MDF WOOD ACRYLIC ALUMINUM
Control system: DSP
Motor: Stepper Motor
No. of Spindles: Single
Power(W): 3.0kw
Software: Artcam
Spindle: Water Cooling Spindle
Spindle Motor Power (kw): 3
Spindle power: 2.2kw 3.0 Kw 4.5kw 6.0kw
Spindle speed: 0-24000 RPM
Table Surface: Vacuum Working Table
Working Area: 600*900*150mm
brand name: Forsun
cnc or not: CNC
core components: Bearing,Motor,Pump,Gear,PLC,Pressure Vessel,Engine,Gearbox
dimension(l*w*h): 1570*1520*1850mm
key selling points: Easy to Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 3
place of origin: Shandong, China
positioning accuracy (mm): 0.03
range of spindle speed(r.p.m): 1 - 24000 rpm
repeatability (x/y/z) (mm): 0.03
travel (x axis)(mm): 600
travel (y axis)(mm): 900
video outgoing-inspection: Provided
voltage: AC380V/50Hz
warranty: 1.5 years
weight (kg): 400
mini desktop 4 axis 5 axis rotary device 3d cnc router 6090 /small engraving cutting machine
What is the feature of metal cnc router?
♦ 600x900x150mm working size

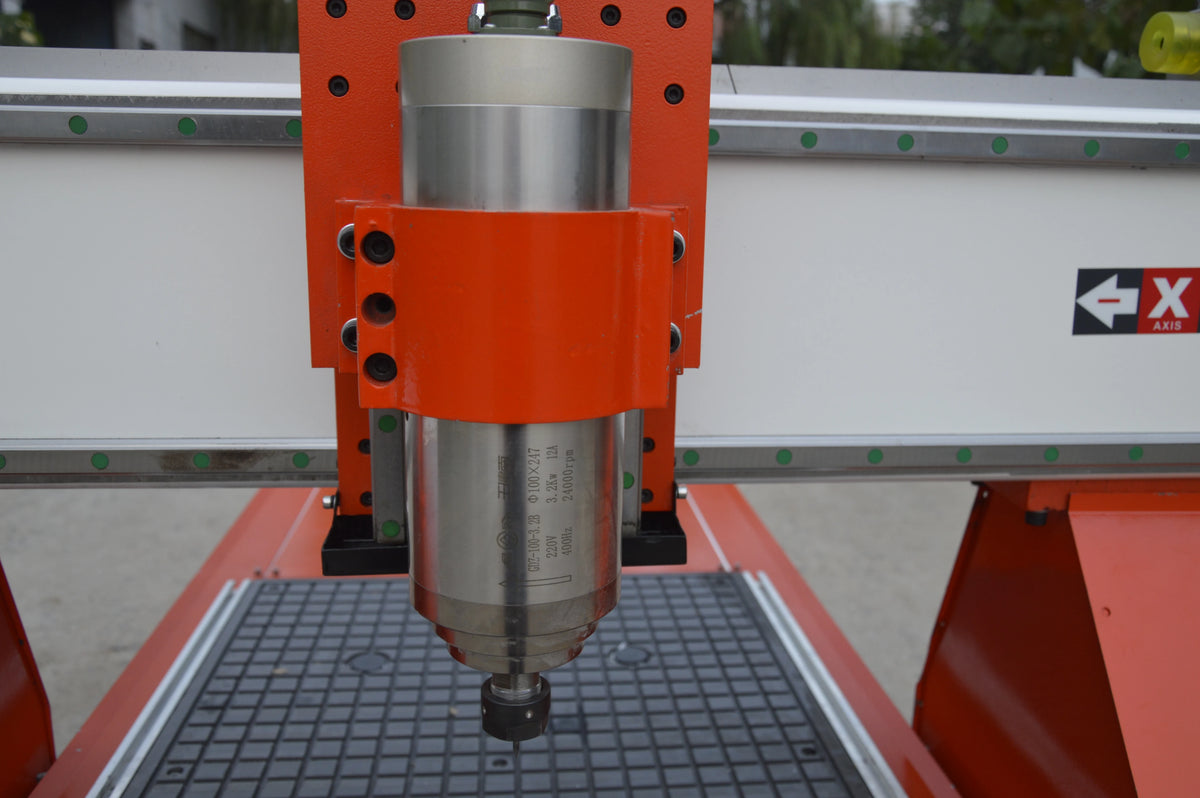

♦ 3.0kw water cooling spindle
♦ Vacuum working table
♦ HIWIN Linear guide
♦ DSP controller

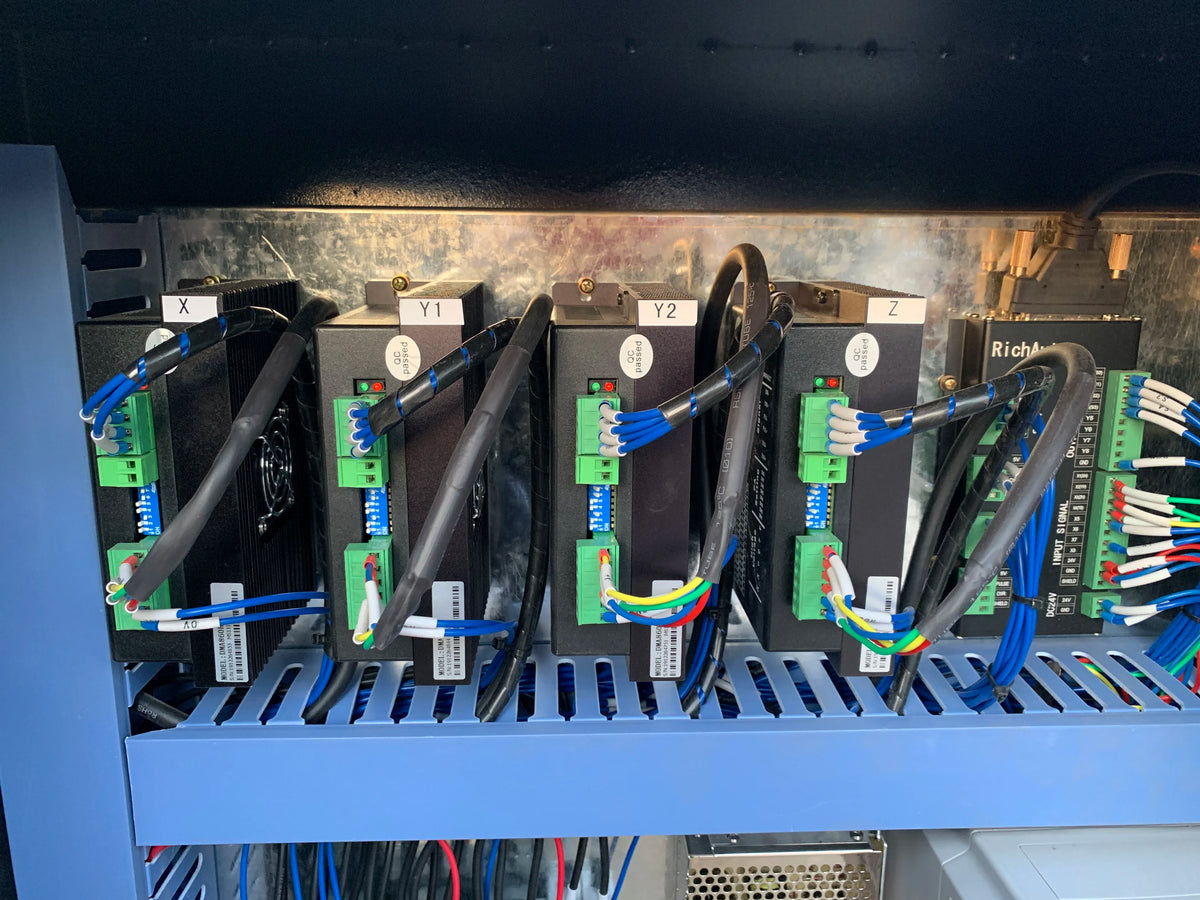

♦ Stepper motor and driver
♦ Beta interver
♦ Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw

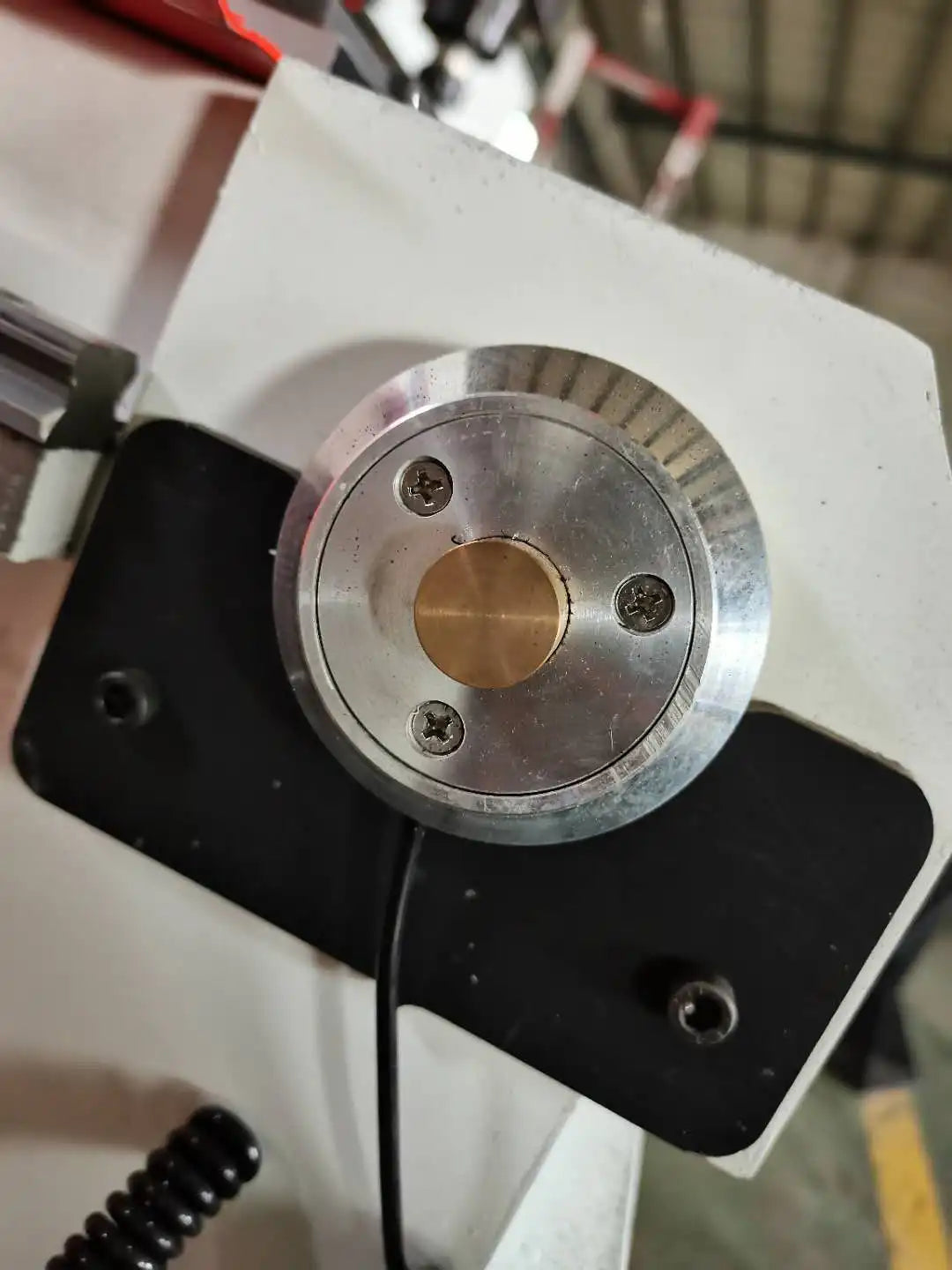

♦ Automatic Tool Calibration
♦ ArtCam software
Option:
♥ T slot aluminum System
♥ Dust Collector system
♥ AC Servo motors
♥ HSD Spindle
What is the advantage of 3D engraving machine
?
♦ Economy cnc router machine with heavy duty welded structure.
♦ 6.0kw water cooling spindle with 24000r/min.
♦ DSP Controller ;easy operation ;convenient and intuitive.
♦ Vacuum table could adsorb different size materials closely.
♦ HIWIN linear rail from Taiwan for 3 aixs, more stable, it's lifetime is 10 times longer than common rail way.
What Technical Parameters of cnc milling machine 3 axis?
|
NO. |
Items |
Parameters |
Option |
||
|
1 |
Working Area |
XYZ |
600*900*150mm |
≤5000mm |
|
|
3 |
Table Type |
Vacuum table |
T-Slot Extrusion PVC |
||
|
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
||
|
Repositioning Accuracy |
±0.02/300mm |
||||
|
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
|||
|
7 |
Speed |
MAX Traveling Speed |
32000mm/min |
||
|
MAX Working Speed |
15000mm/min |
||||
|
8 |
Spindle |
Spindle Power |
3.0 KW water cooling spindle |
Italian HSD Spindle |
|
|
Spindle Speed |
0-24000r/min Stepper |
Servo |
|||
|
10 |
Drive and Motor |
||||
|
12 |
Working Voltage |
AC380V/50Hz |
AC220V/60Hz |
||
|
14 |
Operating System |
NC Stuidio |
DSP |
||
|
15 |
Net Weight/Gross Weight |
460 KG/580 KG |
|||
|
16 |
Packing size |
1570*1520*1850mm
|
|||
Benefit of cnc milling machine 3 axis
♥ Furniture industries: woodworking,cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
♥ Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making,3d art design.
♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Quality test cnc milling machine 3 axis:
Why choose us?
 |
|
What kind of Packaging of Wood engraving machine ?
Customer visit of our Wood engraving machine
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
To provide you detailed quotation, we need to confirm the following details:
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
Should you have any question ,contact me!
