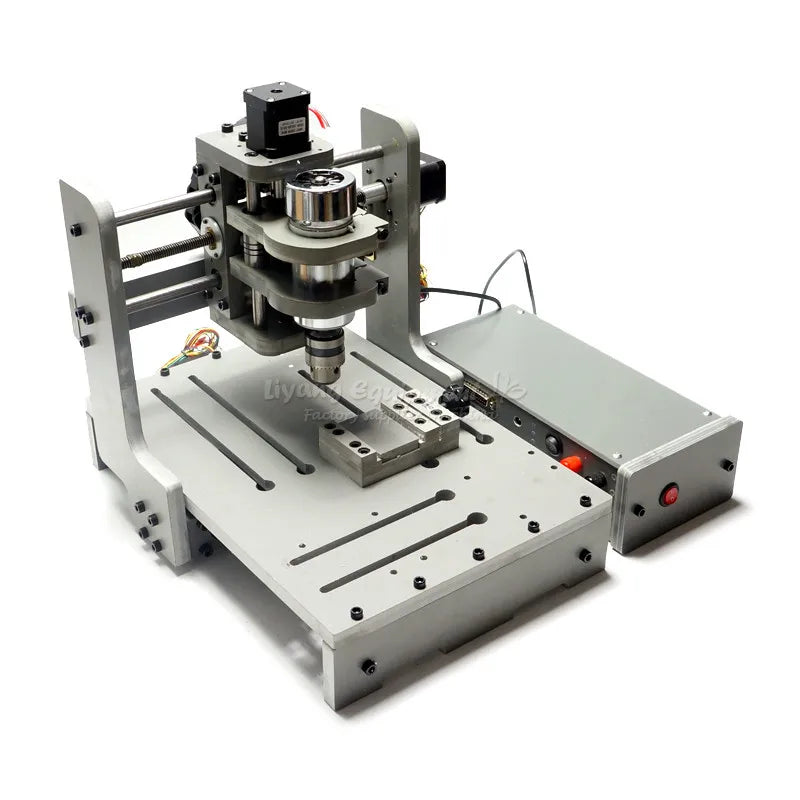

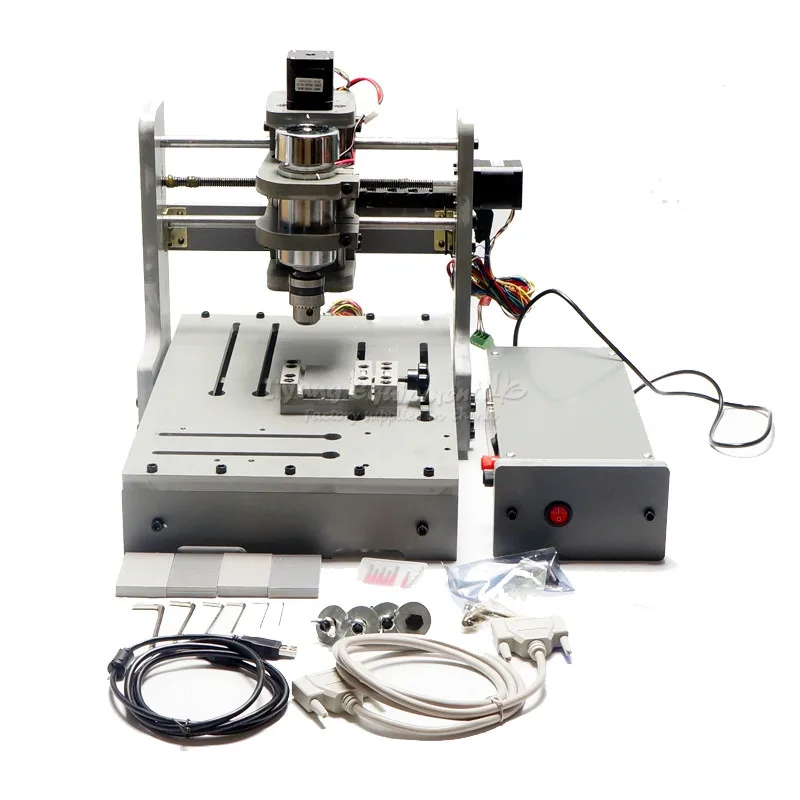

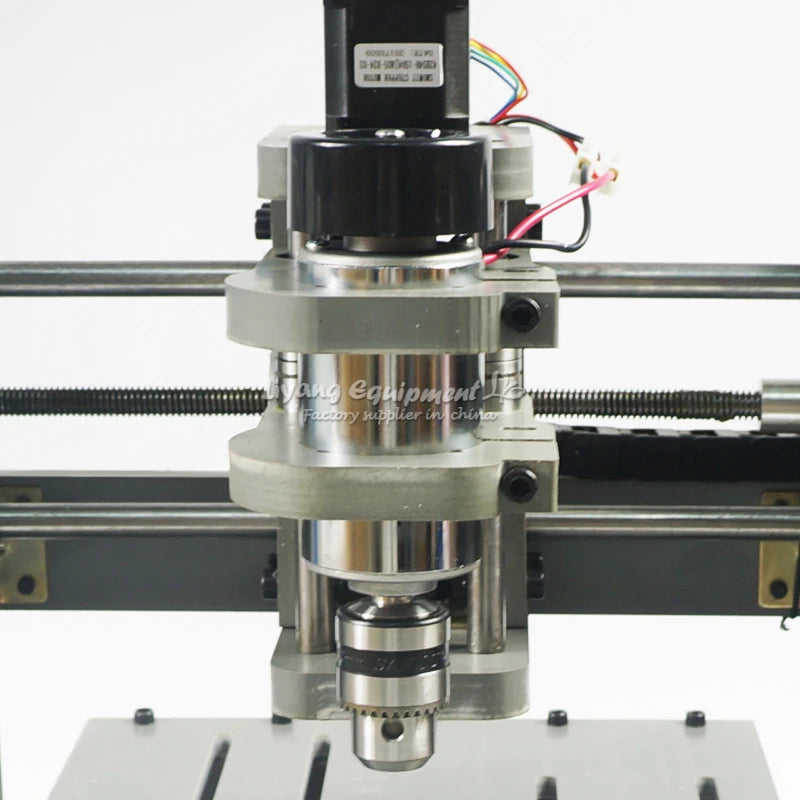

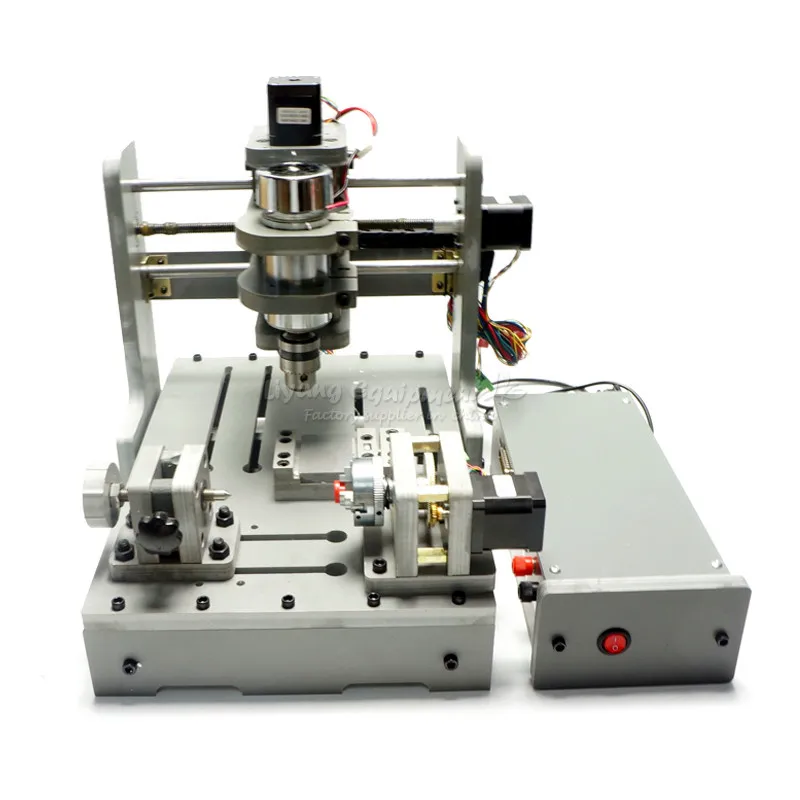

Mini Diy Cnc Router 2030 Usb 4axis 300w for Engraving Milling Metal Pcb Plastic with Mach3 Controller Drill Chuck Cnc Tool Kit
Mini Diy Cnc Router 2030 Usb 4axis 300w for Engraving Milling Metal Pcb Plastic with Mach3 Controller Drill Chuck Cnc Tool Kit
SPECIFICATIONS
After-sales Service Provided: Online support
Marketing Type: Hot Product 2019
No. of Spindles: Single
Power (kW): 1
Spindle Motor Power (kw): 1
Working Table Size(mm): 200x300
brand name: LY
cnc or not: CNC
core components: Bearing
dimension(l*w*h): -
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.01
repeatability (x/y/z) (mm): 0.01
travel (x axis)(mm): 200
travel (y axis)(mm): 300
video outgoing-inspection: Provided
voltage: 110 V
warranty: 1 Year
weight (kg): 21
Mini diy cnc router 2030 usb 4axis 300w for engraving milling metal pcb plastic with Mach3 controller drill chuck cnc tool kit

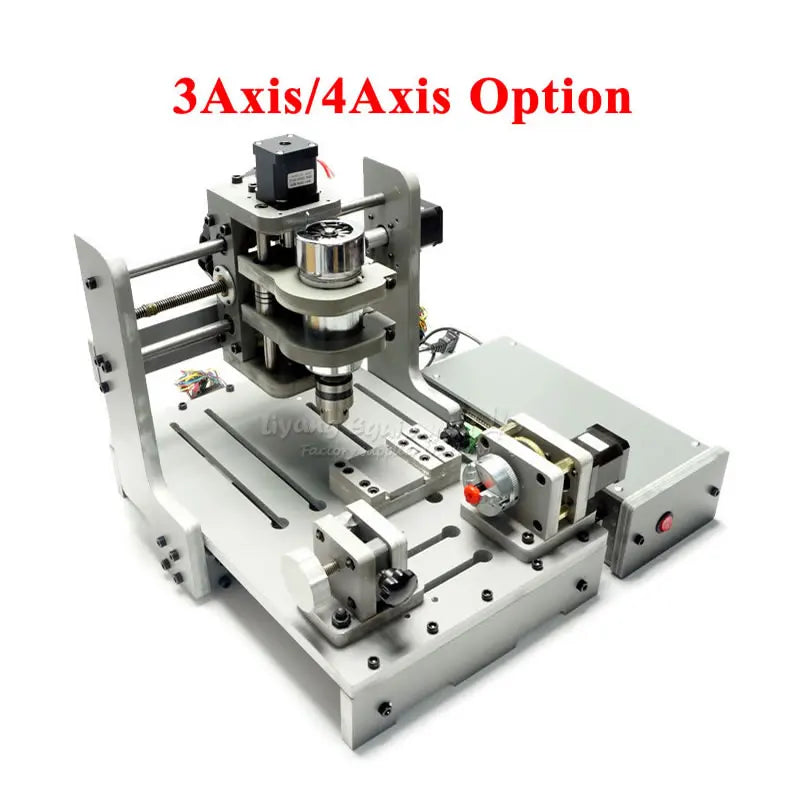

Model and Technical Parameters:
|
MODEL |
CNC mini |
|||
|
Attribute |
USB-3axis |
USB-4axis |
||
|
Axis |
3axis |
4axis |
||
|

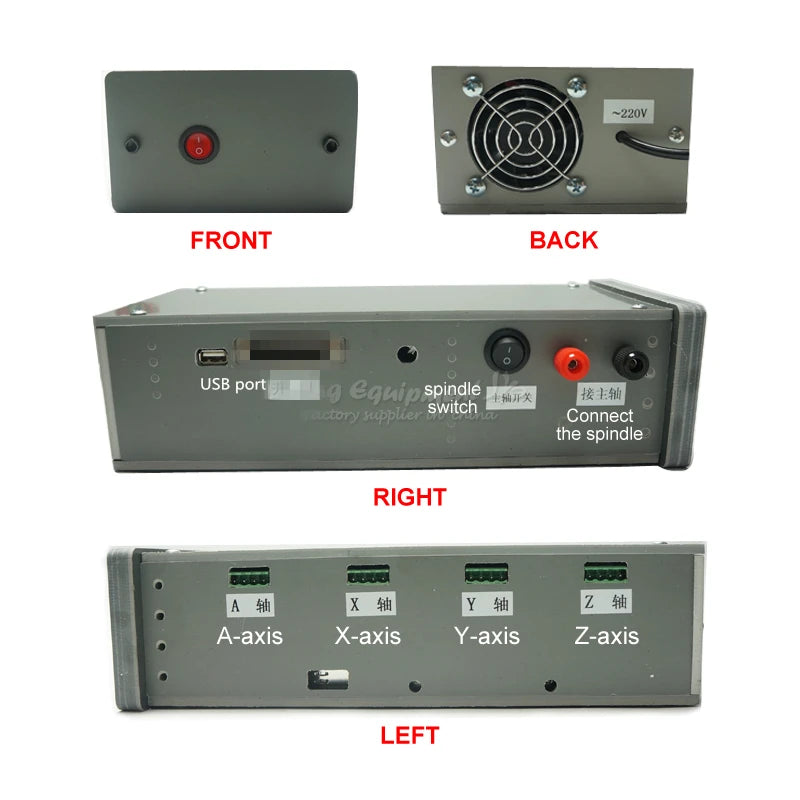

Interface |
USB Port |
USB Port |
||
|
Spindle Motor: |
300W |
300W |
||
|
Weigh |
17 |
21 |
||
|
Max. working stroke |
XYZ=200*300*80mm |
|||
|
Acceptable material thickness |
≤80mm |
|||
|
Rail type |
12 mm optical axis, 10 mm trapezoidal screw |
|||
|
Spindle motor |
300WDC spindle ,0-11000r/min |
|||
|
Collet type |
Drill Chuck |
|||
|

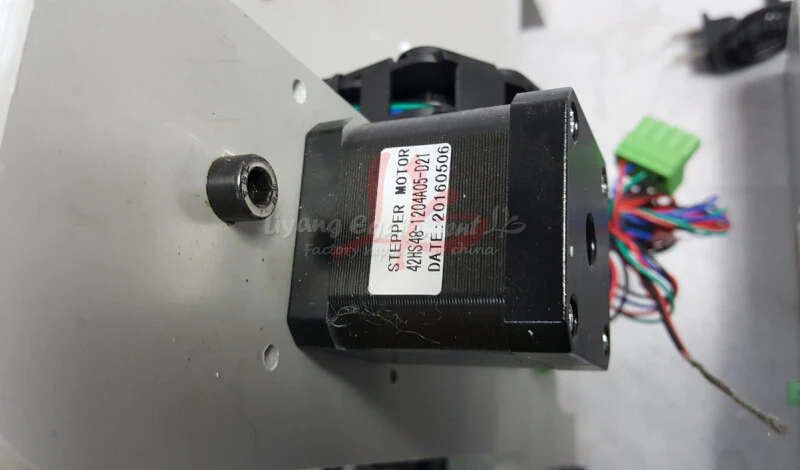

Stepper motor and drive |
42HS48 |
|||
|
Maximum operating speed |
2500mm/min (Engraving speed : 300-2500mm/min) |
|||
|
Repeat positioning Accuracy |
0.03mm |
|||
|
Communication interface |
USB port |
|||
|
System requirements |
Win-XP / Win 7 32 bit or 64 bit operating system |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
17kg |
|||
|

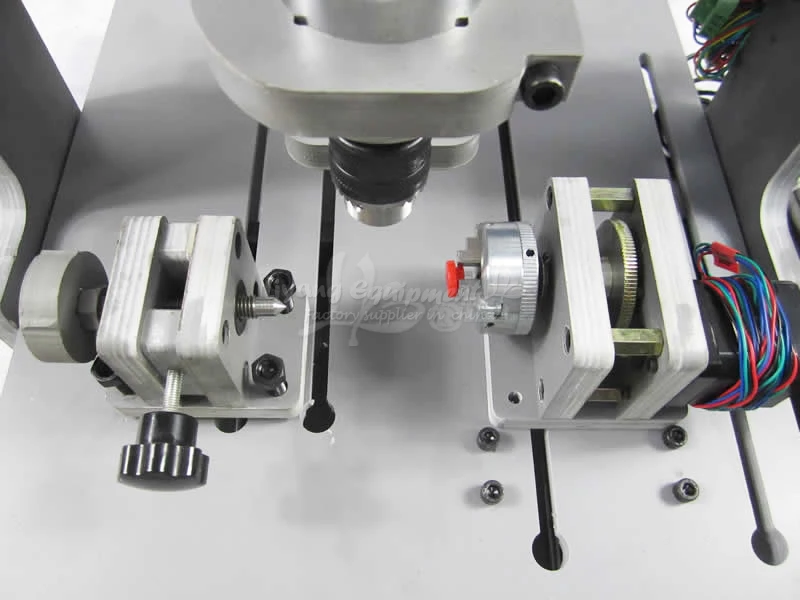

Rotation Axis (4thAxis) |
Weight: 3kg |
|||
