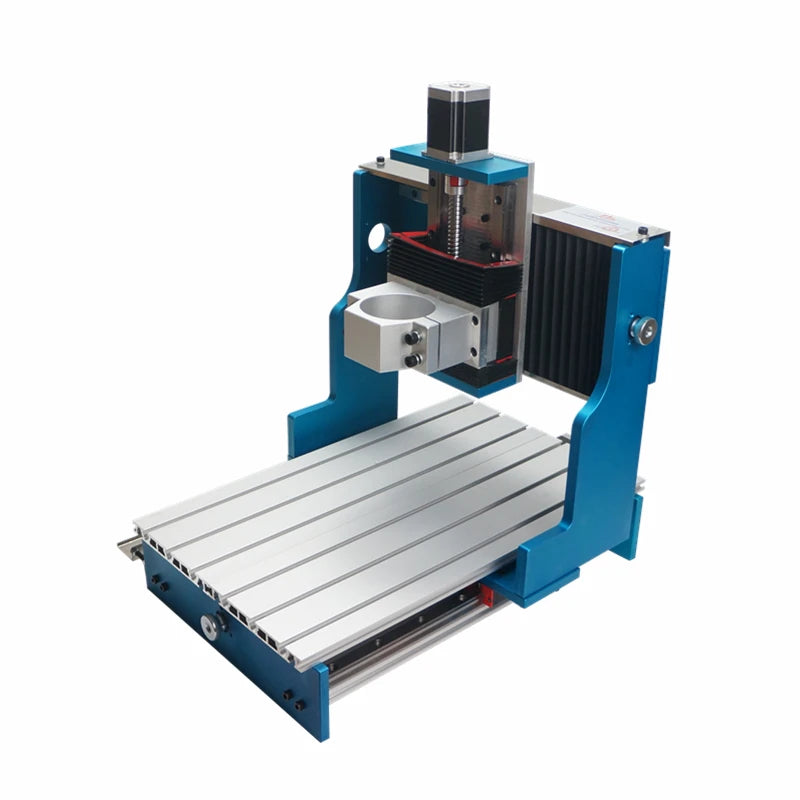

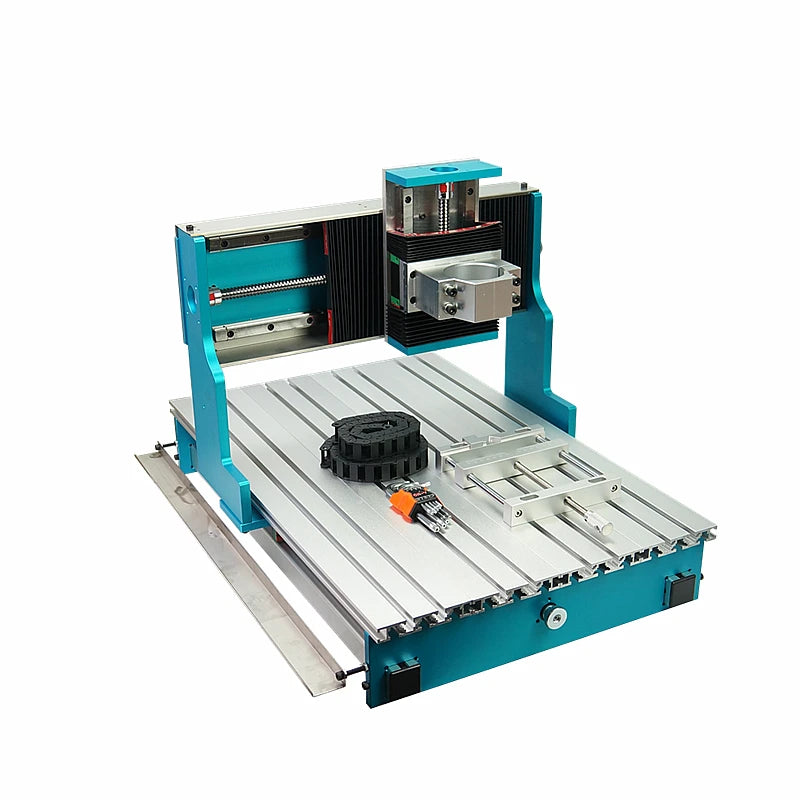

Mini DIYCNC Frame Linear Guideway 6040/3040 with Stepper Motors CNC Vice 80mm Spindle Clamp 4 Axis for CNC Wood Router Lathe Kit
Mini DIYCNC Frame Linear Guideway 6040/3040 with Stepper Motors CNC Vice 80mm Spindle Clamp 4 Axis for CNC Wood Router Lathe Kit
SPECIFICATIONS
After-sales Service Provided: Online support
Axis: 3/4axis
Engraving area: 260*380*110mm
Feature: Mini diy cnc frame
Interface: LPT/USB port
Marketing Type: Hot Product 2019
Model Frame: 6040/3020
Name: cnc frame with stepper motors
No. of Spindles: No
Power (kW): 0.8
Spindle Motor: 800W
Spindle Motor Power (kw): 0.8
Tool auto-checking: Yes
Working Table Size(mm): 300×400
brand name: LY
cnc or not: CNC
core components: Bearing,Motor,Gear
dimension(l*w*h): 260x380x110mm
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.03 mm
range of spindle speed(r.p.m): 0 - 24000 rpm
repeatability (x/y/z) (mm): 135 mm
travel (x axis)(mm): 600 mm
travel (y axis)(mm): 400 mm
video outgoing-inspection: Provided
voltage: 220v
warranty: 1 Year
weight (kg): 51
Mini DIYCNC Frame Linear Guideway 6040/3040 with Stepper Motors CNC Vice 80mm Spindle Clamp 4 Axis for CNC Wood
Router Lathe Kit
Specifications :
|
MODEL |
CNC Frame 3040L/6040L |
|||
|
Attribute |
3 axis Without Motor |
3 axis With Motor |
4 axis Without Motor |
4 axisWith Motor |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Have motor? |
No |
Yes |
No |
Yes |
|
Have 4th axis? |
No |
No |
Yes |
Yes |
|
Weigh |
45 |
48 |
48 |
51 |
|
6061 and 6063 Hard aluminum alloy |
||||
|
Table material: |
3040L:320 * 520mm 6040L:740* 480mm (20mm aluminum alloy T table) |
|||
|
Engraving area: |
3040L:260*380*110mm 6040L:360*570*120mm |
|||
|
Z-Axis Stroke: |
3040L:110mm 6040L:120mm Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
3040L:≤ 135mm 6040L:≤ 140mm |
|||
|

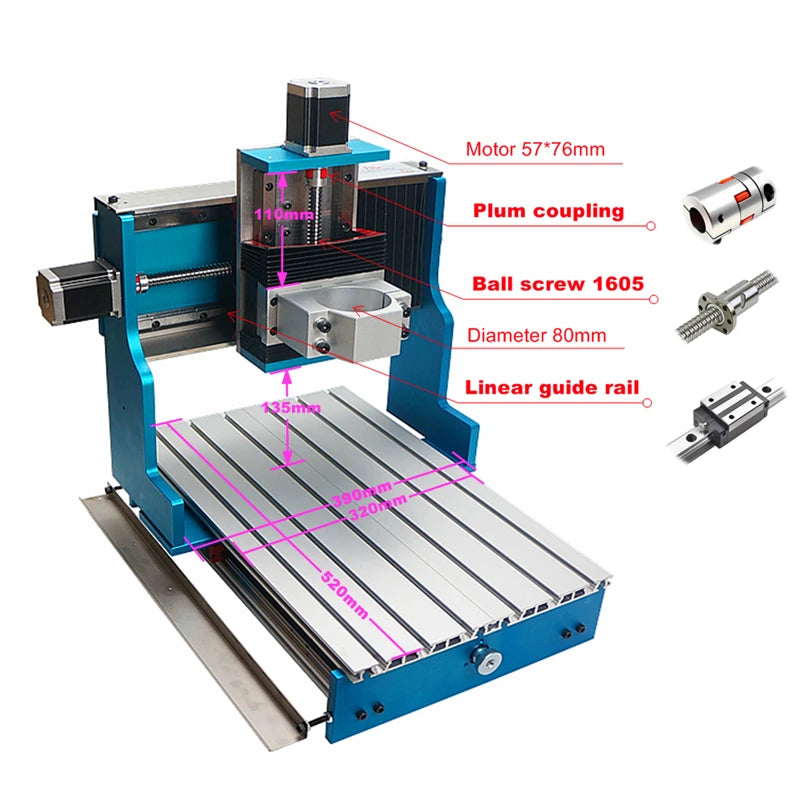

Rail type: |
Square line: rail track TRH20, high precision, high strength, top configuration. |
|||
|
Type of screw: |
Ball screw:1605 |
|||
|
Diameter of Spindle motor: |
80mm |
|||
|
Motor |
Nema 23 (57*76mm) |
|||
|

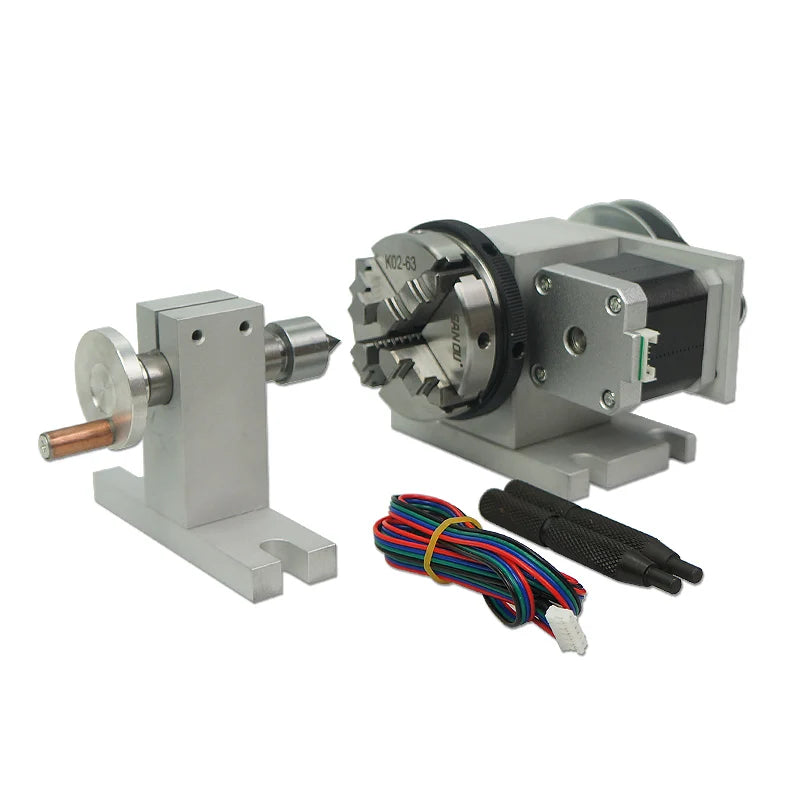

Rotation Description: |
Chuck: 65MM 4-jaw chuck Center height: 54MM Speed reducing ratio:4:1 Stepper motor: Two phase 42 stepper motor |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
LyBGA factory is located in Shenzhen, China.
Also the overseas warehouse.
10 years of experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stations like 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
