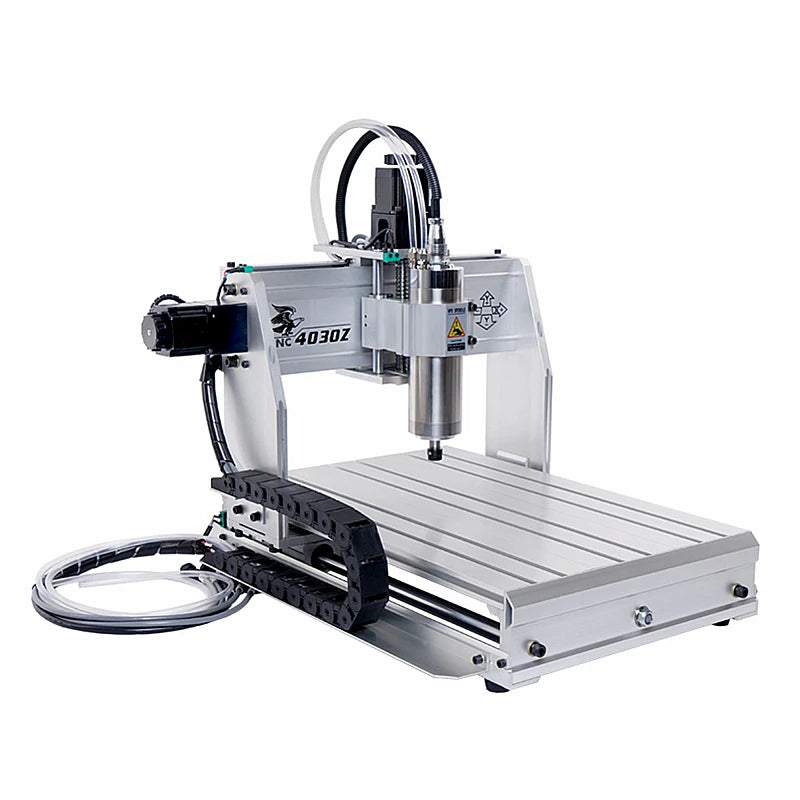

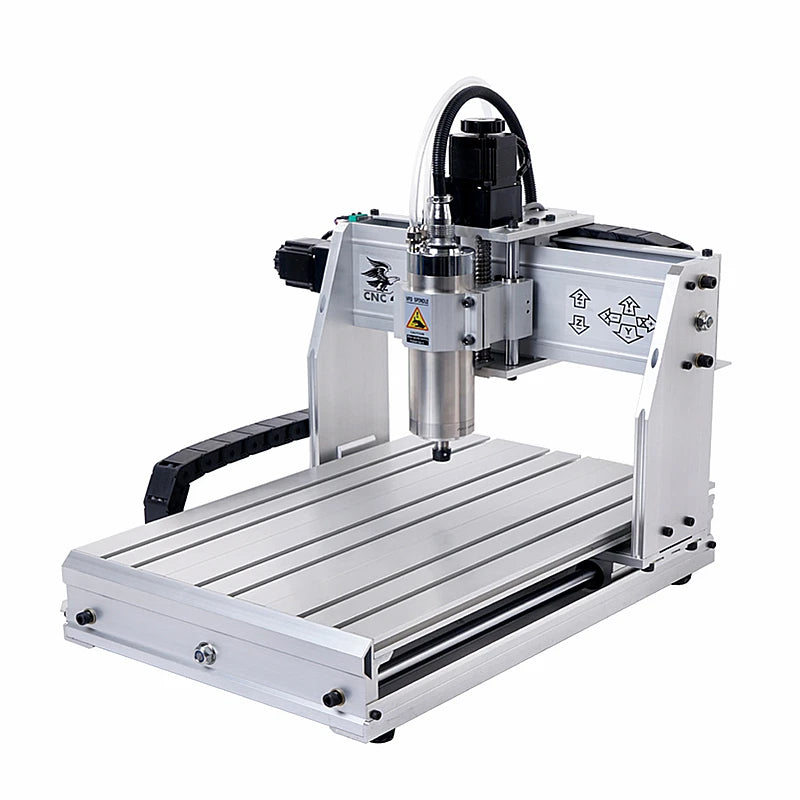

Mini Lathe CNC Router 4030 Engraving Milling Drilling Machine 4 Axis Metal Engraver Water-cooled Spindle 800W 1500W 400X300MM
Mini Lathe CNC Router 4030 Engraving Milling Drilling Machine 4 Axis Metal Engraver Water-cooled Spindle 800W 1500W 400X300MM
SPECIFICATIONS
After Warranty Service: Online support
After-sales Service Provided: Online support
Marketing Type: Ordinary Product
No. of Spindles: Single
Power (kW): 1.5
Spindle Motor Power (kw): 1.5
Working Table Size(mm): 400x300mm
brand name: --
cnc or not: CNC
core components: PLC,Pressure Vessel,Gearbox,Pump,Engine,Motor,Gear,Bearing
dimension(l*w*h): --
key selling points: Competitive Price
machine type: CNC Router
machinery test report: Provided
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.1 mm
range of spindle speed(r.p.m): 0 - 20000 rpm
repeatability (x/y/z) (mm): 0.01 mm
travel (x axis)(mm): 400 mm
travel (y axis)(mm): 300 mm
video outgoing-inspection: Provided
voltage: --
warranty: 2 Years
weight (kg): 49
CNC 4030 4 axi metal Engraver cnc router machine 4axis 3040 pcb cnc milling machine water-cooled spindle 800W 1500W Mini Lathe
Introduction
This pack including Mach3 software and English manual :
Model and Technical Parameters
|
MODEL |
4030Z CNC Engraving Machine |
||||
|
Attribute |
800W-3axis |
800W-4axis |
1.5KW-3axis |
1.5KW-4axis |
|
|
Axis |
3axis |
4axis |
3axis |
4axis |
|
|
Interface |
Parallel port / USB port |
Parallel port / USB port |
Parallel port / USB port |
Parallel port / USB port |
|
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
|
Tool auto-checking |
Yes |
Yes |
Yes |
Yes |
|
|
Spindle Motor: |
800W |
800W |
1.5KW |
1.5KW |
|
|
Weigh |
44 |
48 |
44 |
48 |
|
|
Machine Dimensions |
650X530X520mm |
||||
|
Rack material |
6061 and 6063 Hard aluminum alloy |
||||
|
Engraving area |
395X285mm |
||||
|
Z-Axis Stroke |
70mm, Engraving depth depends on the length of the tool edge |
||||
|
Acceptable material thickness |
≤ 120mm |
||||
|
Rail type |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
||||
|
Type of screw |
Ball screw 16mm, Pitch 5mm |
||||
|
Spindle motor |
HF water cooling spindle , 800W &1.5KW , 0-24000r/min |
||||
|
Collet type |
ER11,1/8"(3.175mm or 6mm) Collet |
||||
|
Stepper motor and drive |
two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive. |
||||
|
Maximum operating speed |
4000mm/min (Engraving speed: 300-3000mm/min) |
||||
|
Repeat positioning Accuracy |
0.03mm |
||||
|
Software Compatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
||||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
||||
|

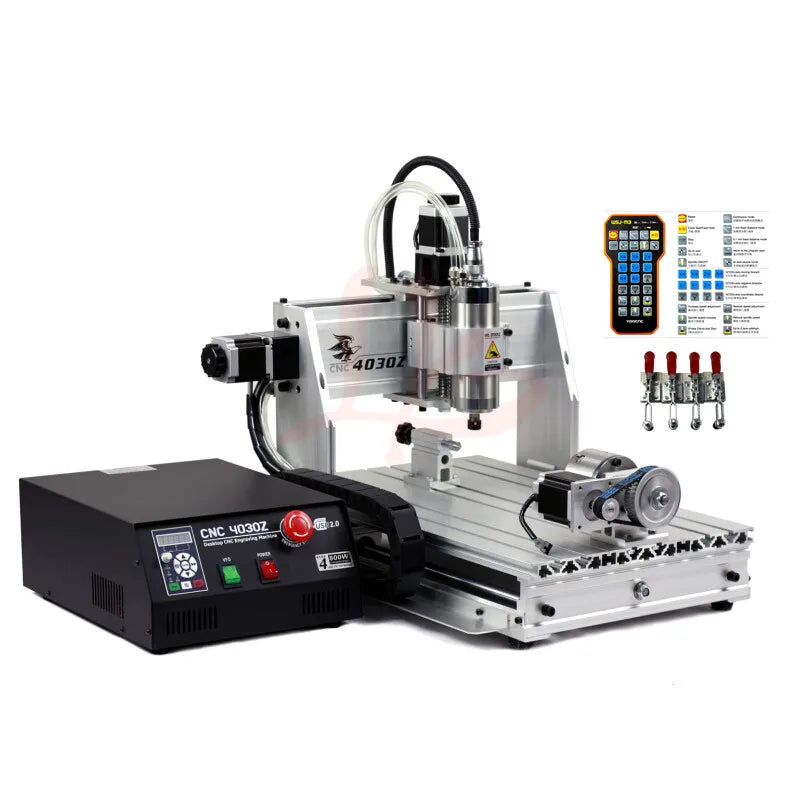

Rotation Axis (4th Axis) Description: |
Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 4:1 Stepper motor: NEMA23BHH76-3A Weight: 5KG |
||||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from Poland Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to EU or Russia. No need to pay for customs duties and VAT.
D. We can arrange shipment by SEA. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5.OEM/ODM accept . MOQ of OEM/ODM is 10-100 sets.
