SPECIFICATIONS

2.4g wi-fi transmission rate: 300 Mbps

5G Wi-Fi Transmission Rate: None

Antenna: 4 Removable 5dBi Antena

Antennas: 4 external antennas

Brand: ZBT

Certification: CE FCC ROHS

Chipset: MT7620A

Country Version: US Version,EU Version

Encryption Type: WPA2-PSK,WPA2,WPA-PSK

Interface: 4 LAN /1 WAN

Key word: openwrt 4g lte router with sim card slot

Network: FDD-LTE

Product name: openwrt 4g lte router with sim card slot

Support: VPN

Supports WDS: No

Supports WPS: No

System: openWRT&LEDE

WAN Ports: 1

WiFi Transmission Standard: 802.11n

Wireless Speed: 300Mbps

application: ENTERPRISE

function: FireWall,QoS,VPN,SDK available

lan ports: 4

max. lan data rate: 300Mbps

place of origin: Guangdong, China

private mold: No

products status: New

standards and protocols: Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n

type: Wireless

wifi supported frequency: 2.4G

wired transfer rate: 10/100Mbps

with modem function: Yes

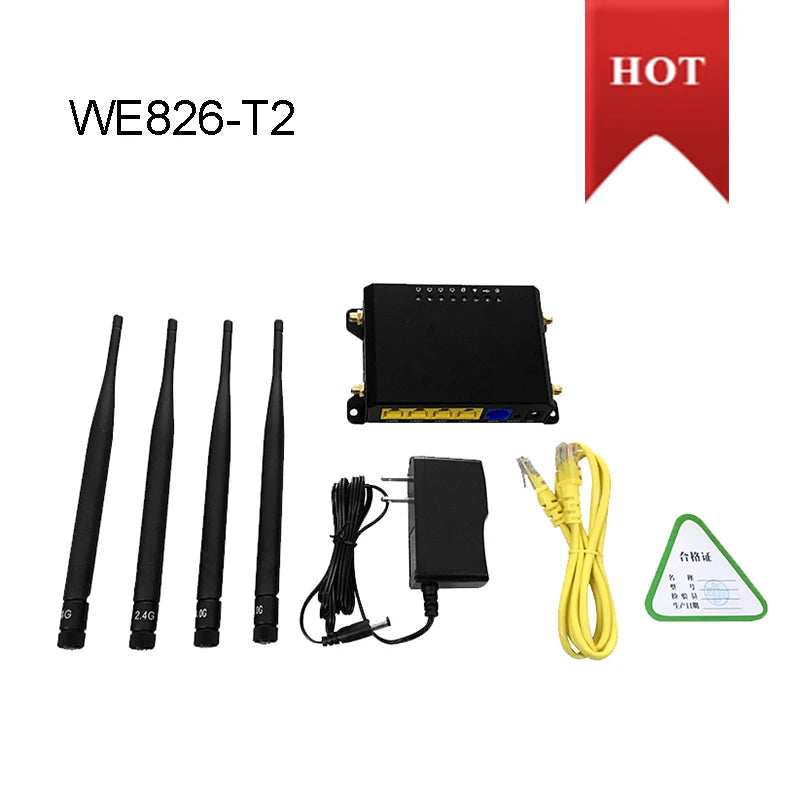

zbt we826-t2 MT7620A 300mbps openwrt 4g lte router with sim card slot

Warm Reminder;
Pls note that there are two SKU for you to choose to place the oder,below is the comments for the SKU ;

WE826-T2: without 4g module ,if you want to use sim card to dial up 4g internet , you need to order the 4g module .

WE826-T2(EU): This version is already installed with European 4g module , so if you use it in Africa, Europe and Asia , you can choose this version !

Pls feel free to contact me online directly !

Product Description

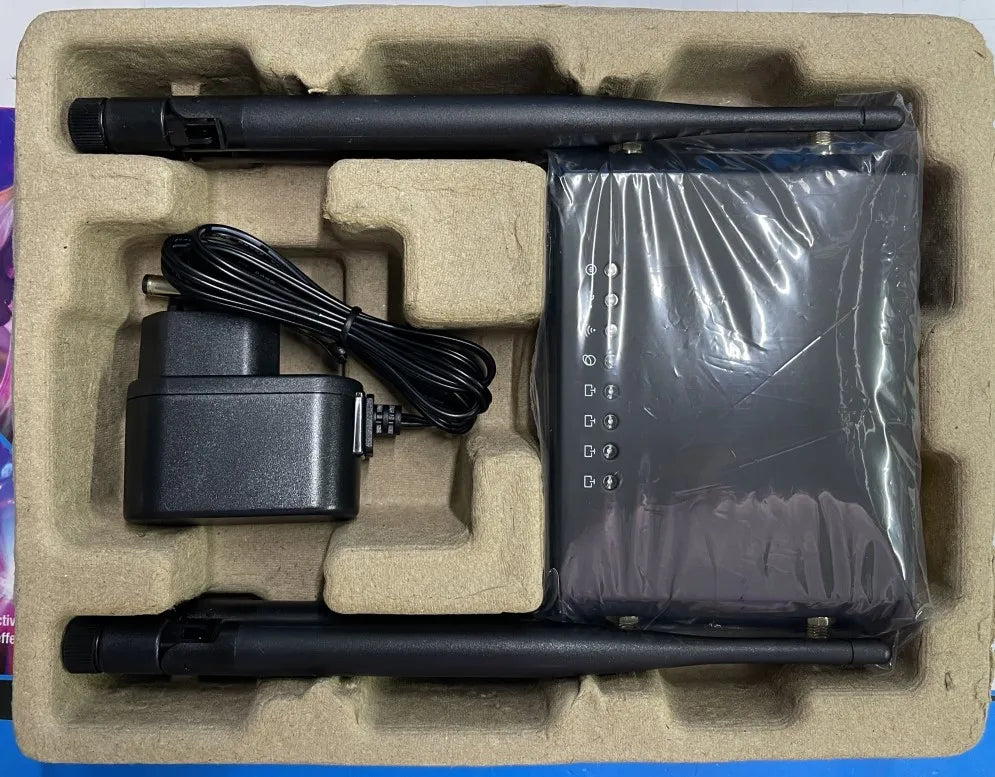

Packing & Delivery

Specification

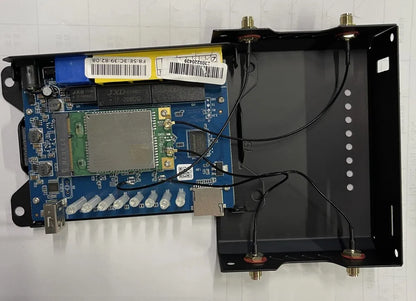

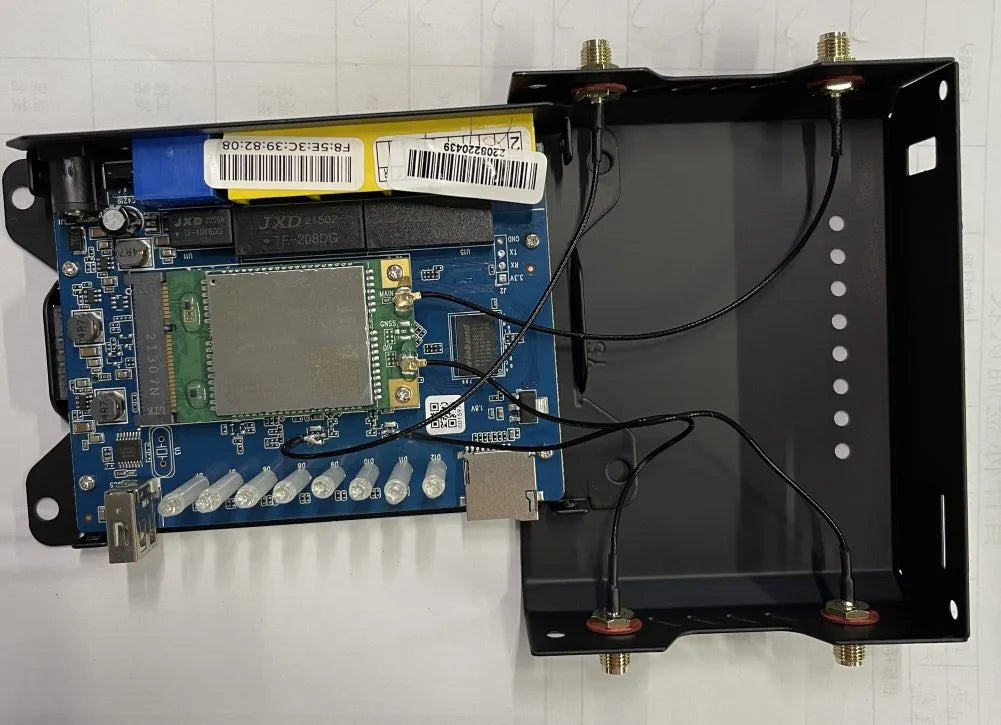

Hardware
Main Chipset	MT7620A
RAM	DDR2 128MB (MAX DDR2 256MB)
SPI FLASH	16MB (MAX 32MB)
Protocol	IEEE 802.11n、IEEE 802.11g.IEEE 802.11b.IEEE 802.3u
RT Power	802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
Reception Sensitivity	802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
Work Channel	2.4GHz choose ：1-13
Wireless Rate	Max 300Mbps
Work Frequency	2.4GHz
Antenna	2*detachable 5dBi antenna
Interface	1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100M WAN port（Auto MDI/MDIX） 4*10/100M LAN port（Auto MDI/MDIX）
LED	Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button	Reset/WPS
Max Power consumption	< 12W
Dimension（L*W*H）	141*85*26MM

Company Profile

Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District,Shenzhen,China. ZBT is a manufacturer which is consist of 300 staffs, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.

Certifications

Exhibition

FAQ

FAQ： 1. Do you accept PCBA orders only? A1:Yes, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality. 2.Do you provide firmware support? A2:Yes, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%. 3.What is the MOQ(Minimum Order Quanlity)? A3:If buy our existing products,then MOQ is 100 units.If need customize the products,then MOQ is 1000 units. 4.What's the lead time? A4:For existing products,usually within one week after payment.For customized products,usually 25-30 days. 5.How to pay? A5:We accept the payment by PayPal,T/T,Western Union and Alipay. 6. Do you support to customize logo? A6: Yes, we accept to put customer's logo, including on the casing, packing box and sticker. Other questions, pls send us inquiry for further discussion, thank you!
