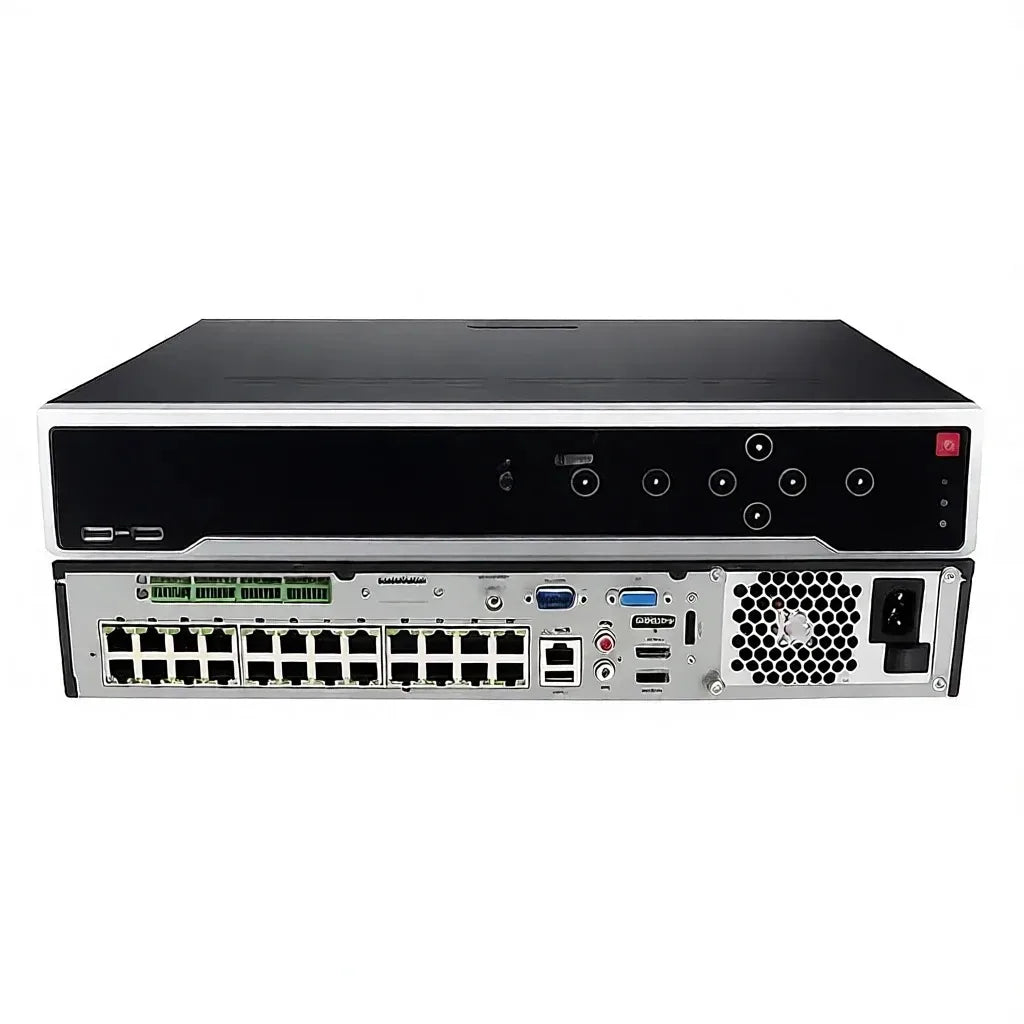

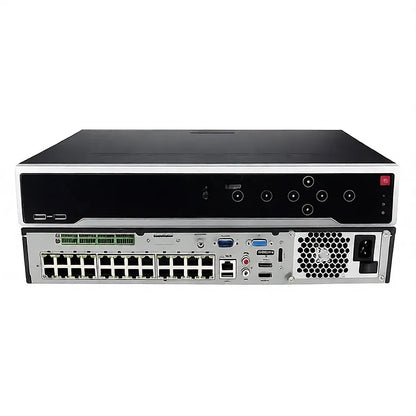

Original HIK 8MP 32-Channel 4K NVR DS-7732NI-M4 CCTV IP Security Surveillance Network Video Recorder

Original HIK 8MP 32-Channel 4K NVR DS-7732NI-M4 CCTV IP Security Surveillance Network Video Recorder

¥88,478 JPY
¥0 JPY ¥88,478 JPY
Sale Sold out
Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

Alarm In/Out: 16/9

Brand Name: HIK

Capacity: Up to 16 TB capacity for each disk

Data Storage Options: HDD

Feature: Motion Detection

IP Video Input: 16-ch Up to 32 MP resolution

Incoming Bandwidth: 320 Mbps

Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Model: DS-7732NI-M4

Model Number: DS-7732NI-M4

Outgoing Bandwidth: 400 Mbps

Place of Origin: Zhejiang, China

Power: ≤ 200 W

Resolution: 4 K

SATA: 4 SATA interfaces

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

compression format: H.265

video/audio output: HDMI,VGA

Recommend Products
Products Description
We Offer All Original HIK International Global Version Products ,WD/Sea-gate Hard Disk. Welcome for Inquiry! We Will Send Our Stock List with Price for Your Reference.

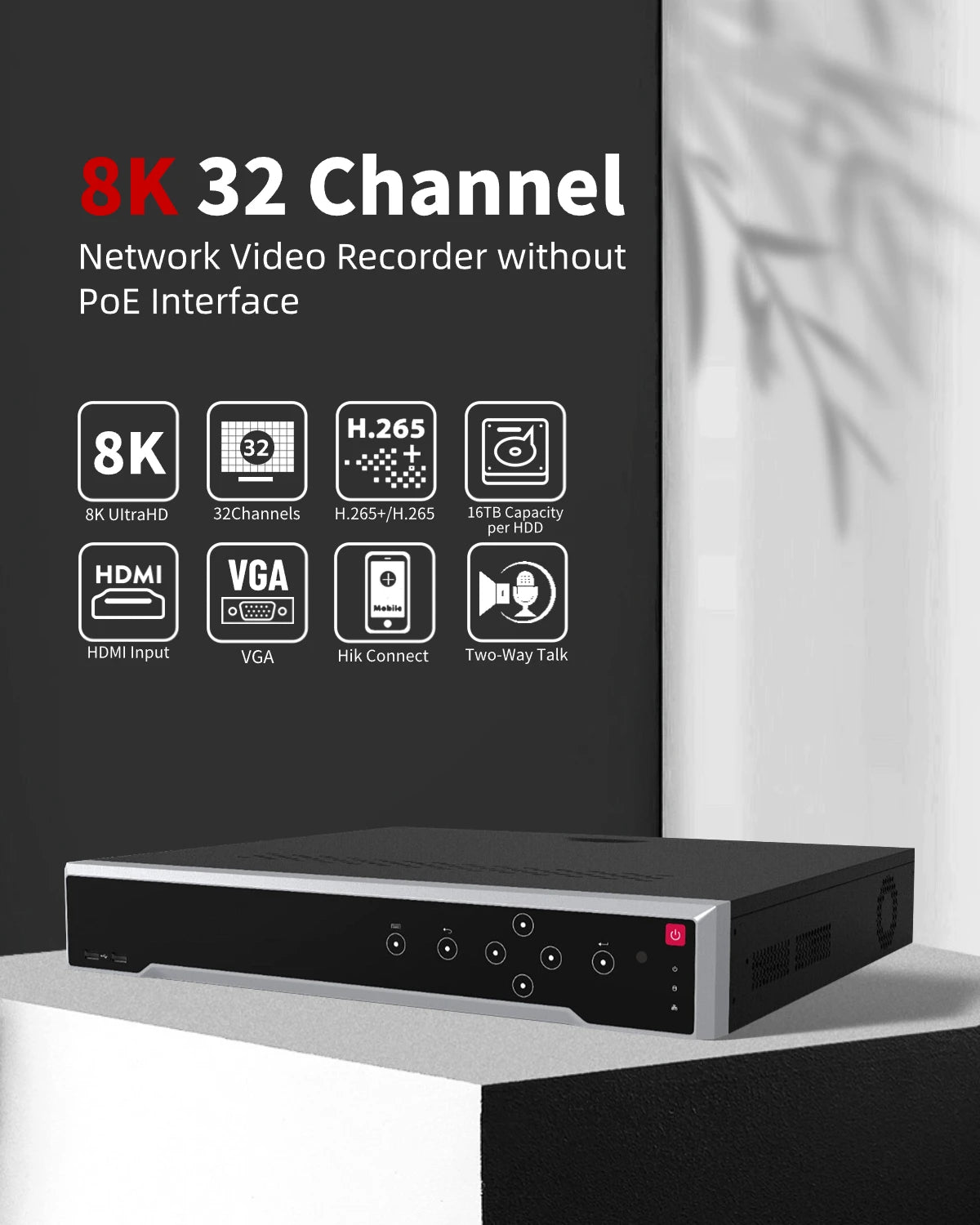

DS-7732NI-M4 HIK 32 Channel 8K NVR without PoE Interface
HIK 32 Channel 8K NVR without PoE Interface

Main Feature:
* H.265+/H.265/H.264+/H.264 video formats
* Up to 32-ch IP camera inputs
* Up to 32-ch@1080p decoding capacity
* Up to 320 Mbps incoming bandwidth
* Up to 8-ch IP speakers can be connected


Smart Playback

Hik NVR 32 channel support playback feature, 16-ch synchronous playback at up to 1080p resolution, you can search motion events to
playback the videos.

HDMI and VGA HD Output

Hik 32 channel NVR AcuSense support remote access by multiple devices, such as smart phone, laptop, tablet, etc. you can remote
access anywhere and anytime, which let you not miss some important visitors.

Remote Access

Hik 32 channel NVR AcuSense NVR support remote access by multiple devices, such as smart phone, laptop, tablet, etc. you can remote
access anywhere and anytime, which let you not miss some important visitors.

Facial Recognition

Hik NVR AcuSense support facial recognition, up to 16 face picture libraries, with up to 20000 face pictures in total, 1 channel facial recognition for video stream, or 4 channel facial recognition for face picture.

Human and Vehicle Detection

Hik NVR 32 Channel AcuSense support human and vehicle detection feature, up 2 channels 4 MP video analysis for human and vehicle recognition to reduce false alarm.

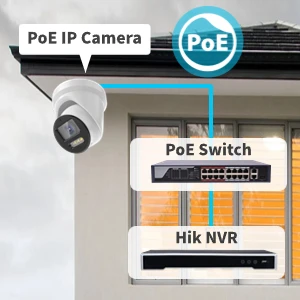

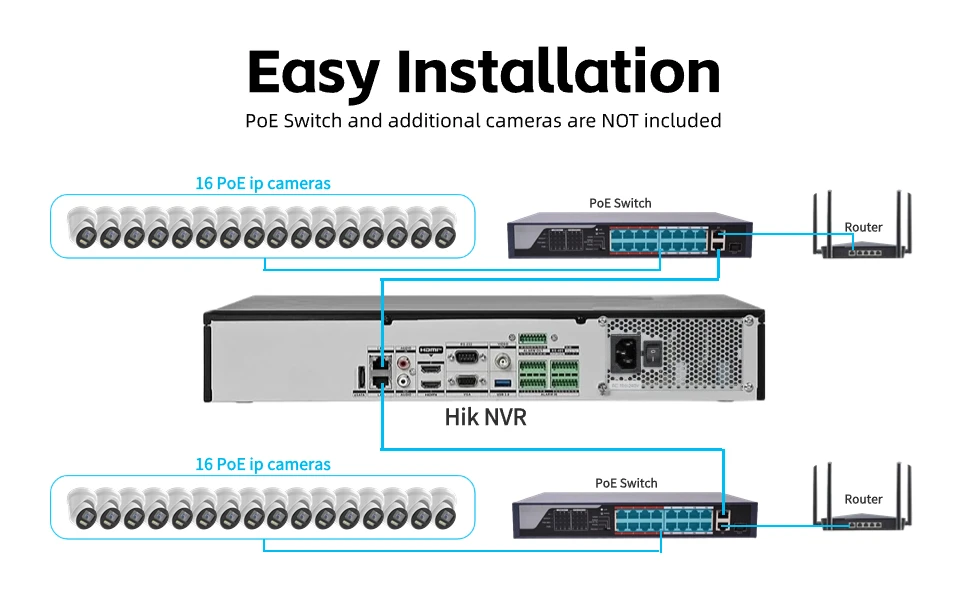

Work with HIK PoE Camera

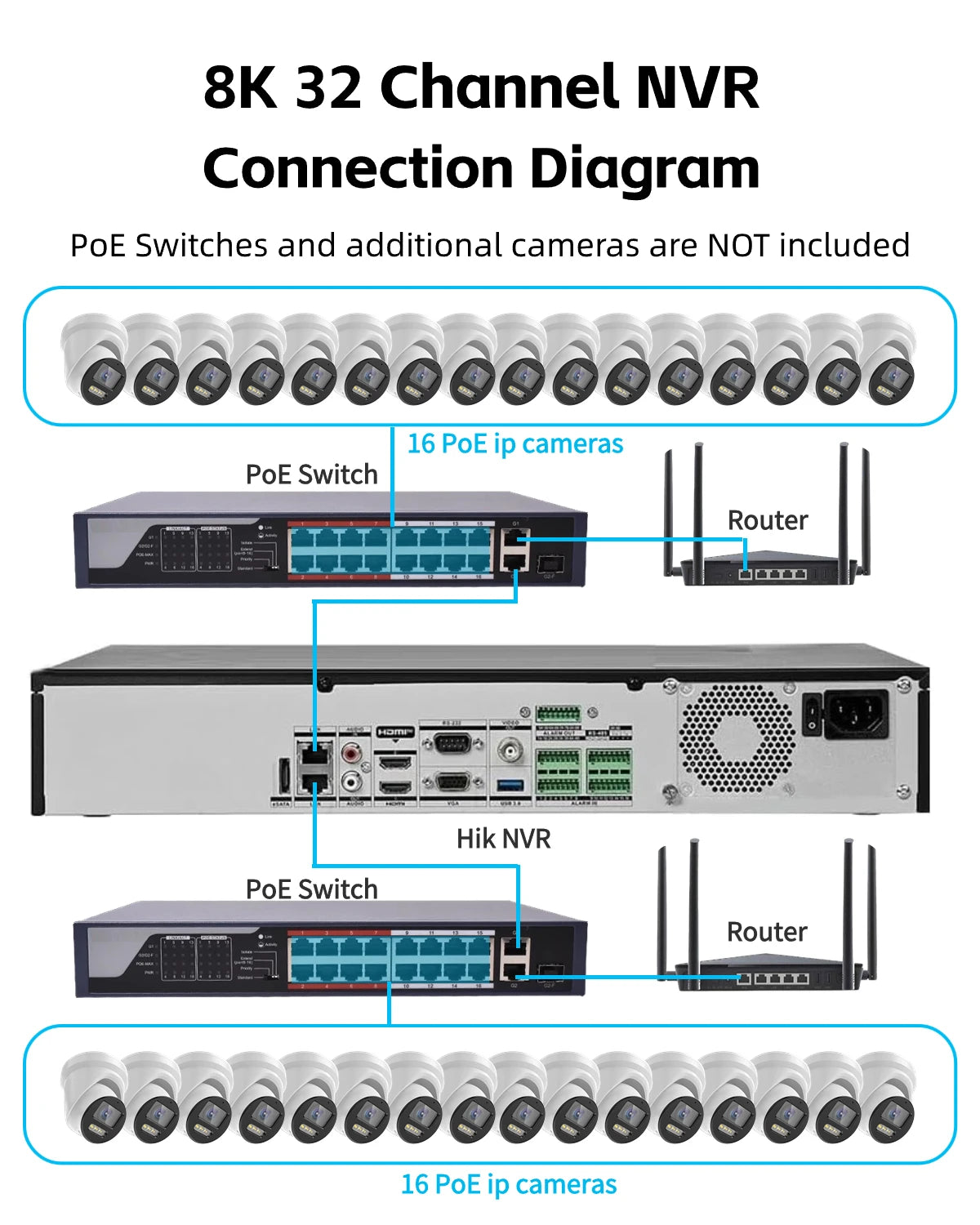

Hik 4K NVR 32 channel is NOT built-in PoE interface, but it can connect with 32 HIK PoE IP cameras by PoE Switch(Not Included). up
to 16-ch 1080p decoding capability. up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity.
Video and Audio
IP Video Input
32-ch Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Output
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio
1-ch, RCA (Linear, 1 KΩ)
Decoding
Dual-Stream Recording
Support
Decoding Format
H.265/H.265+/H.264+/H.264
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Synchronous Playback
16-ch
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
PoE
Serial Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 200 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
ESATA
1 eSATA interface
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V
12 VDC, 1 A power output
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis

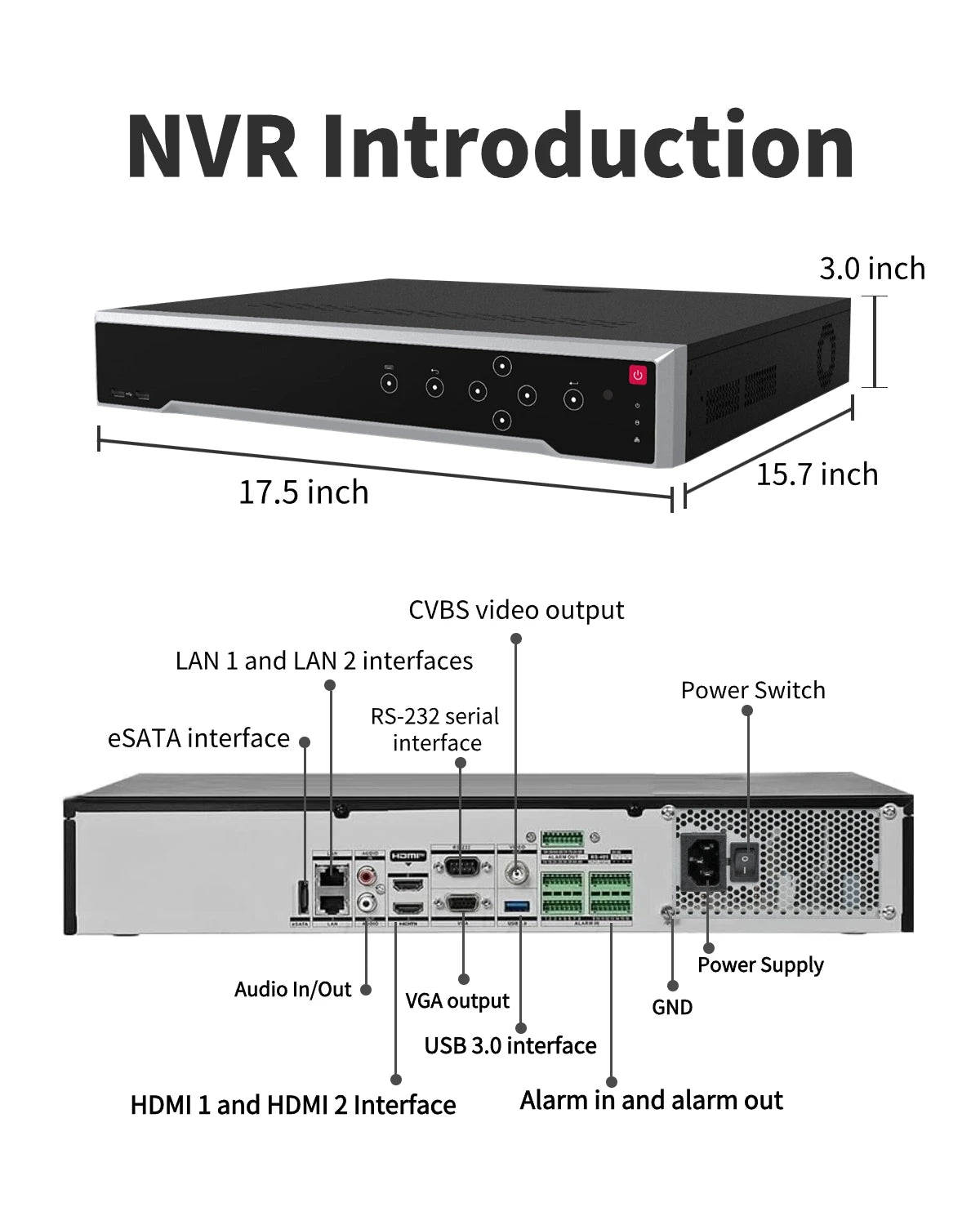

Dimension (W × D × H)
445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weight
≤ 5 kg (without HDD, 11 lb.)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
