Original Unlocked for EDUP Router 4G 5G CPE Pro LTE VPNmodem LTE FDD Wireless Router 5g Cpe Pro 2

Original Unlocked for EDUP Router 4G 5G CPE Pro LTE VPNmodem LTE FDD Wireless Router 5g Cpe Pro 2

Regular price ¥35,549 JPY
Regular price ¥0 JPY Sale price ¥35,549 JPY
Sale Sold out
Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

1st name: 5g wifi router with sim card slot

2.4g wi-fi transmission rate: 600Mbps

3rd name: 5g wifi router

5G Wi-Fi Transmission Rate: 1300Mbps

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

Brand: EDUP

Chipset: Qualcomm SDX55

Encryption Type: WPA2-PSK,WPA2

LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28

LTE-TDD: B34/B38/B39/B40/B41

Products Status: Stock

Standard: IEEE802.11n/b/g/ac/ax

Support: APN /Systems/WIFISetting

Supports WDS: Yes

Supports WPS: Yes

Type: 5g wireless router

WAN Ports: 1

WiFi Transmission Standard: WiFi 802.11 ax

application: ENTERPRISE

function: FireWall,QoS,VPN,APP Control

lan ports: 2

max. lan data rate: 1900Mbps

place of origin: Guangdong, China

products status: New

standards and protocols: Wi-Fi 802.11ax

type: Wireless

wifi supported frequency: 2.4G & 5G

wired transfer rate: 10/100Mbps

with modem function: No

Original Unlocked for EDUP router 4G 5G CPE pro LTE VPNmodem LTE FDD Wireless Router 5g cpe pro 2

Model:EP-N9545GS



Recommendation from sales:

1.  https://www.alibaba.com/product-detail/EDUP-Cheapest-AX1800-Gigabit-Dual-Band_1600985574127.html?spm=a2747.manage.0.0.5a3e71d2cSCARJ



2.  https://www.alibaba.com/product-detail/EDUP-Long-Range-1080P-60HZ-Wifi_1600820884447.html?spm=a2747.manage.0.0.5a3e71d2HJRclP





Product Description



Features



5G Cellular
1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System
2) 5G Network Modes: SA (standalone), NSA (non-standalone)
3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5) 5G Standards:3GPP Release 15
6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
4G Datasheet
4G Cellular
8) LTE Category:Down Cat 16/ UP Cat 18
9) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
11) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
12) WCDMA:B1/B2/B3/B4/B5/B8/B19
13) LTE : Down 1.0 Gbps;UP 200 Mbps
WiFi6 Datasheet
WiFi 6(802.11ax)
1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Coding Technology:1024-QAM / OFDMA
3) Peak Connections:>100+ Clients
4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.
Data Switching
1) Mobile 4G/5G Connection (Support APN)
2) Giga Ethernet Connection
3) MESH:MESH+ hybird
4) 2.4G/5Ghz WiFi
5) Advanced Firewall
6) MAC Filter
7) WiFi Sercurity
8) VPN Passthrough and VPN Client (L2TP PPTP)9) IPV4/IPV6
10) WEB / APP Mangement
11) Firmware upgrade

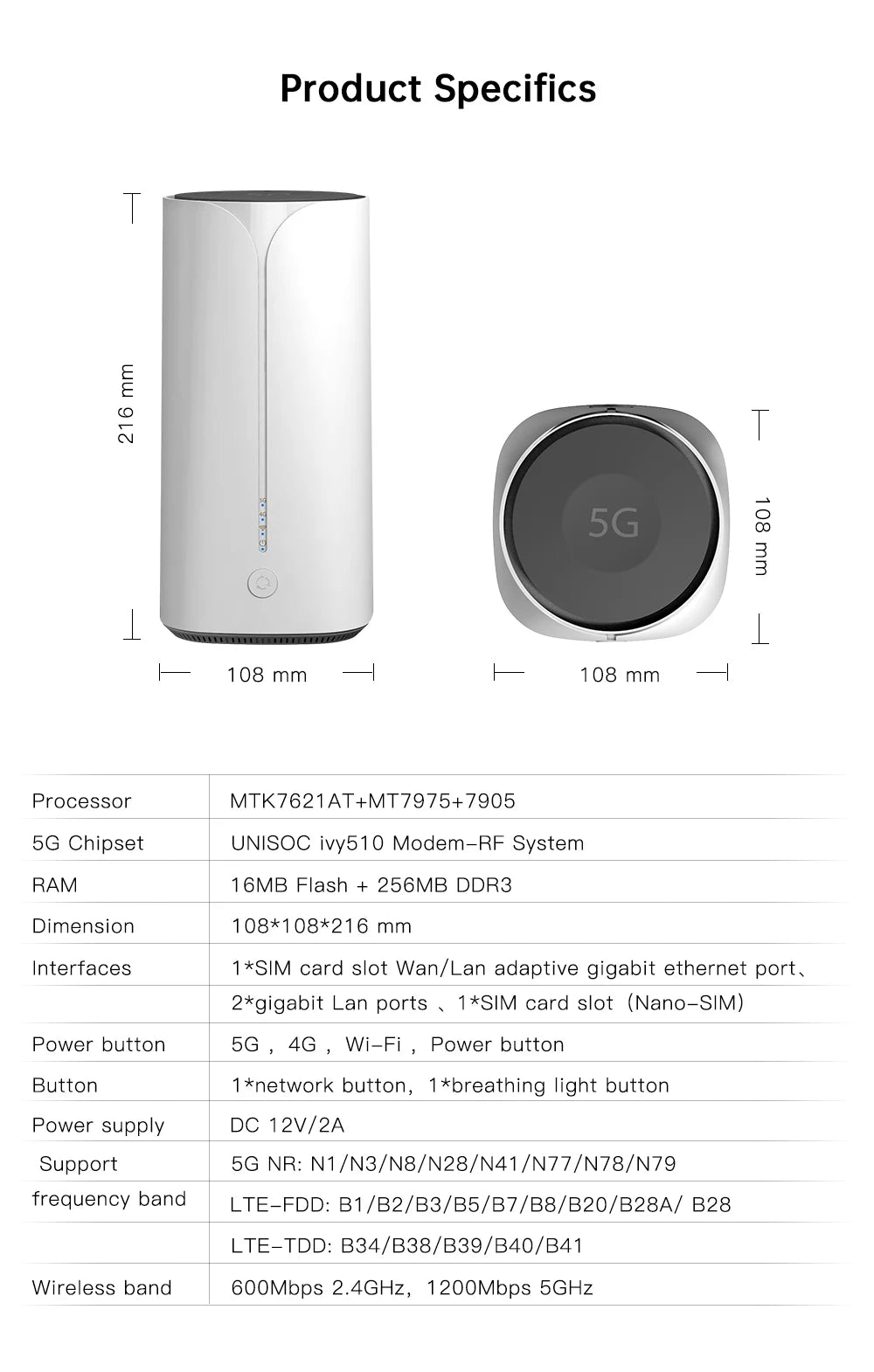

Hardware specifications
Hardware Specification
1) CPU: MT7621AT
2) Memory:16MB Flash + 256MB DDR3

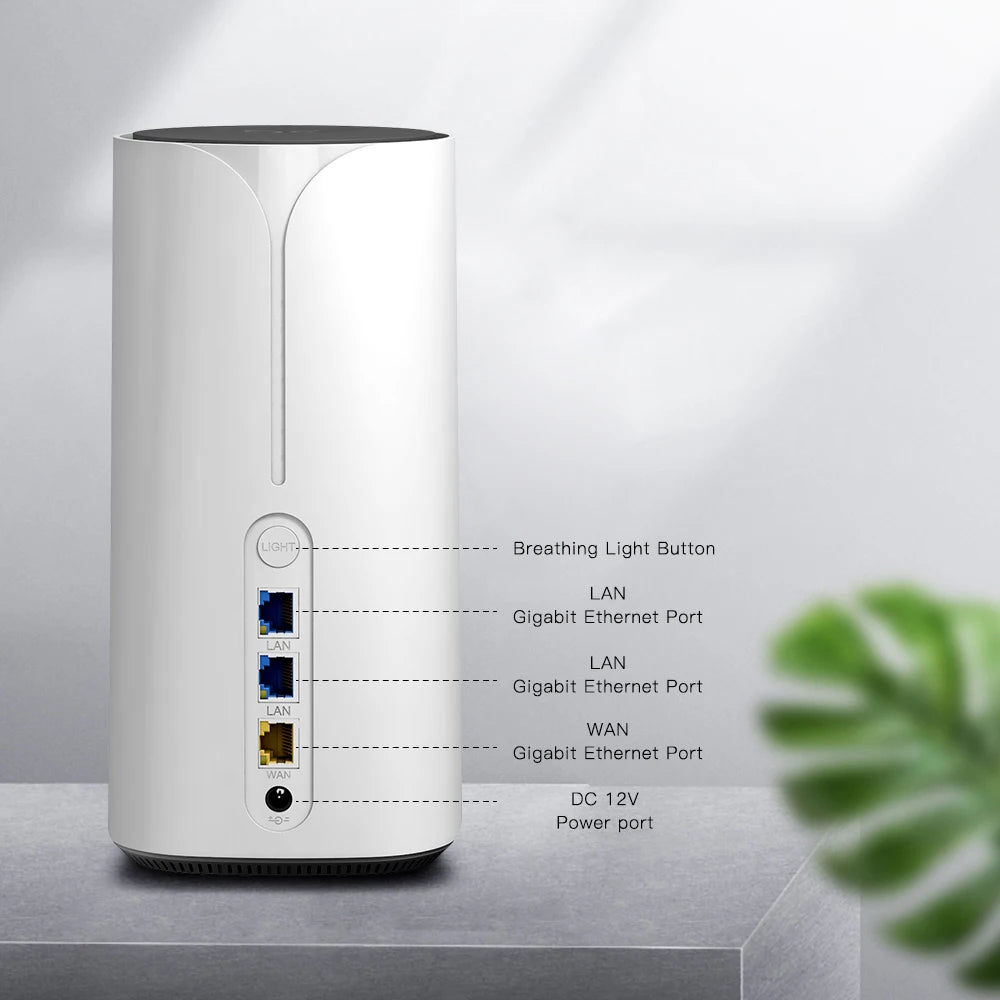

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

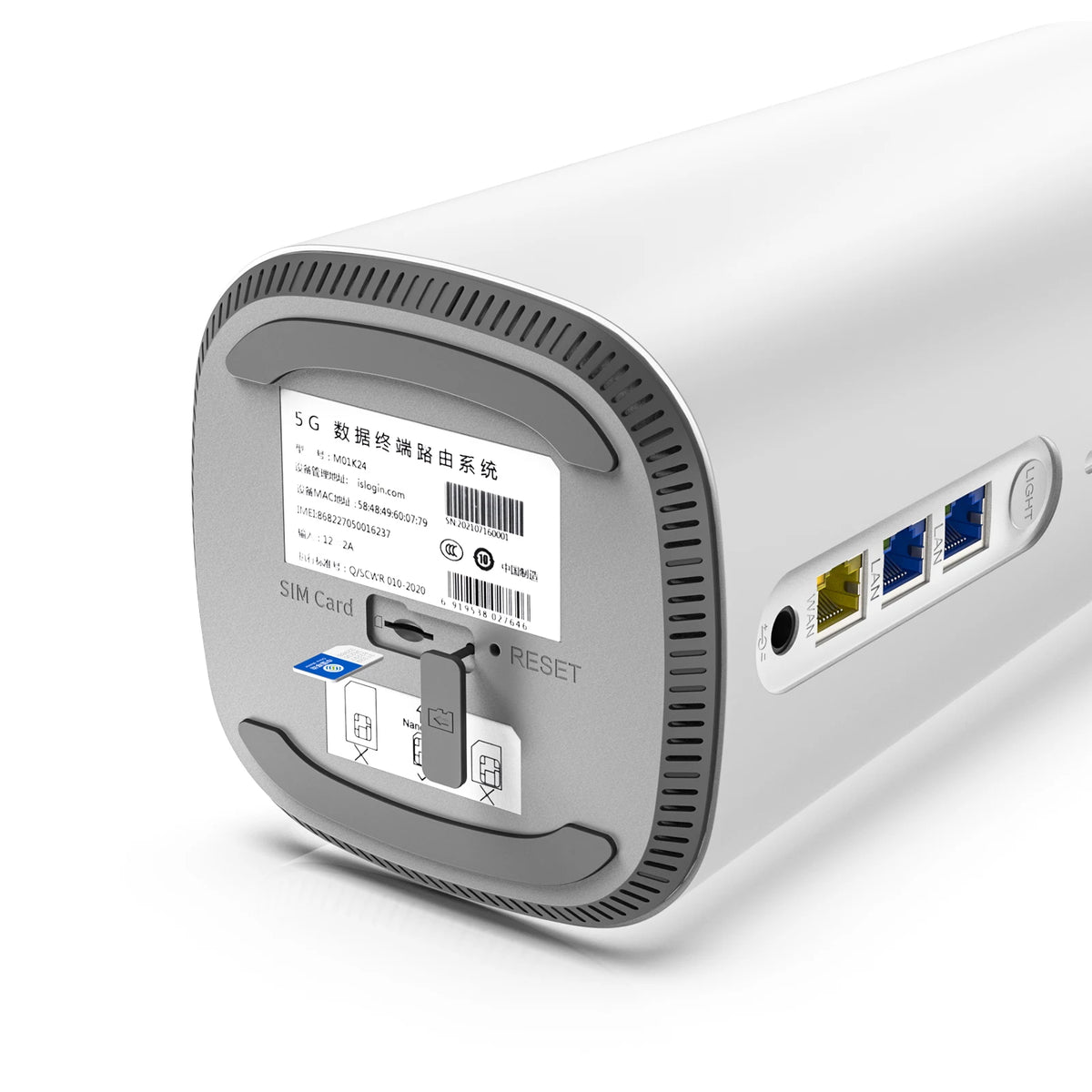

4) 1* SIM Slot(
Nano-SIM)
5) Reset button
6) MESH+ Button
7) MESH+ LED Switch
8) LED Indicator
– MESH+ Working Status (breathing light)
– 4G Status
– 5G Status
– WiFi Status
– Power Status
9) General
– Power Consumption:<20W
– DC Power Supply: 12V/2A
– Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
– Humidity:5%~95%
– Weight: TBD
