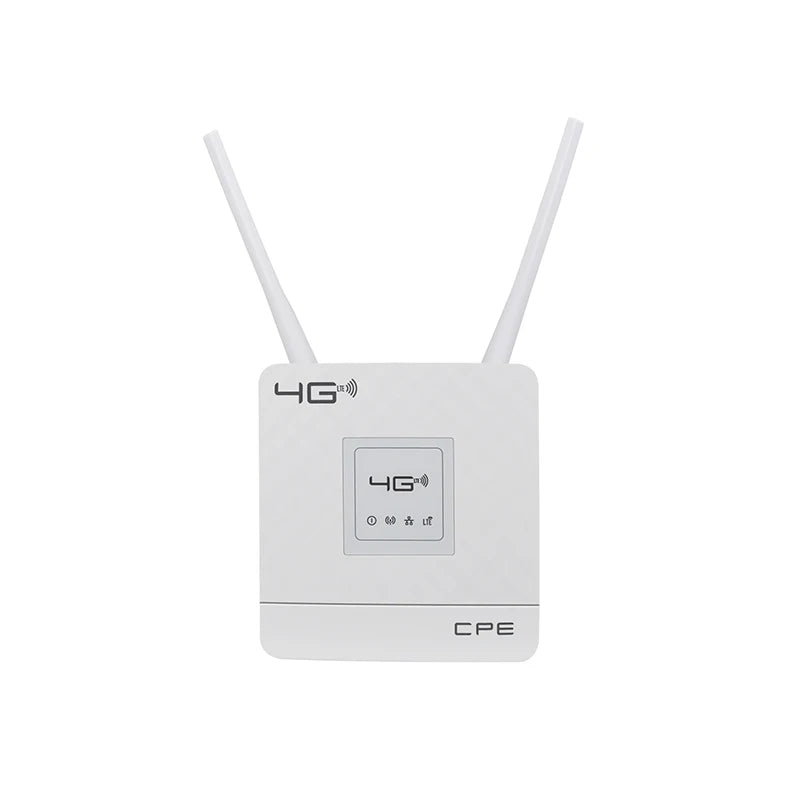

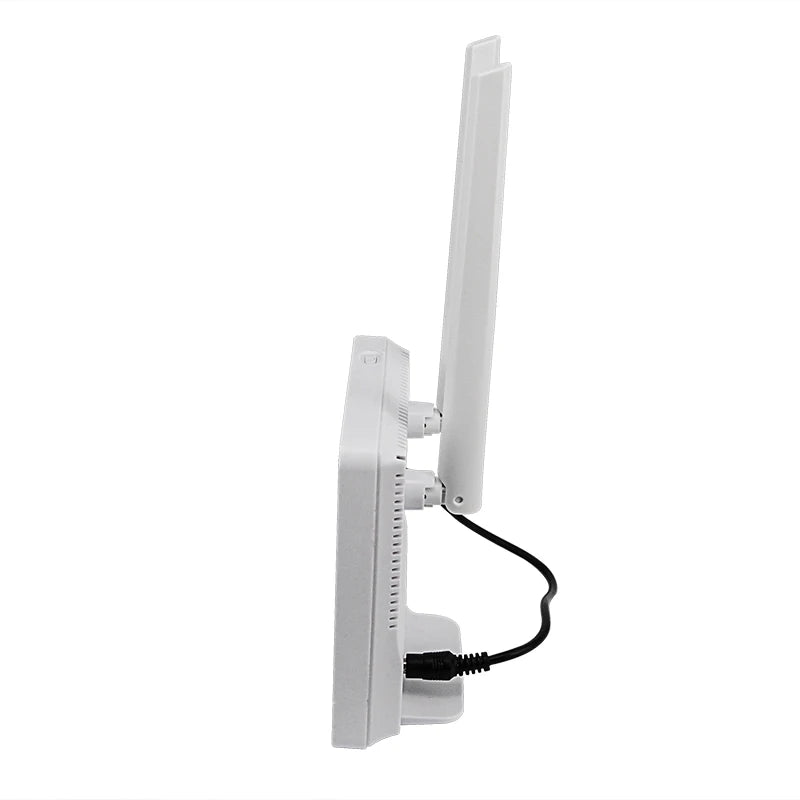

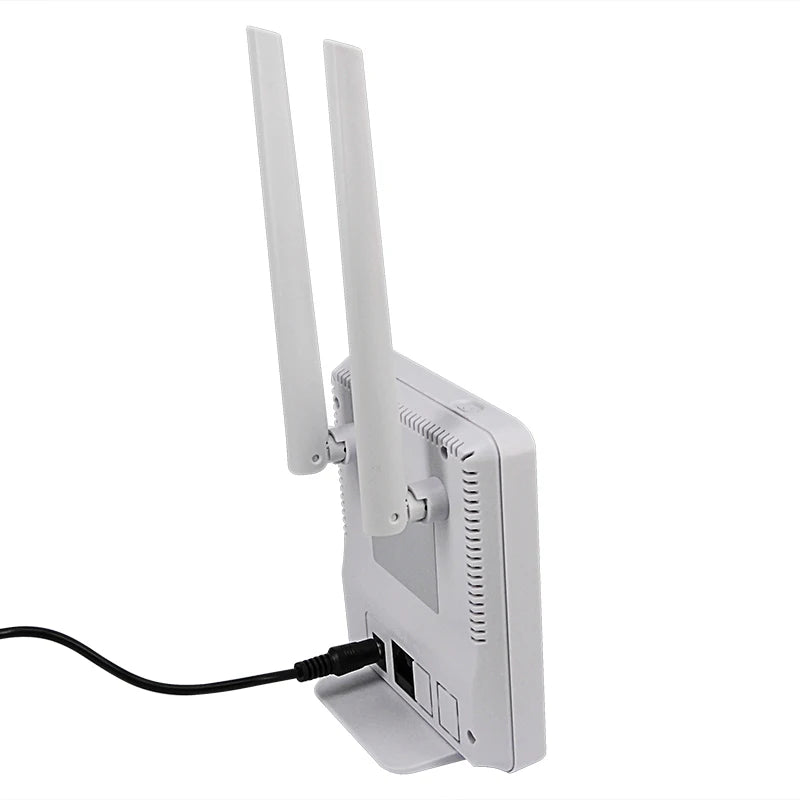

Professional OEM ODM Factory Supplier 4G CPE Manufacturer

¥6,792 JPY

~~¥0 JPY~~ ¥6,792 JPY

Sale Sold out

Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

2.4g wi-fi transmission rate: 300 Mbps

5G Wi-Fi Transmission Rate: None

Antenna: 2.4G/5G

Antennas: 2 external antennas

Brand: OEM

Chipset: MTK

Encryption Type: WPA2-PSK,WPA2

Known as: cpe factory

Port: RJ45, DC, USB,SIM, Power

Product name: Professional OEM ODM Factory Supplier 4G CPE Manufacturer

Speed: 150/50Mbps

Style for: cpe supplier

Supports WDS: No

Supports WPS: No

System: Android 6.0

System Available: FDD TDD UMTS GSM EVDO

Used for: cpe manufacturer

WAN Ports: 1 x10/100Mbps

WiFi Transmission Standard: 802.11b

application: Home

function: SDK available

lan ports: 10

max. lan data rate: 300Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac

type: Wired

wifi supported frequency: 2.4G & 5G

wired transfer rate: 10/100Mbps

with modem function: Yes

Professional OEM ODM Factory Supplier 4G CPE Manufacturer

cpe manufacturer
cpe factory
cpe supplier

1. Specification

DEVICE	CPF903
Item name	4G LTE CPE
Appearance	Dimension (L × W × H)	11510523mm
	Weight	180g
Hardware Platform	HW_VER	CPF903-V1.0
	MTK Chipset	MT6735WM
	RAM/ROM	4GByte EMMC+512MByte DDR2
	Frequency Band	FDD operating band: B1,B3,B5,B7,B8,B20; TDD operating band: B38,B39,B40,B41 WCDMA:B1,B5 ,B8; EVDO: BC0; GSM:900/1800MhZ
	Diversity Band	FDD operating band: B1,B3,B5,B7,B8,B20(optional); TDD operating band: B38,B39,B40,B41; WCDMA:B1,B5 ,B8 ; EVDO: BC0
	3GPP	FDD 3GPP R9: Cat.4; TDD 3GPP R9: Cat.4 WCDMA: 3GPP R7&R8: HSDPA Cat.24(64QAM);HSUPA Cat.7(16QAM); EVDO: 3GPP2
	Transfer rate	FDD/TDD: Up to 150Mbps DL; Up to 50Mbps UL WCDMA: HSDPA up to 42.2Mbps DL; HSUPA up to 11.5Mbps UL EVDO: 3.1Mbps DL
	Wi-Fi Chipset	MT6625L
	Wi-Fi	IEEE 802.11b/g/n
	WiFi Transfer rate	up to 150Mbps
	Encryption	Wi-Fi Protected Access™ (WPA/WPA2)2
	WIFI type	2.4G
	Antenna	2.4G External antenna 2, Main LTE antenna ( diversity antenna internal)1
Special function	Virtual card	4G+2G
	Soft SIM	esim or softsim
	Customization	Smart system, strong customization ability
Display
	LED	LED

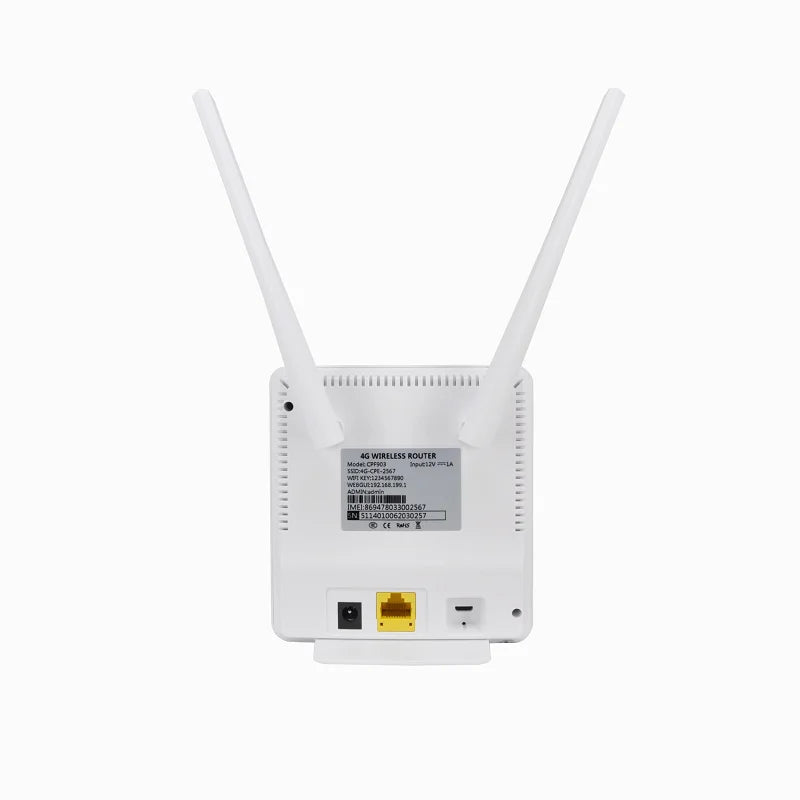

Port	On/off button	1 power
	SIM	2 SIM
	USB	USB TYPE A (5V 1A IN)
	DC	12V 1A IN
	RJ45	1* WAN/LAN
Internet	Wi-Fi	Wi-Fi AP, Max 10 users (up to 20 users if add RAM)
	SSID	4GCPE-XXXX(last 4 digits of the MAC address)
	Password by default	1234567890
Operating Environment	Working temperature	-10° - 55°C
	Working height	Current tested max height 3000m (10,000 inches)
	Operation system	PC Users:A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7, Windows 8, Windows 10 MAC Users:A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later Android Uers: A mobile Phone or Tablet PC with Android 2.3 or later
	Operation Browser	Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0, Safari and above
Software Platform	System	Android 6.0
WEB	Gateway	http://192.168.199.1

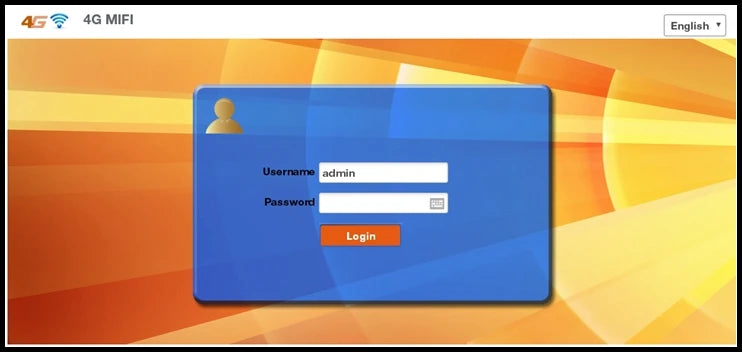

	Log in	Password:admin (passord modification reqested to done at first loging as default setting Language(Chinese/English)
	Status	Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users
	Networks	APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore defaulf APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set.

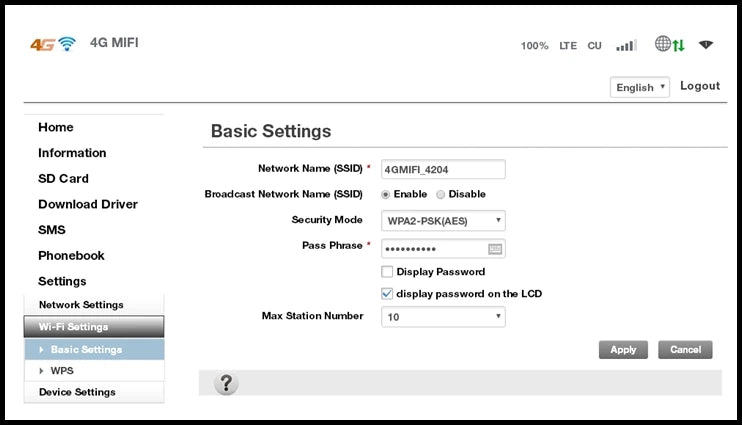

	Wifi	WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet.
	Ethernet mode	No ethernet mode; LAN mode; WAN mode(Dynamic IP); WAN mode(PPPOE)
	System Manage	Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact
	SMS Management	SMS create, delete, send
OTHER	SIM lock	SIM card lock/unlock
	SIM card compatibility	China Unicom, China Telecom, China Mobile and other 4G SIM cards

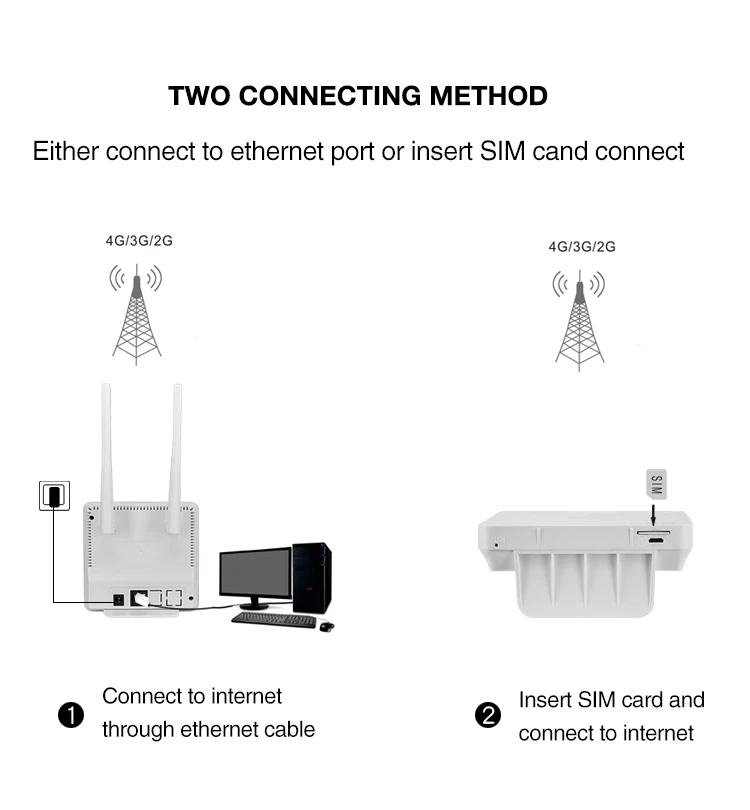

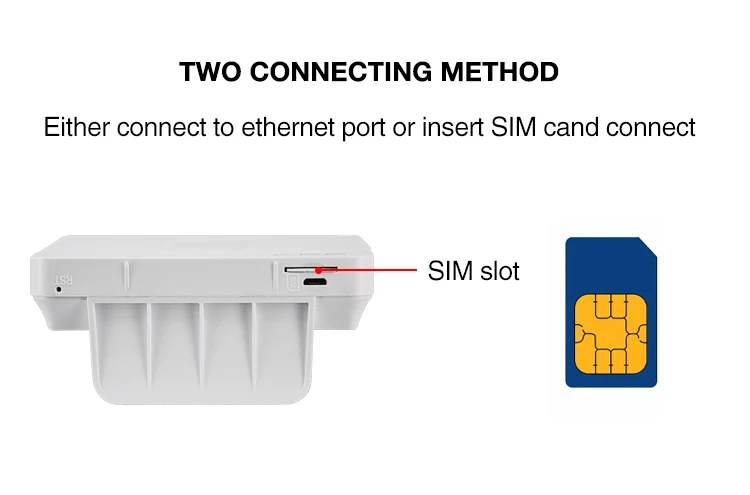

RJ45 Port 150Mbps 4G CPE 4G WiFi Router with SIM Card Slot.jpg

Product Description

2. Strengths

1. Android 6.0 System with strong expansibility.
2.The MTK Chipsets

3. WIFI Speed 300Mbps.
4. EMMC 4GB + DDR2 512MBlarge capacity processor.

5. ESIM+ Soft SIM

6.Dual SIM card slots.
7.Best OEM services(the housing, the software and the package high levelcustomization.

8.13 months warranty.

3.Delivery time

Can be as short as possible and shorter than most other companies base on the same situation cause we are the real manufacture.

Packaging & Shipping

4.Package & Transportation

RJ45 Port 150Mbps 4G CPE 4G WiFi Router with SIM Card Slot.jpg

5.Exporting countries

Europe	Asia	Africa	North America	South America	Oceania
♦♦♦	♦♦♦♦♦	♦♦♦♦	♦	♦♦♦	♦♦

6.Payments;

T/T	West Union	Money Gram	Paypal	D/A	D/P	L/C
YES	YES	YES	YES	NO	NO	OPTIONAL
