Sensor Infrared Safety Beam Photocell Detector for Garage Gate Door DOORHAN DITEC SOMMER Marantec PUJOL ADYX

¥4,383 JPY

~~¥0 JPY~~ ¥4,383 JPY

Sale Sold out

Taxes included. Shipping calculated at checkout.

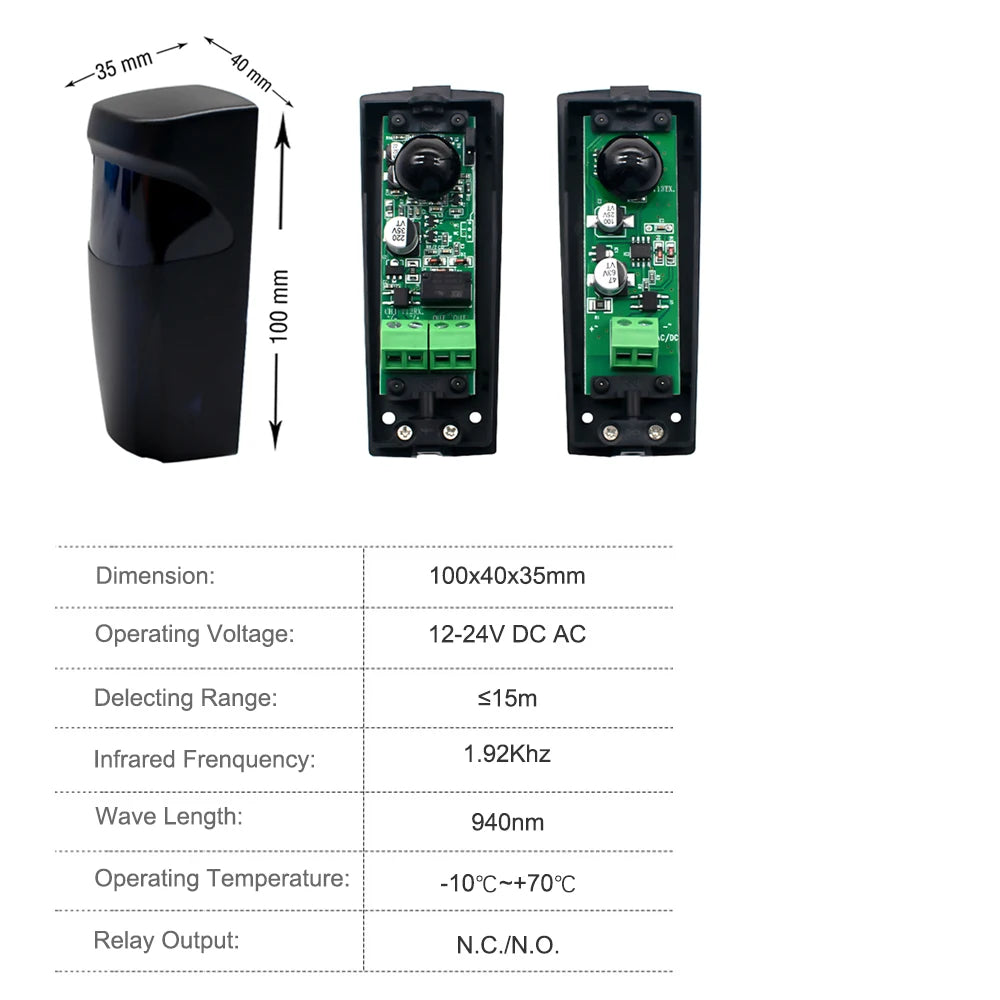

SPECIFICATIONS

Brand Name: Scimagic-RC

Certification: CE

Choice: yes

High-concerned chemical: none

Infrared frequency: 1.92KHZ

Model Number: Photocell Detector For Garage Gate Door

Origin: Mainland China

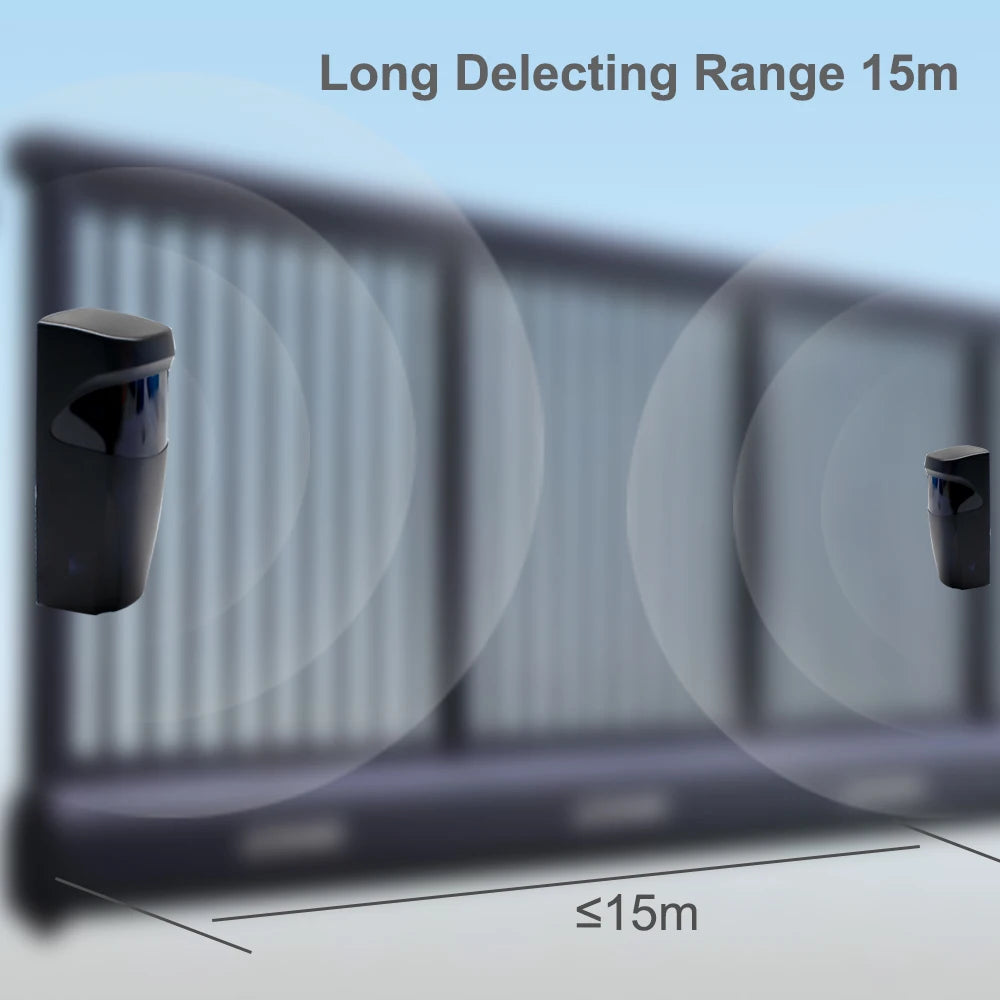

Sensing distance: 15M

Smart home platform: Other

Working temperature: -10 ° C-+70 ° C

Working voltage: DC12-24V

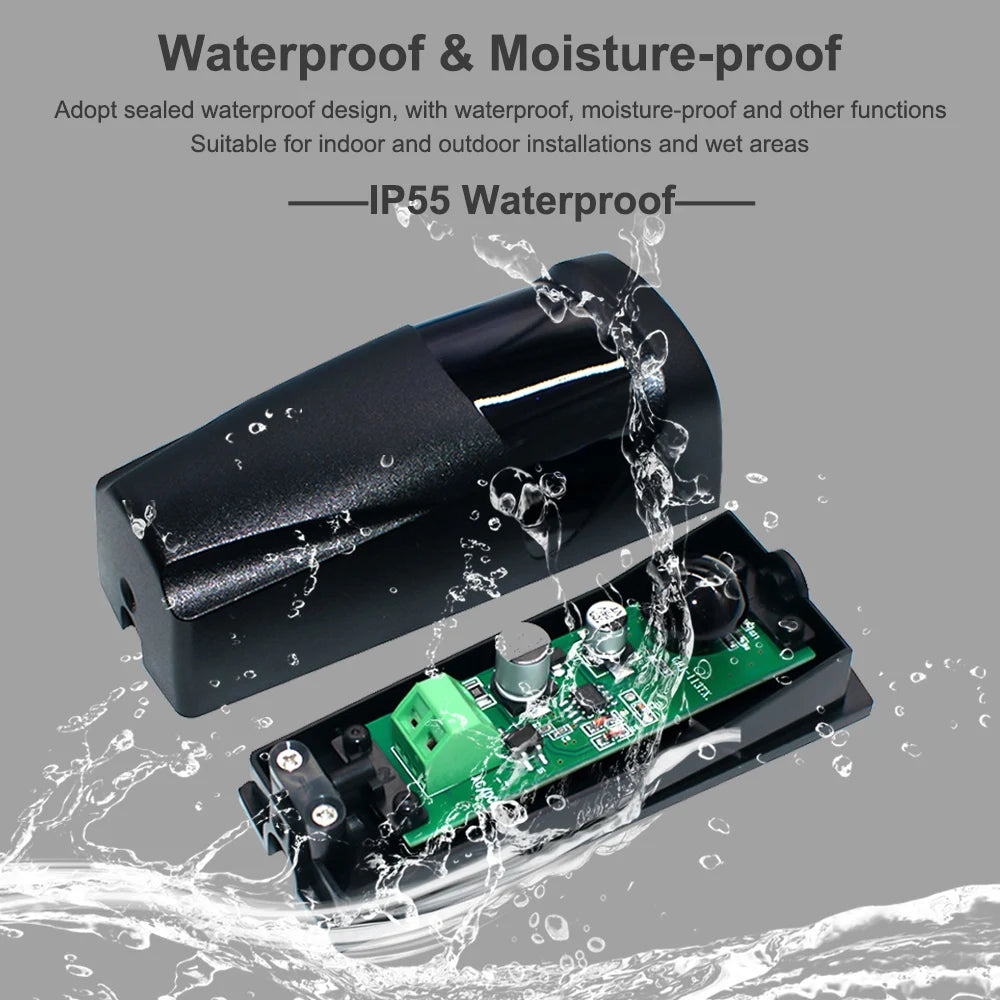

Water proof outdoor Infrared Sensor Photo Eye Photocells infrared photocells safty beam for gate door opener garage sliding

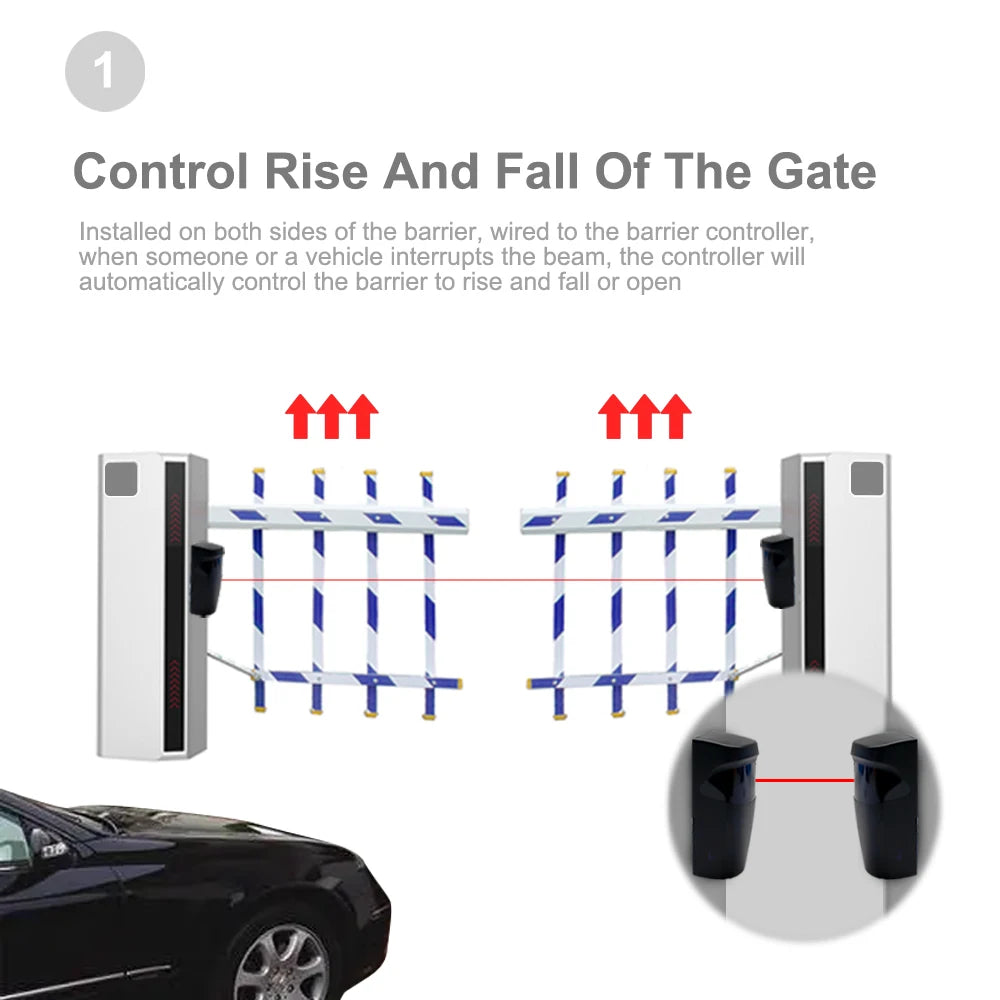

Used for

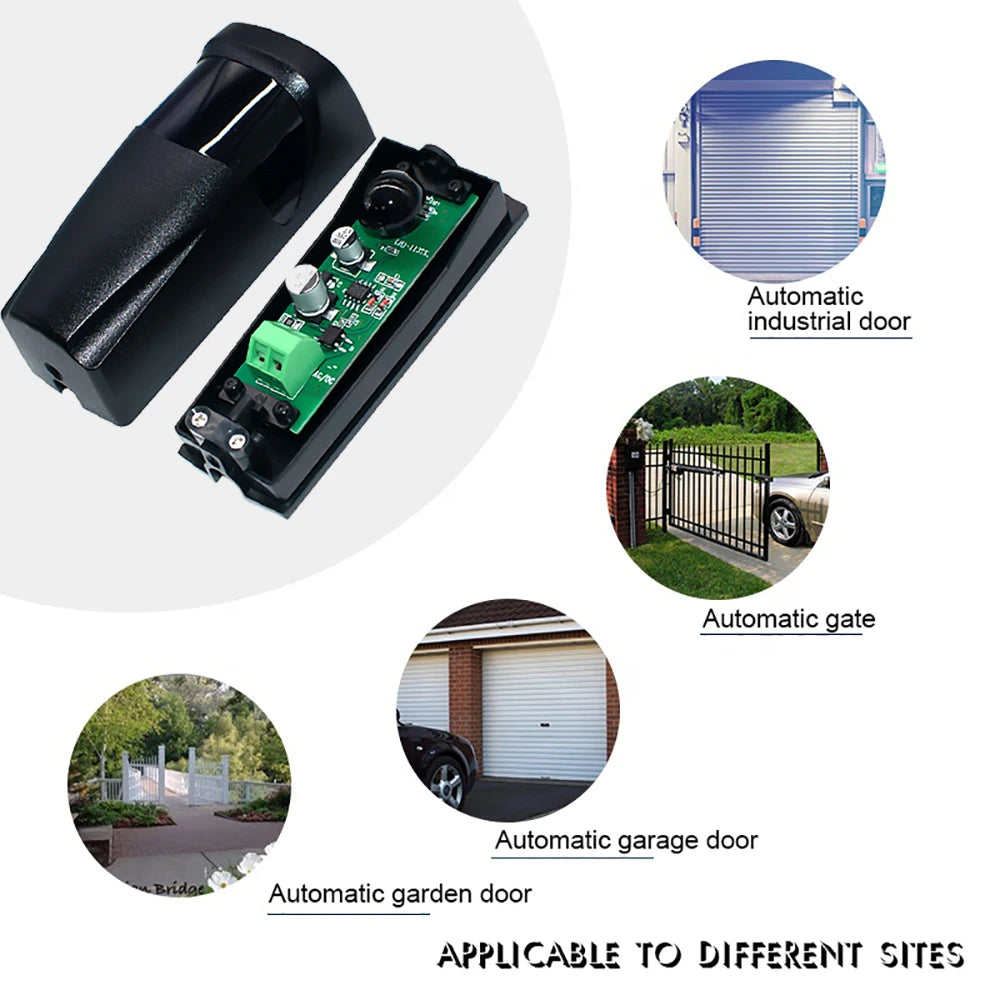

automatic slide door, automatic Gate Door, coil door , garage door， windows ，barrier etc.

Feature

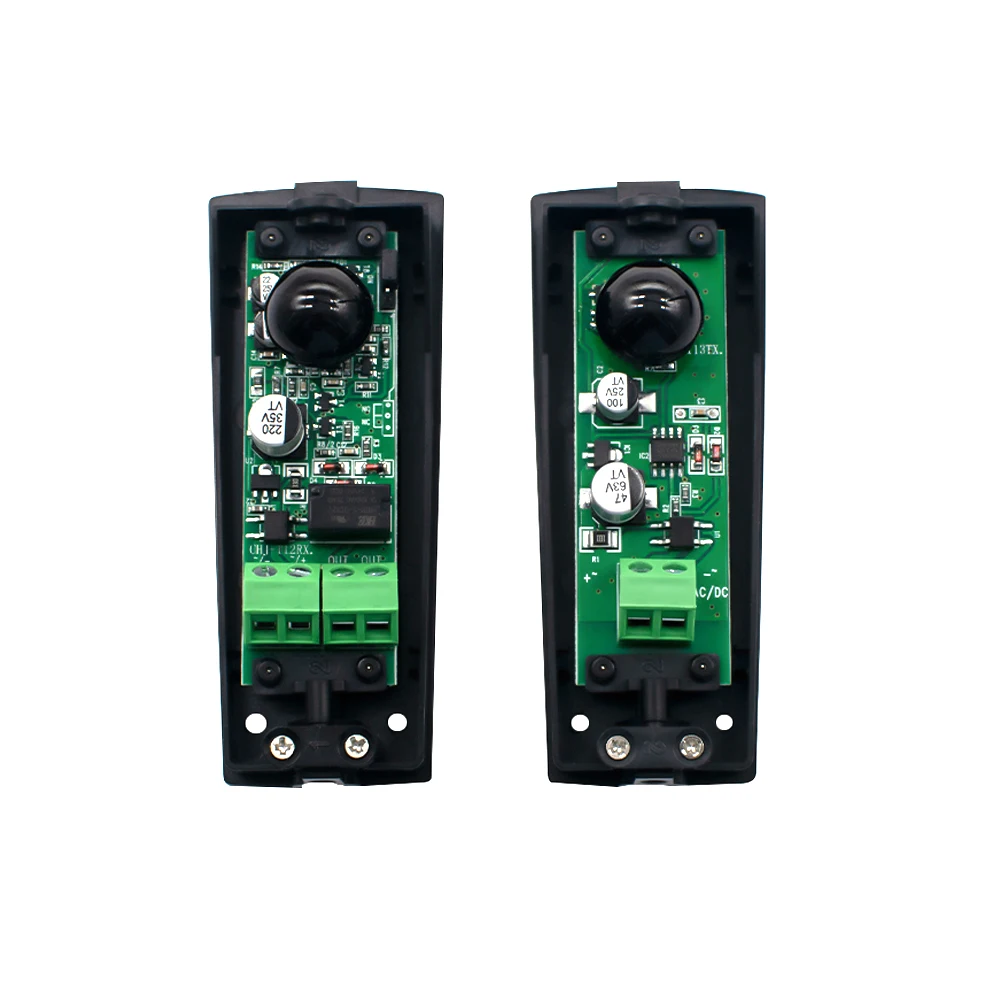

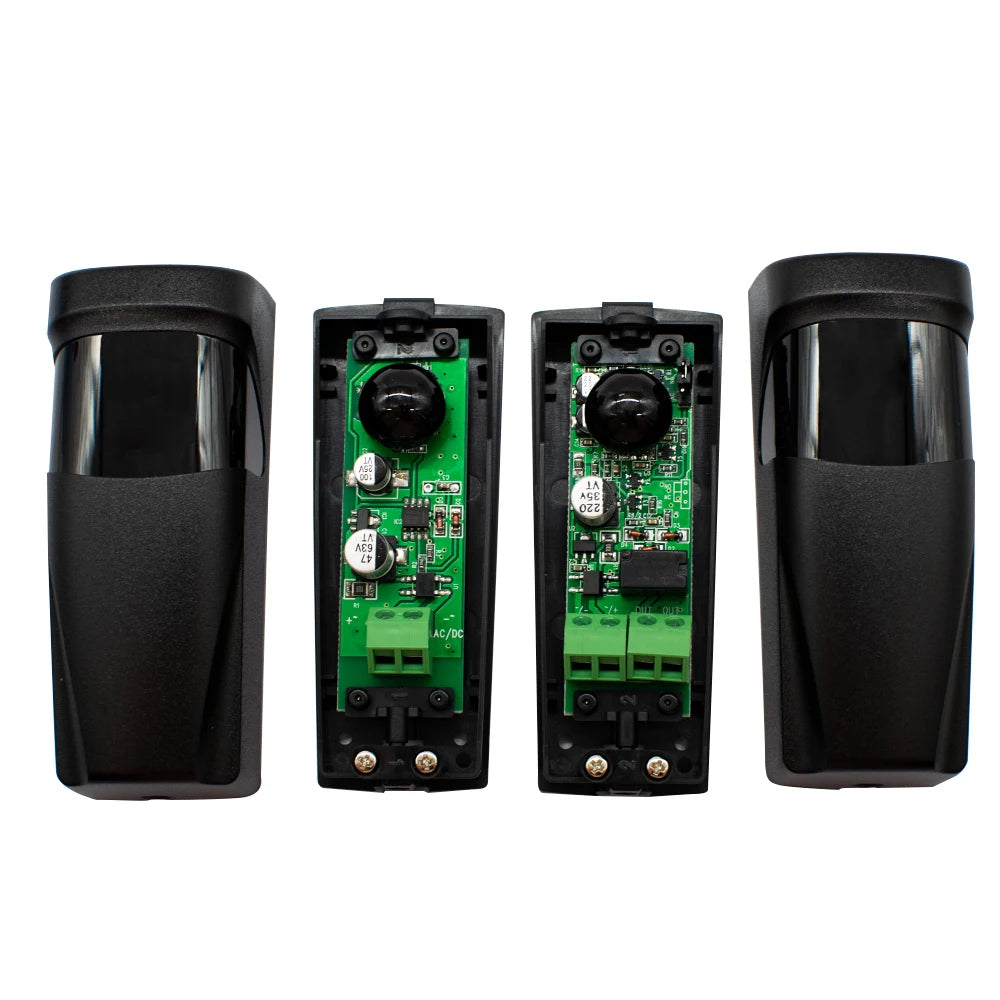

【Receiver and Transmitter】

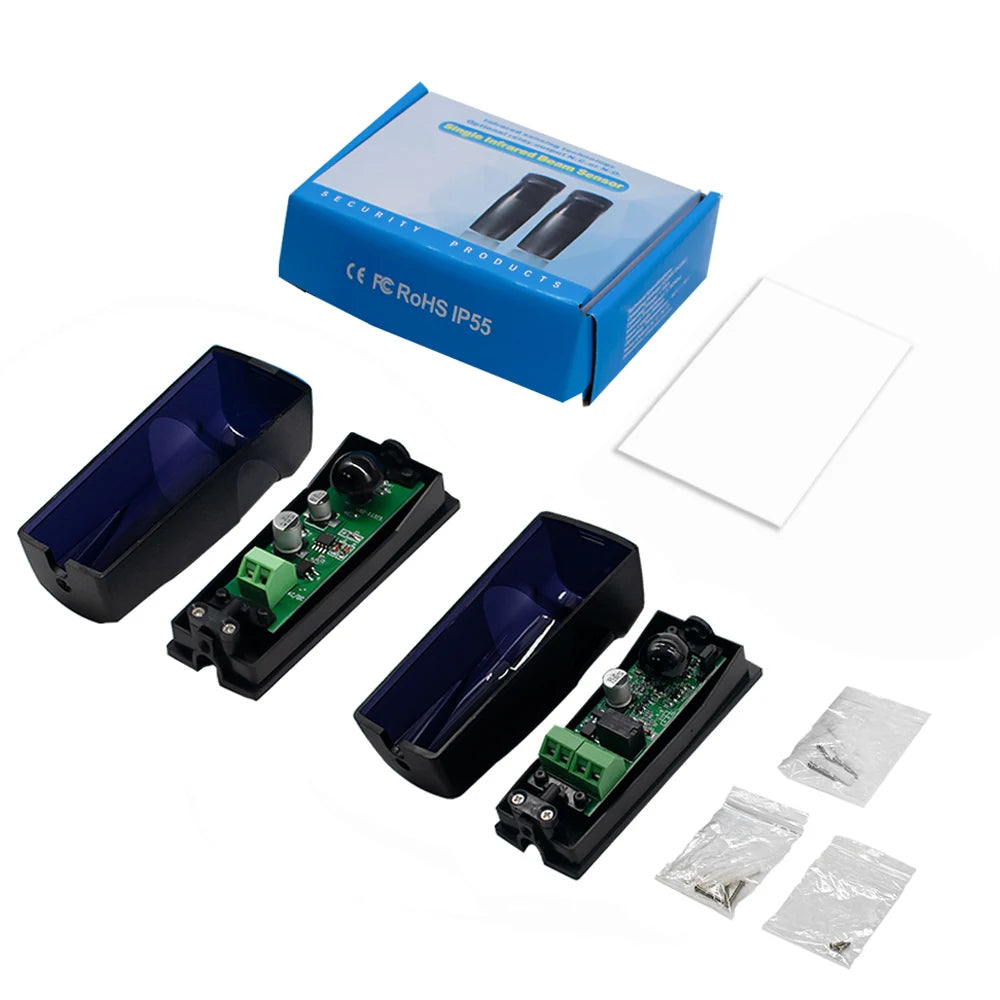

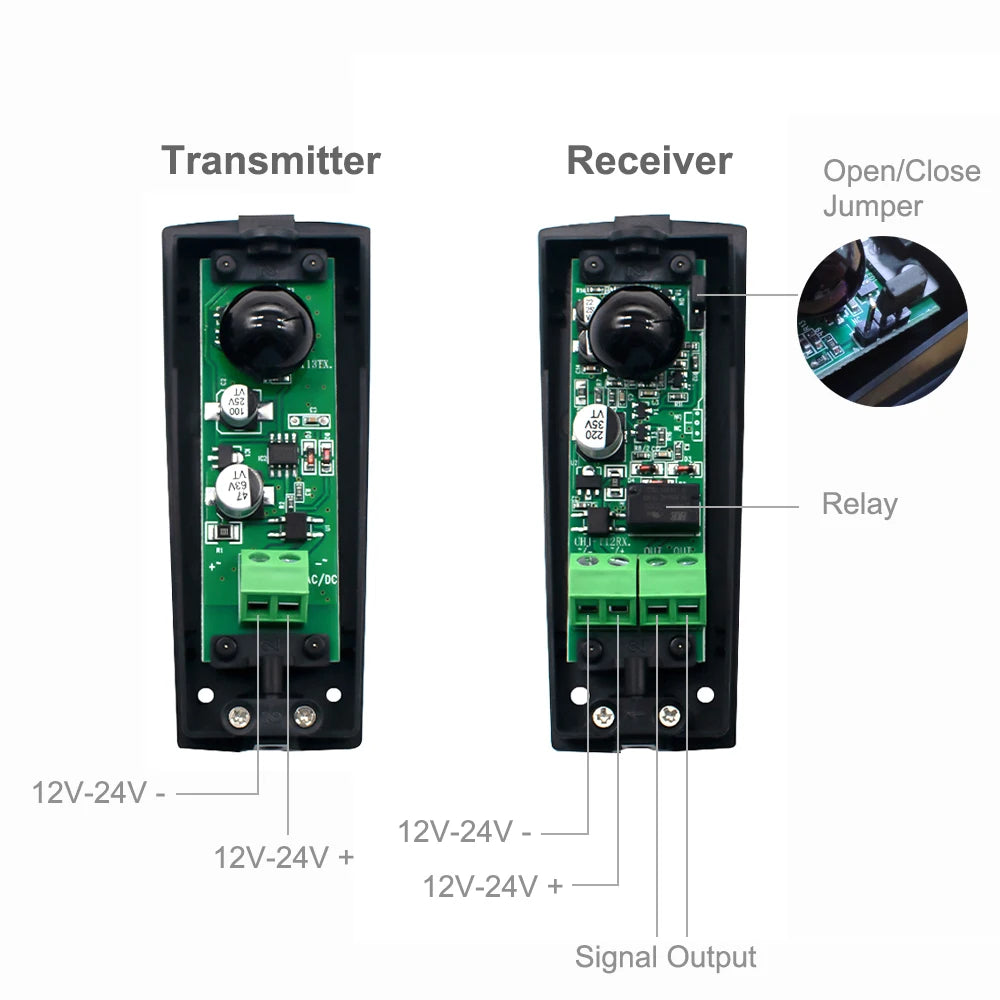

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

【Anti-interference】
Narrow infrared beam (I or II) can avoid interruption by external light

【Detection distance】
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

【self-detecting function】
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

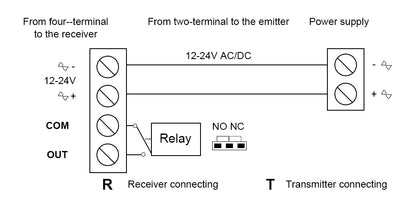

Installation:

The best Install height should bia in 20 cm.Install distance to be no smaller than 2 meters.lnstall shouldmake red outside the protection equip perpendicularity to place,and is on-line at same levelInstall should Install first to recelve part. Install blast off part again .When together at always line,receive the OFF light in the machine In order to put out, then fix,connect the line to Install completion namely.

Technical Specification

Rotation through 180*

Rotation through 180* llows the alignment of the photocells irespectiveof the way they are fixed to the base

Attention:

Because this product shoot power compare big,so when shoot machine with receive the machinedistance too near hour will appear have no the phenomenon of the reaction, at this time should drawback them one meter at least behind again try. When install dlstance very near, discover not intellgentphenomenon, can si oot anaiecelve medlum of the condensing lens remove,can Immedlately ralsean intelligent degree.
