SPECIFICATIONS

2.4g wi-fi transmission rate: 600Mbps

5G Wi-Fi Transmission Rate: 2167Mbps

Antenna: 9pcs Internal Antennas

Brand: ZBT & OEM

Button: 1 xReset/USB3.0

Chipset: MTK7981

Encryption Type: WPA2-PSK,WPA2,WPA-PSK,WPA

Flash: Nand Flash 128MB

Product name: 5G wifi 6 wireless router

RAM: 256MB

Sim card slot: 1*NANO sim card slot

Support 5G: Yes

Supports WDS: No

Supports WPS: No

WAN Ports: 1 x10/100/1000Mbps

WiFi Transmission Standard: WiFi 802.11 ax

Wireless Speed: 2.4GHz 600Mbps + 5GHz 2400Mbps

Wireless Standard: 802.11ax/ac/a/n/g/b

application: ENTERPRISE

function: FireWall,QoS,VPN,SDK available

lan ports: 4 x10/100/1000Mbps

max. lan data rate: 1000Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11a,Wi-Fi 802.11ax

type: Wireless

wifi supported frequency: 2.4G & 5G

wired transfer rate: 10/100/1000Mbps

with modem function: Yes

Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router

Main Features:

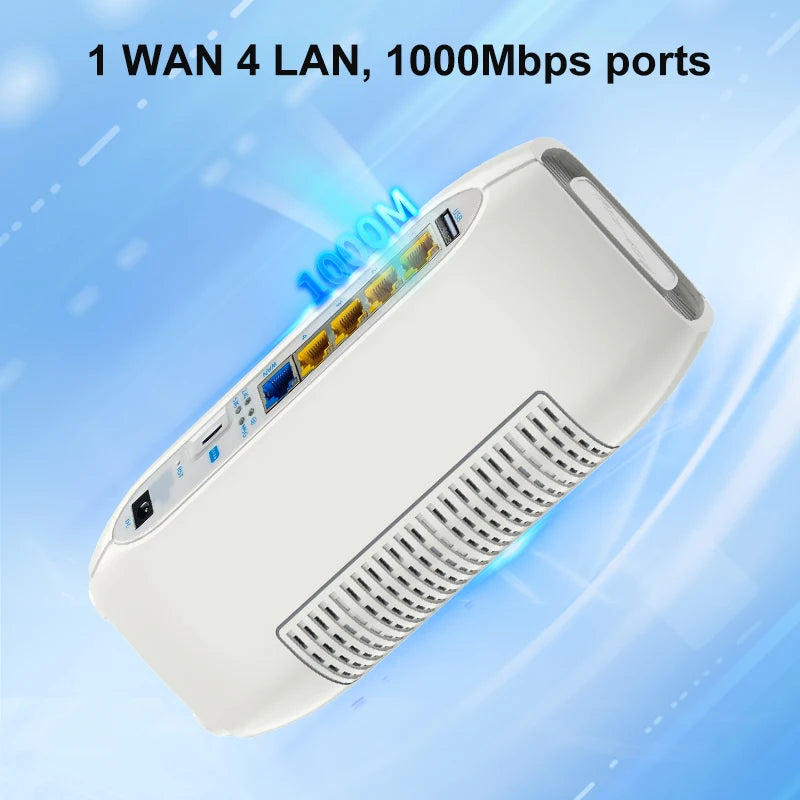

MT7981B with ARM Cortex-A53 dual-core CPU, 1.3Ghz main frequency; 1WAN+4LAN gigabit network port; Built-in M.2 interfaces for install 5G modem; External Nano SIM card; 9pcs detachable 5dBi antennas;

Specification

5G Cellular

①5G Chip: Qualcomm Snapdragon X62 Baseband

②5G Network: SA (Standalone) and NSA (Non-Standalone)

③5G NR NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79

④5G NR SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79

⑤5G Standards: 3GPP Rel-16 Technology

⑥5G SA Sub-6 Max Transmission Speed:DL 2.5 Gbps; UL 900 Mbps

⑦5G NSA Sub-6 Max Transmission Speed:DL 3.3 Gbps; UL 600 Mbps

4G LTE

①LTE Category:DL Cat 19/ UL Cat 18

②LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

③LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48

④LAA:B46 (only support 2 × 2 MIMO)

⑤MIMO: DL 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B38/B41/B42/B43/B48/B66

⑥WCDMA:B1/B2/B3/B4/B5/B6/B8/B19

⑦GNSS:GPS/GLONASS/BeiDou (Compass)/Galileo

⑧4G Transmission Speed:DL 1.6 Gbps; UL 200 Mbps

WiFi 6 Details

①Working Frequency: 2.4Ghz:600Mbps, 5.8Ghz:2400Mbps

②Modulation Method:1024-QAM / OFDMA

③Max Users: About 100 Clients

④WiFi Protocols:2.4Ghz:IEEE 802.11 B/G/N/AC/AX,5.8Ghz:802.11 A/AC/AX

⑤Antennas:2pcs 5dBi External Antennas for 2.4Ghz WiFi,3pcs 5dBi External Antennas for 5.8Ghz WiFi,4pcs 5dBi External Antennas for 5G Cellular

Data Network

① Mobile 4G 5G Cellular Connection (Support APN)

② Gigabit Network Ports

③MESH: WiFiSon Mesh Networking

④2.4Ghz/5.8Ghz WiFi

⑤VPN Passthrough and VPN Client (L2TP ,PPTP, OpenVPN etc)

⑥Webpage / APP/ Remote Mangement

⑦Recovery Mode Firmware Upgrade

⑧IPV4/IPV6

Hardware Specs

①Main Chip:MT7981B

②Memory:128MB Nand Flash+256MB DDR3 Ram

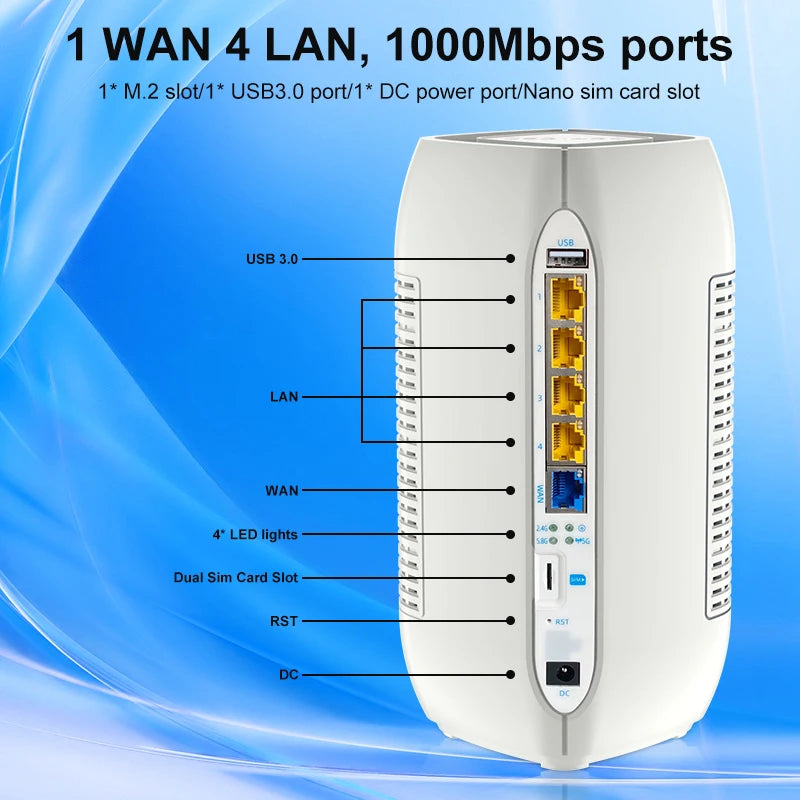

③Ethernet Ports: 1 *GE Wan Port, 4*GE Lan Ports

④Sim Card Slot: Nano Sim Card Slot

⑤Buttons:1*Reset Button,1*USB3.0

⑥DC Power Supply: DC 12V/3A

⑦Woking Temperature:0℃~40℃

⑧Power Consumption:<20W

Product Description

Packing & Delivery

1*Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router in gift box; 20*Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router in carton box;

Company Profile

Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District,Shenzhen,China. ZBT is a manufacturer which is consist of 300 staffs, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.

Certifications

Exhibition

FAQ

Can you printing Customer logo on products?
Yes, we can printing your logo on products.

Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
