SPECIFICATIONS

2.4g wi-fi transmission rate: None

5G Wi-Fi Transmission Rate: 900Mbps

Brand: KuWFi

Encryption Type: WPA2,WPA-PSK,WPA

Feature: Easy Set Up

Interface: RJ45 port

POE Power: 24V POE Power

Product name: PTP/PTMP Wireless Bridge

Supports WDS: No

Supports WPS: No

WAN Ports: 2 x10/100Mbps

Warranty: 3 Year

WiFi Transmission Standard: 802.11n

antenna: 12dBi Panel Antenna

application: Outdoor

function: FireWall,SDK available

lan ports: 2

max. lan data rate: 900Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

shell: ABS shell

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n

type: Wireless

wifi distance: 2KM

wifi supported frequency: 5 G

wired transfer rate: 10/100Mbps

with modem function: No

Specification

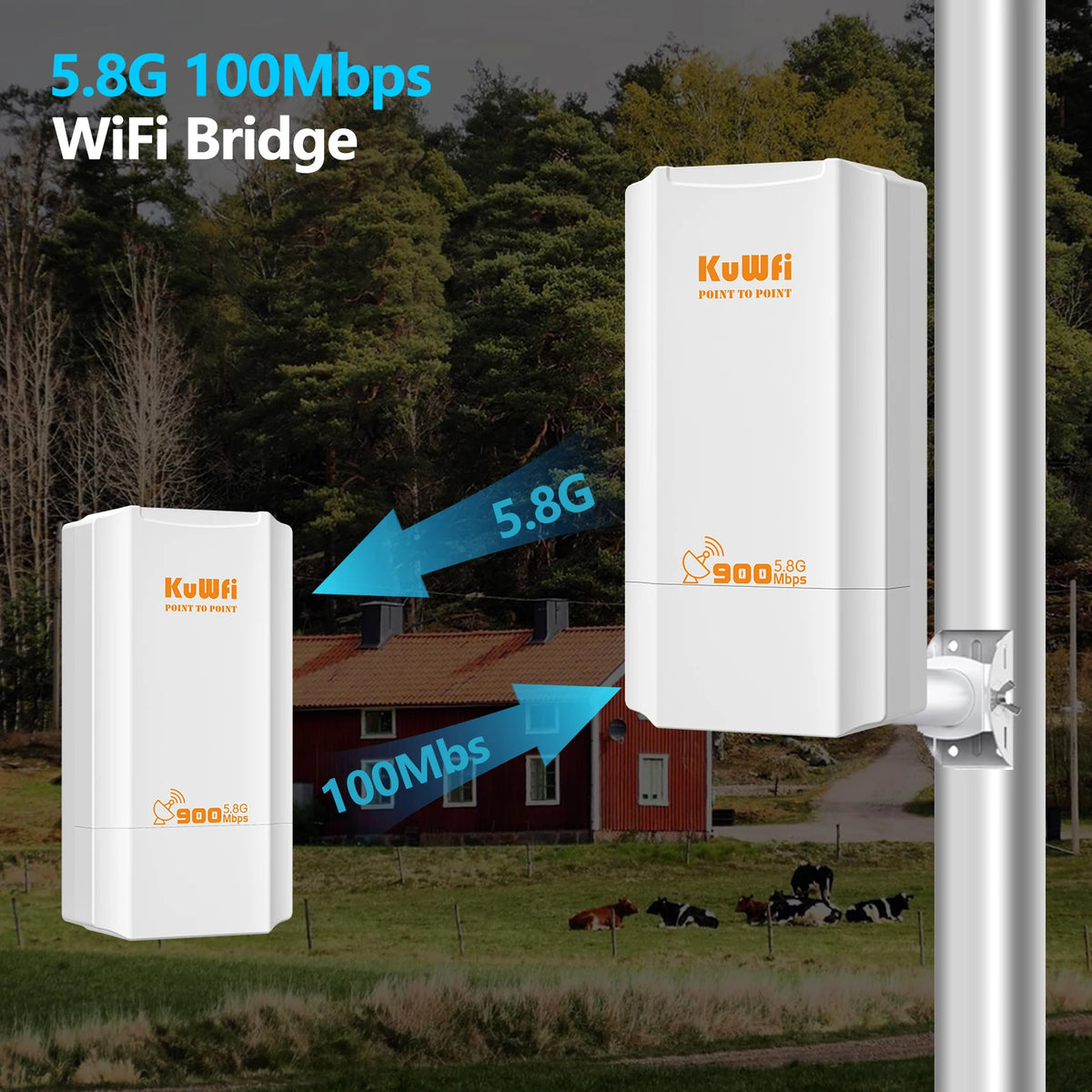

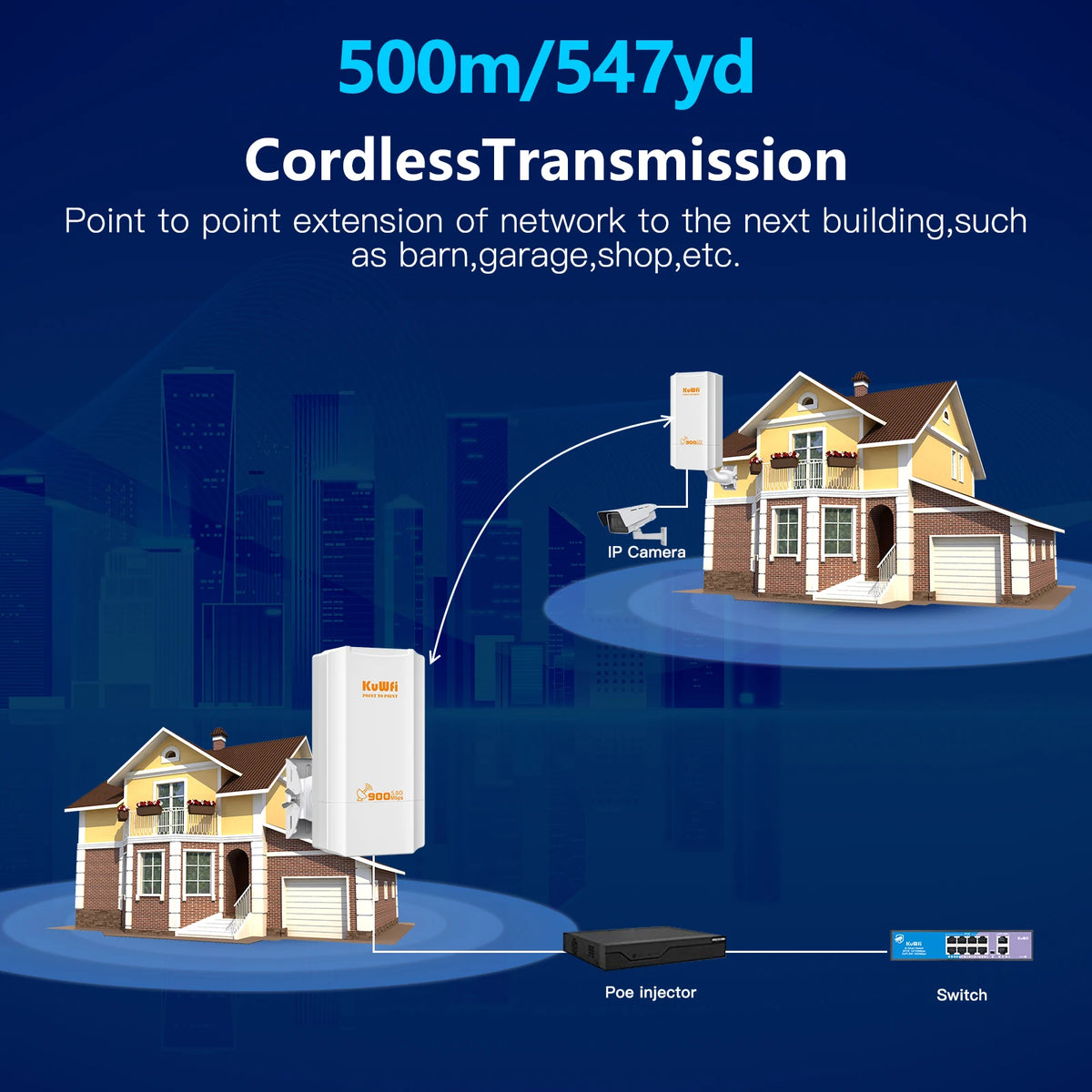

wireless bridg for outdoor use, extend 2km wireless network

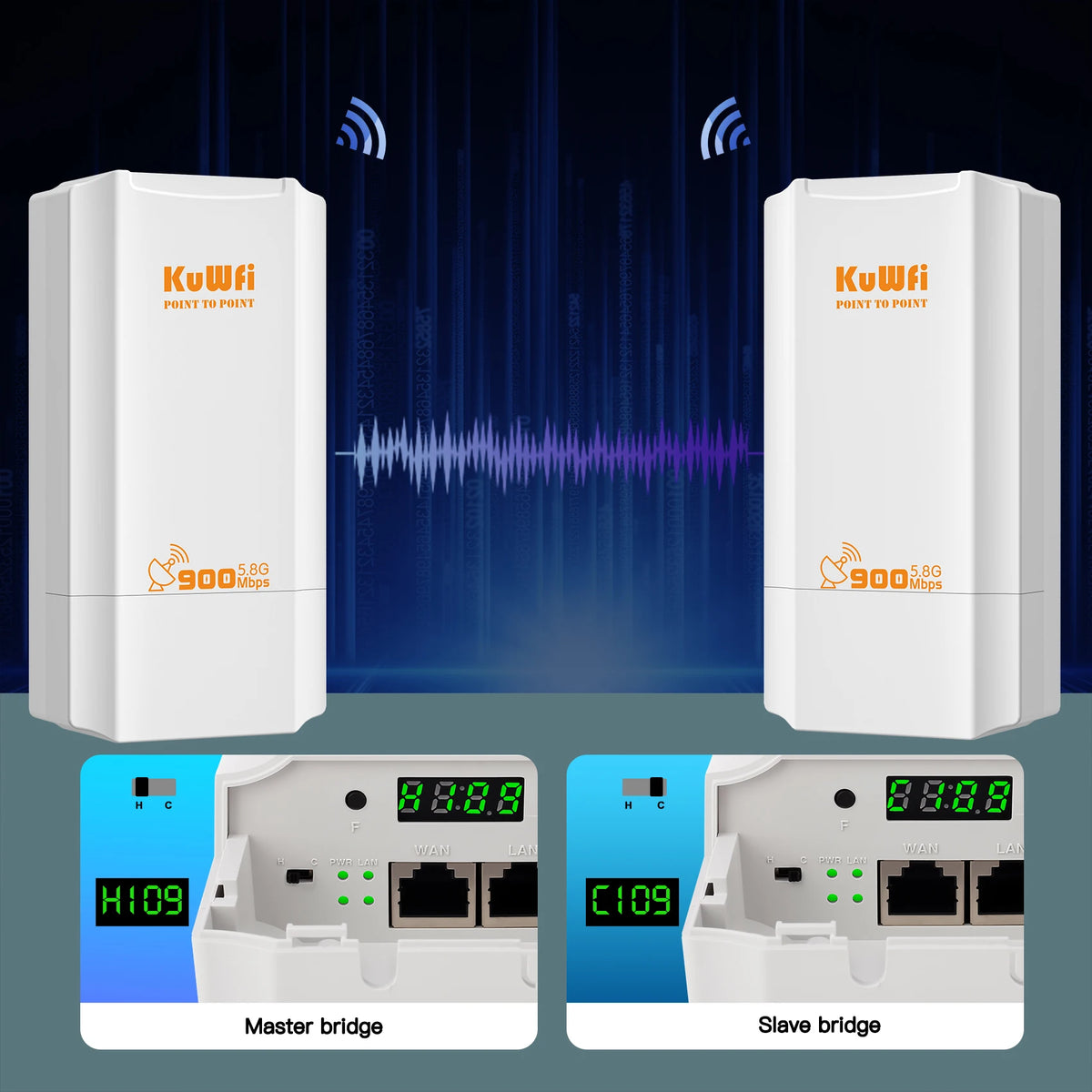

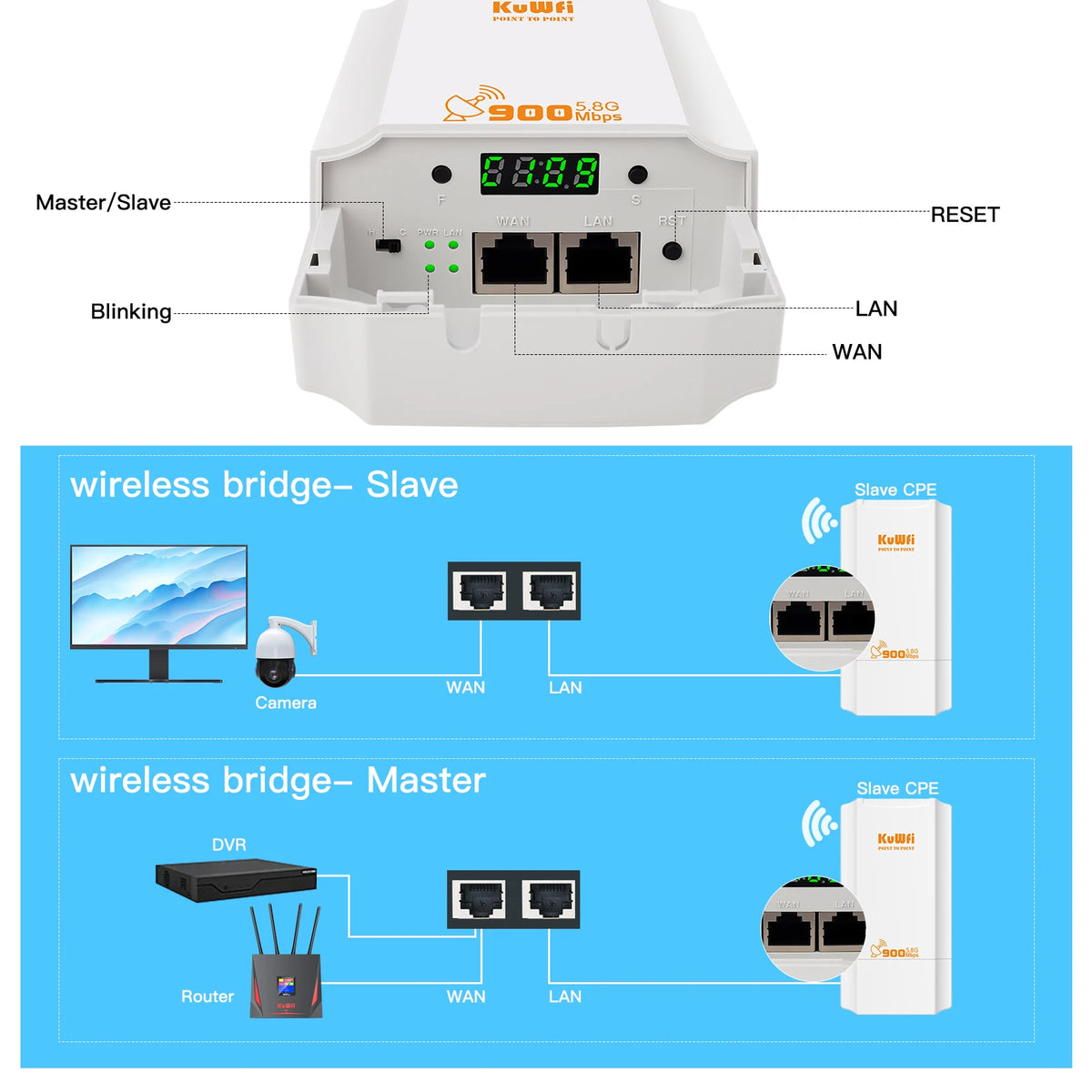

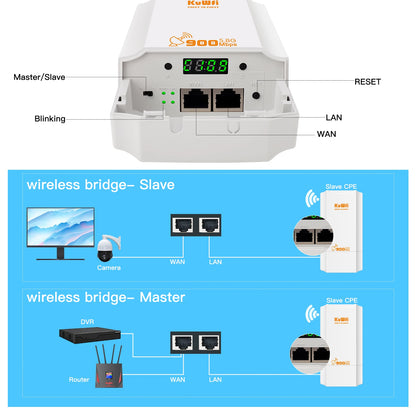

1.outdoor bridge router produce 5.8G 900Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display to configure the PTP/PTMP connection 2.outside wifi repeater have built-in 8dBi MIMO panel antenna(embedded) ,High Gain Antenna for More wifi coverage Range 3.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃ 5.Multi-Mode - Support Wireless AP, Repeater operation mode - Support SSID broadcasting - Support DHCP serverNetwork Security

Product Name	2KM PTP/PTMP Wireless Bridge For WiFi Transmission
Hardware:
Chipset	Media Tek: MT7628DAN+MT7613AE
Wireless	IEEE 802.11 a / n /ac, 2T2R 900M MIMO Technology
Memory	64MB RAM
Flash	8MB

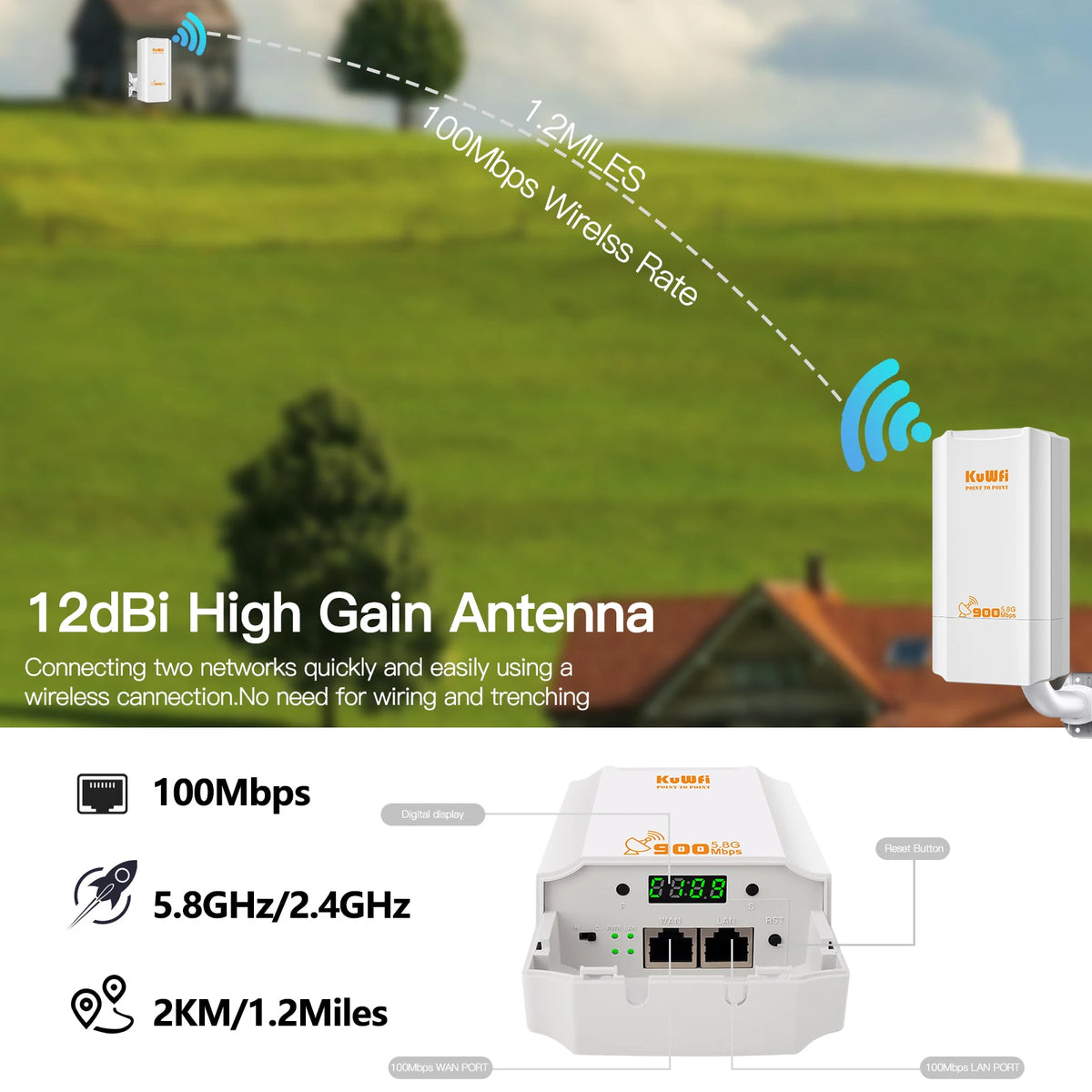

Antenna	12dBi Panel Antenna
LED Light	Sys(System), WAN, LAN, Wi-Fi
Power	POE 24V/0.5A
Waterproof Level	IP65
ESD Protection Standard	Contact Discharge: ±6KV; Air Discharge: ±8KV
Surge Protection Standard	Common mode:±2KV; Differential mode:±1KV (Optional: Common mode:±4KV; Differential mode:±2KV)
RF Data
RF Data	802.11b/g/n/ac
		5.150GHz～5.850GHz
Data Rate	900Mbps
RF Power	802.11a	54M	17±2dBm	6M	19±2dBm
		802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
		802.11n HT40	MCS7	15±2dBm	MCS0	17±2dBm
		802.11AC	MCS9	14±2dBm	MCS0	16±2dBm
Receive Sensitivity	802.11a	54M	-68dBm	6M	-86dBm
		802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
		802.11n HT40	MCS7	-65dBm	MCS0	-83dBm
		802.11AC	MCS9	-55dBm	MCS0	-73dBm
EVM	802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB

Brand & Logo Information

1. This product is 100% brand authentic and comes with original brand logo/label/packaging (Support Custom LOGO，DDP Support).

2. All items are shipped from our US local warehouse with fast delivery.

3. Strict quality control ensured by KuWFi

Note:

Product images/description are for reference. Actual item includes official branding as stated.
