SPECIFICATIONS

2.4g wi-fi transmission rate: 600Mbps

5G Wi-Fi Transmission Rate: 2167Mbps

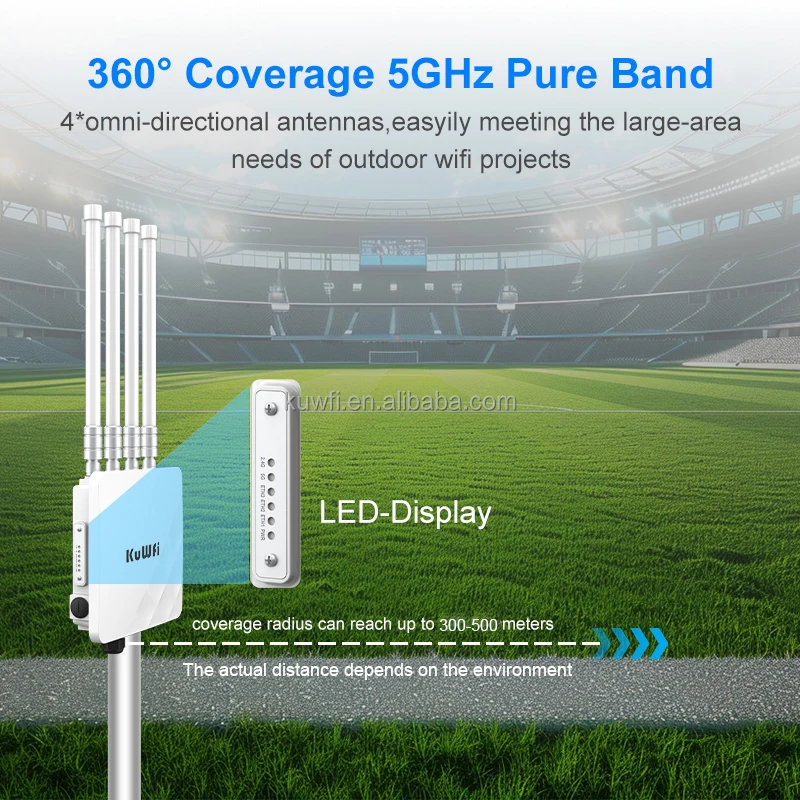

Antenna: omnidirectional 8dBi antenna

Brand: KuWFi

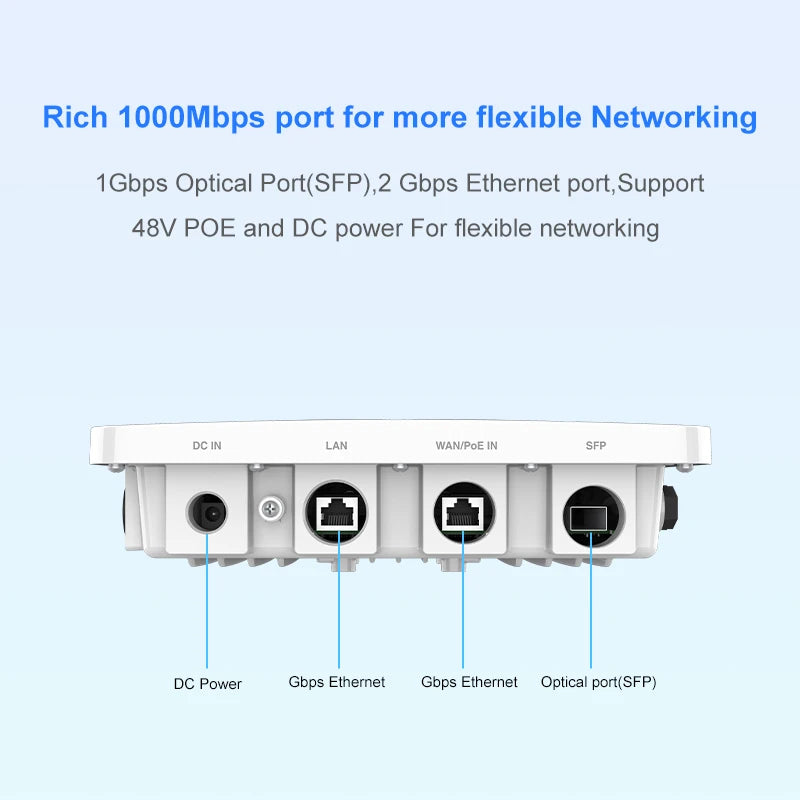

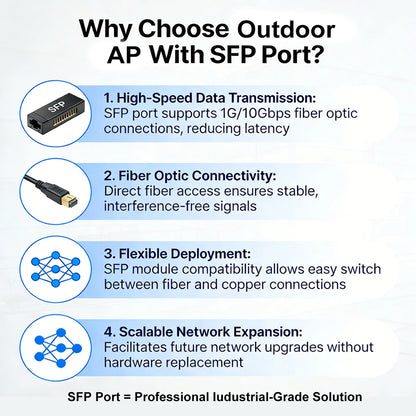

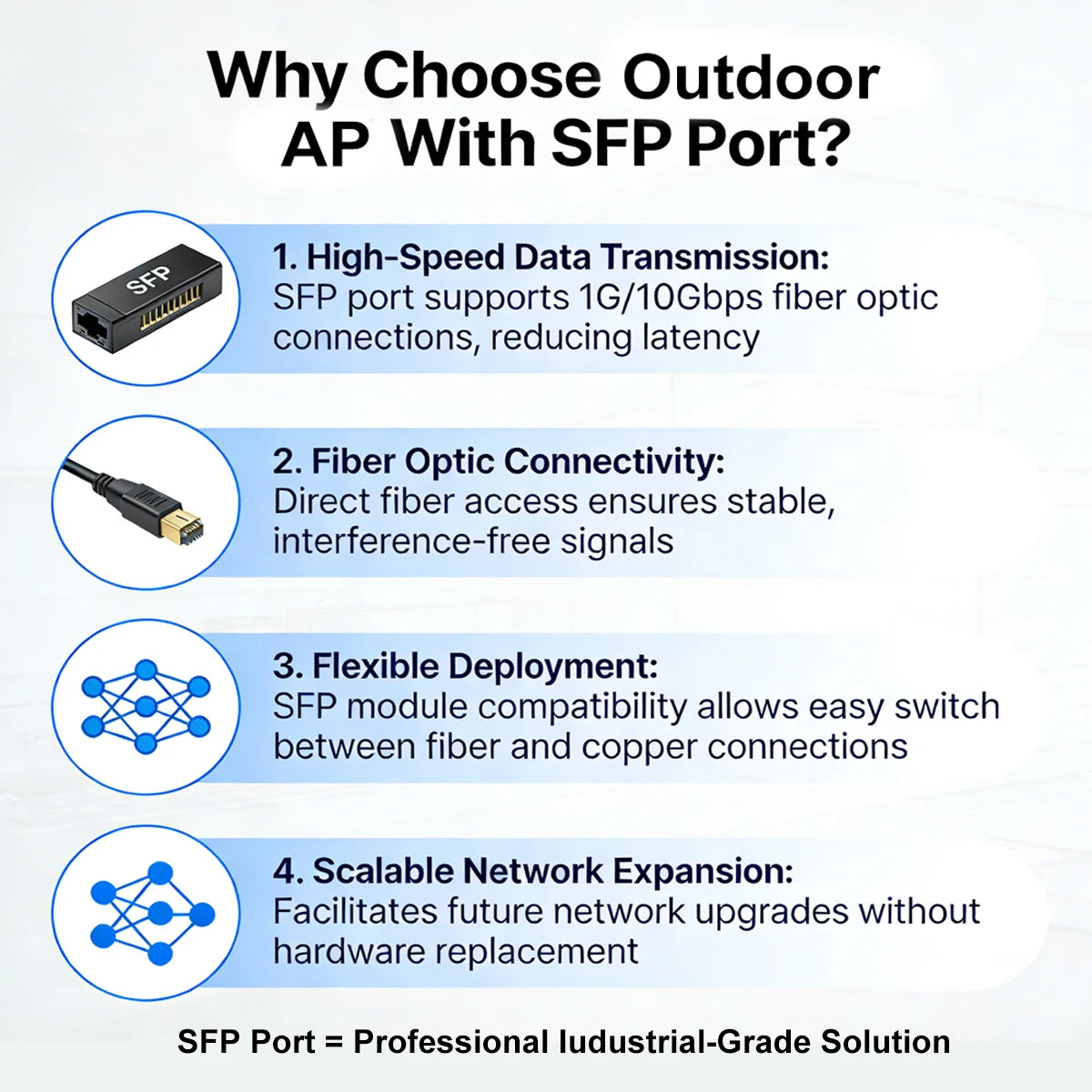

DC: 1 *1G SFP / 12V/2A

Encryption Type: WPA2-Enterprise,WPA-Enterprise,WPA2-Personal,WPA-Personal

Flash: 8MB+128MB

Lightning Level: Common mode: 6KV; Differential mode 2KV

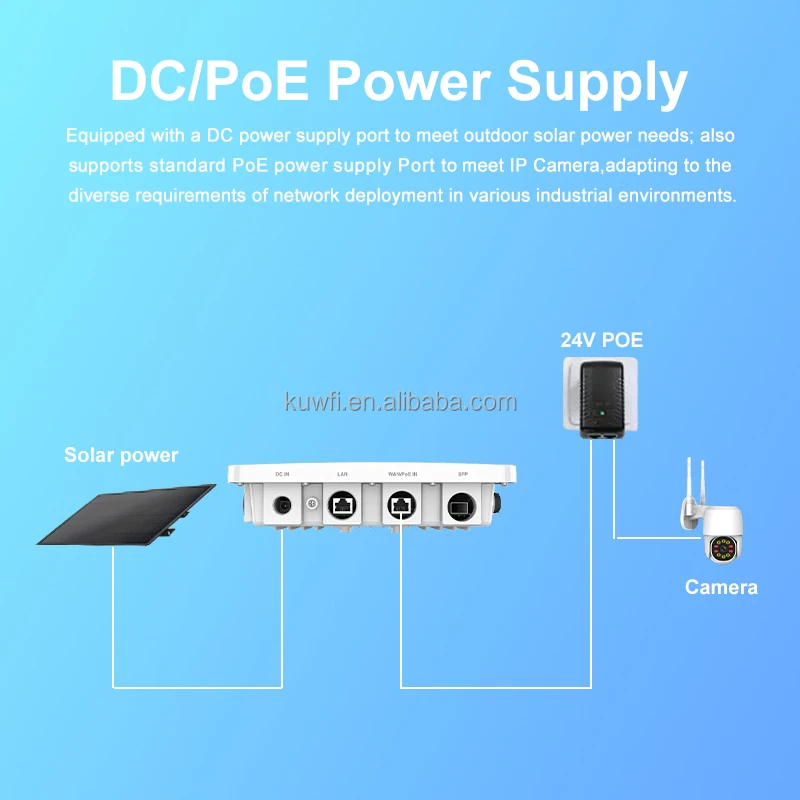

Power supply: 48v(POE) or 12v DC

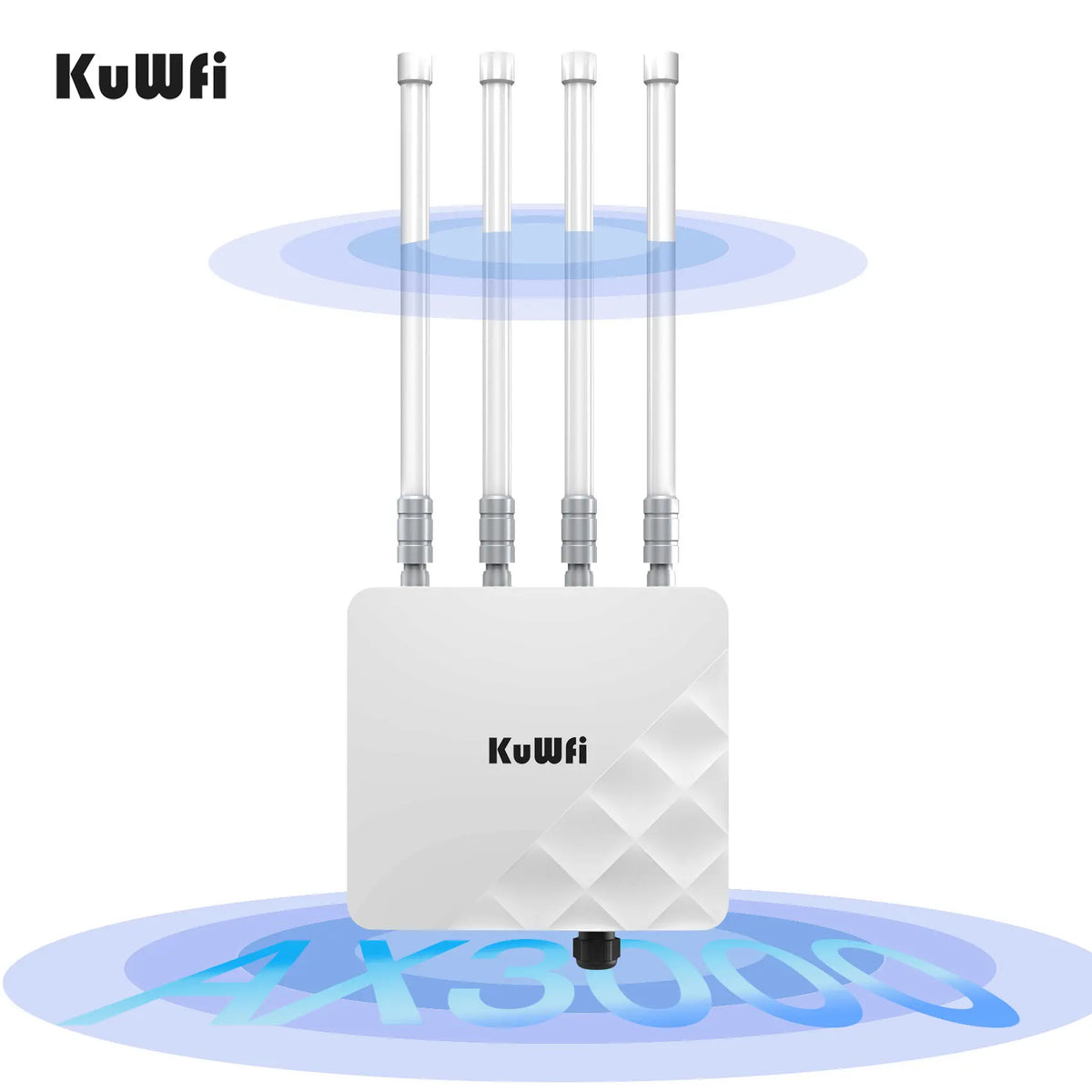

Product name: dual band wifi access point

Supports WDS: No

Supports WPS: Yes

WAN Ports: 1 x10/100/1000Mbps

Warranty: 3Years

Water-proof Level: IP67

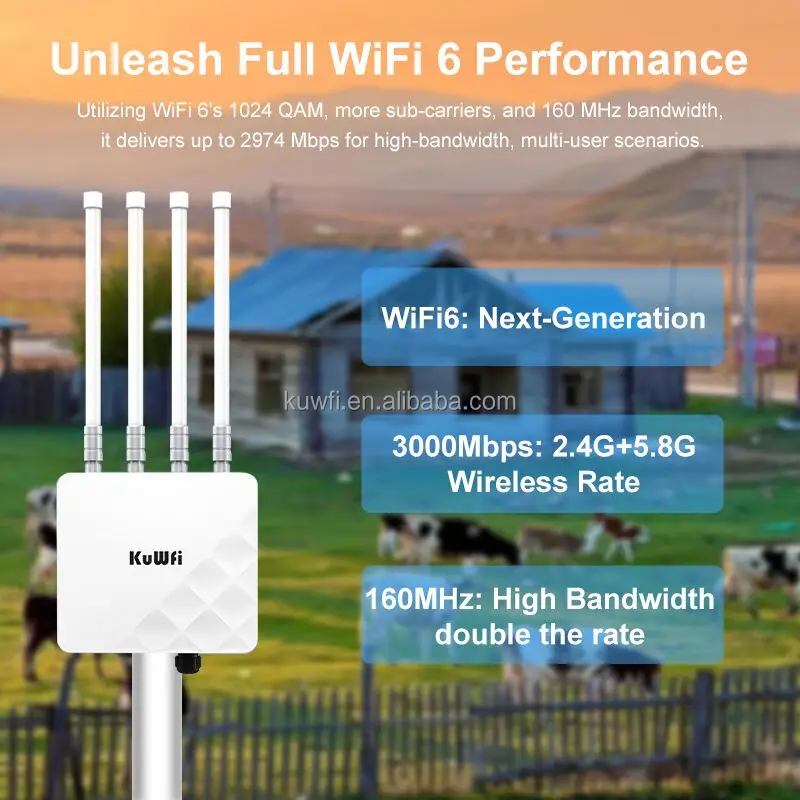

WiFi Transmission Standard: WIFI 6,WiFi 802.11 ax

application: Outdoor

function: FireWall

lan ports: 1

max. lan data rate: 3000Mbps

place of origin: guangdong

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,WIFI 6,Wi-Fi 802.11ax

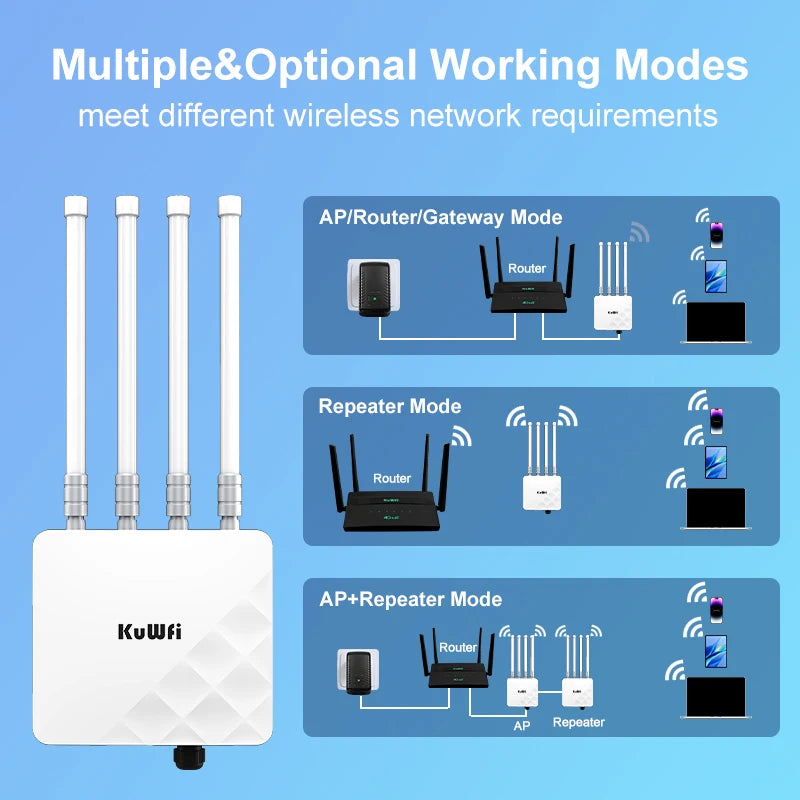

support: AP, Gateway,Working Mode

type: Wireless

users: Max: 256,

wifi supported frequency: 2.4G & 5G

wired transfer rate: 10/100/1000Mbps

with modem function: No

Specification

product Name	Outdoor WiFi7 wireless ap for wifi coverage
CPU	MT7987+MT7990+MT7976CN
Flash	SPI NAND 128MB
DDR4	512MB
Antenna	2 × external dual-band (2.4GHz/5GHz) waterproof antennas: 6dBi
2.4GHz tx power	802.11b	11M	24±2dBm	1M	24±2dBm
		802.11g	54M	22±2dBm	6M	24±2dBm
		802.11n HT20	MCS7	22±2dBm	MCS0	24±2dBm
		802.11n HT40	MCS7	22±2dBm	MCS0	24±2dBm
		802.11ax HE20	MCS11	20±2dBm	MCS0	24±2dBm
		802.11ax HE40	MCS11	20±2dBm	MCS0	24±2dBm
		802.11be EHT20	MCS13	20±2dBm	MCS0	24±2dBm
		802.11be EHT40	MCS13	20±2dBm	MCS0	24±2dBm
5GHz tx power	802.11a	54M	21±2dBm	6M	23±2dBm
		802.11n HT20	MCS7	20±2dBm	MCS0	23±2dBm
		802.11n HT40	MCS7	20±2dBm	MCS0	23±2dBm
		802.11ac VHT20	MCS7	19±2dBm	MCS0	23±2dBm
		802.11ac VHT40	MCS7	19±2dBm	MCS0	23±2dBm
		802.11ac VHT80	MCS9	19±2dBm	MCS0	23±2dBm
		802.11ax HE20	MCS11	18±2dBm	MCS0	23±2dBm
		802.11ax HE40	MCS11	18±2dBm	MCS0	23±2dBm
		802.11ax HE80	MCS11	18±2dBm	MCS0	23±2dBm
		802.11ax HE160	MCS11	18±2dBm	MCS0	23±2dBm
		802.11be EHT20	MCS13	18±2dBm	MCS0	23±2dBm
		802.11be EHT40	MCS13	18±2dBm	MCS0	23±2dBm
		802.11be EHT80	MCS13	18±2dBm	MCS0	23±2dBm
		802.11be EHT160	MCS13	18±2dBm	MCS0	23±2dBm
2.4GHz Receiving sensitivity	802.11b	11M	-89dBm	1M	-95dBm
		802.11g	54M	-75dBm	6M	-92dBm
		802.11n HT20	MCS7	-72dBm	MCS0	-88dBm
		802.11n HT40	MCS7	-70dBm	MCS0	-86dBm
		802.11ax HE20	MCS11	-62dBm	MCS0	-88dBm
		802.11ax HE40	MCS11	-60dBm	MCS0	-86dBm
		802.11be EHT20	MCS13	-60dBm	MCS0	-86dBm
		802.11be EHT40	MCS13	-60dBm	MCS0	-86dBm
5GHz Receiving sensitivity	802.11a	54M	-75dBm	6M	-92dBm
		802.11n HT20	MCS7	-72dBm	MCS0	-88dBm
		802.11n HT40	MCS7	-70dBm	MCS0	-86dBm
		802.11ac VHT20	MCS7	-65dBm	MCS0	-88dBm
		802.11ac VHT40	MCS7	-62dBm	MCS0	-86dBm
		802.11ac VHT80	MCS9	-60dBm	MCS0	-84dBm
		802.11ax HE20	MCS11	-60dBm	MCS0	-90dBm
		802.11ax HE40	MCS11	-58dBm	MCS0	-88dBm
		802.11ax HE80	MCS11	-54dBm	MCS0	-84dBm
		802.11ax HE160	MCS11	-54dBm	MCS0	-82dBm
		802.11be EHT20	MCS13	-54dBm	MCS0	-86dBm
		802.11be EHT40	MCS13	-52dBm	MCS0	-84dBm
		802.11be EHT80	MCS13	-50dBm	MCS0	-82dBm
		802.11be EHT160	MCS13	-48dBm	MCS0	-80dBm
	2.4GHz EVM	802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB; 802.11be: ≤-38 dB
ppm	±20ppm
WAN	1*10/100/1000/2500Mbps WAN, support 802.3at
LAN	1*10/100/1000Mbps LAN
Power supply	PoE 802.3at，DC2.0 12V/2A

Brand & Logo Information:
1. This product is 100% brand authentic and comes with original brand logo/label/packaging (Support Custom LOGO，DDP Support).
2. All items are shipped from our US local warehouse with fast delivery.
3. Strict quality control ensured by KuWFi
Note:
Product images/description are for reference. Actual item includes official branding as stated.
