SPECIFICATIONS

2.4g wi-fi transmission rate: None

5G Wi-Fi Transmission Rate: 900Mbps

Brand: KuWFi

Encryption Type: WPA2,WPA-PSK,WPA

Feature: Easy Set Up

Interface: RJ45 port

Operation Mode: AP, Repeater Mode

POE Power: 48V PoE power

Product name: PTP/PTMP Wireless Bridge

Support: OEM ODM

Supports WDS: No

Supports WPS: No

WAN Ports: 2 x10/100/1000Mbps

Warranty: 3 Year

WiFi Transmission Standard: 802.11n

antenna: 17dBi Panel Antenna

application: Outdoor

function: FireWall,SDK available

lan ports: 2

max. lan data rate: 900Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

shell: ABS shell

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n

type: Wireless

wifi distance: 10KM

wifi supported frequency: 5 G

wired transfer rate: 10/100/1000Mbps

with modem function: No

Specification

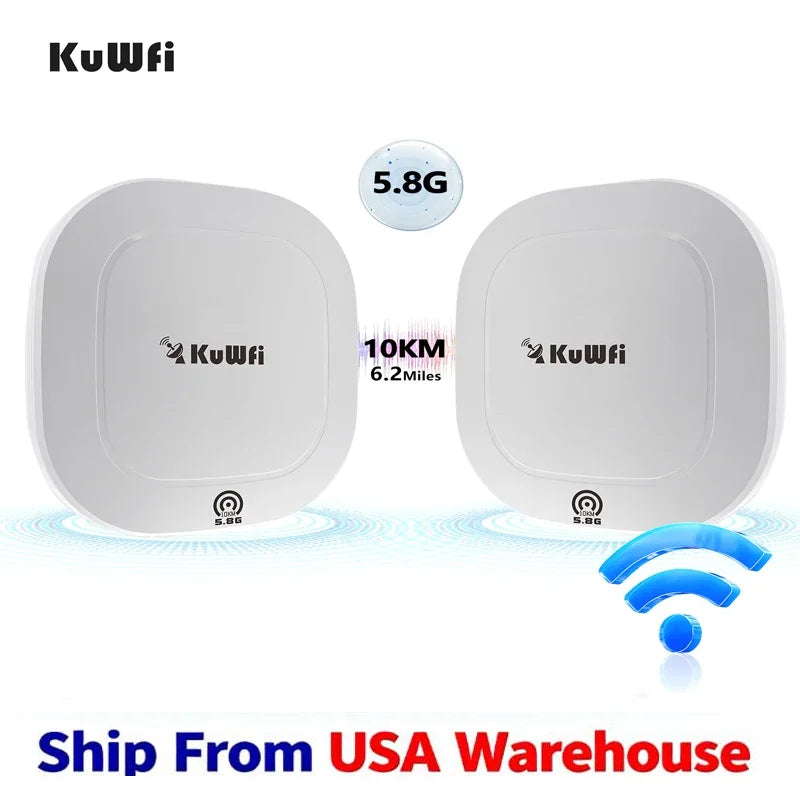

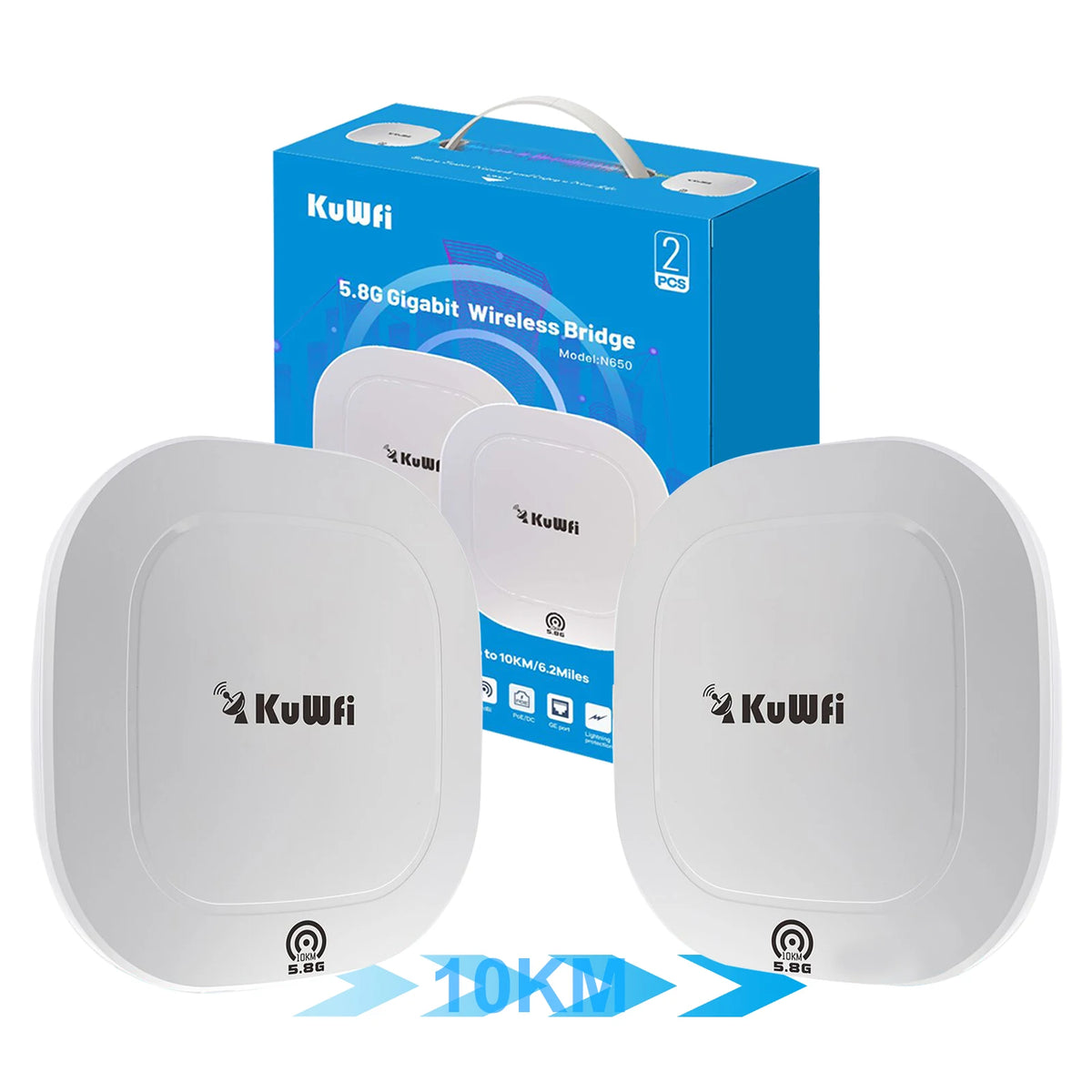

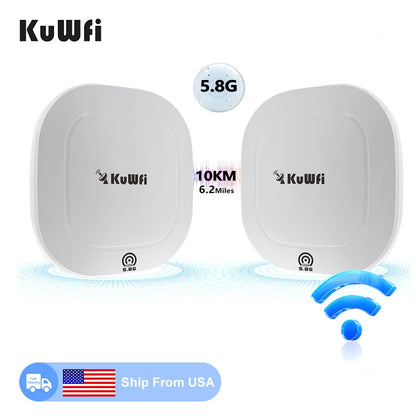

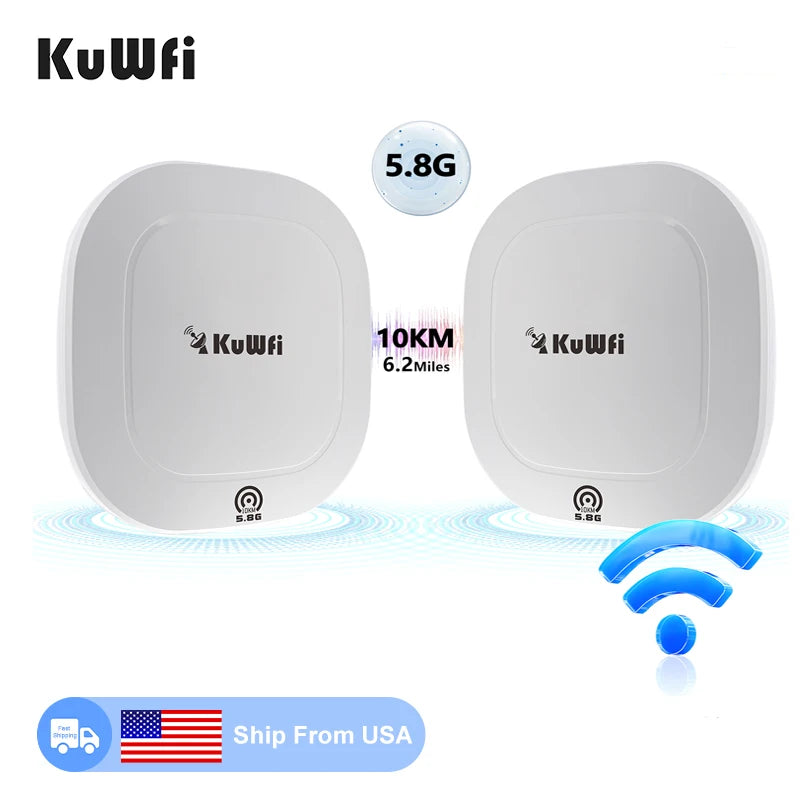

Product Name	5.8G 900M 10KM Outdoor Wireless Bridge For wifi transmission
Hardware specifications
Wireless technology	5.8G WiFi 2 * 2 (2 streams) MU-MIMO 802.11a/n/ac Wave 2 (theoretical maximum rate up to 867Mbps) Tx BF Beamforming can focus the wireless signal in a specific direction to enhance the signal transmission and receiving effect
Device interface	W AN PoE * 1 / LAN * 1 10 / 100 / 1000M b ps adaptive DC DC power interface, suitable for power plug with 5.5mm inner diameter 2.1mm and 9.5mm length
Antenna	Built-in dual-polarization 17dBi directional plate antenna (horizontal lobe angle 20°, vertical lobe angle 20°)
Source	48V 802.3af / at PoE power supply, D C 12V / 1A.5
Operating / storage temperature	-40℃～55℃/-40℃～70℃
Working / storage humidity	10%~90% (non-condensation) / 5%~90% (non-condensation)
W iFi Wireless specifications
Frequency range	5G: UNII-1: 5.15~5.35GHz UNII -2: 5.47~5.725GH z U NII-3: 5.725~5.825GH z
Channel distribution	5G: 36、40、44、48、52、60、64、100、104、108、112、116、120、124、128、132、136、140、149、153、157、161、165
Modulation mode	802.11a : OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac : OFDM (BPSK, QPSK,64-QAM, 256-QAM)
Propagation velocity	11a maximum of 54M bps, 11n maximum of 300M bps, 11ac with a maximum of 867M b ps
Receiving sensitivity	11a ：＜-86±1.5dBm @6Mbps， ＜-69±1.5dBm @54Mbps 11n 20MHz：＜-85±1.5dBm@MCS0， ＜-67±1.5dBm @MCS7 11n 40MHz：＜-82±1.5dBm @MCS0， ＜-64±1.5dBm @MCS7 11a c 20MHz ：＜-84±1.5dBm @MCS0， ＜-59±1.5dBm @MCS 8 11a c 40MHz ：＜-82±1.5dBm @MCS0， ＜-56±1.5dBm @MCS 9 11a c 80MHz ：＜-78±1.5dBm @MCS0， ＜-52±1.5dBm @MCS 9
Transmitting power	11b: 25dBm±1.5dBm@11Mbps 11g: 23dBm±1.5dBm@54Mbps 11n (20/40MH z ): 20dBm±1.5dBm@MCS7 11ac(40/80MH z ): 20dBm±1.5dBm@MCS 9

Brand & Logo Information

1. This product is 100% brand authentic and comes with original brand logo/label/packaging (Support Custom LOGO，DDP Support).

2. All items are shipped from our US local warehouse with fast delivery.

3. Strict quality control ensured by KuWFi

Note:

Product images/description are for reference. Actual item includes official branding as stated.
