Vertical CNC Engraving Machine Frame Kit CNC 3040 3 Axis 4 Axis 5 Axis Column Type DIY CNC Milling Machine Lathe Body
Vertical CNC Engraving Machine Frame Kit CNC 3040 3 Axis 4 Axis 5 Axis Column Type DIY CNC Milling Machine Lathe Body
SPECIFICATIONS
After Warranty Service: Video technical support/Spare parts
After-sales Service Provided: Online support
Certification: CE
Marketing Type: Ordinary Product
No. of Spindles: NONE
Working Table Size(mm): 300*400
brand name: LY
cnc or not: CNC
core components: Gearbox,Motor
dimension(l*w*h): 520(H)X660(L)X580(W) mm
key selling points: High-Accuracy
machine type: CNC Router
machinery test report: Not Available
number of axes: 5
place of origin: Guangdong, China
positioning accuracy (mm): 0.03 mm
repeatability (x/y/z) (mm): 0.03 mm
travel (x axis)(mm): 300 mm
travel (y axis)(mm): 400 mm
video outgoing-inspection: Provided
voltage: 110/220V
warranty: 1 Year
weight (kg): 85
Note:
The link is a multi model product. Please choose you need model;
If the details are incomplete or not in conformity with the model you purchased, please use the manual in kind, thank you!

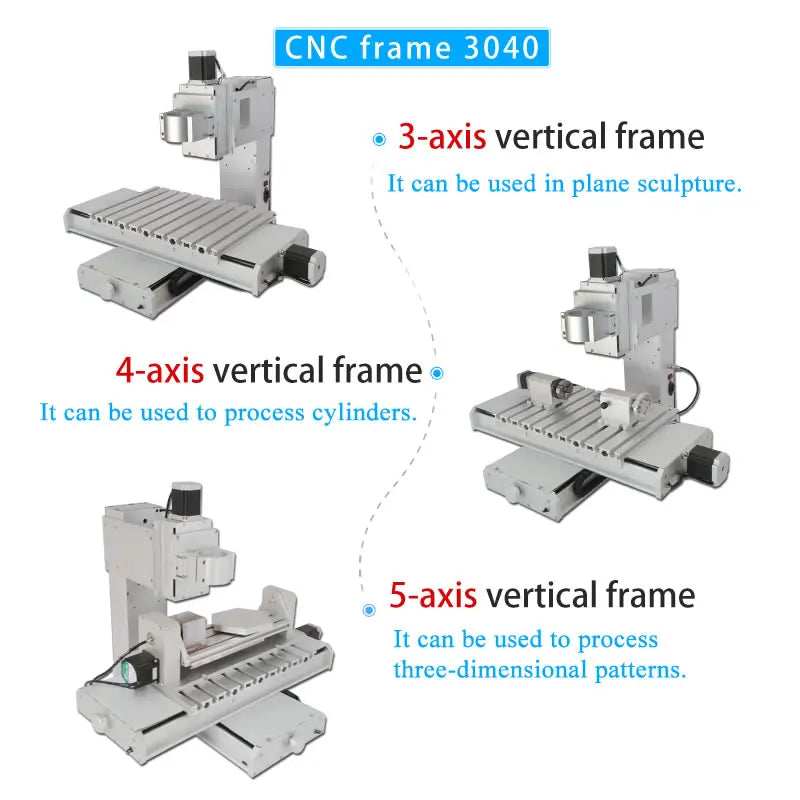

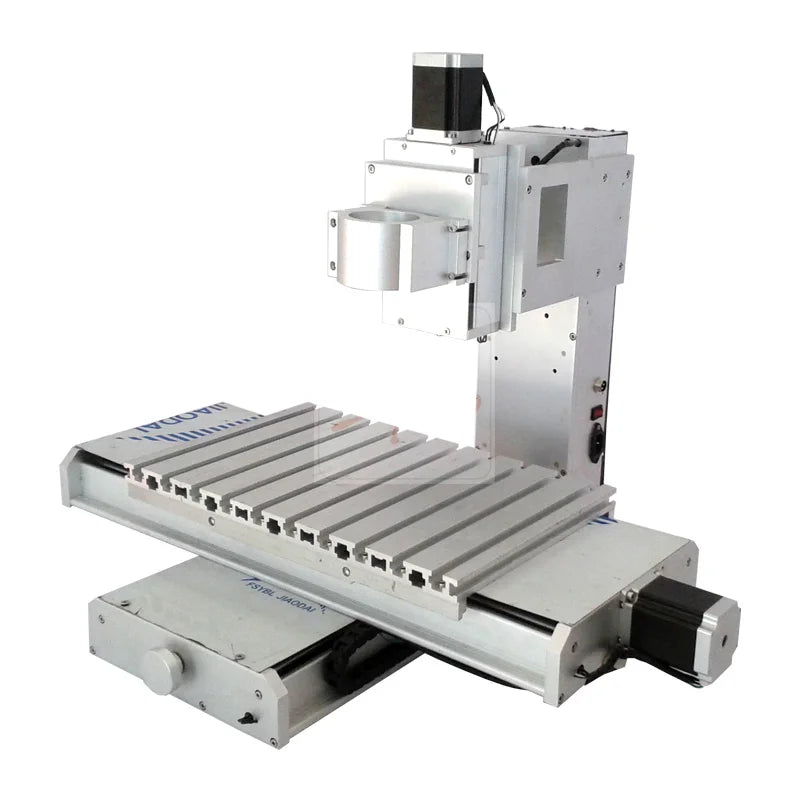

3axis frame-------without 4th axis , without 5th axis, about 75KG

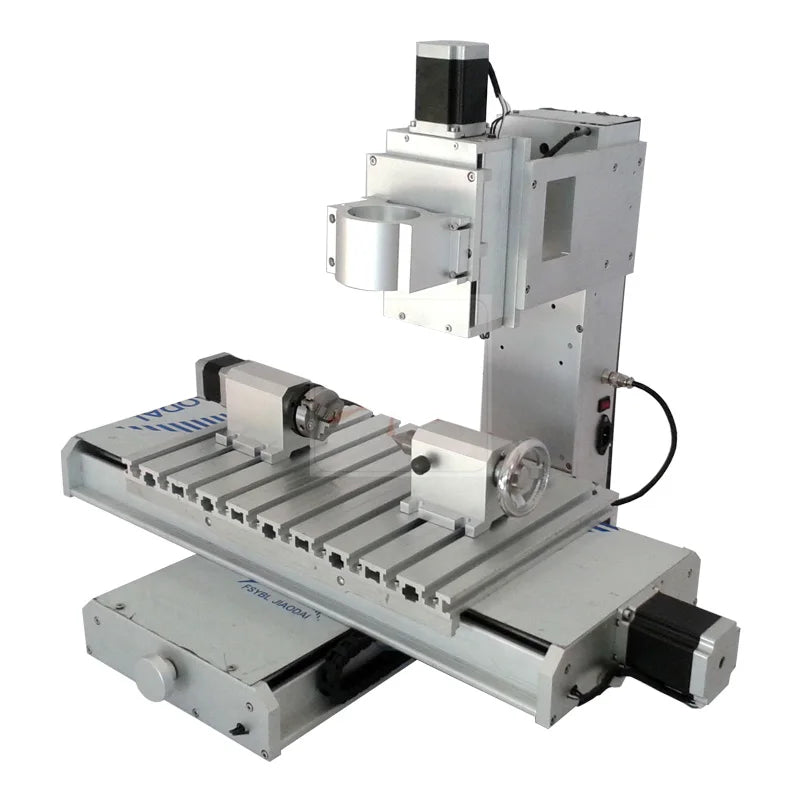

4axis frame-------with 4th axis , but without 5th axis, about 80KG

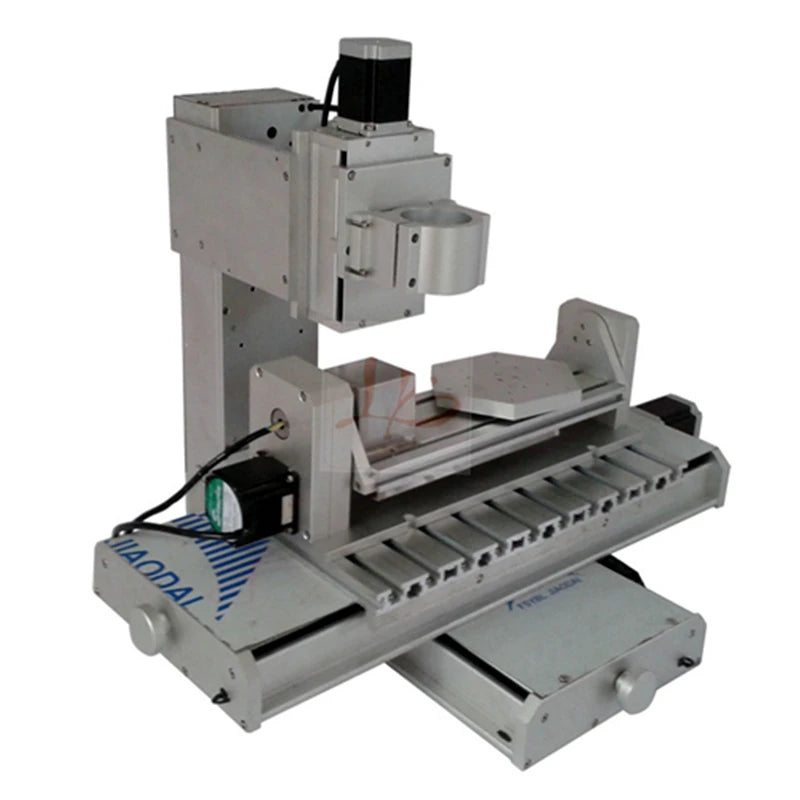

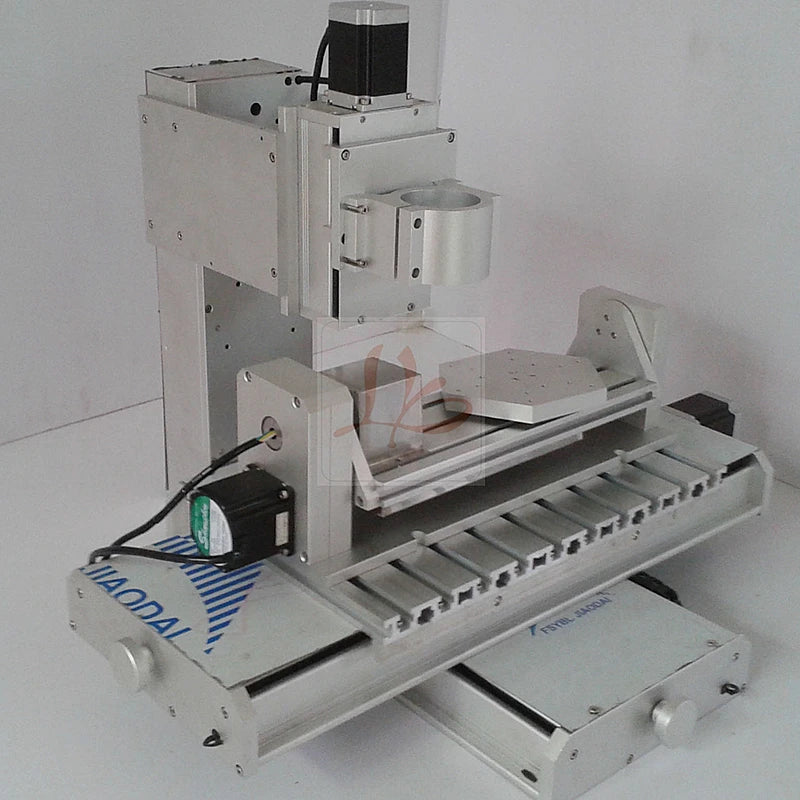

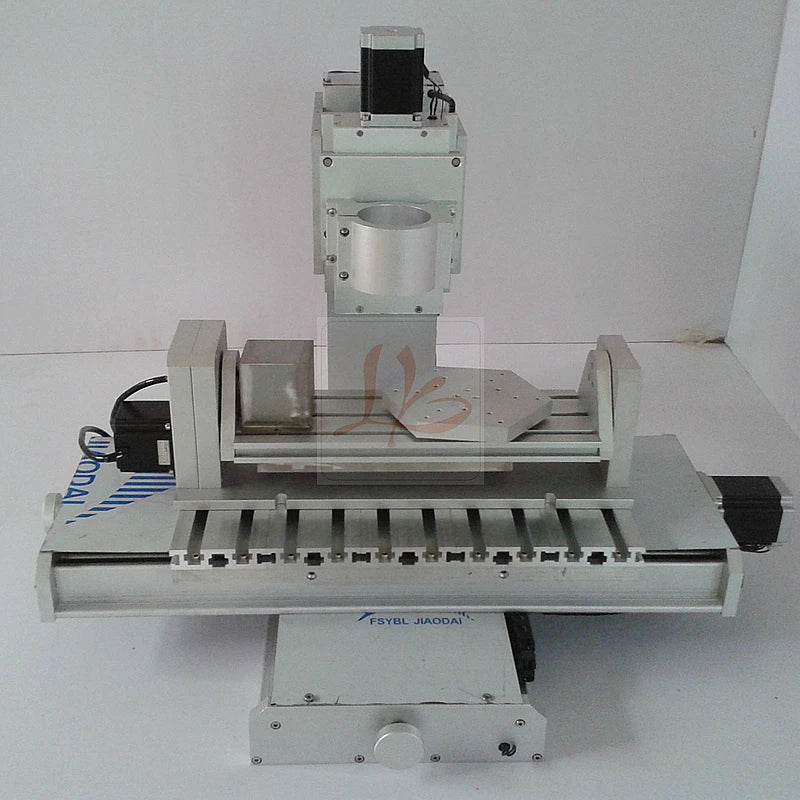

5axis frame-------without 4th axis , with 5th axis, about 85KG
Introduction
|
Model |
Column type 3040 CNC frame |
||
|
Attribute |
3axis |
4axis |
5axis |
|
X Y Z axis |
√ |
√ |
√ |
|
A axis (4th axis) |
X |
√ |
X |
|
B axis (5th axis) |
X |
X |
√ |
|
Net Weight |
40KG |
45KG |
50KG |
|
Gross Weight |
60kg |
65KG |
70KG |
|
Product Dimention |
520(H)X660(L)X580(W) mm |
||
|
Effective work area |
300x400x(150)mm |
||
|
Precision ball screw |
1605 |
||
|
XYZ rail material |
Hard chrome shaft |
||
|
XY rail diameter |
20mm |
||
|
Z rail diameter |
16mm |
||
|
XYZ axis torque |
57*78 250 OZ/IN (2.2N/CM) |
||
|
4th and 5th |
57*56 |
||
|
4th and 5th transmission ratio |
1:6 |
||
|
Repeat positioning accuracy |
0.01mm |
||
|
Working precision |
0.02mm |
||
|
XY table maximum load |
50kg |
||
|
XY+A+B axis table maximum load |
15kg |
||
|
Tailgate material |
Stainless steel |
||
|
Drive motor |
57*78 stepper motors (two-phase 4 wire) |
||
|
Outside packing |
80*70*85 (cm) |
||
